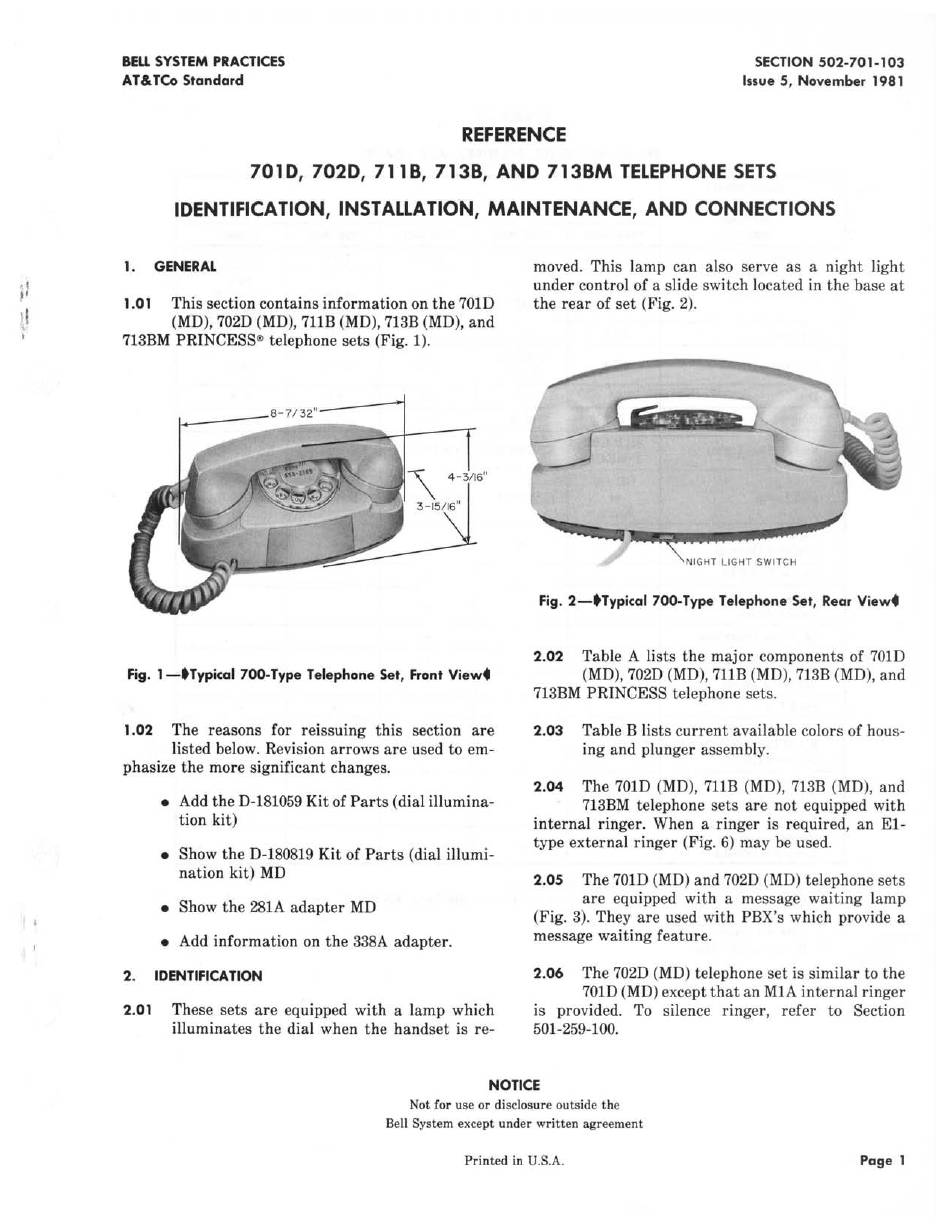

BEU SYSTEM PRACTICES
AT & TCo Standard
SECTION 502-701 - 103
Issue 5, November 1981
REFERENCE
701D, 702D, 7118, 7138, AND 7138M TELEPHONE SETS
IDENTIFICATION, INSTALLATION, MAINTENANCE, AND CONNECTIONS
1. GENERAL
1.01
This section contains information on the 701D
(MD), 702D (MD), 711B (MD), 713B (MD), and
713BM PRINCESS® telephone sets (Fig. 1).
Fig. 1- tlypical 700-Type Telephone Set, Front View.
1.02
The reasons for reissuing this section are
listed below. Revision arrows are used to em-
phasize the more significant changes.
• Add the D-181059 Kit of Parts (dial illumina-
tion kit)
• Show the D-180819 Kit of Parts (dial illumi-
nation kit) MD
• Show the 281A adapter MD
• Add information on the 338A adapter.
2. IDENTIFICATION
2.01
These sets are equipped with a lamp which
illuminates the dial when the handset is re-
moved. This lamp can also serve as a night light
under control of a slide switch located in the base at
the rear of set (Fig. 2).
LIGHT SWITCH
Fig. 2 - .Typical 700-Type Telephone Set, Rear View.
2.02
Table A lists the major components of 701D
(MD), 702D (MD), 711B (MD), 713B (MD), and
713BM PRINCESS telephone sets.
2.03
Table B lists current available colors of hous-
ing and plunger assembly.
2.04
The 701D (MD), 711B (MD), 713B (MD), and
713BM telephone sets are not equipped with
internal ringer. When a ringer is required, an El-
type external ringer (Fig. 6) may be used.
2.05
The 701D (MD) and 702D (MD) telephone sets
are equipped with a message waiting lamp
(Fig. 3). They are used with PBX's which provide a
message waiting feature.
2.06
The 702D (MD) telephone set is similar to the
701D (MD) except that an MlA internal ringer
is provided. To silence ringer, refer to Section
501-259-100.
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Page 1
