Ranch Hand RSC15MC1B4S Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
1 Driver / left running board
1 Passenger / right running board
16 Screw, M8 x 1.25" x 30
16 Flat washer, 5/16"
16 U-nut, M8 x 1.25"
16 Lock washer, M8
Tools Required
Ratchet Torque wrench
Socket, 13mm Level
Flathead screwdriver --
Torque Specifications
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
RANCHHAND.COM
• PRODUCT SUPPORT: 877.287.8634

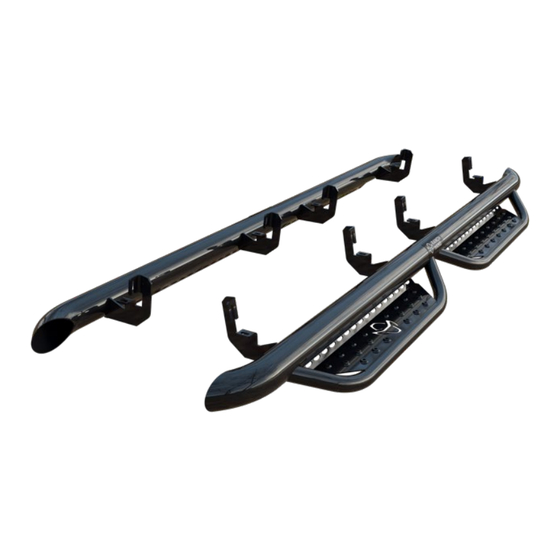

Product Photo
NOTICE
Visit www.ranchhand.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
Ranch Hand stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• RSC15MC1B4S-INS-RA
RSC15MC1B4S
• 02/27/2024 • ECN11476 • PAGE 1
Rear
Front
