Manual

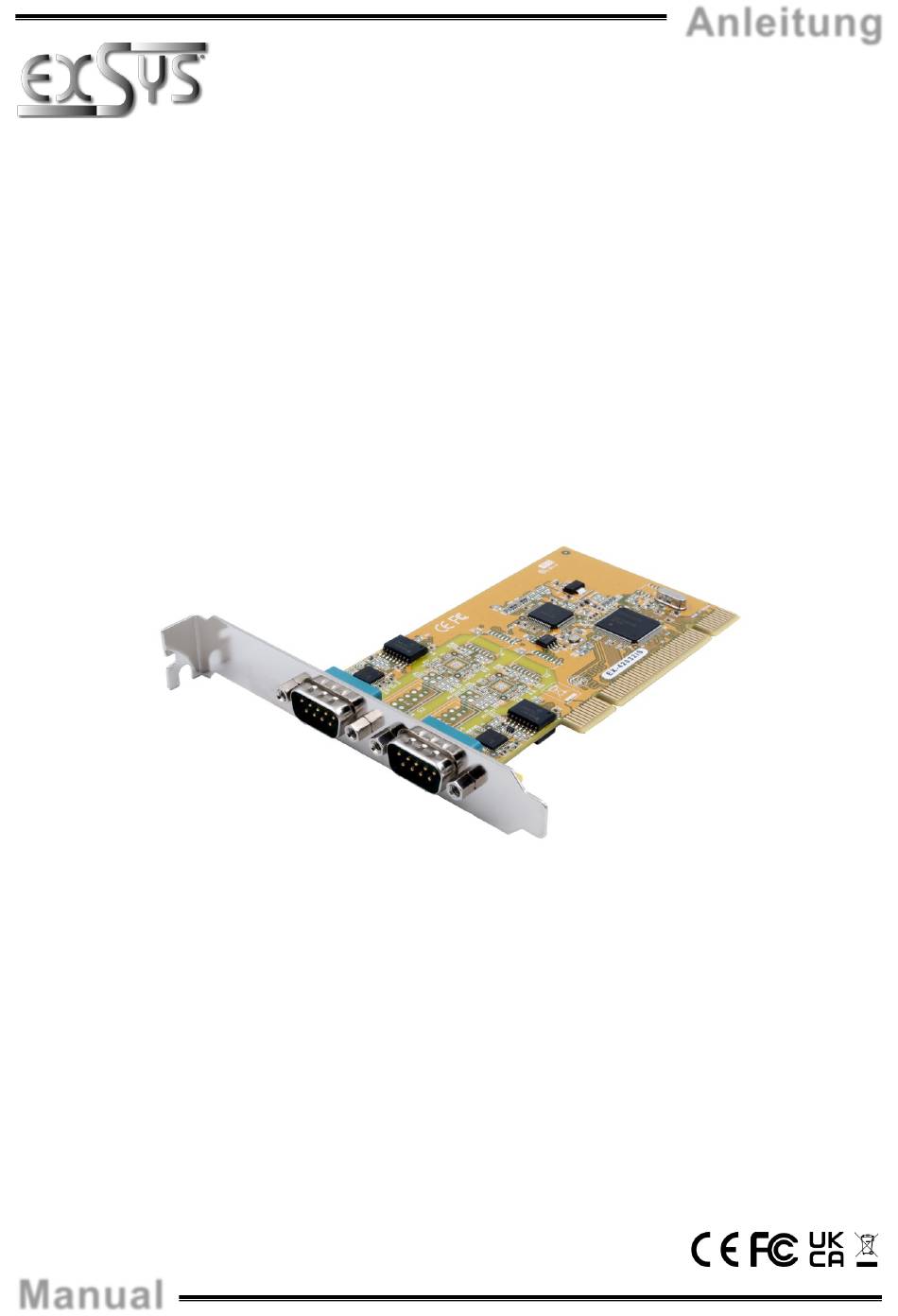

EX-45032IS

RS-232/422/485 PCI-Express Karte

mit 2x 9 Pin Anschluss

Überspannungsschutz & Isolierung

RS-232/422/485 PCI-Express Card

with 2x 9 Pin Connector

Surge Protection & Isolation

Schweiz:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Anleitung

Vers. 1.1 / 23.08.24

Italia:

EXSYS Italia Srl

Via Belvedere, 45/B

I-22100 Como

www.exsys.it

Need help?

Do you have a question about the EX-45032IS and is the answer not in the manual?

Questions and answers

Summary of Contents for Exsys EX-45032IS

Page 1 2x 9 Pin Anschluss Überspannungsschutz & Isolierung RS-232/422/485 PCI-Express Card with 2x 9 Pin Connector Surge Protection & Isolation Deutschland: Schweiz: Italia: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl Industriestraße 8 Dübendorfstrasse 17 Via Belvedere, 45/B 61449 Steinbach 8602 Wangen I-22100 Como www.exsys.de...
Page 2 Extent of Delivery ······························································································ 12 Layout and Connections ················································································ 13-14 Layout ······················································································································· 13 Connections ·········································································································· 13-14 Switch Settings ···························································································· 14-17 Hardware Installation ·························································································· 18 Driver Installation ·························································································· 18-20 Technical Information ························································································· 20 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 3 Deutsch 1. Beschreibung Die EX-45032IS PCIe I/O Karte stellt zwei serielle RS-232, 422 und 485 High Performance UART 16C550 Ausgänge mit 15KV ESD Überspannungsschutz und 2.5KV Isolation zur Verfügung. Sie wurde entwickelt um zwei weitere serielle Ports für PC, Workstation oder Server über den PCIe Bus u erweitern.
Page 5 3 GND 4. Switch Einstellungen Es gibt zwei 8-Pin DIP-Schalter auf der Rückseite der Platine der EX-45032IS. Für jeden Port gibt es einen separaten DIP-Schalter. Die 8-Pin DIP-Schalter sind für den Mode (RS-232, RS-422, RS- 485 2-Draht oder RS-485 4-Draht) und die Terminierung der Signale RX+, RX-, TX+ und TX- zuständig (siehe Bild auf Seite 6).
Page 6 EX-45032IS 4. Switch Einstellungen Mode & Terminator Switch (S1 & S2_Mode) Modes RS-232 RS-422 RS-485 2-Draht RS-485 4-Draht Port 1 Port 2 Resistoren Off Resistoren On Terminator Off Terminator On © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 8 Deutsch EX-45032IS 4. Switch Einstellungen Terminator für RS-422, RS-485 2-Draht und RS-485 4-Draht Mode: RS-485 2-Draht Mode RS-422 und RS-485 4-Draht Mode © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 9 Sie das „SETUP“ welches sich im Ordner „uPD720201_202“ befindet (siehe Abbil- dung): Folgen Sie den Installationsanweisungen und schließen Sie die Installation ab. Wichtig! Starten Sie Ihren PC nach der Installation neu. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 10 ÄNDERN DER PORT NUMMER Sie können auch die Port Nummer ändern, indem Sie im Gerätemanager z.B. „COM3“ „Anschlusseinstellung“ und „Erweitert“ öffnen. Nun können Sie dann zwischen COM3 bis COM256 wählen! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 11 Linux/ Mac OS Betriebstemperatur: 0° bis 55° Celsius Lagertemperatur: -40° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: 5V über PCI-Express Slot Abmessung: 112,30 x 120,00 mm Gewicht: 200g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 12 RS-232, RS-422, RS-485 2-wire and RS-485 4-wire • 15KV ESD Surge Protection & 2.5KV Isolation 2. Extent of Delivery Before you install the EX-45032IS in your PC, you should first check the contents of the delivery: • EX-45032IS • Driver CD •...
Page 14 3 GND 4. Switch Settings There are two 8-pin DIP-switches on the backside of the board at the EX-45032IS. For each port there is a separate DIP-switch. The 8-pin DIP-switches are for the modes (RS-232, RS-422, RS- 485 2-wire or RS-485 4-wire) and for the signal termination for RX+, RX-, TX+ and TX- (see picture on page 15).
Page 15 English 4. Switch Settings Mode & Terminator Switch (S1 & S2_Mode) Modes RS-232 RS-422 RS-485 2-wire RS-485 4-wire Port 1 Port 2 Resistor Off Resistor On Terminator Off Terminator On © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 17 EX-45032IS English 4. Switch Settings Termination for RS-422, RS-485 2-wire and RS-485 4-wire mode: RS-485 2-wire mode RS-422 and RS-485 4-wire mode © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 18 Because there are large differences between PC’s, we can give you only a general installation guide for the EX-45032IS. Please refer to your computer’s reference manual whenever in doubt. 1. Turn off the power to your computer and any other connected peripherals.
Page 19 If you like to change the port number for example COM3 to COM5, open the „Device Manager” click at „COM3”, „Settings” and then „Advance”. There you can change between COM3 till COM256. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
Page 20 Linux/ Mac OS Operating Temperature: 32°F to 55°Fahrenheit Storage Temperature: -40°F to 167°Fahrenheit Rel. Humidity: 5% to 95% Power: 5V via PCI-Express Slot Size: 112,30 x 120,00 mm Weight: 200g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
