RS-232 Isolator and Surge Protector
DB9-Male Pin Assignment:
DB9(USB Adapter)
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
6. Specifications
Type
Specifications
Connectors
DB9 Female, DB9 Male
Number of Ports
1 RS232
RS232 Signals
TXD, RXD, GND
Baud Rate
Up to 921.6Kbps
Power Requirement
5V/100mA max.
Operating Temperature
0 to 608C (32 to 1408F)
Operating Humidity
5 to 95% RH
Storage Temperature
-20 to 85°C (-4 to 185°F)
DB9(Serial Device)
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
4
EX-47290
RS232 to RS232 Isolator and Surge Protector
1. Introduction
Thank you for purchasing this RS232 (to RS232) Isolator and Surge Protector. It is de-
signed for your PC, workstation, thin client, or server to provide an instant isolation so-
lution for the RS232 serial devices. It provides a DB9 female connector (DCE, with 3-
wire signals, TXD, RXD, and GND) that can be connected directly to your PC's RS232
port. An external 5V DC power source should be applied to its input DC jack. The
power source can be supplied by either an AC power adapter or an USB-to-DC-Jack
conversion cable.
Features:
Provides one RS232 to RS232 Adaption
Supports up to 2,500Vrms Isolation for all RS232 Signals
Supports 3 RS232 Signals (TXD, RXD, GND)
Supports DB9 Female (DCE) to DB9 Male (DTE) Connector Conversion
Supports Baud Rate up to 921.6 Kbps
+5V DC External Power is Required, Powered by AC Adapter or USB Port with
and USB-to-DC-Jack Cable
Compact Size for Critical Applications
No Driver Required for All Operating Systems

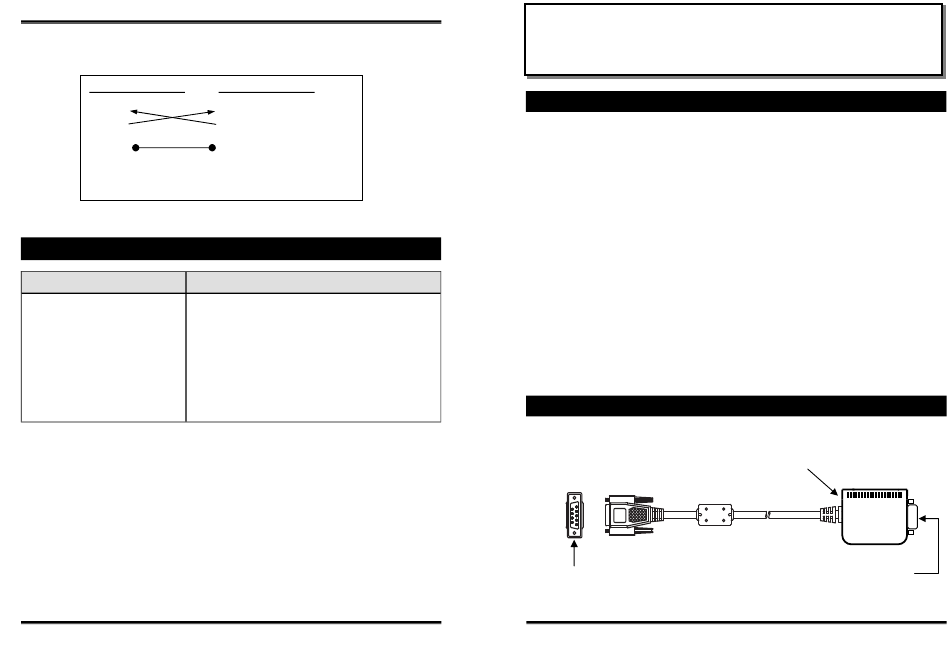

2. Layout
9
5
1
6
9-pin female DSUB RS232 Connector
(configured as DCE, from Host)
Mini DC Jack connector
for 5V DC power Input
9-pin male DSUB RS232
Connector (to Device)
1
