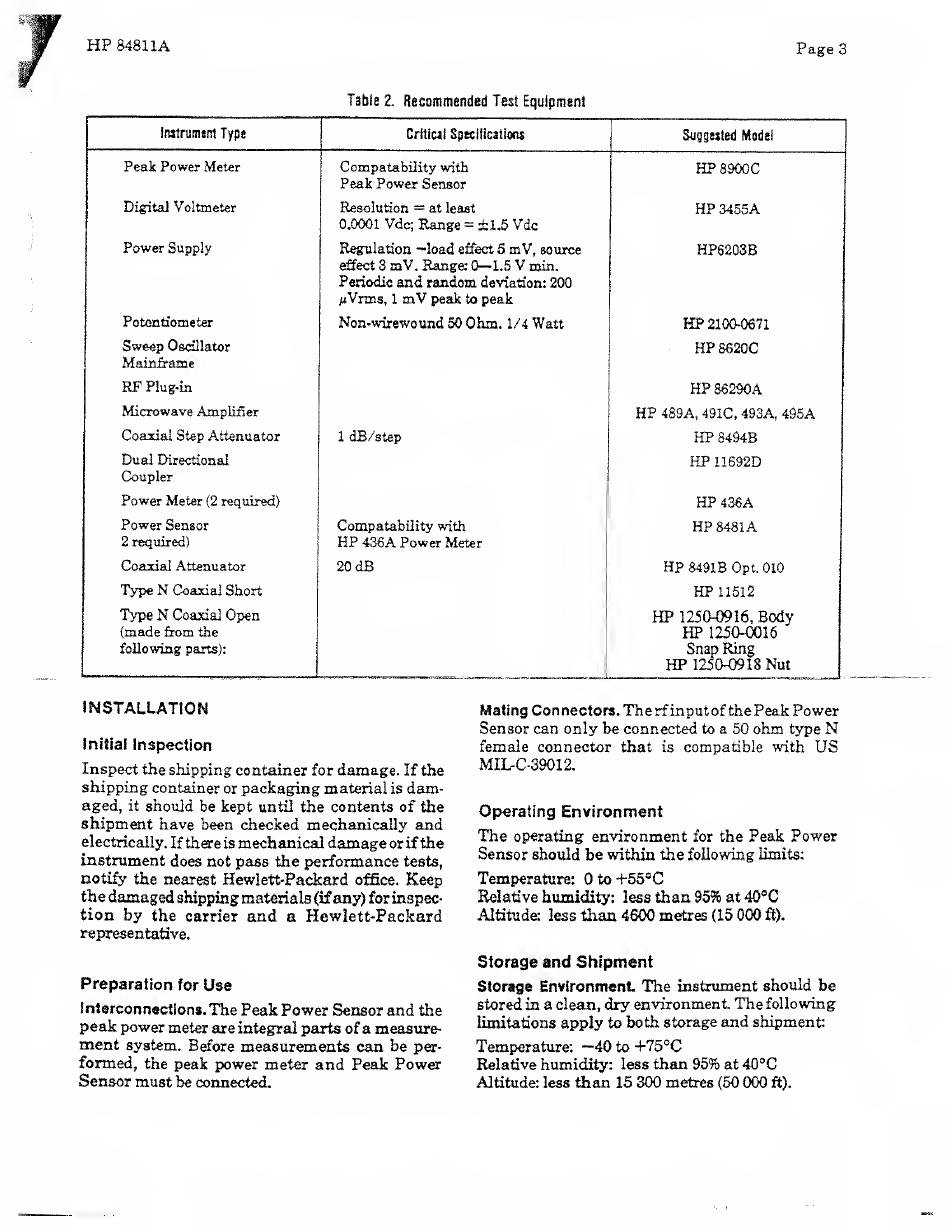

HP 84811A
Page 3
Table 2. Recommended Test Equipment
Instrument Type
Critical Specifications
Suggested Model
Peak Power Meter
Compatability with
Peak Power Sensor
HPS900C
Digital Voltmeter Resolution = at least
0.0001 Vdc; Range = ±1.5 Vdc
HP 3455A
Power Supply
Regulation -load effect 5 mV, source
effect 3 mV. Range: 0—1.5 V min.
Periodic and random deviation: 200
mVrms, 1 mV peak to peak
HP6203B
Potentiometer
Non-wirewound 50 Ohm. 1/4 Watt
HP 2100-0671
Sweep Oscillator
Mainframe
HP S620C
RF Plug-in
HP 86290A
Microwave Amplifier
HP 489A, 491C, 493A, 495A
Coaxial Step Attenuator
1 dB/step
HP 8494B
Dual Directional
Coupler
HP 11692D
Power Meter (2 required)
HP 436A
Power Sensor
2 required)
Compatability with
HP 436A Power Meter
HP8481A
Coaxial Attenuator 20 dB
HP 8491B Opt. 010
Type N Coaxial Short
HP 11512
Type N Coaxial Open
(made from the
following parts):
HP 1250-0916, Body
HP 1250-0016
Snap Ring
HP 1250-0918 Nut
INSTALLATION
Initial Inspection
Inspect the shipping container for damage. If the
shipping container or packaging material is dam¬
aged, it should be kept until the contents of the
shipment have been checked mechanically and
electrically. If there is mechanical damage or if the
instrument does not pass the performance tests,
notify the nearest Hewlett-Packard office. Keep
the damaged shipping materials (if any) for inspec¬
tion by the carrier and a Hewlett-Packard
representative.
Preparation for Use
Interconnections.
The Peak Power Sensor and the
peak power meter are integral parts
of
a measure¬
ment system. Before measurements can be per¬
formed, the peak power meter and Peak Power
Sensor must be connected.
Mating Connectors.
The rf input of the Peak Power
Sensor can only be connected to a 50 ohm type N
female connector that is compatible with US
MIL-C-39012.
Operating Environment
The operating environment for the Peak Power
Sensor should be within the following limits:
Temperature: 0to-f55°C
Relative humidity: less than 95% at 40°C
Altitude: less than 4600 metres (15 000 ft).
Storage and Shipment
Storage Environment
The instrument should be
stored in a clean, dry environment. The following
limitations apply to both storage and shipment:
Temperature: —40 to -f 75°C
Relative humidity: less than 95% at 40°C
Altitude: less than 15 300 metres (50 000 ft).
