  • Page 1 Safety Set User Manual...

  • Page 2: Table Of Contents

    Overview List of items Meet xTool Fire Safety Set Install xTool Fire Safety Set Preparations Use xTool Fire Safety Set Maintenance...

  • Page 3: Overview

    Overview xTool Fire Safety Set is an accessory designed for desktop laser processing machines. With the flame sensors, it can monitor the processing space of a machine and trigger an alarm when a flame is detected. If the flame is large, it can trigger the action of fire extinguishing, automatically completing the process of flame detection to fire extinguishing.

  • Page 4: List Of Items

    Control box Sensor hub Sensor 1 Sensor 2 gas bottle Smart switch Connection cable Power adapter & cable for xTool P2 Cable clamp Tube clamp Tube Cable tie pack The smart switch may vary according to sets. The illustration is for Gas bottle reference only.

  • Page 5: Meet Xtool Fire Safety Set

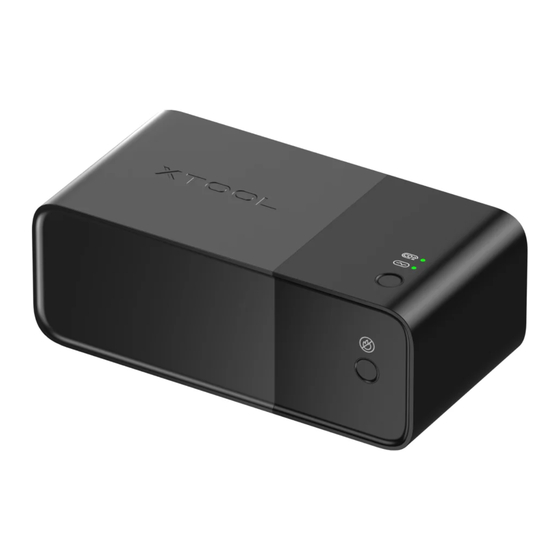

    Meet xTool Fire Safety Set Status switching button Sensor indicator Gas bottle replacement indicator One-press fire Working state extinguishing button indicator Test state indicator Button Working / Test mode switch USB port (reserved) Sensor port/Device port Do not remove the USB cap.

  • Page 6: Install Xtool Fire Safety Set

    If you use an xTool machine, visit support.xtool.com/product/17 or scan the QR code to find details about how to install the fire safety set. If you use a third-party machine, refer to the installation of it on xTool machines. support.xtool.com/product/17 Preparations 1.
  • Page 7 2. Pair the control box with the smart switch Blinking 3 times and then Hold down for 5s Solid on Press going off, pairing succeeded 3. Test the control over the smart switch Press Solid on Press Going off...
  • Page 8 4. Test the sensors Place an open flame Indicator of the Take the open Indicator of the close to a sensor sensor blinking flame away sensor going off...
  • Page 9 5. Install CO2 gas bottles Before installation, power off the fire safety set and unplug the power cable. Otherwise, you may touch the one-press fire extinguishing button by mistake to trigger the action of fire extinguishing. Pinch and pull...

  • Page 10: Use Xtool Fire Safety Set

    Use xTool Fire Safety Set Automatic monitoring Connect a power supply Turn on the switch Toggle the switch up to enter Going off the working mode Blinking Press Solid green, entering the monitoring state...
  • Page 11 When a flame is detected, the sensor indicators blink and the buzzer sounds. ■ Slow sound: small flame detected, triggering an alarm only ■ Medium-speed sound: slightly larger flame detected, triggering an alarm only ■ Rapid sound: large flame detected, triggering an alarm and the action of fire extinguishing Blinking red Buzzer sounding...
  • Page 12 Cancel the alarm Blinking red Buzzer sounding Press the button within 5s Blinking Press Solid green, entering the monitoring state...
  • Page 13 One-press fire extinguishing When the fire safety set works in working state, you can press the button to manually trigger the action of fire extinguishing. During fire extinguishing, the gas is released twice at an interval of 20s, please wait for the process to complete before you touch the control box.
  • Page 14 Replace CO gas bottles ■ Before replacing the CO₂ gas bottles, power off the fire safety set and unplug the power cable. Otherwise, you may touch the one-press fire extinguishing button by mistake to trigger the action of fire extinguishing.
  • Page 15 If the closed processing space is no more than 0.065 cubic meters, you can choose to replace 2 or 4 gas bottles. ■ If you use 2 gas bottles, install them on a diagonal, for example, installing them on holes A, and then install two empty gas bottles on the other diagonal.
  • Page 16 If the closed processing space is more than 0.065 and no more than 0.13 cubic meters, you need to replace 4 gas bottles. ■...

  • Page 17: Maintenance

    Maintenance Check and maintain the fire safety set at least once a month, including: Cleaning the sensors ■ Checking whether the sensors are working properly ■ Checking whether the smart switch is working properly ■ Checking the working state of the fire safety set ■...
