- Page 1 Safety Set User Manual...
-
Page 2: Table Of Contents
Overview Specifications List of items Meet xTool Fire Safety Set Install xTool Fire Safety Set Install CO2 gas bottles Use xTool Fire Safety Set One-press fire extinguishing Replace CO2 gas bottles... -
Page 3: Overview
Overview This product is an accessory designed for desktop laser processing machines that can detect flames. If it receives signals, from a laser machine, that indicate a large flame, it automatically starts and completes the process of fire extinguishing. Specifications 0°C–35°C Working temperature 0°C–45°C... -
Page 4: List Of Items
List of items CO2 gas bottle Control box USB cable Tube Safety Set User Manual Benutzerhandbuch Manual de Usuario Manuel d’Utilisation Manuale Utente 使用者手冊 用 手册 Gebruikershandleiding Manual do Usuário 사용자 매뉴얼 Tube adapter User manual Safety instructions... -
Page 5: Meet Xtool Fire Safety Set

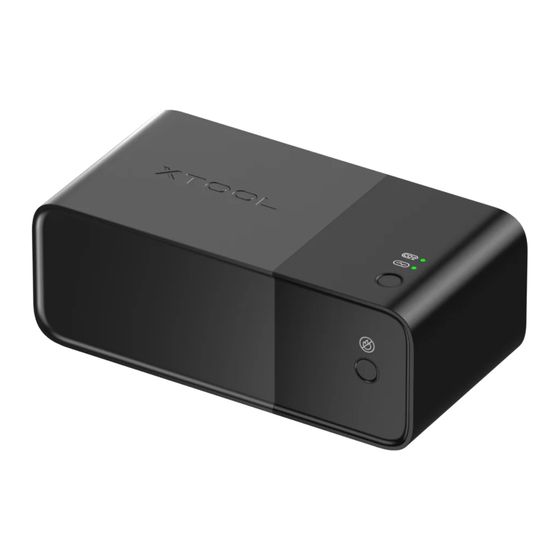

Meet xTool Fire Safety Set Status switching button Test state indicator Gas bottle replacement indicator Working / Test mode switch USB port (reserved) One-press fire extin- Do not remove the USB cap. guishing button Tube fitting Reserved button Device port... -
Page 6: Install Xtool Fire Safety Set
Install xTool Fire Safety Set The installation of the fire safety set may vary according to laser processing machines. If you use an xTool machine, visit support.xtool.com/product/17 or scan the following QR code to find details about how to install the fire safety set. - Page 7 Unplug the USB cable Pinch and pull Plug the USB cable...
-
Page 8: Use Xtool Fire Safety Set
Use xTool Fire Safety Set Enter the working state Toggle the switch up to enter the Going off working state Solid green, entering the Blinking Press working state... -
Page 9: One-Press Fire Extinguishing
One-press fire extinguishing When the fire safety set works in working state, you can press the button to manually trigger the action of fire extinguishing. During fire extinguishing, the gas is released twice at an interval of 20s. Please wait for the process to complete before you touch the control box. -
Page 10: Replace Co2 Gas Bottles
Replace CO2 gas bottles After performing the action of fire extinguishing, the gas bottle replacement indicator is solid on, indicating that you ■ need to replace the gas bottles. You need to purchase new gas bottles for replacement. Unplug the USB cable before replacing CO2 gas bottles. Otherwise, you may touch the one-press fire extinguishing ■... - Page 11 If the closed processing space is no more than 0.065 cubic meters, you can choose to replace 2 or 4 gas bottles. ■ If you use 2 gas bottles, install them on a diagonal, for example, installing them on holes A, and then install two empty gas bottles on the other diagonal.
- Page 12 If the closed processing space is more than 0.065 and no more than 0.13 cubic meters, you need to replace 4 gas bottles. ■...
