- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LBN22515SB Owner's Manual Shop genuine replacement parts for LG LBN22515SB Find Your LG Refrigerator Parts - Select From 834 Models -------- Manual continues below --------...
-
Page 41: Exploded View And Replacement Part List

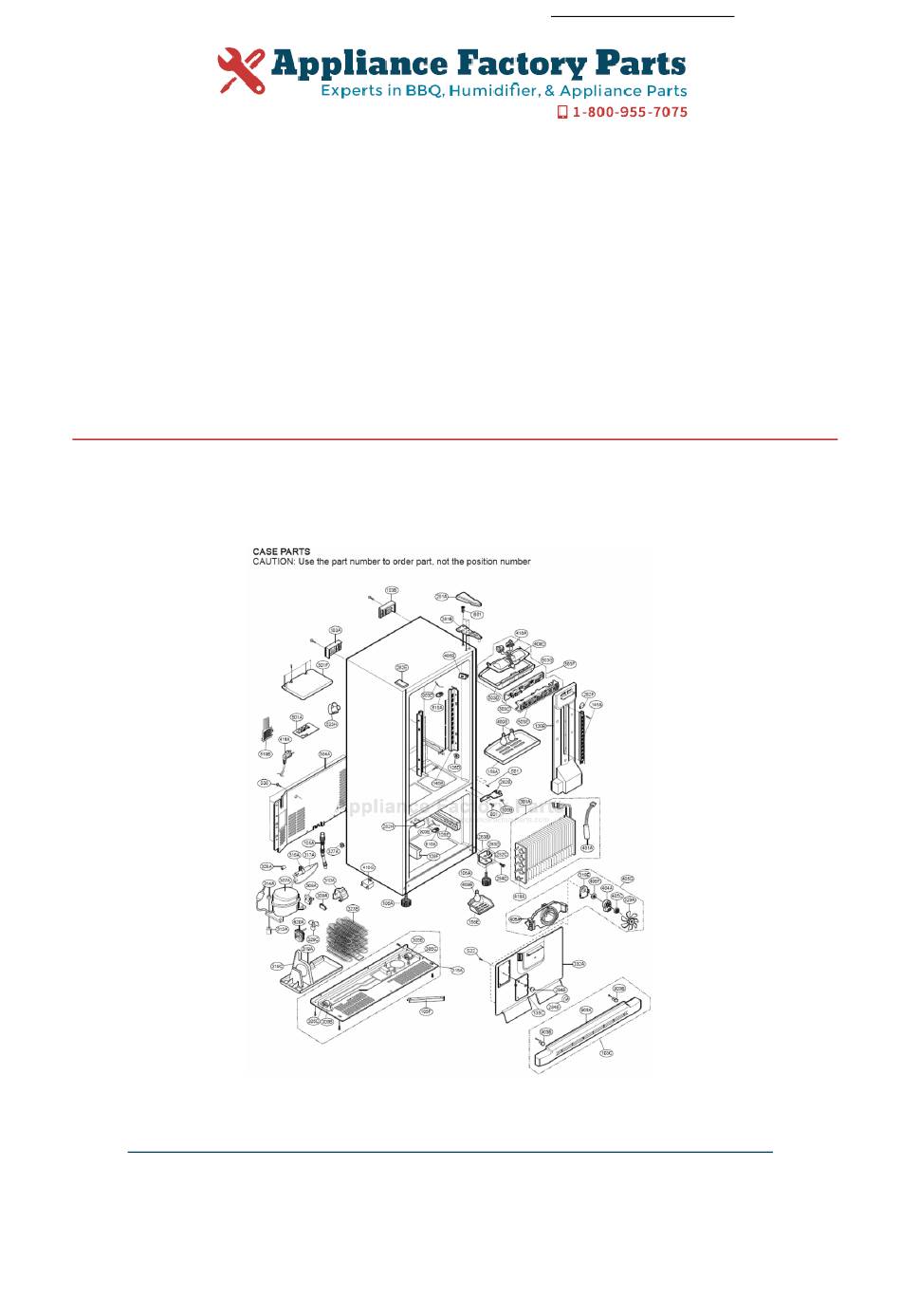

#EV# 9.EXPLODED VIEW AND REPLACEMENT PART LIST CASE PARTS CAUTION: Use the part number to order part, not the position number 103B 281A 281B 103A 410A 409D 406B 503G 503F 501F 282E 282F 903D 503D 145A 610A 503C 501A 409B 503E 623H 120B... -
Page 42: Freezer Parts
#EV# FREEZER PARTS CAUTION: Use the part number to order part, not the position number 131A 125A 282X 149A 136C -41-... -
Page 43: Refrigerator Parts
#EV# REFRIGERATOR PARTS CAUTION: Use the part number to order part, not the position number 143E 140B 140D 143E 143E 140E 140B 140D 140B 140D 140E 140E 143F 142D 140B 142E 128A 170A 128B 103E 167B 154A 103E 151A 155B 151A 151C -42-... -
Page 44: Door Parts
#EV# DOOR PARTS CAUTION: Use the part number to order part, not the position number 230A 241A 233A 286A 231A 241B 212G 281E 212G 281E 212F 244E 241C 244E 241E 212J 244A 212J 244H 212F 286A 241D 212J 243A 700C 205D 200A 286A... - Page 45 LBN22515SB #EV# Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003M Handle,Rear 283B 4775JJ2007B Hinge Assembly,Lower 103B 3650JJ2003L Handle,Rear 283D 4774JJ2002A Hinge,Lower 103C 3551JJ1015F Cover Assembly,Lower 283F MJB36873202 Stopper,Door 103E 5218JJ3001A Rail,Slide 284B 3550JA3120A Cover,Connector 105A 5251JA3003B Tube Assembly,Drain 284D 1STZJA3004K Screw,Customized 105F 5070JJ3002A Skirt,Lower...
- Page 46 LBN22515ST #EV# Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003M Handle,Rear 283B 4775JJ2007B Hinge Assembly,Lower 103B 3650JJ2003L Handle,Rear 283D 4774JJ2002A Hinge,Lower 103C 3551JJ1015F Cover Assembly,Lower 283F MJB36873202 Stopper,Door 103E 5218JJ3001A Rail,Slide 284B 3550JA3120A Cover,Connector 105A 5251JA3003B Tube Assembly,Drain 284D 1STZJA3004K Screw,Customized 105F 5070JJ3002A Skirt,Lower...
- Page 47 #EV# LBN22515WW Loc No. Part No. Description Loc No. Part No. Description 103A 3650JJ2003E Handle,Rear 283B 4775JJ2007B Hinge Assembly,Lower 103B 3650JJ2003A Handle,Rear 283D 4774JJ2002A Hinge,Lower 103C 3551JJ1015B Cover Assembly,Lower 283F MJB36873201 Stopper,Door 103E 5218JJ3001A Rail,Slide 284B 3550JA3120A Cover,Connector 105A 5251JA3003B Tube Assembly,Drain 284D 1STZJA3004K Screw,Customized 105F 5070JJ3002A Skirt,Lower...
- Page 48 April 2008 3828JL8799A Rev.1...
