Summary of Contents for XPENG P7

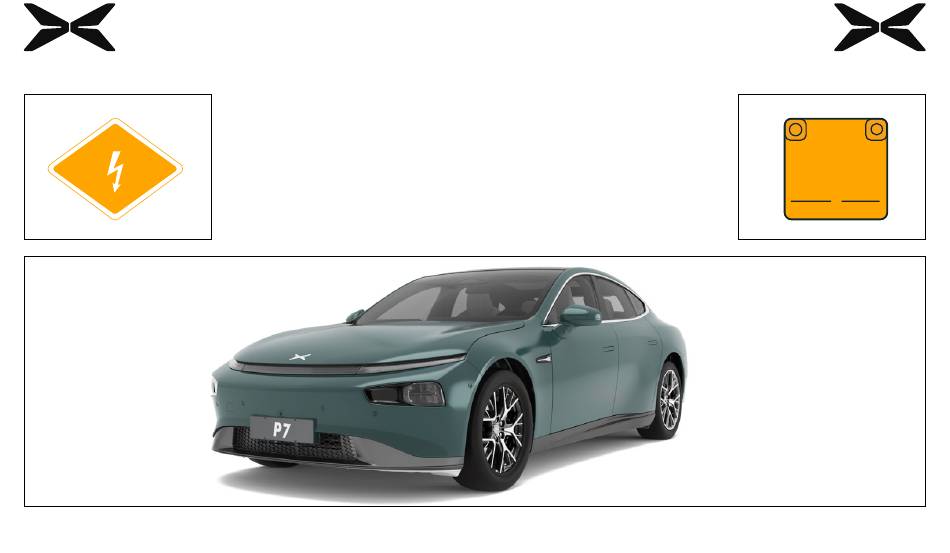

- Page 1 INFORMATION FOR FIRST AND SECOND RESPONDERS EMERGENCY RESPONSE GUIDE XPENG Li-ion ELECTRIC VERSION:01...
-
Page 2: Table Of Contents
CONTENTS 0. Rescue sheet Page 1. Identification/recognition Page 2. Immobilization / stabilization / lifting Page 3. Disable direct hazards/safety regulations Page 4. Access to the occupants Page 15 5. Stored energy / liquids / gases / solids Page 20 6. In case of fire Page 25 7. -
Page 3: Rescue Sheet
XPENG Motor Offers Rescuesheet for Each XPENG Model The example shown here is the first page of the XPENG P7 Rescuesheet, which is according to ISO 17840-1: 2022. For more information related to Rescuesheet, it’s available on the website of https:/ /www.heyxpeng. -
Page 4: Identification/Recognition
1-Identification/recognition P7 Logos and Charging Warning LACK OF ENGINE NOISE DOES NOT MEAN VEHICLE IS OFF: SILENT MOVEMENT OR INSTANT RESTART CAPABILITY EXISTS UNTIL VEHICLE IS FULLY SHUT DOWN. WEAR APPROPRIATE PPE. The brand can be identified by the logos on the... -
Page 5: Vehicle Identification Number (Vin)
Vehicle Identification Number (VIN) 2. Applied to the inside of the front compartment cover. Applied to the bottom left side of the dashboard and can be seen through the 3. Applied to the inside of the trunk lid. windscreen. 4. Engraved under the front passenger seat. 5. - Page 6 Smart key press this button to accordingly close the front doors; release the button to stop closing. 2. Trunk button Long press this button within the effective range (30 meters) to open the trunk or pause the closing trunk. 3. Unlock button Short-press this button within the effective range (30 meters) to unlock the doors.
-
Page 7: Immobilization / Stabilization / Lifting
2-Immobilization / stabilization / lifting IMMOBILISE THE VEHICLE Shift the vehicle to P gear Push down the brake pedal and then press the Chock wheels gear "P" button on the shift lever. When the gear "P" indicator on the instrument cluster is Warning highlighted, the vehicle is shifted into gear P. -
Page 8: Lifting Points
LIFTING POINTS Warning Do not damage the HV battery when stabilizing/lifting the vehicle. Warning Only professional rescuers trained by the National Fire Protection Association can perform emergency rescue operations, wearing the required personal protective gear, and being familiar with the vehicle’s lifting points. -
Page 9: Disable Direct Hazards/Safety Regulations
3-Disable direct hazards/safety regulations When the vehicle is stationary, press and Warning hold the emergency power-off switch for 5 s Be aware that not every high voltage component is to shut down the HV power. labelled. Always wear the appropriate PPE. Do not attempt to open the high voltage battery. - Page 10 Alternative Disabling Method 2. Remove the trim assembly cover on the right of the trunk. Press the button under the trunk to open it.
- Page 11 Access To 12V Battery 3. Find the fuse boxes, and disconnect the Open the trunk, and prize up the battery trim second 7.5A fuse from bottom to top on the cover on the right of the trunk. rightmost side.
- Page 12 Emergency Unlocking of AC Charging Port 2. Disconnect the negative cable of the 12V battery. Open the trunk, and remove the trim assembly cover on the right of the trunk. 2. Find and pull the emergency unlocking ring of the AC charging port. After unlocking, the charging gun can be pulled out.
- Page 13 Airbags The airbags are located near the areas shown in the figure. In the event of an accident in which the airbags are deployed, the HV system will be automatically deactivated. The HV system is de-energised approximately 60 seconds after deactivation. Passenger airbag 2.
-
Page 14: Seat Belt Pretensioner
Stored Gas Inflator Seat Belt Pretensioner Warning Warning Rescuers must not cut or squeeze stored gas The circuit and mechanical release of safety inflators, or it may cause serious vehicle damage and even injury or death. belt pretensioners may be affected after a collision. -
Page 15: Access To The Occupants
4-Access to the occupants Front seats come with a multi- Warning direction electric adjustment Do not touch, cut, or open HV components and the high- voltage battery! Wear appropriate protective equipment! function Open the door If the handles of doors are not in the extended position,press the front of the door handle and Adjust the driver's seat through the switch: pull the rear of the handle to open the door. - Page 16 Steering Wheel Position Lumbar support forward/backward adjustment, and height adjustment. The steering wheel handle is in the locked position by factory default. Adjust the front passenger's seat through the When the vehicle is stationary, pull the switch: steering wheel handle downward to unlock the steering wheel.
- Page 17 High-Strength Zones The vehicle body has been reinforced to protect occupants in the event of a collision. Suitable tools must be applied for cutting or crushing these zones. High-strength steel is shown in the figure below.
- Page 18 Vehicle Cutting Areas Warning Regardless of any disabling procedure, always assume that all HV components are live! Cutting, crushing or touching HV components may result in serious injury and even death. When cutting, always use a suitable tool such as a hydraulic cutter and wear proper personal protective equipment.
- Page 19 Windows Laminated glass Tempered glass Windows cannot be opened after the battery is disconnected.
-
Page 20: Stored Energy / Liquids / Gases / Solids
5-Stored energy / liquids / gases / solids Li-ion 353V Battery pack, high- voltage Battery low voltage R1234yf 1150g±25g conditioning component... - Page 21 Operations for Handling Battery Leak Warning In case of HV battery fluid leak due to a vehicle collision accident, professional rescuers must wear proper personal protective equipment for operation. Do not directly touch the fluid. Handle as follows in the event of HV battery leak (with visible fluid outflow): ●...
- Page 22 HV Components Warning If any HV component is damaged, be sure to wrap it with insulating tape. Front electric drive system (AWD Performance/AWD Wing Edition) 2. HV wiring harness 3. HV battery 4. Rear electric drive system 5. DC charging port 6.
- Page 23 Main Parameters of HV Battery Battery Pack, High-Voltage Item Unit Warning Type The HV Battery can generate a rated high voltage up to 353V, which may cause serious injury or Cell Rated Voltage 3.68 even death to human body. Please beware of the Rated Capacity 122.00 high voltage danger!
- Page 24 Battery Low Voltage (12V Battery) In addition to the HV system, the vehicle also has a LV electrical system. Its 12V battery powers the restraint system, airbags, windows, door locks, CID, and internal & external lights. The HV battery charges the 12V battery, which powers the HV contactor, allowing HV current to flow into and out of the HV battery.
-
Page 25: In Case Of Fire
6-In case of fire Operations for Handling Vehicles Warning on Fire When extinguishing the fire with water, it is recommended to use a thermal imaging camera or infrared ray to monitor the temperature of the HV battery during the process, Warning until the temperature reaches or below the environmental temperature indicated by the thermal imager. -
Page 26: In Case Of Submersion
7-In case of submersion Operations for Handling Flooded When handling a vehicle flooded or submerged in water, the professional rescuer should wear Vehicles appropriate protective equipment. They should first pull the vehicle out of the water, and then disconnect the HV circuit normally. Warning It is recommended not to drive in deep water Handling submerged vehicles without wearing... -
Page 27: Towing / Transportation / Storage
8-Towing / transportation / storage Car towing operation Warning Warning Make sure that the hook is securely locked before towing. BATTERY RE-IGNITION! The vehicle is not suitable for towing by the way of wheels contacting the ground. Please do not use tow rope or tow bar or other similar ways to directly tow the vehicle. - Page 28 5. Secure the towing rope on the trailer hook and slowly tow the vehicle to the flatbed trailer. Only towing way in Figure ① (flatbed trailer) can be applied unless others specified by XPeng Motors. It is strictly prohibited to tow in any way shown in Figures ②③④⑤ .
-
Page 30: Important Additional Information
9-Important additional information Far side airbag X-Wing Door (for AWD Wing Edition only) AWD Wing Edition is equipped with X-wing doors. The front doors are electric scissor doors with an obstacle avoidance feature. Driver’s seat has a far side airbag in addition to the side airbag. -
Page 31: Explanation Of Pictograms Used
10-Explanation of pictograms used Sign Information Warning, Electricity Explosive General warning sign Environmental hazard Air-conditioning Flammable component Use water to Acute toxicity extinguish the fire Hazardous to the Use thermal Infrared human health camera Corrosives Boot Electric vehicle Remove smart key...
