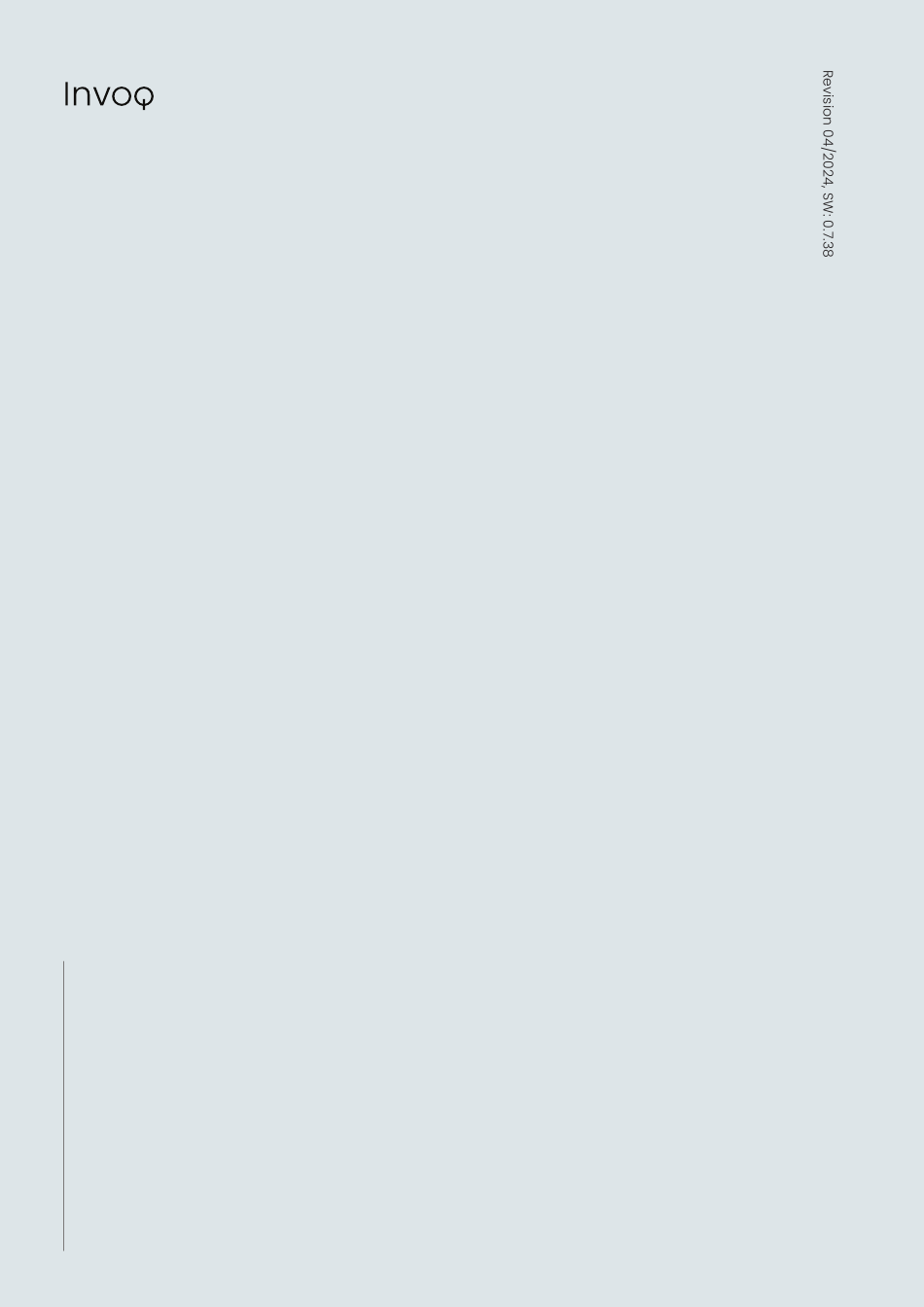

- Page 1 Mounting instruction Mounting the fat separation system Invoq Combi & Invoq Hybrid 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN PassThrough Electric Part number 110776 EN - English Original English document...
-
Page 3: Table Of Contents
..............11 Mounting the fat separation on a Stackit ............ 13 Testing the fat separation ................... 14 Cleaning the fat separation ..................15 Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... -
Page 4: General Information
General information Target group This document is aimed at service technicians who have been trained in installing and servicing the oven. The oven must only be installed and serviced by qualified service technicians. Technical changes This document is subject to changes without notice. More documentation You find more documentation about the oven at https://asset-library.invoqoven. -
Page 5: Safety Information
All maintenance and repair must be carried out by qualified installation and service technicians only. Installation and/or service by others than qualified service technicians may result in injury to the operator and/or damage to the oven. Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... -
Page 6: Before Replacement
before replacement • Make sure the required tools are available. • Unpack the spare parts and check if all parts are available. • Make sure the working area is tidied up, clean and safe to prevent personal injury and damage to the equipment. Tools •... -
Page 7: Oven Overview
OvEN OvERvIEW Oven overview Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... -
Page 8: Mounting The Fat Separation
Mounting the fat separation In the oven cavity Drill a hole in the drain using a Ø16 drill. assemble the funnel, sieve, gasket, washer and M16 bolt. - Page 9 Push the pipe of the funnel through the hole in the drain. fasten the funnel with a bolt from beneath the oven. fasten the bracket with two bolts. Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38...
-
Page 10: Beneath The Oven
Place the fat guide tray in the rack and push it in place. beneath the oven Mount the fat separation rails using six M5x30 screws. On x-1/1 GN ovens, mount two of the screws as shown IMPORTANT! in (a), and on x-2/1 ovens mount two of the screws as shown in (b). -
Page 11: Assemblying The Fat Collection Tray
MOUNTING THE faT SEPaRaTION assemblying the fat collection tray Place the funnel in the hole of the fat collection lid. fasten the funnel with two M5x12 screws. Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... - Page 12 Place fat collection lid on the fat collection tray. Place the fat collection tray in the fat separation rails and push it in place.
-
Page 13: Mounting The Fat Separation On A Stackit
Remove the front plate on the stacking kit. Prepare the upper oven as described in the sections: • “In the oven cavity” • “beneath the oven” • “assemblying the fat collection tray” Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... -
Page 14: Testing The Fat Separation
Testing the fat separation Pour water through the funnel in the oven cavity. Check for leaks. Touch “Settings”. log in as “Technician” (576021). Touch “Oven setup”. -
Page 15: Cleaning The Fat Separation
“Cleaning the fat separation” and “Regular maintenance and cleaning” in the user manual.. Invoq Combi, Invoq Hybrid & Invoq Bake, mounting instruction, revision 04/2024, SW: 0.7.38... - Page 16 GET IN TOUCH. as your oven specialist, we always do our utmost to help our customers. Worldwide.
