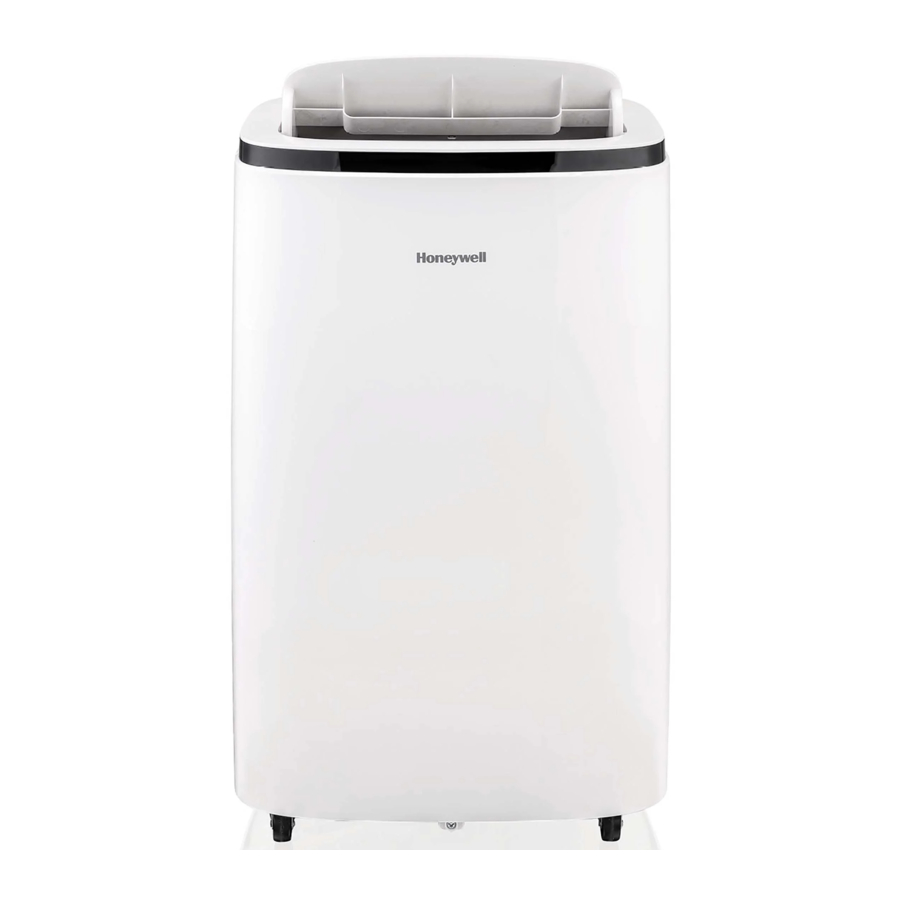

Honeywell HT Series, HT4CESVWK0 Manual

SMART PORTABLE AIR CONDITIONER WITH WIFI CONNECTIVITY & VOICE CONTROL

For Models: HT0CESVWK6 / HT2CESVWK8 / HT4CESVWK0 Smart Portable Air Conditioner with WiFi Connectivity
The Smart Portable Air Conditioner has added features to allow you to operate the Air Conditioner remotely using a smart device, and to use voice commands through an an Amazon Echo / google home device, to control the unit.
Set up the Honeywell Air Comfort App on your smart phone or tablet to connect the Honeywell Smart Portable Air Conditioner for WiFi and Voice control (only available for Smart Portable Air Conditioner models).

1. Download the Honeywell Air Comfort App on your smart phone or tablet.
   SEARCH "HONEYWELL AIR COMFORT"
   iOS 10 or later

   Android 4.4 or later


   A 2.4 GHz Wi-Fi network is required for proper connection and operation between the Portable Air Conditioner and the App.
   NOTE: The Smart Portable Air Conditioner does not have to be connected to the Honeywell Air Comfort App to function. You can still operate manually using the unit's control panel.

USER TIPS

Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal of the appliance, please refer to the below paragraph of the manual.
Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are housed in a compact unit. The air is dehumidified and cooled while a flexible hose sends heat outside. The Portable Air Conditioner includes a window venting kit.
No permanent installation is needed. The unit is easy to move from room to room and offers a truly flexible air conditioning solution.
Auto Evaporation System - The unit automatically evaporates the condensate through the hose. There is no need to empty the drainage tank except in humid conditions. Read and follow the instructions carefully.
To ensure optimal efficiency of the product, keep doors and windows closed when it is used as an air conditioner or dehumidifier. If the product is being used with the fan function only, an open window could improve air circulation.


Before installing the unit, place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize. Air outlet automatically opens when the unit is turned on, and automatically closes when the unit is turned off. Manually adjust the air vent located at the top of the unit to adjust the direction of air flow.

• Follow installation instructions to set up the unit.
• Plug the unit into a properly grounded circuit. DO NOT plug into an extension cord.

PARTS DESCRIPTION

1. Louver
2. Control panel
3. Handle
4. Casters
5. Remote control
6. Hose connector
7. Upper dust filter

8. Upper rubber drain plug (Dehumidifying mode)
9. Drain tube (For continuous drain)
10. Power cord winder
11. Lower dust filter
12. Lower rubber drain plug (Air conditioning / Heating mode*)
13. Storage plug for power cord
14. Power supply cord

*Applicable for models with heating feature only.

INSTALLATION

It is important that the installation instructions below are followed for successful installation of this Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries regarding these installation procedures.

Installation Kit:

1. Window bracket kit (1 Set)
2. Butterfly screws (2 Pieces)
3. Drain tube (Dehumidifier mode) (1 Piece)
4. Exhaust hose (1 Piece)
5. Window bracket panel adapter (1 Piece)

Installation Steps:

1. Exhaust Hose Connector, Exhaust Hose and window bracket panel adapter are pre-assembled inside the package.


   This window kit is designed to fit most standard sliding windows. If your window is outside of the size parameters as outlined above, the window bracket can be cut shorter to fit by bringing it to a nearby hardware store.
   Note: After setting the window bracket to the size of your window, please remove it from the window and follow the instructions below.
2. Connect the hose to the rear exhaust outlet on the back of the unit. Slide-in the hose connector then slide down until it is locked in place.

3. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are tight and installed properly.

4. Measure and cut the Foam Insulation Tapes to the full length of your window sash and frame. Peel off the adhesive backing and slowly attach them to the window sash and frame. The gray tape should attach to the movable window sash.

5. Connect the window bracket to the window.

6. Position the adhesive foam pads on both edges that are not covered by the foam adhesive tape to seal gaps and prevent air and insects from entering into the room.

7. The Portable Air Conditioner is now ready to use.

Do not replace or lengthen the hose as this could cause the unit to malfunction.
The length of the hose is scientifically determined by the specifications and airflow of the air conditioner. Extending the hose beyond the specified dimensions can cause heat to collect or flow back into the air conditioner causing the unit to malfunction.

Any warranties included with this product will be voided if an extra extension hose is used in addition to the one provided or if the installation is performed differently than the manufacturer's instructions, without proper consultation. Please contact Customer Support for help with installation procedures if needed.

• The supplied hose has a diameter of 5.9" (15 cm) and can be extended from 9.8'' to 59'' (25cm to 150cm).
• Do not bend (to the extent shown above) the hose. A bent hose will block exhaust air and cause the unit to malfunction or shut-off.
• Make sure the back of the unit is at least 23.6"(60cm) away from the wall. Do not place the unit in front of curtains or drapes as this could obstruct the airflow.

USE AND OPERATION

CONTROL PANEL

1. Display screen
2. Power control
3. Fan speed control
4. Swing control indicator light
5. Timer / Temperature set controls

6. Mode control
7. Timer control
8. Sleep control indicator light
9. Water full light
10. Wifi connectivity and voice activated control*

*THIS IS ONLY FOR MODEL HT0CESVWK6 / HT2CESVWK8 / HT4CESVWK0 WITH WIFI SMART FEATURES.
Note: For instructions to connect your Smart Portable Air Conditioner, go back to Page 1 of this manual.

RESTART DELAY
If the unit turns OFF while operating in COOLING / DEHUMIDIFYING / HEATING* modes, there will be an approx. 3-minute delay to restart the air conditioner in COOLING / DEHUMIDIFYING / HEATING* modes. This is a safety feature and added to help protect and extend the life of the compressor. After 3 minutes, you will be able to turn ON the unit as usual.

FAN SPEED CONTROL
3 settings: High, Medium, and Low.
Note: Fan Speed cannot be adjusted in Sleep Mode and Dehumidifying Mode.
*Applicable for models with heating feature only.

MODE CONTROL
Settings: Air Conditioning, Dehumidifying, Fan, Heating*.
The corresponding indicator light will illuminate to indicate the current mode setting.

• Air Conditioning Mode (COOL)
  Adjust fan speed and air temperature to suit your desired comfort level. Temperature setting range is 61°F - 88°F (16°C - 31°C).
• Dehumidifying Mode (DRY)
  Air is dehumidified as it passes through the unit, without being in full cooling mode. The fan speed is preset as LOW speed and can NOT be adjusted.
  Note: If the unit will be used mainly as a dehumidifier, do not connect the exhaust hose.
  Continuous drainage is then necessary (refer to Continuous Draining for Dehumidifier Mode).

  The Dehumidifier Mode is used to support moisture reduction but should not be expected to dehumidify to the same degree as a standard dehumidifier only appliance. The built-in dehumidifier automatically adjusts dehumidification based on ambient room temperatures. It is not possible to adjust to a desired humidity percentage. The front display only shows the current and desired temperatures. It does not show humidity levels.
• Fan Mode
  For air circulation without air conditioner cooling.
• Heating Mode*
  When heating mode is selected the indicator light will shine. Heating is activated when the ambient temperature is between 44°F -77°F (7°C-25°C). In this mode, the desired temperature can be set between 61°F - 88°F (16°C -31°C).
  Note: The exhaust hoses must vent outside the room when using heating mode.

  The Heat pump draws moisture from the air which then condenses into the internal water tank. The unit will pause operation when the tank is full and will restart when the tank has been emptied. It is recommended to use the Heating Mode in a room with 50% humidity or lower. Avoid operating moisture-producing products or appliances such as a humidifier or a kettle when using the unit in Heating Mode. See the "Draining Water Condensation in Heat Mode" section for more information on draining the water tank.

*Applicable for models with heating feature only.

TIMER / TEMPERATURE SET CONTROLS
The and buttons can be used to adjust and set your desired temperature in Cooling or Heating * modes. They can also be used to set the Timer (see "Timer Control" below).
Note: Temperature cannot be adjusted in Fan and Dehumidify modes.

SLEEP MODE
Sleep Mode is for energy-saving comfort during the night. When Sleep Mode is ON in Air
Conditioning Cooling Mode, the fan will automatically stay on LOW Speed and the set temperature will increase by 2°F (1°C) on the first hour. It will increase another 2°F (1°C) on the second hour, and remain at this temperature for the rest of the night, until Sleep Mode is deactivated.
When Sleep Mode is ON in Heating Mode*, the fan will automatically stay on LOW speed and the set temperature will reduce by 2°F (1°C) on the first hour. It will reduce another 2°F (1°C) on the second hour, and remain at this temperature for the rest of the night, until Sleep Mode is deactivated.
*Applicable for models with heating feature only.

TIMER CONTROL
While the unit is turned on, press the timer button then press the or to select the number of hours you would like the unit to continue to run. Then press timer button again to confirm, The unit will turn off automatically.

AUTO TURN OFF:
While unit is running, press the or button to select the number of hours you want the unit to run in air conditioning mode.

AUTO TURN ON:
When unit is in a standby mode, then press the or button to select the number of hours until you want the unit to automatically start running.

SWING CONTROL
Press button on the remote control to activate automatic oscillation of louvers. The indicator light will be illuminated on the control panel. Press button again to stop the swing when louvers have reached your desired angle.
Note: In order to avoid damaging the internal mechanisms, the louvers must not be moved manually. Note: After switching the air conditioner off, you must wait 3 minutes before switching it back on.

WATER FULL LIGHT
Condensate may accumulate in the unit.
If the internal tank becomes full, the Water Full Light will illuminate. After 5 minutes, an "E2" / "E4" Error Code will be displayed on the screen to indicate that the tank is full. The unit will not operate until the tank has been drained (refer to the "Water Condensate Drainage" section).

WI-FI MODE^
When the Smart Portable Air Conditioner is connected to the wifi function, the indicator light will be illuminated.
^THIS IS ONLY FOR MODEL HT10CESV**/HT10HESV**/HT12CESV**/ HT12HESV**/ HT14CESV**/HT14HESV** WITH WI-FI SMART FEATURES.

ADDITIONAL FEATURES:
AUTOMATIC DEFROST FEATURE
Sometimes when the unit is operating in cooling mode in lower room temperatures (e.g. lower than 60°F), the internal cooling coils may become too cold and sometimes frost may develop on the cooling coils. When this happens, the unit will automatically pause operation and defrost the cooling coils to protect the unit. The air conditioner will restart automatically when the system has defrosted and returns to standard operational temperatures.

REMOTE CONTROL
All key functions can be accessed from the remote control.

Note:

• Battery Installation: Remove the cover on the back of the remote control and insert two AAA batteries with + and - pointing in the proper direction according to the polarity markings.


• Use only two AAA or IEC R03 1.5V batteries.
• Remove the batteries if the remote control is not in use for a month or longer.
• All batteries should be replaced at the same time, do not mix with old batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• Properly dispose of used batteries.

CLEANING AND MAINTENANCE

Appliance Maintenance:

1. Turn off the appliance before disconnecting the power supply.
2. Only clean the appliance with a soft dry cloth.

Dust Filter Maintenance:
The dust filter is to be cleaned every two weeks to maintain air cooling efficiency. Please follow the below instructions for cleaning the dust filters:

1. Switch off and unplug the Portable Air Conditioner from the electrical outlet.
2. Remove the Upper Filter/ Grill, unscrew the Lower Filter/ Grill and carefully remove.
3. Gently wash using water and/ or diluted liquid dishwashing detergent. Rinse thoroughly and gently shake excess water from the filters. Make sure the filters are dry before reinstalling.
   Note: You may use a vacuum cleaner to remove dust.
4. Replace the Upper Grill onto the unit, and reinstall the Lower Grill with the screw.

DO NOT power or operate the Portable Air Conditioner when cleaning or when the Dust Filter is removed from the unit, or if there is a loose-fitting Dust Filter. DO NOT attempt to handle or touch any of the parts or wiring inside the Rear Grill after the Dust Filter has been removed from the unit. Doing so can cause serious injury or electrical shock.

End of Season Storage and Maintenance:
If the appliance will not be used for a long time, follow these steps:

1. Be sure to drain the left-over water condensation. Remove the lower drain plug and use a drain pan to collect the water (make sure to replace the deain plug cap when finished).
2. To dry excess moisture, run the unit in Fan only mode for 30 minutes before storing.
3. Turn off and unplug the Portable Air Conditioner from the power supply.
4. Remove the dust filter and clean with water. Dry the dust filter and then reinstall.
5. Disconnecting the Window Installation Kit:
   • Remove the Hose from the unit by rotating anti-clockwise then pulling away.
   • Remove the Window Bracket. Window Bracket Panel Adapter and Hose Connector.
   • It is recommended to store the Window Kit parts in a bag together with the Remote Control and placing them together with the Portable Air Conditioner unit.
   • If needed, you can clean the Window Kit with a damp cloth and water before storing. Make sure all parts of the Window Kit are dry before storage.
6. Cover the Portable Air Conditioner with a cloth/ plastic bag before storage, to protect from dust and scratches collecting on the surface of the unit.
7. It is recommended to coil the power cord before storing to ensure the cord is protected from bents and creases.
8. Store the Portable Air Conditioner in a cool, dry place, away from direct sunlight.

WATER CONDENSATION DRAINAGE

When there is excess water condensation inside the unit, the air conditioner stops running and shows a warning light (the WATER FULL indicator illuminates with a red light). This indicates that the water condensation needs to be drained using the following procedures:

Manual Draining in Cooling, Dehumidifying Modes
Water may need to be drained in high humidity areas.

1. Unplug the unit from power source.
2. Place a drain pan under the lower rubber drain plug. See diagram.
3. Remove the drain plug cap.
4. Water will drain out and collect in the shallow pan.
5. After the water is drained, replace the drain plug cap.
6. You can now turn on the unit.

Continuous Draining in Dehumidifier Mode
While using the unit in dehumidifier mode, continuous drainage is recommended.

It is NOT recommended to connect the drain hose for continuous drainage while the unit is switched ON in air conditioning cooling mode. Doing so will reduce the cooling efficiency of the Portable Air Conditioner. Only drain the water condensation when the unit is switched off. Continuous drainage is only suitable when the unit is set up in Dehumidifier mode.
A longer drain hose or not enough height difference from drain plug to floor can reduce the water drainage.

The water cannot be drained using the continuous drain option in heating* mode. In Heating mode, the internal water tank collects condensation faster and may require more frequent emptying of the tank in more humid rooms. It is recommended to use the heating mode in a room with 50% humidity or lower. Avoid operating moisture-creating products or appliances such as a humidifier or a kettle when using the unit in heating mode.
*Applicable for models with heating feature only.

TROUBLESHOOTING GUIDE

The following troubleshooting guide addresses the most common problems. If problems persist, call customer support. Unplug and disconnect the appliance from the power source before attempting to troubleshoot.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The air conditioning unit does not start	No electricity.	Check for power.
	Batteries in the remote control need to be replaced.	Change remote control batteries.
	The power cord is not properly plugged in.	Remove and reconnect the power cord.
Runs a short while only	The thermostat temperature setting is too close to room temperature.	Lower the set temperature.
	Air outlet is blocked.	Make sure the hose is properly connected.
	There are tight bends in the air hose.	Connect hose as per instructions.
In Heating Mode*,the unit keeps switching off frequently	The room is too humid. Water Tank needs to be emptied.	In heating mode, the heat pump condenses moisture from the air into the internal water tank. In more humid rooms, it will collect faster and need to be emptied out more frequently. It is recommended to use the heating mode in 50% humidity or less. Switch off any appliances such as a humidifier or kettle to avoid extra moisture build up in the room when operating in heating mode.
Runs but not cooling	A door or window is open.	Make sure the window or door is closed.
	The dust filter is dirty.	Clean the dust filter.
	The hose is detached.	Reinstall hose properly (refer to Installation section).
	Temperature setting is too high.	Reduce temperature setting.
	Air outlet or intake is blocked.	Remove blockage.
	Room exceeds recommended size.	Move unit to smaller room.
	Large size or number of windows are decreasing cooling effectiveness.	Cover windows with curtains or blinds.
Will not run and WATER FULL indicator illuminates	Excess water condensation inside the tank.	Drain the water (refer to Water Condensation Drainage).
Heater is not switching ON	Heating function not activated yet. The ambient temperature is too high.	Check that the Heating function has been activated. will be illuminated when the Heater is switched ON.
	Heating is activated when the ambient temperature is below 44°F -77°F (7°C-25°C).	Switch on the Heating function when the ambient temperature reaches below 44°F -77°F (7°C-25°C).

*Applicable for models with heating feature only.

ERROR CODE GUIDE

SAFETY

READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL PREVAIL.

• DO NOT operate the unit with a damaged plug or loose wall outlet. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• DO NOT cover the air intake and exhaust when in use.
• DO NOT place objects on or sit on the unit.
• Always turn off and unplug the unit when cleaning or servicing.
• DO NOT use the appliance if it is damaged.
• If service is needed contact an authorized service agent.
• Unplug the unit when stored or not in use.
• DO NOT pull or carry the appliance by the power cord.
• DO NOT pinch the power cord in the door and DO NOT pull it along edges or sharp corners.
• DO NOT run the power cord under carpeting and rugs.
• Use caution to prevent tripping on cord.
• DO NOT use the device in the following cases:
  • Near a fire source
  • In areas where gasoline, paint or other flammable goods are stored
  • In an area where the water can be projected
• DO NOT touch the plug or the device with wet hands.
• Basic safety precautions should always be followed when using electrical appliances.
• This appliance has been manufactured for use in domestic environments and should not be used for other purposes.
• Only use the installation kit provided to install this unit. DO NOT attempt to extend the hose or install this unit using other methods other than that shown in this manual. Improper installation will void any existing warranties.
• DO NOT use an extension cord with this unit.
• This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never insert your fingers or rods into the air outlet. Take special care to warn children of these dangers.
• The manufacturer is not liable for injury caused to persons or property damage due to non-compliance with maintenance instructions and improper use of the appliance.
• The appliance shall be installed in accordance with national wiring regulations.
• Operation of this equipment is subject to the following two conditions:
  • this equipment or device may not cause harmful interference,
  • this equipment or device must accept any interference, including interference that may cause undesired operation.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• Electrical equipment and installations regulated by national
• legislation must be followed.
  The appliance should be transported upright.
• DO NOT turn on the appliance for at least one hour before starting it.
• It is essential that the appliance is connected to an efficient ground connection checked by a qualified electrician.
• Stagnation of possible leaks of refrigerant gas in unventilated rooms could lead to fire or an explosion hazard should the refrigerant come in contact with electric heaters, stoves or other sources of ignition.
• Use care when storing the appliance to prevent mechanical faults.
• Only persons authorized by an accredited agency certifying their competence to handle refrigerants in compliance with sector legislation should work on refrigerant circuits.
• DO NOT use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• Flammable substances or pressurized containers (eg. aerosol cans) should be kept a minimum of 50cms away from heat or fire.
• Use only implements recommended by the manufacturer for defrosting or cleaning.
• DO NOT operate your air conditioner in a wet room such as a bathroom or laundry room.
• This appliance should be used in a room that allows for good ventilation between the unit and any walls/furniture or other objects. The room size should correspond to the room area as specified for operation by the manufacturer and the appliance should be well kept to prevent mechanical damage.
• A warning to keep ventilation openings clear of obstruction.
• Do not pierce or burn the refrigerants.
• Be aware that refrigerants may not contain an odor.
• Do not modify this appliance in any way to avoid danger.
• All working procedure that affects safety means shall only be carried by competent persons.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

R290/R32 SAFETY

SYMBOL	NOTE	EXPLANATION
		This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
		This symbol shows that the operation manual should be read carefully.
		This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
		This symbol shows that information is available, such as the operating manual or installation manual.

Additional warnings for appliances with R290/R32 refrigerant gas.

• Read the instructions carefully before using the appliance.
• R290/R32 refrigerant gas complies with UL60335-2-40 / UL60335-1.
• This appliance contains a certain number of grams (see rating label at the back of the unit) of R290/R32 refrigerant gas. The maximum refrigerant charge amount is not greater than R290 0.304kg / R32 1.84 kg based on UL60335-2-40.
• When defrosting or cleaning, do not use any method other than those recommended by the manufacturer.
• Do not place the appliance in a room with continuous sources of ignition (e.g. open flame, operating gas appliance or working electrical heater).
• Do not pierce and do not burn.
• Do not perforate any part of the refrigerant circuit.
• Refrigerant gas may be odorless.
• The appliance must be installed, used and stored in an area that is greater than R290 gas: 15 m²; R32 gas: 4 m².
• Accumulation of possible refrigerant leaks in an unventilated room could lead to fire or explosion should the refrigerant come in contact with electric heaters, stoves or other sources of ignition.
• The appliance must be stored in a way to prevent mechanical damage and in a well-vented area.
• Only individuals authorized by an accredited organization certifying their competence to handle refrigerants in compliance with industry legislation should work on the refrigerant circuit.
• Servicing shall be performed only as recommended by the manufacturer.
• All working procedures that affect safety means shall only be carried by competent persons.

Repair must be performed based on the recommendations from the manufacturer. Maintenance and repair that requires the assistance of other qualified personnel must be performed under the supervision of specialists in the use of flammable refrigerants.

Transportation, marking and storage for units.

1. Transport of equipment containing flammable refrigerants must comply with local transport regulations.
2. Marketing of equipment using signs must comply with local regulations.
3. Disposal of equipment using flammable refrigerants must comply with national regulations.
4. The storage of equipment should be in accordance with the manufacturer's instructions.
5. Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
   The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

Product Registration

Contact Us

Check the website for FAQs, usage guides, and more!
www.HoneywellAirComfort.com

Customer Support:
Web: www.HoneywellAirComfort.com
USA: 1-800-474-2147 | usinfo@jmatek.com
CANADA^: canadainfo@jmatek.com
