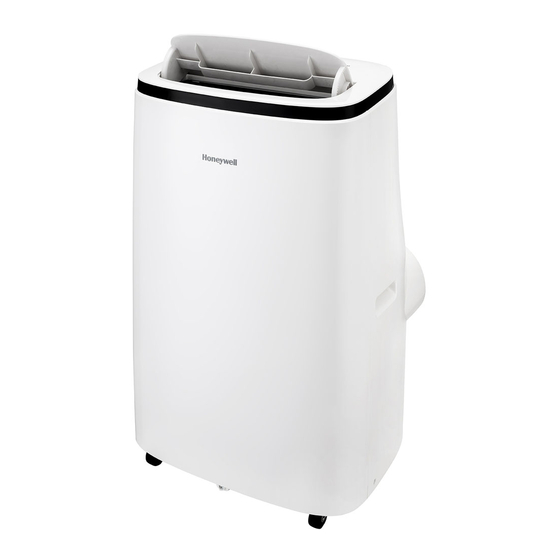

Portable Air Conditioner
EN
User Manual
Read and save these instructions before use
Customer Support:
Web: www.jmatek.com
USA: 1-800-474-2147 | usinfo@jmatek.com
CANADA^: canadainfo@jmatek.com
^ Canada Customer Support service available for models sold in Canada only.
Model:
HJ0CESWK7/
HJ2CESWK8/
HJ4CESWK9/
HJ5CESWK0

Advertisement

loading

  Related Manuals for Honeywell HJ0CESWK7

  Summary of Contents for Honeywell HJ0CESWK7

  • Page 1 Portable Air Conditioner User Manual Read and save these instructions before use Model: HJ0CESWK7/ HJ2CESWK8/ HJ4CESWK9/ HJ5CESWK0 Customer Support: Web: www.jmatek.com USA: 1-800-474-2147 | usinfo@jmatek.com CANADA^: canadainfo@jmatek.com ^ Canada Customer Support service available for models sold in Canada only.
  • Page 2 SAFETY READ AND SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL PREVAIL.
  • Page 3 SAFETY (CONTINUED) • Do not pierce or burn the unit. • It is essential that the appliance is connected to an efficient earth system checked by a qualified electrician. • Refrigerant gas may be odorless. • Stagnation of possible leaks of refrigerant gas in unventilated rooms could lead to fire or an explosion hazard should the refrigerant come in contact with electric heaters, stoves or other sources of ignition.
  • Page 4 SAFETY (CONTINUED) • Use only implements recommended by the manufacturer for defrosting or cleaning. • Only use the installation kit provided to install this unit. DO NOT attempt to extend the hose or install this unit using other methods other than that shown in this manual.
  • Page 5 SAFETY (CONTINUED) • A warning to keep ventilation openings clear of obstruction. • Do not pierce or burn the refrigerants. • Be aware that refrigerants may not contain an odor.
  • Page 6 THANK YOU Congratulations on your purchase of this Honeywell Portable Air Conditioner. Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal of the appliance, please refer to the below paragraph of the manual. USER TIPS Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are housed in a compact unit.
  • Page 7: Parts Description

    PARTS DESCRIPTION 1) Control Panel Upper Rubber Drain Plug (Dehumidifying Mode) 2) Air Outlet 10) Lower Dust Filter 3) Handle 11) Drain Tube (For Continuous Drain) 4) Casters 12) Drain Plug Cap 5) Remote Control 13) Lower Rubber Drain Plug (Air Conditioning Mode) 6) Hose Connector 14) Power Supply Cord...
  • Page 8: Installation

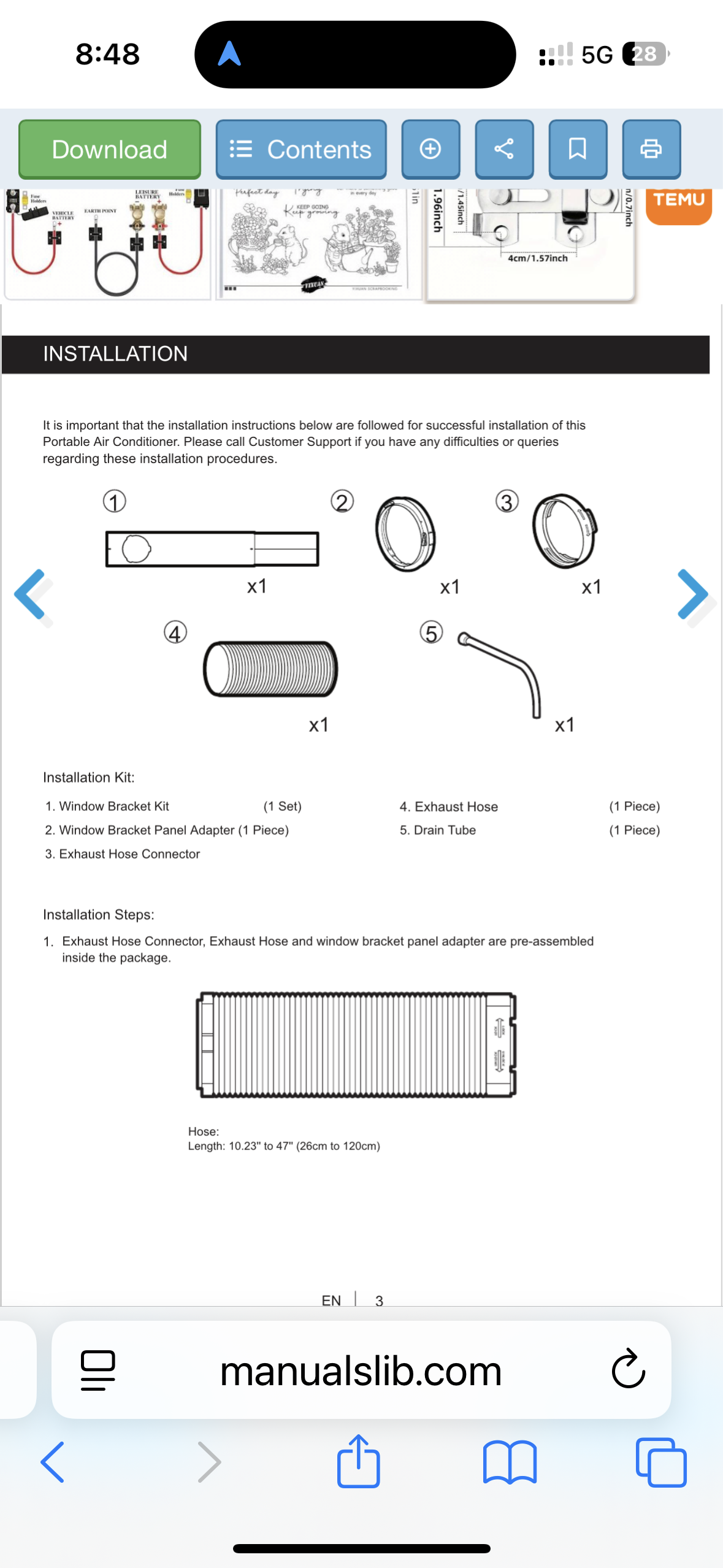

    INSTALLATION It is important that the installation instructions below are followed for successful installation of this Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries regarding these installation procedures. Installation Kit: 1. Window Bracket Kit (1 Set) 4.
  • Page 9 INSTALLATION (CONTINUED) Window Bracket Kit: Part A: Part B Part A + B: Min. Length 19.7" (50 cm) Min. Length 19.7" (50 cm) Max. Length 38.2" (97 cm) Horizontal Sliding Window Vertical Sliding Window This window kit is designed to fit most standard sliding windows. If your window is outside of the size parameters as outlined above, the window bracket can be cut shorter to fit by bringing it to a nearby hardware store.
  • Page 10 INSTALLATION (CONTINUED) 3. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are tight and installed properly. 4. Connect the window bracket to the window. Horizontal Sliding Window Vertical Sliding Window 5. The Portable Air Conditioner is now ready to use.
  • Page 11 INSTALLATION (CONTINUED) IMPORTANT: Do not replace or lengthen the hose as this could cause the unit to malfunction. The length of the hose is scientifically determined by the specifications and airflow of the air conditioner. Extending the hose beyond the specified dimensions can cause heat to collect or flow back into the air conditioner causing the unit to malfunction.
  • Page 12: Use And Operation

    USE AND OPERATION CONTROL PANEL 1) Indicator Lights 5) Timer / Temperature Set Controls 2) Power Control 6) Fan Speed Control 3) Sleep Mode 7) Timer Control 4) Mode Control 8) Swing Control FUNCTION BUTTONS POWER CONTROL Press to turn ON/OFF the unit. The air vent will automatically swing open when the unit is turned ON and automatically close when the unit is turned OFF.
  • Page 13 USE AND OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) MODE CONTROL Settings: Air Conditioning, Dehumidifying, Fan, Heating*. The corresponding indicator light will illuminate to indicate the current mode setting. • Air Conditioning Mode (COOL) Adjust fan speed and air temperature to suit your desired comfort level. Temperature setting range is 60°F - 90°F (16°C - 32°C).
  • Page 14 USE AND OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) SLEEP MODE Sleep Mode is for energy-saving comfort during the night. When Sleep Mode is ON in Air Conditioning Cooling Mode, the fan will automatically stay on LOW Speed and the set temperature will increase by 1°F (1°C) on the first hour.
  • Page 15 USE AND OPERATION (CONTINUED) REMOTE CONTROL All key functions can be accessed from the remote control. Mode Control Power Control Press to change the operation mode ON / OFF in the order of: Timer / Temperature Set Control Cooling Heating* •...
  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Appliance Maintenance: Turn off the appliance before disconnecting the power supply. Only clean the appliance with a soft dry cloth. Dust Filter Maintenance: The dust filter is to be cleaned every two weeks to maintain air cooling efficiency. Please follow the below instructions for cleaning the dust filters: Upper Switch off and unplug the Portable Air Conditioner from the...
  • Page 17 CLEANING AND MAINTENANCE (CONTINUED) End of Season Storage and Maintenance: If the appliance will not be used for a long time, follow these steps: Be sure to drain the left-over water condensation. Remove the lower drain plug and use a drain pan to collect the water (make sure to replace the deain plug cap when finished).
  • Page 18: Water Condensation Drainage

    WATER CONDENSATION DRAINAGE When there is excess water condensation inside the unit, the air conditioner stops running and shows a warning light (the WATER FULL indicator illuminates with a red light). This indicates that the water condensation needs to be drained using the following procedures: Manual Draining in Cooling, Dehumidifying Modes Water may need to be drained in high humidity areas.
  • Page 19: Troubleshooting Guide

    TROUBLESHOOTING GUIDE The following troubleshooting guide addresses the most common problems. If problems persist, call customer support. Unplug and disconnect the appliance from the power source before attempting to troubleshoot. PROBLEM POSSIBLE CAUSE SOLUTION No electricity. Check for power. Batteries in the remote control need to be Change remote control batteries.
  • Page 20 TROUBLESHOOTING GUIDE (CONTINUED) PROBLEM POSSIBLE CAUSE SOLUTION A door or window is open. Make sure the window or door is closed. The dust filter is dirty. Clean the dust filter. Reinstall hose properly The hose is detached. (refer to Installation section). Runs but not Temperature setting is Reduce temperature setting.
  • Page 21: Error Code Guide

    ERROR CODE GUIDE ERROR CODE ERROR POSSIBLE CAUSE "E1" Indoor temperature sensor failure (open circuit or short circuit). "E2" Pipe temperature sensor failure (open circuit or short circuit).
  • Page 22 Made in China © 2020 JMATEK Limited. All rights reserved. The Honeywell Trademark is used under license JMATEK North America LLC from Honeywell International Inc. Honeywell International Inc. makes no Mahwah, New Jersey 07495 USA representations or warranties with respect to this product.
