RAZER NOMMO RZ05-02460100-R3U1 Manual

Table of Contents

Contents

1 Introduction
2 PACKAGE CONTENTS / SYSTEM REQUIREMENTS
3 REGISTRATION / TECHNICAL SUPPORT
4 TECHNICAL SPECIFICATIONS
5 DEVICE LAYOUT
6 SETTING UP YOUR RAZER NOMMO
7 USING YOUR RAZER NOMMO
8 SAFETY AND MAINTENANCE
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Introduction

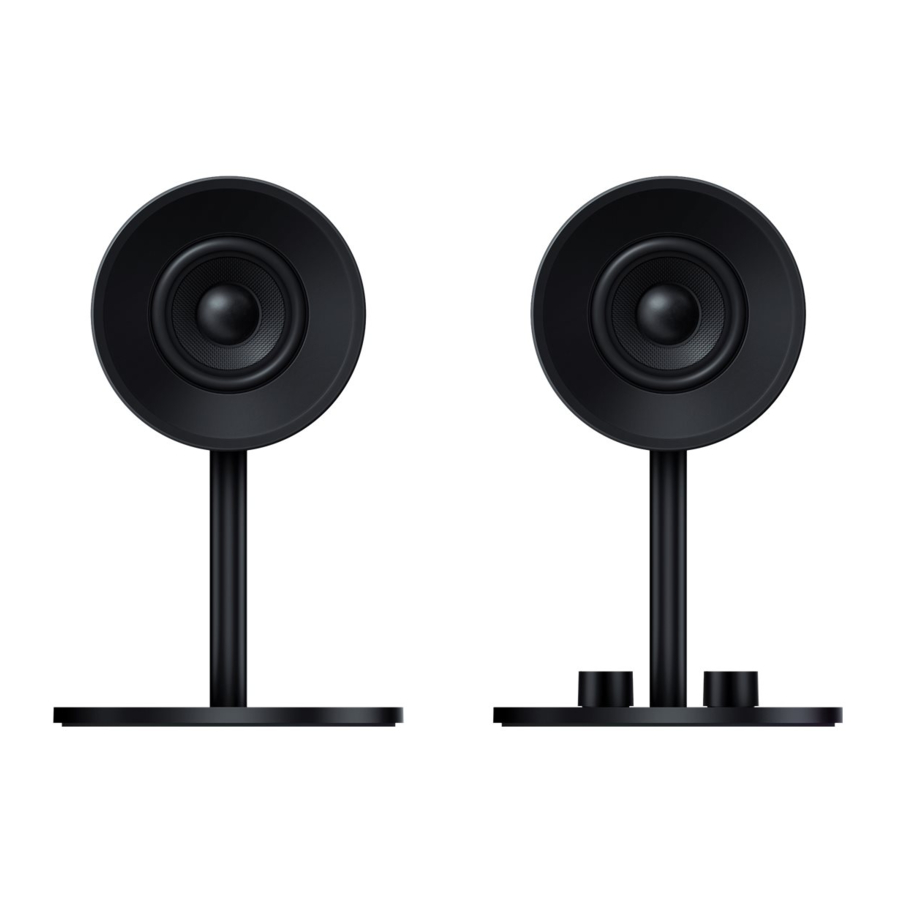

The Razer Nommo is designed for gamers who want to flood their rooms with the sounds of their favorite games, music and movies. With Kevlar® coated 77mm drivers, a wide sound field with high positional accuracy, dedicated rear-facing firing bass ports and bass control with automatic gain control technology, you have the ultimate in power and versatility.

PACKAGE CONTENTS / SYSTEM REQUIREMENTS

PACKAGE CONTENTS

Razer Nommo 2.0 gaming speakers
3.5 mm audio cable
Power adapter with regional plug*
Important Product Information Guide

*May vary for specific regions

HARDWARE REQUIREMENTS

Devices with 3.5 mm audio port

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION
Register your product online at razer-id.razerzone.com/warranty to get real-time information on your product's warranty status. If you haven't registered for a Razer ID yet, register now at razer-id.razerzone.com to get a wide range of Razer benefits.

TECHNICAL SUPPORT
What you'll get:

1 year limited manufacturer's warranty.
Free online technical support at support.razerzone.com.

TECHNICAL SPECIFICATIONS

SPEAKERS

2 x 77mm full range drivers (1 x per speaker)
Frequency response —50-20,000hz
1 x 3.5mm audio input jack
1 x 3.5mm headphone jack
1 x 3.5mm aux-in jack
Bass and volume control

DEVICE LAYOUT

2.5" Full range speakers
Bass control
Power switch / volume control
Audio input port
Aux input port
DC power port
Headphone output port
3.5 mm audio cable
Power adapter
Interchangeable plugs

SETTING UP YOUR RAZER NOMMO

Attach the regional plug to the power adapter.

Plug the power adapter from your speakers to an appropriate power source.

Plug the 3.5mm cable from the audio input port of your Razer Nommo to your audio device.

USING YOUR RAZER NOMMO

POWERING ON / OFF
To power on the speakers, simply rotate the volume control clockwise until you hear a click. To power off the speakers, rotate the volume control counter-clockwise until you hear a click.

USING THE VOLUME CONTROL
While powered on, rotate the volume control to increase or decrease the volume. This function also works on the headphone that is connected to your Razer Nommo.

USING THE BASS CONTROL
Rotate the bass control clockwise to increase or counter-clockwise to decrease the bass levels. This function also works on the headphone that is connected to your Razer Nommo.

USING THE AUX INPUT PORT
Plug a 3.5mm cable* from the aux input port of your Razer Nommo to your audio device. If the audio input port and aux input port are in use, Razer Nommo will combine both sounds.

*not included

USING THE HEADPHONE OUTPUT PORT
While powered on, connect your headphone to the headphone output port of your Razer Nommo.

Note: The sound output will automatically switch from the speakers to the headphones

SAFETY AND MAINTENANCE

SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Nommo, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to razersupport.com for support. Do not attempt to service or fix the device yourself at any time.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0 ºC(32 ºF)to 40º C (104º F).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE
The Razer Nommo requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.
