RAZER NOMMO V2 X
MASTER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOMMO V2 X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Razer NOMMO V2 X

Summary of Contents for Razer NOMMO V2 X

  • Page 1 RAZER NOMMO V2 X MASTER GUIDE...
  • Page 2 Unleash the power of positional audio with the Razer Nommo V2 X—a 2.0 PC gaming speaker system that harnesses the full audio spectrum to deliver room-filling sound. Enhanced with full-range drivers and powered by THX Spatial Audio, prepare for an experience that immerses you in your entertainment.

  • Page 3: Table Of Contents

    5. SETTING UP YOUR RAZER NOMMO V2 X ....................7 6. CONNECTING TO YOUR GAMING SPEAKERS ..................8 7. USING YOUR GAMING SPEAKERS ......................12 8. CONFIGURING YOUR RAZER NOMMO V2 X VIA RAZER SYNAPSE ............16 9. SAFETY AND MAINTENANCE ........................ 26 10. LEGALESE ............................27 ™...

  • Page 4: What's Inside

    1. WHAT'S INSIDE ▪ Razer Nommo V2 X RIGHT SPEAKER LEFT SPEAKER Status indicator USB Type C port Volume control buttons Power port Power / Multi-function button Left speaker port Rear-facing bass ports Left speaker connector ▪ USB Type A to USB Type C cable ™...

  • Page 5: What's Needed

    ▪ Important Product Information Guide 2. WHAT'S NEEDED PRODUCT REQUIREMENTS ▪ USB Type A port or devices with Bluetooth connectivity RAZER SYNAPSE REQUIREMENTS ▪ Windows® 10 64-bit (or higher) ▪ Internet connection for software installation ™ F O R G A M E R S . B Y G A M E R S .

  • Page 6: Let's Get You Covered

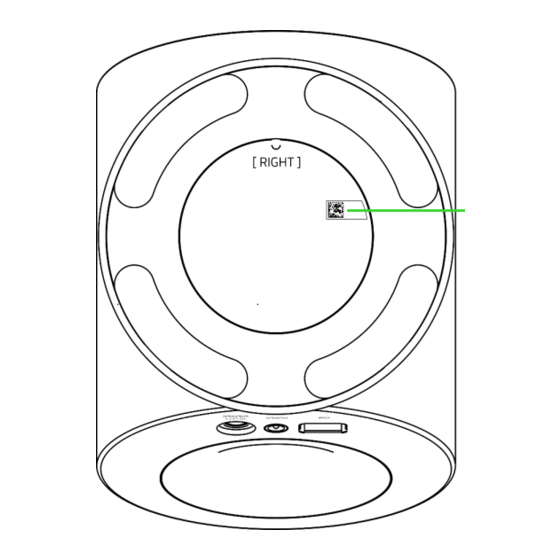

    3. LET'S GET YOU COVERED Register your product and score exclusive benefits razerid.razer.com/warranty Your product’s serial number can be found here. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 7: Technical Specifications

    CONNECTIVITY ▪ Bluetooth connection ▪ USB Type C to USB Type A ▪ Toggle PC audio devices (supported via Razer Synapse) ▪ Cable lengths: o USB Type C to USB Type A cable: 2 m o Speaker cable: 2 m o AC power cord: 2 m ™...

  • Page 8: Setting Up Your Razer Nommo V2 X

    5. SETTING UP YOUR RAZER NOMMO V2 X 1. Connect the left speaker connector to the left speaker port on the right speaker. 2. With the appropriate AC plug for your region attached to the power adapter, connect it to the right speaker's power port and plug it into a power outlet.

  • Page 9: Connecting To Your Gaming Speakers

    6. CONNECTING TO YOUR GAMING SPEAKERS A. VIA PC MODE 1. Connect the gaming speakers to any of the USB Type A ports on your PC. Type A Type C 2. Press the Power / Multi-function button to power on the gaming speakers. The status indicator will turn solid green, indicating that the gaming speakers are in PC mode.
  • Page 10 3. Set the Razer Nommo V2 X as the default Output device on your PC. Razer Nommo V2 X When using the gaming speakers with compatible devices, set the Razer Nommo V2 X as its default output device (if applicable).
  • Page 11 B. VIA BLUETOOTH MODE While powered on and in PC mode, double press the Power / Multi-function button to switch to Bluetooth mode. The status indicator will blink in blue, and an audio prompt will be heard to indicate that the gaming speakers are in pairing mode. PC MODE BLUETOOTH MODE...
  • Page 12 Activate Bluetooth on your device and select "Razer Nommo V2 X (BT)" from the list of devices found. Razer Nommo V2 X (BT) Wait until both devices are connected. The status indicator will turn solid blue, and an audio prompt will be heard to indicate that the gaming speakers are now connected to your device.

  • Page 13: Using Your Gaming Speakers

    7. USING YOUR GAMING SPEAKERS POWER ON / OFF Press the Power / Multi-function button to power on or off the gaming speakers. A tone will be heard when you power on or off the gaming speakers. ADJUSTING THE VOLUME Press the volume control buttons to adjust the volume of the current audio mode.
  • Page 14 While powered on and in PC mode, press both Volume control buttons (- and +) simultaneously to switch between the gaming speakers and a selected secondary PC playback device on Razer Synapse. The status indicator will briefly blink in yellow to indicate that the gaming speakers toggled to a secondary PC playback device and vice versa.
  • Page 15 MODE (Pairing - Blinking blue) Bluetooth pairing mode can only be activated from Bluetooth mode. 2. Activate Bluetooth on your device and select "Razer Nommo V2 X (BT)" from the list of devices found. Razer Nommo V2 X (BT) ™...
  • Page 16 Install Razer Synapse when prompted, or download the installer from razer.com/synapse THX® Spatial Audio (PC) Unleash the full potential of the Razer Nommo V2 X by enabling 360° positional audio for a natural and lifelike experience through Razer Synapse. BLUETOOTH MODE (Paired - Solid blue) *Only available on Windows®...

  • Page 17: Configuring Your Razer Nommo V2 X Via Razer Synapse

    Razer ID account is recommended but optional. All listed features are subject to change based on the current software version, the connected device(s), and supported apps and software. SYNAPSE TAB The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab. Dashboard The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.
  • Page 18 Modules The Modules subtab displays all installed and available modules for installation. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 19 Global Shortcuts Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse- enabled device inputs, which apply across all device profiles. Learn more about Profiles Only Razer Synapse-enabled device inputs will be recognized. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 20 AUDIO TAB The Audio tab is the main tab for your Razer Nommo V2 X, where you can customize your gaming speakers' settings to unleash their full potential. Changes made under this tab are automatically saved to your system and cloud storage.
  • Page 21 Allows you to switch the gaming speakers to Bluetooth mode using Razer Synapse. Razer Synapse won't be able to revert to PC mode when the gaming speakers have been set to Bluetooth mode. To set the gaming speakers to PC mode, double press the Power / Multi-function button.
  • Page 22 Power Use the Power subtab to enable the gaming speakers to enter standby mode when left idle for a certain period. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 23 PROFILES TAB The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications. Devices View which games are linked to each device's profiles or which Chroma Effect is linked to specific games using the Devices subtab.
  • Page 24 Razer device. To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with.
  • Page 25 Dashboard. Reset tab The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse's new features on its next launch.
  • Page 26 The About tab displays brief software information and copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as quick access to Razer's social communities. ™ F O R G A M E R S . B Y G A M E R S .

  • Page 27: Safety And Maintenance

    9. SAFETY AND MAINTENANCE SAFETY GUIDELINES To achieve maximum safety while using your Razer Nommo V2 X, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com...

  • Page 28: Legalese

    Product. In no event shall Razer's liability exceed the retail purchase price of the Product.
