RAZER SEIREN X Manual

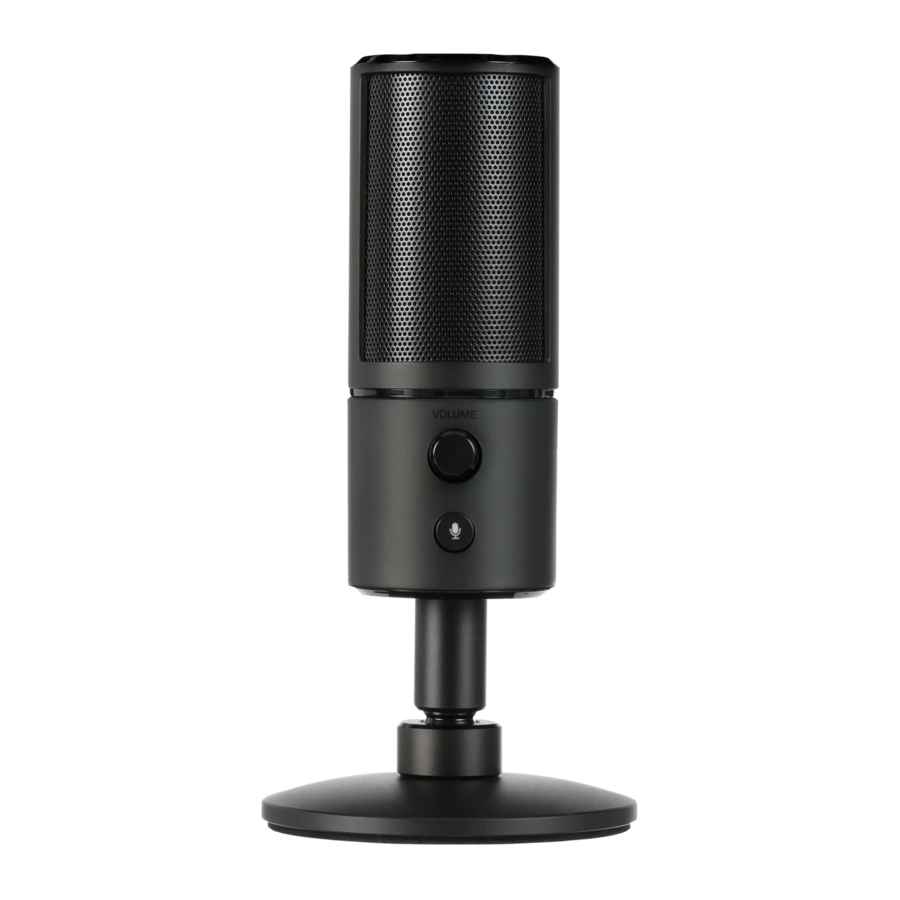

INTRODUCTION

The Razer Seirén X is the microphone designed specially to elevate the quality of streams. The microphone strategically filters unwanted background nose and features a built-in shock mount to dampen vibrations. To ensure it fits your gaming setup perfectly and professionally, it's constructed to be sleek and non-obstructive, allowing your audience to see more of you. It's the microphone needed to propel your streaming journey to greater heights.

PACKAGE CONTENTS / SYSTEM REQUIREMENTS

PACKAGE CONTENTS

Razer Seirén X condenser streaming microphone
Support rod
Desk stand base
Micro-USB to USB cable
Important Product Information Guide

SYSTEM REQUIREMENTS

PC or Mac with a free USB port
Windows@ 7 64-bit / OS 10.8 (or higher)
Internet connection
Third party software: Open Broadcaster Software [obsproject.com] or XSpIit* [xsplit.com]

*Software license fee may apply.

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION
Register your product online at razer-id.razerzone.com/warranty using your Razer ID to get real time information on your product's warranty status. If you haven't registered for a Razer ID yet, register now at razer-id.razerzone.com to get a wide range of Razer benefits.

TECHNICAL SUPPORT
What you'll get:

1 year limited manufacturer's warranty.
Free online technical support at support.razerzone.com

TECHNICAL SPECIFICATIONS

MICROPHONE SPECIFICATIONS

Power required / consumption, 5V 100mA
Sample rate: min 44.1kHz / max 48kHz
Bit rate: 16bit
Capsules: Ø25mm condenser capsules
Polar patterns: Super-Cardioid
Frequency response: 20Hz—20kHz
Sensitivity: 17.8mV/Pa (at 1kHz)
Max SPL 110dB (THD < 10/0 at 1kHz)

HEADPHONE AMPLIFIER

Impedance: 16
Power output (RMS):125mW (at 320)
THD: < 080/0(at I kHz)
Frequency response: 20Hz —20kHz
Signal-to-noise ratio: 85dB

APPROXIMATE SIZE & WEIGHT

Diameter (Microphone): 50 mm / 1,97 in
(Desk stand base): 90 mm / 354 in
Height: 184 mm / 7.24 in
Weight: 383 g / 0.84 lbs

DEVICE LAYOUT

Headphone volume control
Microphone mute button
Micro-USB port
3.5 mm headphone port
Thread mount
Support rod
Desk stand base
Micro-USB to USB cable

SETTING UP YOUR RAZER SEIRÉN X

Tighten the support rod onto the threaded portion of the desk stand base,
Rotate the Razer Seirén X onto the threaded portion of the support rod until it is securely fastened.

Slightly tilt the microphone, then connect the Razer Seiren X to your computer using the Micro-USB to USB cable.
Note: You may connectan analog audio output device (such as a headphone) t o the 3.5 mm headphone port, if you want to listen to both PC audio and the audio being recorded by your Razer Seirén X at the same time.
Set the Razer Seirén X as the default playback and recording device of your computer. This is required if you are using the Razer Seirén X for the first time.
1. For Windows users
  1. Open your Sound settings from Control Panel > Hardware and Sound > Manage audio devices. You can also right-click on the sound icon in the system tray, and then select Playback devices
  2. In the Playback tab, select Razer Seirén X from the list and click the Set Default button.
  3. In the Recording tab, select Razer Seirén X from the list and click the Set Default button.

For OS X® users
1. Open your Sound settings from System Preferences > Sound
2. In the Input tab, select Razer Seirén X from the list.
3. In the Output tab, select Razer Seirén X from the list.

Congratulations, you are now ready to use your Razer Seirén X

USING YOUR RAZER SEIRÉN X

MUTING THE MICROPHONE
Press the microphone mute button to mute or unmute the microphone. The microphone mute LED will light up in red when the microphone is muted,

ADJUSTING THE HEADPHONE VOLUME
Rotate the headphone volume control clockwise or counterclockwise to increase or decrease the headphone volume.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES
In order to achieve maximum safety while using the Razer Seirén X, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razerzone.com for support. Do not attempt to service or fix the device yourself at any time.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Do not puncture nor insert foreign objects into any of the device's openings.
Do not use or install the device and its components near water, moisture, solvents, or other wet surfaces, nor expose the device to high temperatures or direct sunlight for an extended period of time.
Keep the device and its components away from liquid, humidity or moisture, Operate the device and its components only within the specific temperature range of 0ºC (32ºF)to 40ºC(104ºF).
Should the temperature exceed this range, unplug and switch off the device in order to let the temperature stabilize to an optimal level.
Listening to excessively loud volumes over extended periods of time can damage your hearing.
Furthermore, legislation of certain countries permits a maximum sound level of 86dB to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE
The Razer Seirén X requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton to prevent dirt buildup. Do not use soap or harsh cleaning agents.
