INTRODUCTION

With the Razer Seiren Mini, big sounds can come in small packages. Introducing our ultra-compact condenser mic made for streaming with smaller or portable setups, and capable of producing professional-grade audio - thanks to a supercardioid pickup pattern and a 14mm condenser capsule

WHAT'S INSIDE

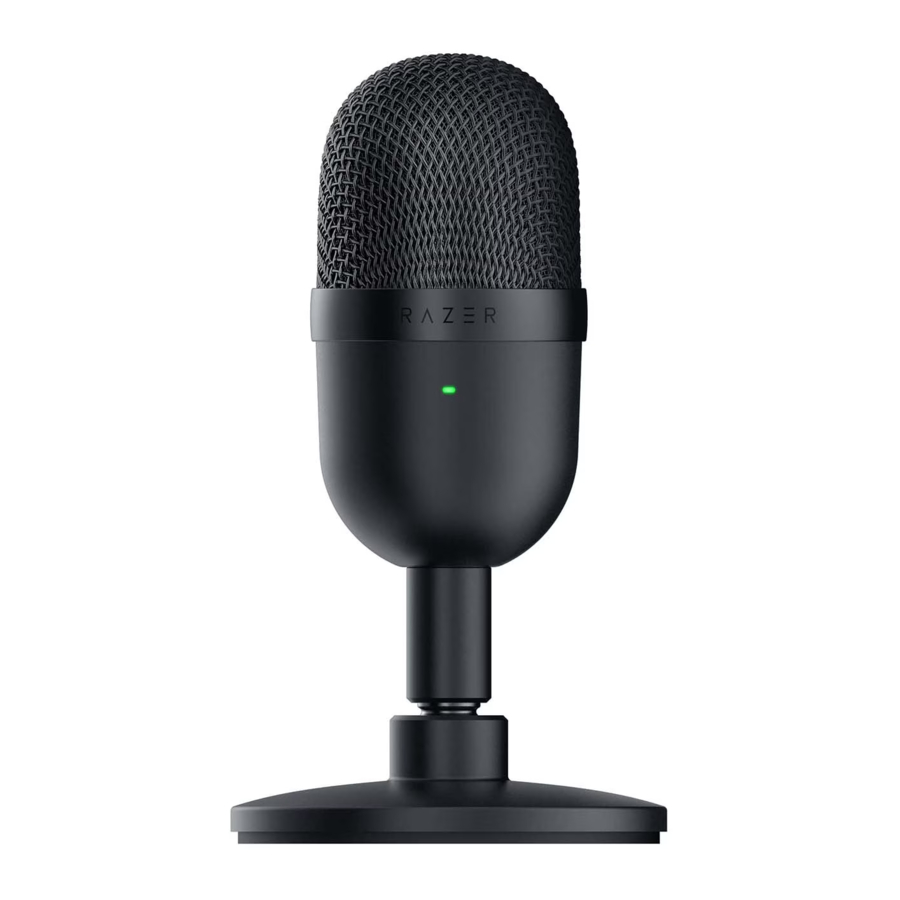

Razer Seiren Mini
OVERVIEW

Status indicator
Micro-USB port
Thread mount

WHAT'S NEEDED

PC or Laptop with a free USB port*
Windows@ 7 64-bit (or higher)

*Compatible with Audacity, OBS Streamlabs OBS and XSplit (software license fee may apply).

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a I-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
LET'S GET YOU COVERED
Got a question? Ask the Razer Support Team at support support.razer.com

TECHNICAL SPECIFICATIONS

MICROPHONE

Power required / consumption: 5V 500 mA (USB)
Sample rate: min 44.1 kHz / max 48 kHz
Bit rate: 16 bit
Capsules: Ø14mm condenser capsule
Polar patterns: Supercardioid
Frequency response: 20 Hz—20 kHz
Sensitivity: 17.8 mV/Pa (at 1 kHz)
Max SPL: 120 dB (THD < 10/0 a t 1 kHz)

APPROXIMATE SIZE & WEIGHT

Diameter: (Microphone): 57.2 mm / 2.25 in
(Desk stand base): 90 mm / 3.54 in
Height: 163 mm / 6.42 in
Weight: 282 g / 0.62 lbs

SETTING UP YOUR MICROPHONE

Assemble the base and securely fasten it to the thread mount of your Razer Seiren Mini.

Connect the microphone to the USB port of your PC using the Micro-USB to USB cable.

On your PC,right-click on the sound icon on the system tray, select Open Sound Settings and set Razer Seiren Mini as the default Input device.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES
In order to achieve maximum safety while using the Razer Seiren Mini, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support. Do not attempt to service or fix the device yourself at any time.
Do not take apart the device and do not attempt to operate it under abnormal current loads. Doing so will void your warranty.
Do not puncture nor insert foreign objects into any of the device's openings.
Keep the device and its components away from liquid, humidity or moisture. Operate the device and its components only within the specific temperature range of 0ºC(32 ºF)to 40ºC (104 ºF).
Should the temperature exceed this range, unplug and switch off the device in order to let the temperature stabilize to an optimal level.

MAINTENANCE AND USE
The Razer Seiren Mini requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton to prevent dirt buildup. Do not use soap or harsh cleaning agents.
