Yamaha YAS-109, YAS-109BL Manual

INTRODUCTION

This unit is a front surround system with its built-in subwoofers that allows for the enjoyment of superior sound quality from video played on a TV connected to the unit.

Notice for content in this manual

  • This manual uses the following signal words for important information:
    • NOTICE
      Indicates points that you must observe in order to prevent product failure, damage or malfunction and data loss, as well as to protect the environment.
    • NOTE
      Indicates notes on instructions, restrictions on functions, and additional information that may be helpful.
  • The illustrations and screenshots in this document are for instructional purposes only. For any information on devices other than this unit, refer to each device's respective documentation.
  • In this manual, iOS and Android mobile devices are collectively referred to as "mobile devices". The specific type of mobile device is noted in explanations as needed.

Features

Features - Surround sound playback
Play surround sound
Audio from a TV, media streaming service, or BD/ DVD player can be played with 3D surround sound/ surround sound.

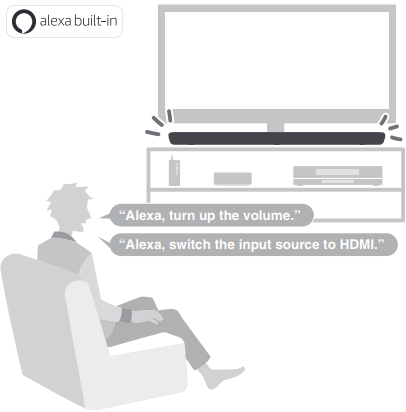

Features - Asking Alexa to control the unit
Ask Alexa to control the unit
With Alexa built-in, you can operate this unit, access your music playlists.

Alexa may not be available in your region. View the Yamaha product website for details.

Features - Easy operation with the smartphone app
Easy operation with the smartphone app
Install the Sound Bar Controller app on either a smartphone or tablet. Various features, settings, and streaming services can be easily accessed and controlled via the app.

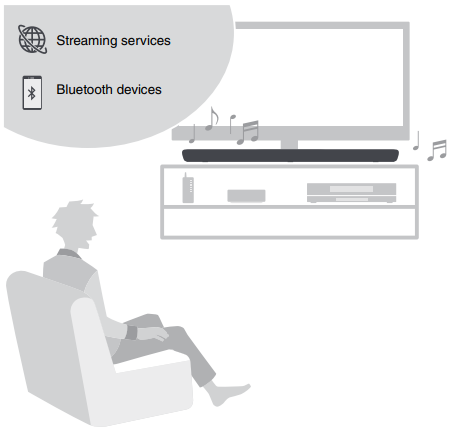

Features - Listening to audio from Bluetooth units
Listen to audio from Bluetooth devices and streaming services
Enjoy listening to audio from Bluetooth devices and streaming services* such as Amazon Music and Spotify.

* A subscription may be required to listen to streaming services via this unit.

3D surround playback
This unit supports virtual 3D surround sound technology called "DTS Virtual: X". Surround sound can be heard not only from horizontal directions, but also from varying heights when this unit's 3D surround mode is enabled, creating a virtual acoustic environment. This provides a greater sense of cohesion between audio and video, for a sense of being surrounded by sounds coming from ahead, behind, the left and right, and even above for an immersive visual and auditory experience.

Transmission of 4K high dynamic range (HDR) video
Enjoy 4K High Dynamic Range (HDR) content from HDR-compatible sources such as a TV, media streaming device, gaming console, or set-top box.

HDMI control function
Link functions of a TV and the unit are available using the TV's remote control. When a TV that supports Audio Return Channel (ARC) is used, this ARC-compatible unit can be connected to the TV via a single HDMI cable.

Bass Extension
The bass extension feature boosts bass levels for more impactful sound.

Clear Voice
The clear voice function makes speech, such as dialog and narration, clearer.

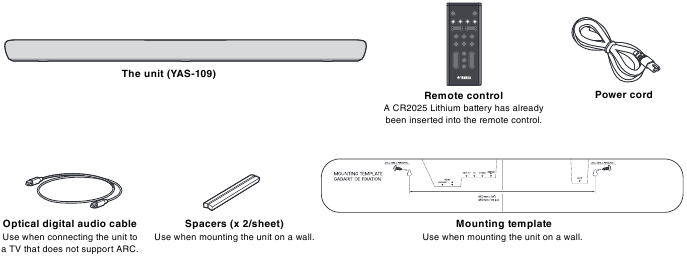

Accessories

Make sure you have received all of the following accessories.

NOTE

  • HDMI cables are not supplied with the unit. Use the HDMI cables purchased separately.
  • The Owner's Manual is available on the Yamaha website.

Part names and functions

Front/top panel

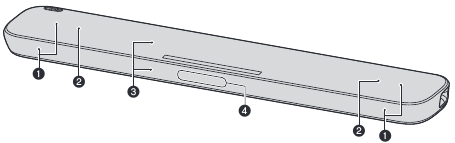

Front/top panel overview - Part 1

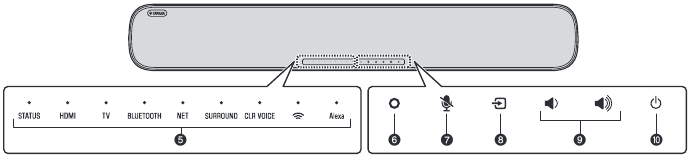

Front/top panel overview - Part 2

  1. Speakers
  2. Dual built-in subwoofers
    The built-in subwoofers are located in the top part of the unit.
  3. Remote control sensors
    Receive infrared (IR) signals from the remote control of the unit (see "Remote control").
  4. Microphones
    Used to interact with Alexa.
  5. Indicators
    The indicators on the top panel flash or glow to show the operation and setting status. In this document, indicator status, such as off, glowing, and flashing, are shown as the illustrations below.
  6. (Alexa)
    Manually wake Alexa to enable a voice command (see "Operating the unit using Amazon Alexa voice commands").
  7. (Microphones disabled)
    Touch to disable the microphones. Alexa will not respond to utterances while the microphones are disabled. Disable the microphones to maintain privacy. Touch again to enable the microphones (see "Operating the unit using Amazon Alexa voice commands").
  8. (input)
    Select an input source (see "Basic procedure for playback").
  9. (volume +/-)
    Adjust the volume (see "Basic procedure for playback").
  10. (power)
    Turn on or off the unit.

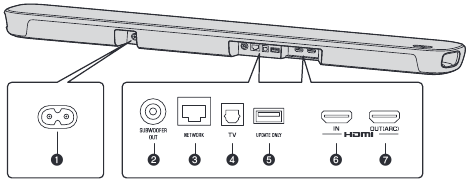

Rear panel

INTRODUCTION - Rear panel Overview

  1. Power connector
    Connect the power cord of this unit (see "Connections").
  2. SUBWOOFER OUT jack
    For connecting to an external subwoofer with an RCA mono cable.
  3. NETWORK jack
    For connecting to a network with an ethernet cable (sold separately).
  4. TV input jack
    For connecting to a TV that does not support ARC. This jack cannot be used when the unit is connected to an ARC-compatible TV.
  5. UPDATE ONLY jack
    Use to update this unit's firmware, if necessary. Refer to the instructions supplied with the firmware for details.
  6. HDMI IN jack
    Connect to an HDMI-compatible AV device to input video/audio signals (see "Connections").
  7. HDMI OUT (ARC) jack
    Connect to an HDMI (ARC)-compatible TV to output video/audio signals (see "Connections"). TV audio signals can also be input through this jack.

Remote control

Preparing the remote control


Remove the battery insulating strip before attempting to use the remote control.

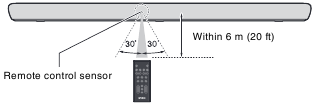

Operating range of the remote control

INTRODUCTION - Operating range of remote control
Operate the remote control within the range as shown above.

PREPARATION

Installing the unit on a TV stand


Install the unit as shown above.

Connections

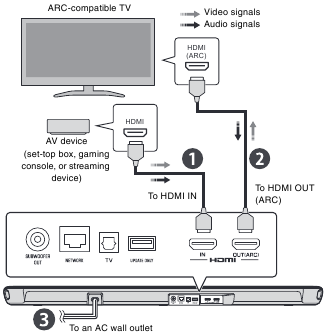

PREPARATION - Connections Overview
Overview

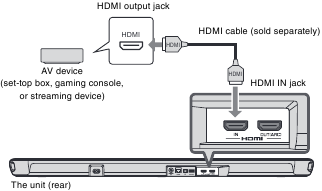

  1. Connecting an AV device
    Connect a streaming device, set-top box, or other AV device to the unit. If only a TV will be connected, skip this step and proceed to step .
    Connections - Connecting an AV device

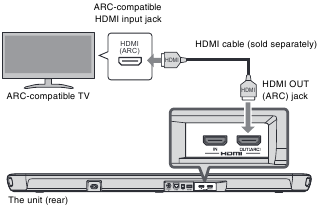

  2. Connecting an Audio Return Channel (ARC) compatible TV
    Connections - Connecting an ARC compatible TV

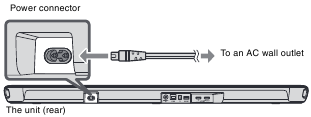

  3. Connecting the power cord
    After all connections are complete, connect the supplied power cord to the power connector on the unit and then plug the power cord into an AC wall outlet.
    Connections - Connecting the power cord

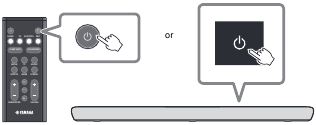

Turning on the unit

PREPARATION - Turning on the unit
Press on the remote control or touch on the unit to turn on the unit.

When the unit is turned on, the STATUS indicator goes off.

NOTE
To turn off the unit, press on the remote control or touch on the unit again.

Connecting to a network

A network connection allows you to play various streaming services via the unit, and to talk with Amazon Alexa to operate this unit, or to play music.
The Sound Bar Controller app for mobile devices is required to configure and operate network functions. Search for "Sound Bar Controller" on the App Store or Google Play.
Follow the app's on-screen instructions to connect the unit to a network.

www.apple.com

play.google.com

The indicator on the unit glows when the unit is connected to a wireless network.

NOTE

  • Follow the app's on-screen instructions to enter your Amazon account information to use Amazon Alexa.
  • When the unit is connected to a network for the first time after purchase, the unit's firmware is updated to the latest firmware version.

PLAYBACK

Basic procedure for playback

  1. Turn on the external devices (such as a TV or media streaming device) connected to the unit.
  2. Use the input buttons to directly select an input source to be played.
    HDMI: Sound from a device connected to the HDMI IN jack
    TV: TV audio
    BLUETOOTH: Sound from a Bluetooth device
    NET: Audio from streaming services
  3. Start playback on the external device selected in step 2.
  4. Press VOLUME (+/-) to adjust the volume.

NOTE
When the unit is connected to a TV via HDMI cable as described in this document, the TV's remote control can be used to perform the following operations.

  • Turn on/off
    Both the TV and the unit turn on/off at the same time.
  • Switch input sources
    The unit's input source switches accordingly when the TV's input source is switched.
  • Switch the audio output device
    The audio output device can be switched to the TV or the unit.
  • Adjust volume
    The unit's volume can be adjusted when the TV's audio output is set to the unit.

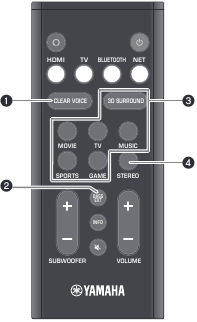

Selecting sound preferences

PLAYBACK - Selecting sound preferences

  1. CLEAR VOICE button
    Press the button to enable or disable the clear voice function.
    Human voices such as lines in movies and TV shows are heard clearly when the function is enabled.
  2. BASS EXT button
    Press the button to enable or disable the bass extension function.
    You can enjoy enhanced bass sound and more powerful sound when the function is enabled.
  3. 3D SURROUND button and surround mode buttons

3D SURROUND button
3D surround playback and surround playback switch alternately each time the button is pressed.
When 3D surround playback is selected, DTS Virtual: X makes it possible to hear sound not only from horizontal directions, but also from varying heights.

Surround mode buttons
Select the surround mode (MOVIE, TV, MUSIC, SPORTS, or GAME) best suited to the content viewed or listened to when 3D surround sound playback or surround playback is enabled.

  1. STEREO button
    Press the button to switch to 2-channel stereo playback.

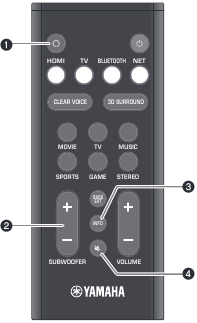

Useful features for playback

PLAYBACK - Useful features for playback

  1. (Alexa) button
    Manually wake Alexa to enable a voice command.
  2. SUBWOOFER (+/-) button
    Adjust the volume of the subwoofer.
  3. INFO button
    Confirm the type of audio signal being played, as well as settings for functions.
  4. (mute) button
    Mute the audio output. Press the button again to unmute.

Listening to audio from a Bluetooth device

Audio content from a Bluetooth device (such as a smartphone, tablet, laptop, or digital music player) can be played through this unit over a wireless connection.

  1. Press BLUETOOTH to select "Bluetooth" as the input source.
  2. On the Bluetooth device, enable the Bluetooth function.
    The Bluetooth device list appears on the Bluetooth device.
  3. Select this unit in the list.
    "YAS-109 Yamaha" is displayed in the list.
  4. Play content with audio on the Bluetooth device.
    The unit will begin playing audio from the Bluetooth device.

Streaming services

Audio content distributed by various streaming services over the Internet can be played via the unit. Use the Sound Bar Controller app (see "Connecting to a network") to select content to play from a streaming service. See the Sound Bar Controller app for details.
See the product information page on the Yamaha website regarding which streaming services are currently supported by this unit.

NOTE

  • A subscription may be required to listen to streaming services via this unit. For information on a particular streaming service, visit that service's website.
  • Service is limited to certain areas.
  • Services supported by the unit may not be available in some regions in which the unit is sold.
  • Services may change or be discontinued without notice. Please note that Yamaha Corporation is in no way responsible for, and will not be held liable for, streaming services or issues arising from their use.

Operating the unit using Amazon Alexa voice commands

You can talk to Amazon Alexa on your unit. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices, and more.
An Amazon account is required to use Amazon Alexa and the unit must be connected to a network. Use the Sound Bar Controller app to enter your Amazon account information and log into the service.

Alexa can perform the following operations with the proper voice commands.

  • Switching input sources
  • Adjusting (muting) the volume
  • Selecting and listening to streaming services See the product information page on the Yamaha website regarding which streaming services are currently supported by this unit.

NOTE

  • Service is limited to certain areas.
  • Services supported by the unit may not be available in some regions in which the unit is sold.
  • See the product information page on the Yamaha website for the latest information.
  • A subscription may be required to listen to Amazon Music or Amazon Kindle on this unit. For more information, visit the Amazon website.
  • For information on other streaming services, visit the websites of those service providers.
  • A smart hub (sold separately) may be required to connect smart home devices that will be controlled via the unit.

For example, just ask:
Adjust the volume
"Alexa, turn up the volume."
"Alexa, turn down the volume."

Switch input sources
"Alexa, switch the input source to HDMI."

Listen to streaming content from Amazon Music
"Alexa, play some jazz music."

Operate playback
"Alexa, play next song."
"Alexa, stop the music."
"Alexa, what is this song?"

Check the weather
"Alexa, what's the weather?"

Set a timer
"Alexa, set a timer for 10 minutes."
