Delta TOUCH2O 9159TV-DST Series Manual

Introduction

Read all instructions prior to installation.


Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure. Manufacturer assumes no responsibility for product failure due to improper installation.

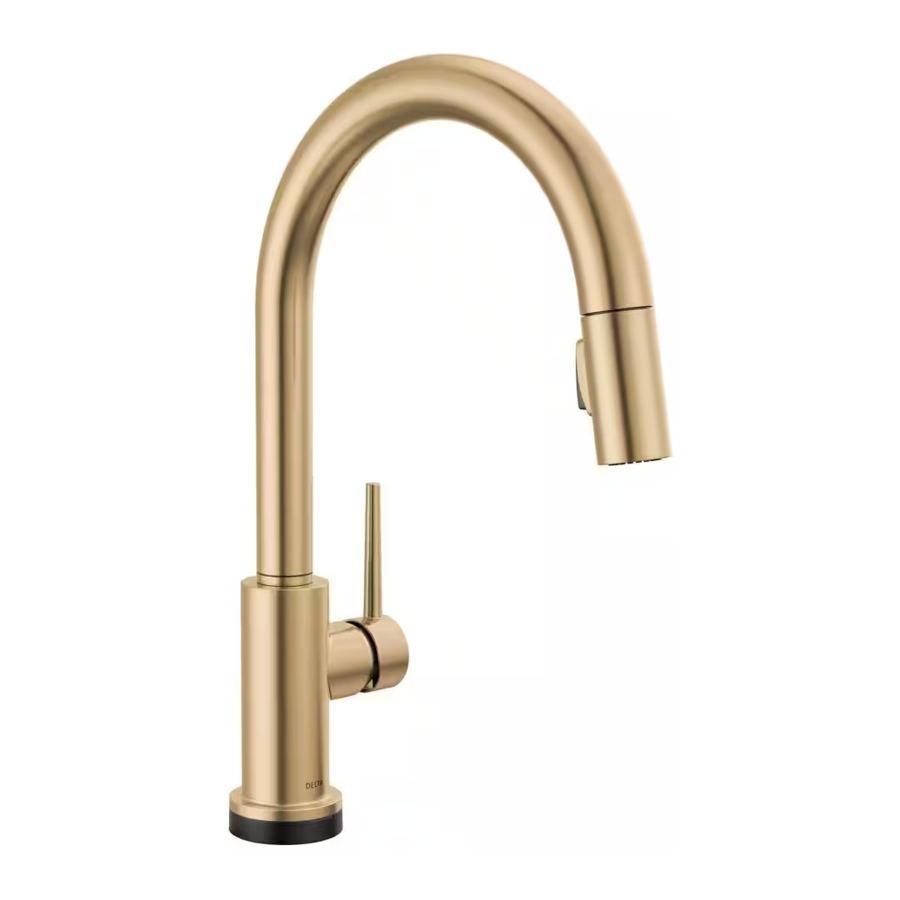

Image is for reference only.

Required

You may need:

Mount Faucet to Deck

  1. Insert faucet tubes and shank through mounting hole in sink; and, place faucet (1) over mounting hole. Ensure that the light at the base is facing forward. Ensure tab on base (6) is in sink hole.
  2. Secure faucet to sink with mounting bracket (2) and nut (3),ensure parts are oriented as shown in Insert D. Mount underneath sink, hand tighten. Tighten securely using wrench (4). Ensure isolation feature (7) on bracket is in sink hole. Shank (8) must not touch edge of sink to ensure proper touch operation.
  1. Adjust position of faucet above sink then tighten locking screws (5) using a Phillips screwdriver.
    information HINT: Turn the spout tube opposite the handle to balance the assembly when mounting.

Optional Escutcheon Installation

For optional installations using the 10 1/2" escutcheon, (specify finish) not supplied.

Place the 10 1/2" escutcheon (6) and gasket (7) under faucet (1), hand tighten using escutcheon washers (8) and nuts (9). Mount as shown above using the mounting bracket (2). Tighten mounting nut (3) securely by hand, and then tighten with wrench provided. Then, using a Phillips screwdriver, tighten locking screws (5).

Check Valve and Custom Fit Connection Installations

warning NOTICE
Failure to follow these instructions may result in risk of property damage caused by leaking at this connection. Do not use pipe dope or other sealants on water line connections.


To ensure proper operation of your plumbing it is essential to install these check valve assemblies onto your supply stops. If check valve does not fit stop, order RP63263 (see below).

  1. Insert ferrule (1) into supply stop.
  2. Thread on check valve (2) and tighten the nut with a wrench until secured. Repeat for other supply stop.
  3. Loop tubing (3) if it is too long.

    warning Note: Recommended tubing minimum bend diameter is 8". Tighten the nut with a wrench until secured, while using a second wrench (4) to ensure you do not over tighten the check valves. Repeat for other supply stop. Turn on water, examine for leaks.

Order RP63263 adapters for 1/2"-20 UN or 1/2"-14 NPSM stops.
Adapters

Custom Fit Connections

warning NOTICE
To avoid risk of property damage, Follow instructions for proper installation. If you determine the PEX supply tubing for this faucet is too long and must be shorter to create an acceptable installation, be sure to read the instructions and plan ahead. When cutting the supply tubing the installer accepts the responsibility to do so in a way that allows a leak-free joint to be created. Delta is not responsible for tubing that is cut too short or cut in a way that will not allow for a leak-free joint. DO NOT use a metal sleeve (ferrule) or gasket (supplied with faucet) in place of the plastic sleeve (ferrule) supplied, it may not create a leak-free joint. Do not use pipe dope or other sealants on water line connections.

For custom fit installations, you must use plastic sleeves (ferrules) supplied with model and nuts included on supply lines. Tube cut must be straight. Slide nut (A) over plastic sleeve (ferrule) (B). Start nut by hand onto check valve connection (C) to prevent cross-threading. Turn nut until it feels snug. Then tighten nut at least 2 more turns with a wrench. Repeat for other supply line. Turn on water, examine for leaks.

Potential Problems and Remedies

  • Tubing is not cut perpendicular to the axis of the tube: carefully make an additional cut, being careful not to cut the tube too short.
  • Tubing is cut too short: buy a coupling union and a replacement supply line that mate together from a store. The coupling union end intended to connect to the faucet must mate to the standard 3/8" connection nuts and plastic sleeves (ferrules) supplied with the faucet.
  • The plastic sleeve (ferrule) or connection nut is lost: purchase a replacement nut and/or plastic sleeve (ferrule) that are designed to seal with PEX tubing.

warning NOTICE
Failure to use plastic sleeve (ferrule) in the correct orientation will result in disconnection and possible water damage.

  1. Determine desired length of supply tube (1). Leave 1" or 2" of extra length to allow for easier installation and cut tube. Ensure cut is straight and burr free.
  2. Slide nut (2) and plastic sleeve (ferrule) (3) onto cut supply tube. Ensure plastic sleeve (ferrule) is oriented as shown.
  3. Insert supply tube into supply valve connection (4). Supply tube should touch bottom of hole inside supply valve.
  4. Slide plastic sleeve (ferrule) down supply tube until it contacts the supply valve connection.
  5. Slide nut over plastic sleeve (ferrule). Start nut by hand to prevent cross-threading. Turn nut until it feels snug. Then tighten nut at least 2 more turns with a wrench. Repeat for other supply line. Turn on water, examine for leaks.
  • Do not install sleeve upside down.
  • Ensure cut is straight.
  • Do not use RP51243 gasket (1) supplied with PEX tubing or brass ferrule (2) supplied with valve stops.
  • Ensure tube is fully inserted into stop before sliding sleeve down to engage top of fitting.

Flush Supply Lines

Because your sprayer has been factory assembled to the hose, we do not recommend removing to flush the lines. Instead, if possible, we recommend placing a bucket below the outlet fitting and one of two options.

  1. With the valve in mix open position (13), slowly open and close the supply stops (14).
  2. With the supply stops open (14), slowly open and close the handle in the mix position (13).

This will prevent debris from being lodged in the hose and sprayer.

Solenoid & Voice Module Installation

Slide tube (15) into the top solenoid fitting (16). Rotate clip (17) over tube and fitting to secure connection. Slide module fitting (19) onto the bottom solenoid fitting (18). Rotate clip (20) over fittings to secure connection. Pull down moderately to ensure the connection has been made.
Solenoid & Voice Module Installation - Step 1
Slide hose weight over end of hose.

Push hose end (22) onto module outlet (21). Attach clip (23) over hoses as shown. Pull down moderately to ensure connection has been made.
Solenoid & Voice Module Installation - Step 2

Push clip (24) onto shank as shown to ensure clip is tight onto shank. Ensure LED wire (25) is properly pushed in to solenoid. Make sure wire extends away from solenoid. For proper functionality DO NOT tie, twist or bunch the wires.
Solenoid & Voice Module Installation - Step 3

Connect power supply to electrical outlet under sink, then insert connector (26) into input on solenoid.
Solenoid & Voice Module Installation - Step 4

Connect cable (27) from solenoid assembly to voice module. Green LED will begin blinking within 15 seconds. Module will show solid RED until it starts blinking green. Once the module is blinking green it is ready to connect to the wifi.

warning NOTICE
The voice activation module requires the use of the power supply. Batteries are required for optimum touch performance and provide backup during power outages.

"AA" Batteries (Shelf life of batteries, 5 years min)

"C" Batteries (Shelf life of batteries, 5 years min)

Solenoid & Voice Module Installation - Step 5


Place batteries in holder, secure cap and lay on cabinet floor as shown.

Check for Leaks
Check all connections at arrows for leaks. Refer back to the appropriate installation instructions and retighten if necessary. If assembled correctly and still leaking, check for damage to seals and order appropriate replacements.
The sprayer can be removed by pulling directly out from the spout. Check the operation of the sprayer by operating the trigger (1) from aerator to spray.
Solenoid & Voice Module Installation - Step 6

DOWNLOAD THE VOICEIQ™APP

Download the VoiceIQ™ App to your mobile device from your preferred app store. Open the app and follow the instructions to setup and control your faucet.

If the app is not preferred, the Delta Web Portal can be used as an alternative to connect and control your VoiceIQ™ Faucet.

10-15 seconds after connecting your Voice IQ Module to the 9V power supply your module should show a blinking green light, signaling it is ready to connect to Wi-Fi.
Connect your smartphone or tablet to Wi-Fi signal "Delta2-ABC". Your VoiceIQ™ Module will have a unique identifier in the Wi-Fi network name, shown here as "ABC".

Be sure to disconnect your your smartphone or tablet from cellular data. Open a browser and enter the URL 10.10.10.1 for product setup. Follow the steps on screen.

Bookmark device.deltafaucet.com for easy access to the Web page, where you can see settings, FAQs, and a list of voice commands.

VOICEIQ™ MODULE LED COLOR INDICATORS

Look for this on your VoiceIQ™ Module under the sink, not at the faucet base.

BLINKING GREEN
Setup Mode: Indicates the VoiceIQ™ Module is ready to set up. Scan for Wi-Fi networks on your mobile device and connect to "Delta2-ABC" ("ABC" is used here to mark your module's unique identifier code) to begin.

BLINKING RED
Blinks once every 5 seconds. This indicates that the required AC power is not connected.

SOLID GREEN
This indicates a successful connection to Wi-Fi.

SOLID RED
The VoiceIQ™ Module is unable to connect to local Wi-Fi network.

ALTERNATING RED/GREEN
The VoiceIQ™ module is unable to connect to the VoiceIQ™ Cloud.

Maintenance

If faucet exhibits very low flow – Unscrew hose from spray head and clean debris from screen (1) (the screen is located just inside the spray).


Reinstall screen to the spray head (failure to reinstall the screen could damage internal parts). Remove and clean blue filter (8) inside solenoid valve.

warning Note: Use needle nose pliers or tweezers to remove and replace filter (8).

If faucet leaks from under handle or from spout outlet – Insert a small screwdriver into slot (2) in button (3) and remove. Loosen set screw (4) inside of handle. Remove handle. Remove cap (5) by rotating counterclockwise. Bonnet may be stiff due to O-ring, but should rotate by hand. Remove bonnet nut (6) by rotating counterclockwise with a wrench. Remove cartridge (7) by pulling directly back on stem. Replace cartridge and reassemble.
Maintenance


Failure to securely tighten bonnet nut with a wrench could result in water damage.

warning Note: A small amount of water may run out the spout or drip for a very short period after the faucet is shut off. This is a natural occurrence caused by the long flexible hose.

TempSense ® Temperature LED guide

If LED is:

Solid Blue - Solenoid valve is open, water temperature is less than 80°F (27°C).

Solid Magenta - Solenoid valve is open, water temperature is between 80°F (27°C) and 110°F (43°C).

Solid Red - Solenoid valve is open, water temperature is greater than 110°F (43°C).

3 red flashes before solenoid opens or closes - replace batteries.

Quick Tips

for your Delta ® Touch2O® Technology Kitchen Faucet

  1. Operation is simple! With the handle in the "on" position tap anywhere on the spout, base, or handle.
  2. The faucet is able to tell the difference between a touch and a grab. So it won't turn on and off when you don't want it to.
  3. Use the handle to control temperature and volume for both manual and electronic operation.
  4. Whether you grab the handle or tap it, water will flow. Once water is flowing, a tap will turn it off.
  5. Auto Shut-off—the faucet will automatically shut off after running for 4 minutes.

Solenoid Troubleshooting

warning Note: Normal operation of the faucet will turn off water flow if faucet is not touched for 4 minutes.

  1. If your spout flashes a red light on then off and then keeps repeating this, replace the batteries. If the spout still flashes a red light, please replace solenoid and electronics kit**. (see manual bypass of electronics section*)
  2. If your spout displays the proper light, but no water is coming out of the spout,
    1. Verify the handle is in the "on" position.
    2. Verify the water supplies are turned to the "on" position.
    3. Move handle to the "off" position. Unscrew hose from spray head and check for any debris in the spray head inlet. Move handle to the "on" position to verify water is reaching the sprayer. Replace spray head.
    4. Move handle to the "off" position. Remove the hose from the solenoid and move handle to the "on" position to check for flow coming from the solenoid. Reconnect hose to solenoid.
    5. With handle in the "off" position, remove the hose from the faucet to the solenoid. Move handle to the "on" position to check if water is going through the manual valve and reaching the solenoid. If water is getting to the solenoid, but it is not getting through the solenoid, replace solenoid and electronics kit**.
  3. If your LED base indicator is not displaying any lights,
    1. Check to make sure the spout connector, RP53233 is attached to the spout and the wire from the solenoid / electronics kit. If it is disconnected, or loose (see step 3), reattach and check for proper operation.
    2. Replace batteries.
    3. If it is attached and the light still does not display on the indicator at the base of the spout, replace the spout assembly.**
  4. If touch activation is unresponsive or subject to random on and off activations with the A/C power supply connected, please check that the outlet is properly grounded. If your sink has a garbage disposal, please verify the garbage disposal is properly grounded.

*For immediate and temporary operation of your faucet.
**Refer to part diagram included in this document for correct RP number
.

Troubleshooting Tips

If your VoiceIQ™ Module is blinking a red light every 5 seconds, there is an issue with your power supply. Verify that the outlet you've plugged your module into isn't connected to your garbage disposal switch by plugging something else into the outlet (lamps and other lights work best, but anything that lights up or makes noise and doesn't have a backup battery will work), then switching your garbage disposal on and off. If the item plugged into the outlet only works with the garbage disposal switched on, your outlet is connected to your garbage disposal and isn't compatible with your VoiceIQ™ Module.

If you can't locate DELTA2-ABC on your list of available Wi-Fi networks, check for a flashing green light on your VoiceIQ™ Module under the sink. If the light is blinking green, re-scan for Wi-Fi networks on your mobile device. If the light is blinking red, see the above troubleshooting tip about power supply.

If the VoiceIQ™ Module setup page fails to load on your mobile device after entering 10.10.10.1, check the following:

  1. If the LED light on your VoiceIQ™ Module is blinking green, it's still in Wi-Fi setup mode. Re-scan for Wi-Fi networks on your mobile device and connect to "Delta2-ABC" ("ABC" is used here to mark your module's unique identifier code).
  2. If the LED light on your VoiceIQ™ Module is blinking red, it isn't connected to a power source. See the first troubleshooting tip listed above.
  3. Turn off cellular data on your mobile device but leave Wi-Fi on, then refresh the webpage.

If the device fails to connect after entering Wi-Fi network name and password and the LED on the VoiceIQ TM Module is solid red, check the following:

  1. Double-check that your Wi-Fi password was entered correctly.
  2. The VoiceIQ TM Module works with 2.4GHz Wi-Fi. If your router has both 2.4 GHz and 5.0 GHz, make sure you use 2.4 GHz. When scanning for Wi-Fi networks on your mobile device, only the 2.4 GHz network will appear.

Warranty

What You Must Do To Obtain Warranty Service or Replacement Parts:
A warranty claim may be made and replacement parts may be obtained by calling 1 800 345 DELTA (3358) or by contacting us by mail or online as follows (please include your model number, date of original purchase and documentation of the date of receipt of the product by the original purchaser or their authorized representative (installation contractor, etc.)):

In the United States and Mexico:
Delta Faucet Company 55 E. 111th Street Indianapolis, IN 46280
Attention: Warranty Service www.deltafaucet.com/service-parts/contact-us

In Canada:
Masco Canada Limited, Plumbing Group Technical Service Centre 350 South Edgeware Road St. Thomas, Ontario, Canada N5P 4L1
Attention: Customer Service http://www.deltafaucet.ca/customersupport/assistance.html

1-800-345-DELTA (3358) www.deltafaucet.com/service-parts

To order replacement parts and access additional technical documents and product info, visit www.deltafaucet.com

Register Online: www.deltafaucet.com/registerme
