RAZER OROCHI V2 Manual

WHAT'S INSIDE

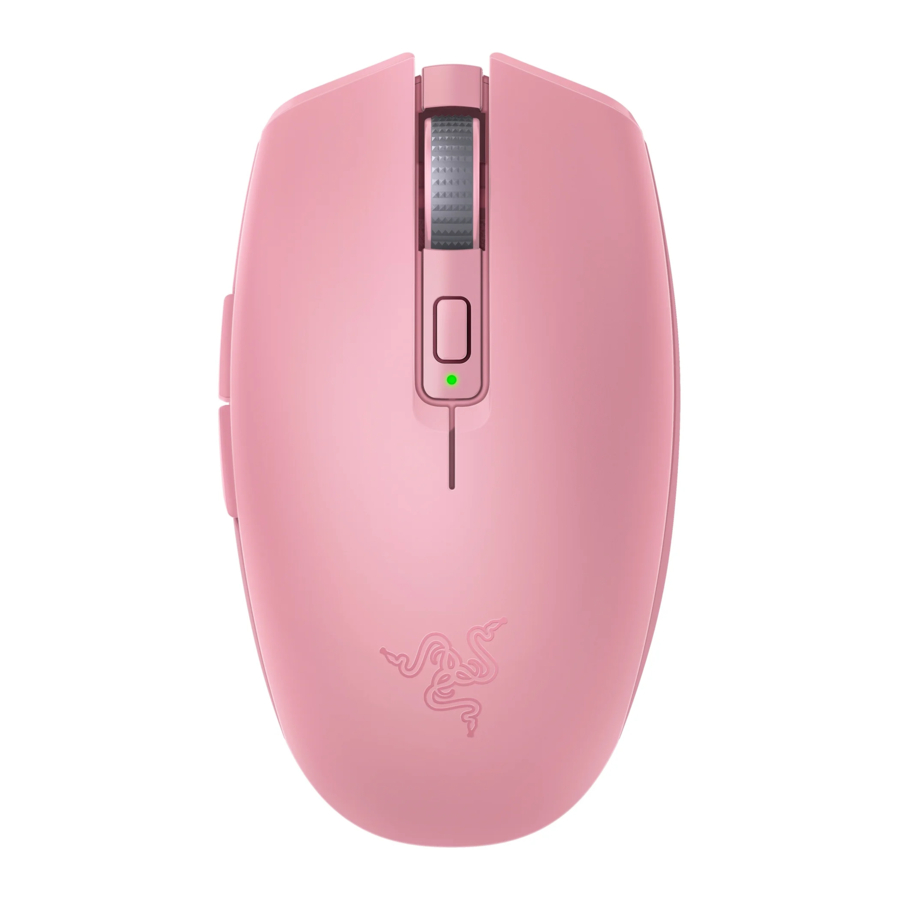

Razer Orochi V2 - Parts and Features

1. Left mouse button
2. Right mouse button
3. Scroll wheel
4. DPI cycle button
5. Status indicator
6. Mouse button
7. Mouse button
8. Wireless USB dongle
9. Ultraslick mouse feet
10. True 18K DPI 5G optical sensor
11. Slider switch
    • 1 x AA battery
    • Important Product Information Guide
    • RazerTM HyperSpeed Wireless (2.4 Ghz) mode
    • Power off mode
    • Bluetooth mode

The DPI stages are as follows: 400, 800, 1600 (default), 3200 and 6400 The DPI stages can be customized using Razer Synapse.

WHAT'S NEEDED

PRODUCT REQUIREMENTS

• USB-A port or Bluetooth 5.1 connectivity
• 1 x 1.5V AA battery*

RAZER SYNAPSE REQUIREMENTS

• Windows@ 7 64-bit (or higher)
• Internet connection for software installation

*Also compatible with a AAA battery (not included).

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

Got a question? Ask the Razer Support Team at support.razer.com

TECHNICAL SPECIFICATIONS

• True 18,000 DPI 5G optical sensor with 99.4% resolution accuracy
• Up to 450 inches per second (IPS)/ 40 G acceleration
• Razer HyperSpeed wireless technology with support for dual-device operation on single dongle
• Dual-mode wireless (2.4GHz and BLE)
• Six independently programmable buttons
• 2nd-gen Razer^TM Mechanical Mouse Switches rated for 60M clicks
• Symmetrical right-handed design
• Gaming-grade tactile scroll wheel
• Undyed PTFE mouse-feet
• AA/AAA battery slot (only one type at a time)
• On-The-Fly Sensitivity Adjustment (Default stages: 400/800/ 1600/3200/6400)
• On-board DPI and key map storage
• Razer Synapse 3 enabled

APPROXIMATE SIZE & WEIGHT

• Length: 108 mm / 4.25 in
• Width: : 62.6 mm / 2.46 in
• Height: 38.5 mm / 1.5 in
• Weight: <60 g/ <0.13 lbs (excluding battery)

GETTING STARTED

INSERTING THE BATTERY

1. Remove the top cover of the mouse and insert the AA battery as indicated in the battery compartment.


   The included AA battery is non-rechargeable. You may also use a AAA battery (not included) if preferred. Do not simultaneously use AA and AAA batteries; only one (1) battery is required to use the mouse. Dispose batteries in accordance with your local environmental laws. For your safety, use only lithium or alkaline batteries.
2. Reattach the top cover onto the mouse and make sure that it is tightly secured.


CONNECTING YOUR MOUSE

1. VIA RAZER^TM HYPERSPEED WIRELESS (2.4 GHZ) MODE
   1. Remove the top cover of the mouse and take out the wireless USB dongle.

   2. Close the top cover and insert the wireless USB dongle into the USB port of your PC.

   3. Push the slider switch to RazerTM HyperSpeed Wireless (2.4 GHz) mode. When connected, the status indicator will briefly turn static green.

      Your Razer Orochi is now ready for use in wireless mode.

2. VIA BLUETOOTH MODE
   1. Push the slider switch to Bluetooth mode().

   2. Press and hold the two side buttons and the DPI cycle button simultaneously for three seconds to activate pairing mode. The status indicator will blink twice in repeated intervals to show that the device is in pairing mode.

   3. Activate Bluetooth on your device and select "Razer Orochi V2" from the list of devices found.


4. Wait until the mouse pairs with your device. When paired, the status indicator will briefly turn static blue.

   Once paired, yourRazer Orochi 1/2 will automatically reconnect to your device whenever in Bluetooth mode and within range. Keep the pairing devices within close proximity of each other for faster and more stable connection.
   Congratulations, your Razer Orochi V2 is now ready to use in Bluetooth mode.

LOW BATTERY NOTIFICATION

The status indicator will blink red twice in repeated intervals to indicate that the battery level of the inserted battery is less than 5%.This lighting sequence will repeat until the battery is fully drained.
Once you receive this notification, it's time to replace the battery.

The indicator percentage can be customized through Razer Synapse.

PERSONALIZING YOUR MOUSE WITH RAZER SYNAPSE

Change your mouse's DPI to match your play style with a press of the DPI cycle button or fine-tune your own sensitivity setting using the Razer Synapse app. The status indicator will briefly change its color to show which DPI stage is currently active.

Install / Razer Synapse when prompted or download the installer from razer.com/synapse

CONFIGURING YOUR RAZER OROCHI V2

Internet connection is required f or installation, updates and cloud-based features. Registering for a Razer ID account is recommended, but optional. All listed features are subject to change based on the current software version, connected device(s), and supported apps and software.

SYNAPSE TAB

The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.

Dashboard
The Dashboard subtab is an overview of your Razer Synapse where you can access all your Razer devices, modules, and online services.

Modules
The Modules subtab displays all installed and available modules for installation.

Global Shortcuts
Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse enabled device inputs which apply across all device profiles.

Only Razer Synapse-enabled device inputs will be recognized.

MOUSE TAB

The Mouse tab is the main tab for your Razer Orochi From here, you can change your device's settings such as button assignment and DPI sensitivity. Changes made under this tab are automatically saved to your system and cloud storage.

Customize
The Customize subtab is for modifying your mouse's button assignments.

Profile
A Profile is a data storage for keeping all your Razer peripheral's settings. By default, the profile name is based on your system's name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button ().

Standard / Hvpershift
Hypershift mode is a secondary set of button assignments that is activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse supported keyboard however, you can also assign any mouse button as a Hypershift key.

HvperSpeed Multi-Device
Pairing Use this feature to pair an additional HyperSpeed-compatible device with the wireless USB dongle of your Razer Orochi V2. As its wireless USB dongle can support a keyboard and mouse at the same time, you'll be able to remove the usage of separate dongles for each peripheral.

Your Razer Orochi V2 must be connected via HvperSpeed (2.4 GHz) wireless mode to use this feature. Each peripheral can only connect to one dongle at a time.

Sidebar
Clicking the Sidebar button () will reveal all current button assignments for your Razer Orochi V2.

Alternatively, you can skip to a specific button assignment by selecting it on the Customize tab.

Default
This option enables you to return the mouse button to its original setting.

Keyboard Function
This option changes the button assignment into a keyboard function. You can also choose to enable Turbo mode which allows you to emulate a repeated keyboard function while the button is held down.

Mouse Function
This option substitutes the current button assignment into another mouse function. Listed below are the functions which you can choose from:

• Left Click - Performs a left mouse click using the assigned button.
• Right Click - Performs a right mouse click using the assigned button.
• Scroll Click - Activates the universal scrolling function
• Double Click - Performs a double left click using the assigned button.
• Mouse Button 4 - Performs a "Backward" command for most internet browsers.
• Mouse Button 5 - Performs a "Forward" command for most internet browsers.
• Scroll Up - Performs a "Scroll Up" command using the assigned button.
• Scroll Down - Performs a "Scroll Down" command using the assigned button.
• Scroll Left - Performs a "Scroll Left" command using the assigned button
• Scroll Right - Performs a "Scroll Right" command using the assigned button.

You can also choose to enable Turbo mode in some of the mouse functions which allow you to emulate repeatedly pressing and releasing said function while the button is held down.

Sensitivity
This function allows you to manipulate the DPI setting of your Razer Orochi with a touch of a button. Listed below are the Sensitivity options and their description:

• Sensitivity Clutch - Changes the sensitivity to a predefined DPI while the designated button is held down. Releasing the button will return it to the previous sensitivity.
• Sensitivity Stage Up - Increases the current sensitivity by one stage.
• Sensitivity Stage Down - Decreases the current sensitivity by one stage.
• On-The-Fly Sensitivity - Pressing the designated button and moving the scroll wheel either up or down will increase or decrease the current DPI respectively.
• Cycle Up Sensitivity Stages - Increases the current sensitivity stage by one. Once it reaches the highest sensitivity stage, it will return to stage 1 when the button is pressed again.
• Cycle Down Sensitivity Stages - Decreases the current sensitivity stage by one. Once it reaches stage 1, it will return to the highest sensitivity stage when the button is pressed again.

Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the button function to Macro, you can conveniently execute a chain of commands. This function will only be visible when the Macro module is installed.

Inter-device
Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific such as using your Razer gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse.

Switch Profile
Switch Profile enables you to quickly change profiles and load a new set of button assignments. An on-screen notification will appear whenever you switch profiles.

Razer Hypershift
Setting the button to Razer Hypershift will allow you to activate Hypershift mode as long as the button is held down.

Launch Program
Launch Program enables you to open an app or a website using the assigned button. When you select Launch Program, two choices will appear which requires you to search for a specific app you want to open, or write the address of the website you want to visit.

Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:

• Volume Up - Increases the audio output.
• Volume Down- Decreases the audio output.
• Mute Volume
• Mutes the audio.
• Mic Volume Up - Increases the microphone volume.
• Mic Volume Down - Decreases the microphone volume.
• Mute Mic - Mutes the microphone.
• Mute All - Mutes both microphone and audio output.
• Play / Pause - Play, pause, or resume playback of the current media Previous Track - Play the previous media track.
• Next Track - Play the next media track.

Windows Shortcuts
This option allows you to assign your preferred button into a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kb/126449

Text FunctionVolume Down- Decreases
Text Function enables you to type a pre-written text with a touch of a button. Simply write your desired text on the given field and your text will be typed whenever the assigned button is pressed. This function has full Unicode support and you can also insert special symbols from character maps.

Disable
This option renders the assigned button unusable. Use Disable if you do not want to use the selected button or if it interferes with your gaming.

Performance
The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate.

Sensitivity
Sensitivity refers to the distance the cursor will travel based on how far the mouse moved. The higher the DPI, the farther the cursor will travel given the same distance of mouse movement.

Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity stages which you can cycle through using the DPI cycle button.

Polling Rate
The higher the polling rate, the more often the computer receives information about the status of your mouse, thus increasing the mouse pointer's reaction time. You can switch between 125Hz (8ms), 500Hz (2ms) and 1000Hz (lms) by selecting your desired polling rate on the dropdown menu.

Mouse Properties
From here, you can access the Windows Mouse Properties where you modify operating system settings that can directly affect your Razer Orochi V2.

Calibration
The Calibration subtab allows you to optimize your Razer Precision Sensor to any surface for better tracking.

Smart Tracking
Smart Tracking enables you to set the distance at which the sensor stops tracking when it is lifted from its surface to avoid unwanted cursor movement.

Preset Calibration
To use this feature, you must click the Add A Surface option where you can select from a comprehensive list of Razer mouse mats.

Power
The Power subtab allows you to manage your device's energy consumption when running on batteries. You can also set your device to enter sleep mode when it has been idle for a certain amount of time.

PROFILES TAB

The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.

Devices
View which games are linked to each device's profiles or which Chroma Effect is linked to specific games using the Devices subtab.

You can import Profiles from your computer or from the cloud through the import button ( ) or create new profiles within the selected device using the add button (). To rename, duplicate, export, or delete a profile, simply press the Miscellaneous button (). Each profile can be set to automatically activate when you run an application using the Linked Games option.

Linked Games
The Linked Games subtab gives you the flexibility to add games, view devices that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device.

To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with. Once linked, you may click on the Miscellaneous button () of the corresponding Chroma Effect or device to select a specific Chroma Effect or profile.

SETTINGS WINDOW

The Settings window, accessible by clicking the () button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, view the master guides of each connected Razer device, or perform factory reset on any connected Razer device.

General tab
The default tab of the Settings window. The General tab enables you to change the software's display language, start-up behavior, display theme, and on-screen notifications display. You may also manually sync your profiles to the cloud ( ) or view the master guide of all connected Razer devices and installed modules.

Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse's new features on its next launch.

By resetting a Razer device, all profiles stored on the selected device's on-board memory will be erased.

About tab
The About tab displays brief software information, copyright statement and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer's social communities.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Orochi \/2, we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0ºC(32ºF)to 40ºC (104ºF).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Orochi V2.

• Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away and your keyboard within easy reach.
• Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow-height
• Keep your feet well supported, posture straight and your shoulders relaxed.
• During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
• Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
• Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

If you should experience any physical discomfort while using your mouse, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer Orochi requires minimum maintenance to keep it in optimum condition. Once a month we recommend you clean the device using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.

To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet requiring constant care and eventual replacement.

Do note that the sensor of the Razer Orochi V2 is 'tuned' or optimized especially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer Orochi reads and tracks best on Razer mouse mats.
