RAZER Deathadder V2 X Hyperspeed - Gaming Mouse Manual

INTRODUCTION


Unleash your true potential.
We were the first to create a mouse dedicated to gaming. Today, we continue to be industry leaders, utilizing the latest technology to deliver gaming mice equipped with the best optical sensors, backed by the fastest and most stable wired and wireless connections. Left or right-handed, MMO or FPS, you'll find just what you need to bring your A-game every time.

As a Razer faithful, you can get rewarded just by writing a product review. Find out how, and discover other goodies at razer.com/getstarted


MAXIMIZE YOUR DEVICE WITH RAZER SYNAPSE
Access advanced options and granular control as you rebind buttons, assign macros, personalize device lighting and more with the unified hardware configuration tool.
razer.com/synapse
Internet connection required for software updates and modules. Registering for a Razer ID account is recommended to access full features, but not required.


GET HELP WITH RAZER SUPPORT
We're here to assist you with your Razer device. Find software downloads, register your product, or contact us by phone, chat or email if you have any questions.
support.razer.com


PROTECT YOUR RAZER GEAR TODAY
Get peace of mind with our RazerCare Protection Plans
Enjoy greater coverage and even be protected against drops, spills, and more.
Need to replace lost or damaged parts?
Purchase authentic original replacements at the RazerCare Store.
support.razer.com/razercare

WHAT'S INSIDE

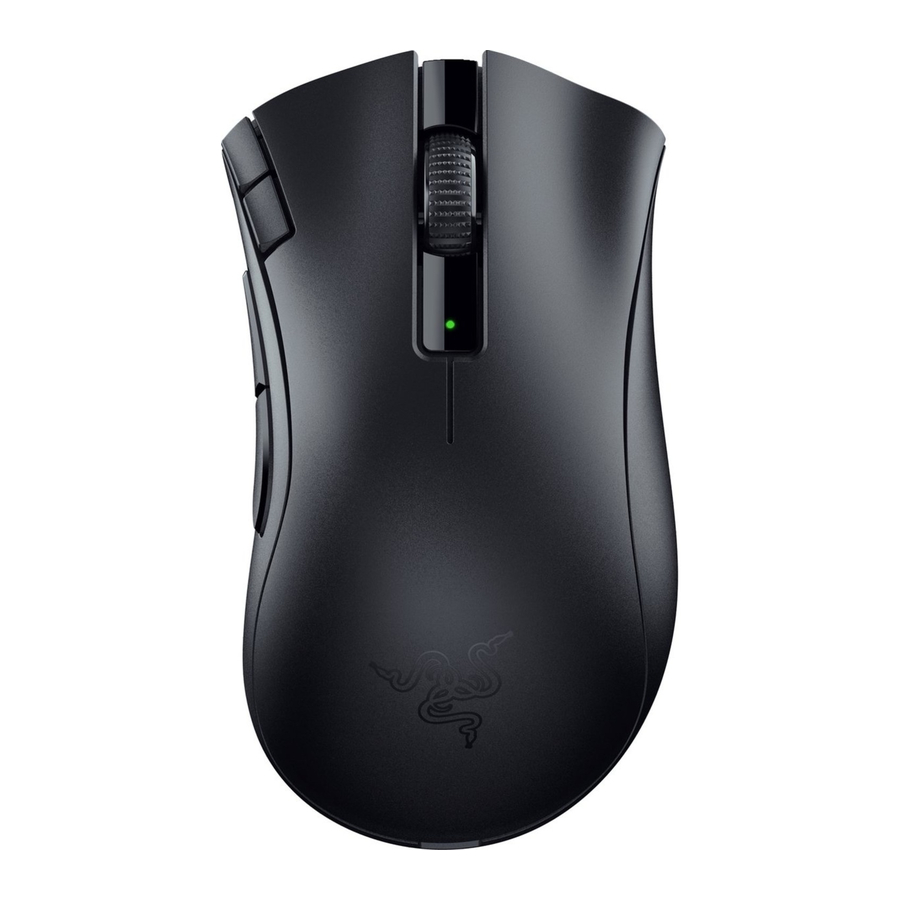

  • Razer DeathAdder V2 X HyperSpeed

Device Overview - Part 1

  1. DPI stage up
  2. DPI stage down
  3. Left mouse button
  4. Right mouse button
  5. Scroll wheel
  6. Status indicator
  7. Mouse button 5
  8. Mouse button 4
  9. Razer™ HyperSpeed 2.4GHz wireless dongle
  10. Ultraslick mouse feet
  11. Slider switch
    • Bluetooth mode
    • Power off mode
    • Razer™ HyperSpeed Wireless (2.4 GHz) mode
  12. Razer™ 5G Advanced 14K DPI Optical Sensor
  • 1 x AA battery
  • Important Product Information Guide

warningThe DPI stages are as follows: 400, 800, 1600 (default), 3200 and 6400. The DPI stages can be customized using Razer Synapse.

WHAT'S NEEDED

PRODUCT REQUIREMENTS

  • USB-A port or Bluetooth 5.1 connectivity
  • 1 x 1.5V AA battery*

RAZER SYNAPSE REQUIREMENTS

  • Windows® 10 64-bit (or higher)
  • Internet connection for software installation

*Also compatible with a AAA battery (not included).

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
LET’S GET YOU COVERED
Got a question? Ask the Razer Support Team at support.razer.com

GETTING STARTED

INSERTING THE BATTERY

  1. Remove the top cover of the mouse and insert the AA battery as indicated in the battery compartment.
    INSERTING THE BATTERY
    The included AA battery is nonrechargeable. Only one (1) battery will fit in the battery compartment. Do not forcefully insert two (2) batteries at the same time. Dispose batteries in accordance with your local environmental laws. For your safety, use only lithium or alkaline batteries.
    information You may also use one (1) AAA battery (not included) if preferred.
  2. Reattach the top cover onto the mouse and make sure that it is tightly secured.

CONNECTING YOUR MOUSE

  1. VIA RAZER™ HYPERSPEED WIRELESS (2.4 GHZ) MODE
  1. Remove the top cover of the mouse and take out the wireless USB dongle.
    CONNECTING VIA WIRELESS MODE - Step 1
  2. Close the top cover and insert the wireless dongle into any of the USB ports on your PC.
    CONNECTING VIA WIRELESS MODE - Step 2
  3. Push the slider switch to Razer™ HyperSpeed Wireless (2.4 GHz) mode. When connected, the status indicator will briefly turn static green.
    CONNECTING VIA WIRELESS MODE - Step 3
    Your Razer DeathAdder V2 X HyperSpeed is now ready for use in wireless mode.
  1. VIA BLUETOOTH MODE
  1. Push the slider switch to Bluetooth mode ().
    CONNECTING VIA BLUETOOTH MODE - Step 1
  2. Press and hold the two side buttons, the DPI stage up, and the DPI stage down buttons simultaneously for three seconds to activate pairing mode. The status indicator will blink twice in repeated intervals to show that the device is in pairing mode.
    CONNECTING VIA BLUETOOTH MODE - Step 2
  3. Activate Bluetooth on your device, search for new Bluetooth devices, and select "DA V2 X" from the list of devices found.

  4. Wait until the mouse pairs with your device. When paired, the status indicator will briefly turn static blue.
    CONNECTING VIA BLUETOOTH MODE - Step 3
    warningOnce paired, your Razer DeathAdder V2 X HyperSpeed will automatically reconnect to your device whenever in Bluetooth mode and within range. Keep the pairing devices within close proximity of each other for faster and more stable connection.

Congratulations, your Razer DeathAdder V2 X HyperSpeed is now ready to use in Bluetooth mode.

LOW POWER INDICATOR

The status indicator will blink red twice in repeated intervals to indicate that the battery level of the inserted battery is less than 5%*. This lighting sequence will repeat until the battery is fully drained. Once you receive this notification, it's time to replace the battery.
LOW POWER INDICATOR

PERSONALIZING YOUR MOUSE WITH RAZER SYNAPSE

Change your mouse's DPI to match your playstyle with a press of the DPI stage up or DPI stage down buttons or re-configure them to your favorite key binds using the Razer Synapse app. The status indicator will briefly change its color to show which DPI stage is currently active.
Device Overview - Part 2
warningInstall Razer Synapse when prompted or download the installer from razer.com/synapse.

SAFETY AND MAINTENANCE

In order to achieve maximum safety while using your Razer DeathAdder V2 X HyperSpeed, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer DeathAdder V2 X HyperSpeed.

  • Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away and your keyboard within easy reach.
  • Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow-height.
  • Keep your feet well supported, posture straight and your shoulders relaxed.
  • During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
  • Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
  • Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

If you should experience any physical discomfort while using your mouse, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer DeathAdder V2 X HyperSpeed requires minimum maintenance to keep it in optimum condition. Once a month we recommend you clean the device using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet requiring constant care and eventual replacement.
Do note that the sensor of the Razer DeathAdder V2 X HyperSpeed is 'tuned' or optimized especially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer DeathAdder V2 X HyperSpeed reads and tracks best on Razer mouse mats.

REGULATORY & COMPLIANCE INFORMATION

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

  1. this device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation.


Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CANADA STATEMENT

This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

  1. This device may not cause interference.
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

RAZER.COM
© 2021 Razer Inc. and affiliated companies. All Rights Reserved.

#GoGreenwithRazer
