typecase TOUCH Manual

TECHNICAL SUPPORT

SETUP

To Pair with Your iPad:

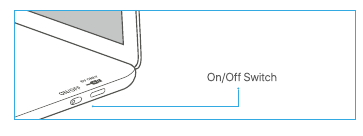

1. Turn the ON/OFF switch to the 'ON' position.

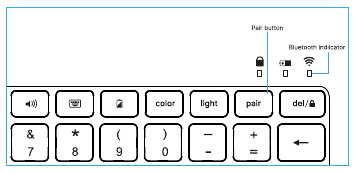

2. The Bluetooth indicator light will start to blink. If it doesn't, hold down the 'Pair' button for 3 seconds.

3. Go to the Settings app and turn on Bluetooth. (The device is connected when the Bluetooth indicator stops flashing.)

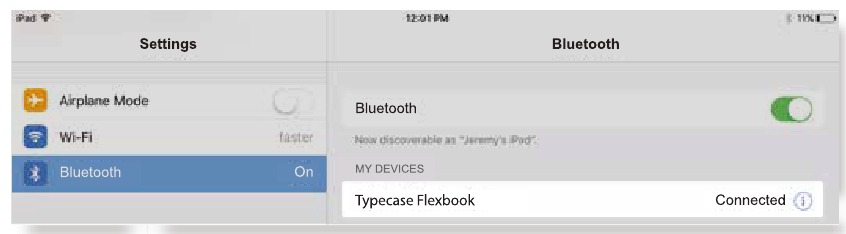

4. In the Bluetooth section of the Settings app, select 'Typecase Flexbook' under DEVICES'.

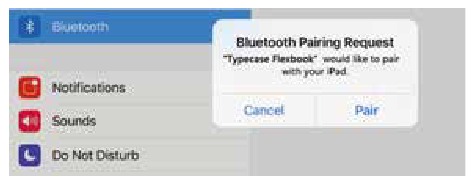

5. Tap 'Pair' in the pop-up window as shown.
   *Note: To pair with new devices, repeat steps 1-5. Pairing complete when "Connected" indicator appears.

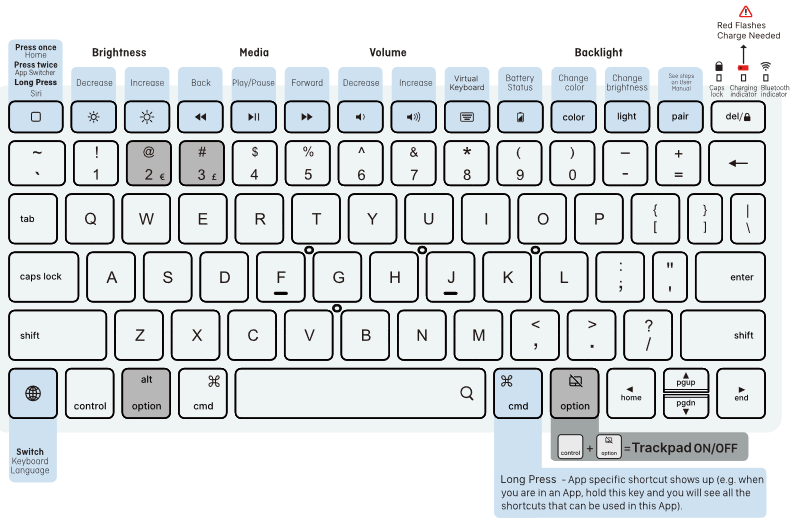

SHORTCUT MAP

Notice: Long Press in any app to view available shortcuts.

Keyboard

	Lock Screen
	Reset the keyboard

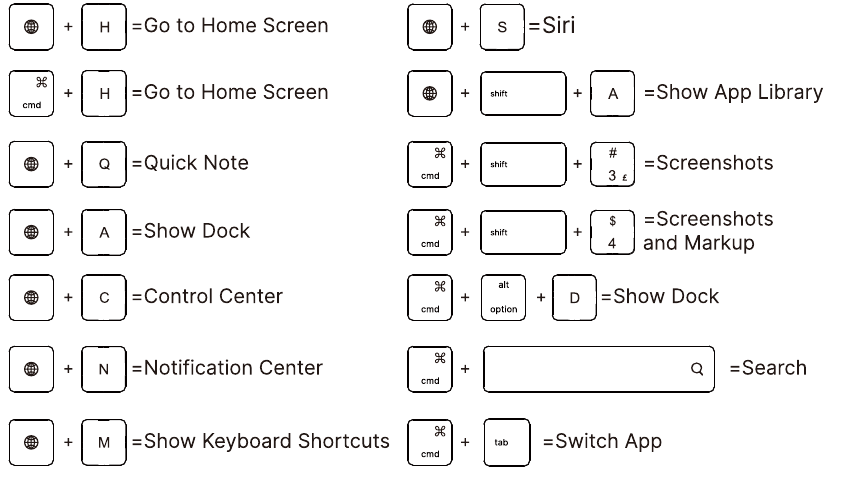

System

Multitasking

	App Switcher
	Show All Windows
	Previous App
	Next App

Format

	Bold
	Italic
	Underline

Slide Over

	Move to Left Slide Over
	Move to Right Slide Over
	Show Slide Over
	Next Slide Over Window

Split View

	Tile Window Left
	Tile Window Right
	Enter Fullscreen

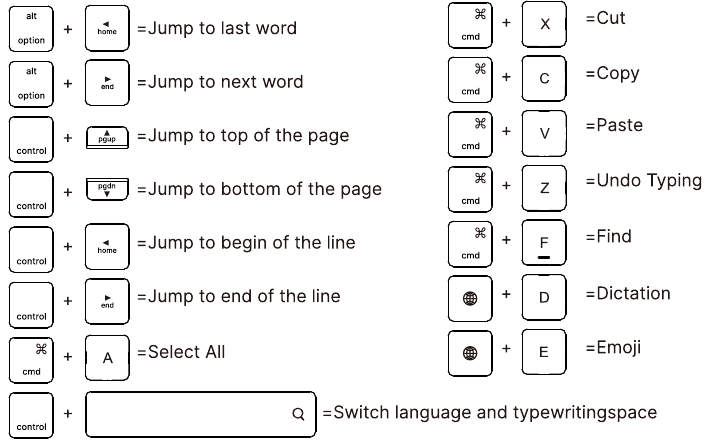

Edit

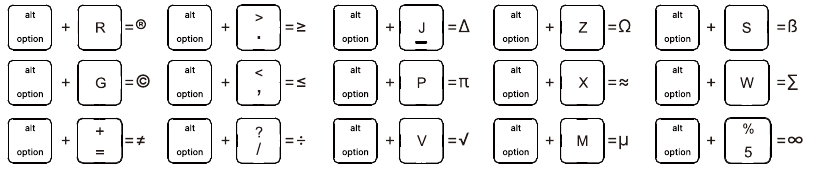

Symbol

TOUCHPAD FUNCTION

Notice: Make sure bluetooth connected and touchpad function turned on!

Tap
Tap with a single finger until it feels a little touch feeling.

Drag
Tap and hold an item, then swipe your finger across the trackpad to move it.

Open Program Expansion Dock
Swipe the pointer across the bottom Of the screen with one finger.

View Slide Over
Use one finger to swipe the pointer past the right edge of the screen. To hide Slide Over, swipe right again.

Open Control Center
Use one finger to move the pointer to select the status icons at the top right, then click.
Or, select the status icons at the top right, then swipe up with one finger.

Move Up Or Down
Swipe up or down with two fingers.

Zoom
Place two fingers close together, open to enlarge, or pinch to zoom out.

Open" Today" View
When the Home or Lock screen is visible, swipe right with two fingers.

Open APP Switcher
Swipe up with three fingers, pause and lift your finger.

Tap and Hold
Tap and hold with a single finger.

Awake
Click the touchpad or press any key on the keyboard.

Go To Home Screen
Swipe the pointer across the bottom Of the screen with one finger, and when the Dock appears, swipe the pointer across the bottom of the screen again.

Open Notification Center
Use one finger to move the pointer to select the status icons at the top left, then click.
Or, use one finger to move the pointer past the top Of the screen near the middle.

Move Left Or Right
Swipe left or right with two fingers.

Open Searching From Home Screen
Swipe down with two fingers.

Secondary click
Click with two fingers to show the quick actions menu for items like icons on the Home Screen, messages in a mailbox, and the Camera button in Control Center.
Or, you can press the Control key while you click the trackpad.

Go To Home Screen
Swipe up with three fingers.

Shift Between The open APP
Swipe left or right with three fingers.

INSTALLATION AND REMOVAL

Installation:

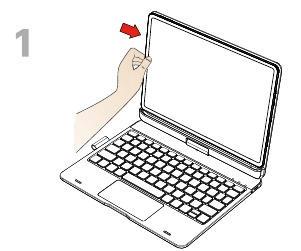

1. Gently attach the iPad to the back cover.

2. Pull up to remove the iPad from the back cover.

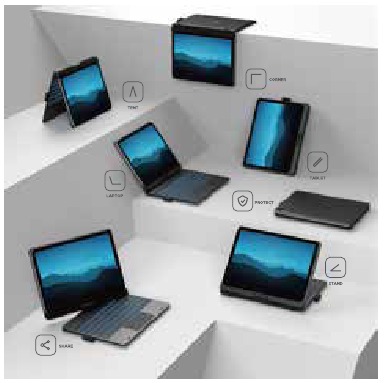

ROTATION AND USAGE

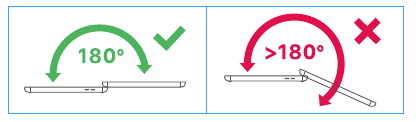

Rotate 360º by twisting

BATTERY AND CHARGING

To Check The Battery Status Of The Keyboard
Press on the keyboard. The battery level will be indicated by the number of lit indicators.

1. battery level is between 100% and 70%

2. battery level is between 70% and 40%

3. battery level is between 40% and 10%

4. battery level is less than 10%

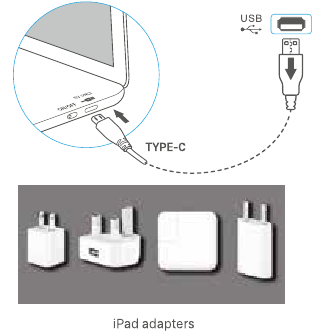

To Charge The Keyboard

1. Turn on the keyboard (if battery indicator is flashing, please charge the keyboard).
2. Plug the charging cable (included) into the keyboard and power adapter (not included, iPad or iPhone power adapter recommended);
   1. Battery indicator turns red when keyboard is charging;
   2. Battery indicator turns blue when charging is complete.

TROUBLESHOOTING

If your keyboard is not functioning properly, please follow these steps to resolve the issue:

1. Ensure Bluetooth is enabled on your iPad or other Bluetooth device.
2. Verify that the keyboard is within 33 feet range.
3. Confirm that the keyboard is charged.
4. Turn on the keyboard, press to check the battery level by indicator.
5. Press the 'Pair' key and check the Bluetooth connection status.
6. Ensure the keyboard has successfully paired via Bluetooth.

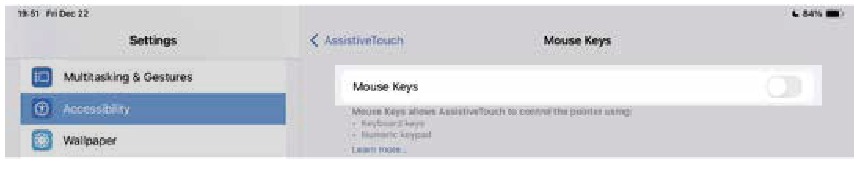

If you are encountering unwanted cursor move when typing, or some keys like 7,8,9,U,O,J,K,L cannot be entered, please Turn OFF AssistiveTouch> Mouse Keys as follows:

1. On your iPad, go to Settings > Accessibility and select Touch.
2. Select AssistiveTouch, then select Mouse Keys.
3. Turn Off Mouse Keys

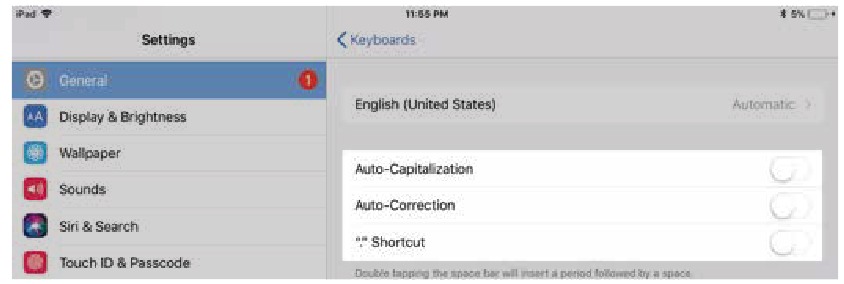

If you are encountering unwanted auto-correction or punctuation, follow these steps:

1. Open the Settings app > General > Keyboard > Hardware Keyboard.
2. Turn OFF the options for Auto-Capitalization, Auto-Correction, and. shortcut (refer to the accompanying picture for reference).


Documents / Resources

References

• Support – Typecase

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download typecase TOUCH Manual
