Gallagher S20, S30, S60, S80 Manual

Also See for S20:

User manual (94 pages)

Instructions manual (40 pages)

User manual (13 pages)

Table of Contents

Contents

1 Energizer overview
2 Installation instructions
3 Accessories
4 Tips & Troubleshooting
5 Care & Maintenance
6 Product specifications
7 Documents / Resources
- 7.1 Download manual

Gallagher S20, S30, S60, S80 Manual

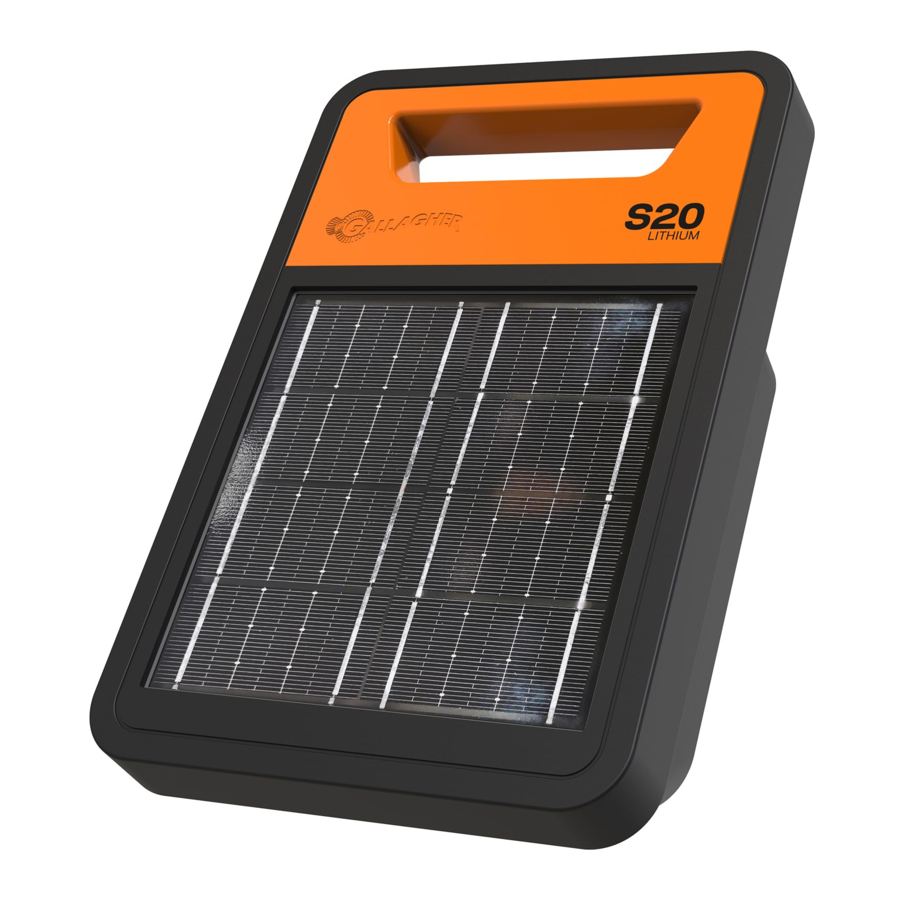

Energizer overview

1	Solar Panel	Keep clean so battery will charge from the sun
2	Fence Indicator LED	Green Flashing	Energizer is OK
3	On/Off
4	Flat Battery indicator LED	Red	Battery is very low or flat. See Tips & Troubleshooting.
5	Fence Terminal & Leadset connection	Connects to fence
6	Earth Terminal & Leadset connection	Connects to earth/ground stake (sold separately)

Installation instructions

Charge the Battery
Connect Earth and Fence leads
Mount the Energizer

Do not install energizer on the ground. Never leave the energizer face down. Do not install where long grass can cover any part of the solar panel.
Connect Earth and Fence leads to fence
1. Connect green terminal to the earth rod inserted at least 2 ft (60cm) into the ground.
2. Connect red terminal to fence line.

  For Step 3d. ONLY, the earth lead can be connected to the earth screw on the back of the energizer which is touching the earth rod.
Turn on energizer
Note: The energizer will automatically slow the pulse rate from 1.5 seconds during the day to 2.5 seconds at night, to conserve the battery while live stock are less active.

Accessories

Install the energizer on a Gallagher Ring Top Post using the optional Ring Top Post Mount.

Install the energizer onto a wooden post or an earth stake using the optional Wood Post/Earth (Ground) Rod Mount.

Tips & Troubleshooting

Behaviour	Problem	Solutions
Battery LED is solid red and Energizer has stopped ticking	Battery capacity is flat due to insufficient sunlight. Battery needs charging.	Ensure energizer is getting enough sun and facing the correct direction. Ensure energizer is in direct sunlight. Turn energizer OFF for 3 days, leave in the sun to charge internal battery.
Energizer pulsing slow	Battery capacity is low due to insufficient sunlight.
Battery LED flashing red	Temperature protection state. Energizer stopped pulsing to protect internal battery	Energizer will self-recover when temperature returns to normal operating range.
Stock getting out	No or low voltage on fence	Check energizer isn't faulty; disconnect from fence and earth measure across fence and earth terminals with a Gallagher Fence Voltmeter if less than 5 kV return energizer for service if more than 5 kV, check the fence for shorts. Add a supplementary ground rod.

Care & Maintenance

Keep solar panel clean - periodically use a soft cloth with water and a mild detergent.
Do not expose the energizer to excessive temperatures or fire. (Below -20^oC or above 70^oC).

Important Battery Information

Recharging the battery	Switch the energizer off. Place in sunlight for 3 days to charge battery.
Storing the energizer	Switch the energizer off. Store in a cool, dry, dark, ventilated area to minimise battery current. Recharge the battery before and after seasonal storage.
Leaking batteries	If battery fluid comes in contact with: Eyes - flush the affected area with water for at least 15 minutes. Ensure adequate flushing by separating the eyelids with fingers. Call a physician. Skin - immediately flush with water and/or soap.
Battery replacement or disposal	This energizer contains a Lithium battery which is not user replaceable. The lithium battery must be replaced by a trained professional using a Gallagher approved lithium battery. Return energizer to a Gallagher Authorised Service Centre for battery replacement or disposal.

If the battery charge drops to 30% or less, the day pluse rate drops to 3.0 seconds and the night pulse rate will drop to 5.0 seconds.
Do not dispose of the energizer in a fire.

Product specifications

	S20	S30	S60	S80
Battery Type	Lithium 3.2V 6 Ah	Lithium 3.2V 12 Ah	Lithium 3.2V 12 Ah	Lithium 3.2V 24 Ah
Output voltage (no load)	9.2 kV	9.3 kV	8.8 kV	9.0 kV
Stored Energy	0.21 J	0.3 J	0.6 J	0.8 J
Average Current (Day)	67 mA	100 mA	300 mA	400 mA
Peak Current	325 mA	275 mA	350 mA	450 mA
Dimensions (HxWxD)	190mm x 171mm x 151mm		250mm x 200mm x 195mm
Weight	1.2 kg / 2.65 lbs	1.4 kg / 3.09 lbs	1.9 kg / 4.19 lbs	2.2 kg / 4.85 lbs
Operating Temperature	-10^oC to +50^oC / 10^oF to +120^oF
Storage Temperature	-20^oC to +70^oC / -4^oF to +158^oF
IP Rating	IPX4

Charge the battery for 1 day in full daylight before first use.
The solar panel should face towards the equator. i.e. in the northern hemisphere, panel faces south, in the southern hemisphere, panel faces north.
