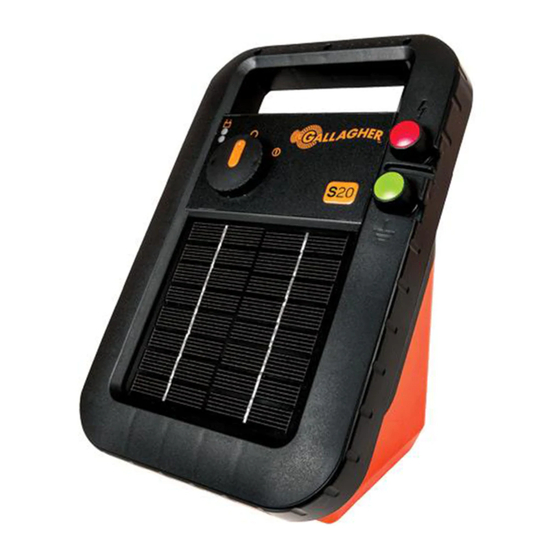

Gallagher S20 Instructions Manual
Portable solar fence energizer
Hide thumbs
Also See for S20:
- User manual ,
- Instructions manual (40 pages) ,
- Instructions manual (15 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gallagher S20
Summary of Contents for Gallagher S20
- Page 1 PORTABLE SOLAR FENCE ENERGIZER Instructions - ENG...
- Page 2 Copyright © Gallagher Group Limited 2021. All rights reserved. Patents Pending. Gallagher S20 Portable Solar Fence Energizer User Manual 3E3897 - Edi on 6 - April 2021 DISCLAIMER Whilst every eff ort has been made to ensure accuracy, neither Gallagher Group Limited...
-
Page 3: Table Of Contents
Table of Contents English Important Information ................5 Overview ....................7 Installation Instructions ................8 Tips & Troubleshooting ................10 Important Battery Information ..............11 Product Specifications ................11 Optional Accessory .................. 12... - Page 4 Green Green Earth Stake...
-
Page 5: Important Information
3E3897 Gallagher S20 Portable Solar Energizer User Manual IMPORTANT INFORMATION Warning: Read all instructions • WARNING - Do not connect to mains-operated equipment. • Avoid contacting the fence with the head, mouth, neck or torso. Do not climb over, through or under a multi-wire electric fence. - Page 6 IPX4. This energizer complies with international safety regulations and is manufactured to international standards. Gallagher reserves the right to make changes without notice to any product specification to improve reliability, function or design. E & OE.
-
Page 7: Overview
3E3897 Gallagher S20 Portable Solar Energizer User Manual OVERVIEW Battery indicator Green Battery OK Battery needs maintenance. See “Tips & Troubleshooting” p. (10) On/Off Solar Panel Keep clean so battery will charge from the sun Fence Terminal Connects to fence... -
Page 8: Installation Instructions
3E3897 Gallagher S20 Portable Solar Energizer User Manual INSTALLATION INSTRUCTIONS 1. Open the energizer 2. Connect the battery Push red battery lead onto red terminal 3. Close cover and tighten screw 4. Install energizer The solar panel should face towards the equator. i.e. in the northern hemisphere, panel faces south, in the southern hemisphere, panel faces north. - Page 9 3E3897 Gallagher S20 Portable Solar Energizer User Manual 5. Connect leads Connect green terminal to earth stake at least 2 ft (60cm) into ground. Connect red terminal to fence line. 6. Switch energizer ON Green Earth Stake Note: The energizer will automatically slow the pulse rate at night to conserve the battery while live stock are less active.
-
Page 10: Tips & Troubleshooting
• Install solar energizers on a post above the ground. • Keep solar panel surface clean - periodically use a soft cloth with water and a mild detergent. • Test voltage on the fence using a Gallagher Fence Volt Meter (G50301). Problem Solutions Indicator flashing red •... -
Page 11: Important Battery Information
3E3897 Gallagher S20 Portable Solar Energizer User Manual IMPORTANT BATTERY INFORMATION Recharging the battery Switch the energizer off. Place in sunlight for 3 days with the battery connected OR remove the battery from the energizer and charge the battery for 24 hours with a 6 V 1.2 A battery charger. -
Page 12: Optional Accessory
3E3897 Gallagher S20 Portable Solar Energizer User Manual OPTIONAL ACCESSORY Install the energizer on a Gallagher Ring Top Post using the optional Post Mount. Post Mount... - Page 13 90 days (e.g. cleaning materials; batteries - rechargeable and non-rechargeable; etc.). Gallagher will repair or replace at their option any faulty product returned to them or their Dealer within this time period. Exchange modules are guaranteed for 90 days from date-of-fitting.
