Graco MODES NEST2GROW Manual

WARNING

Failure to follow these warnings and the assembly instructions could result in serious injury or death.
Only use product as instructed.

PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED.
NEVER LEAVE child unattended. Always keep child in view while in stroller.
AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt or infant car seat harness. After fastening buckles, adjust belts to get a snug fit around your child.
AVOID FINGER ENTRAPMENT. Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
AVOID STRANGULATION. DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
USE OF THE SECOND SEAT with a child weighing more than 50 lb (22.5 kg) or taller than 45 in. (114.3 cm) will cause excessive wear and stress on the stroller.
ONLY USE THIS SEAT WITH THE GRACO MODES NEST2GROW STROLLER.
ONLY USE second seat on the stroller and do not remove, reverse, or carry the seat while child is in it.
DO NOT use the bottom seat position without the top position also being loaded.
Follow the manufacturer's instructions for use with stroller.

Features

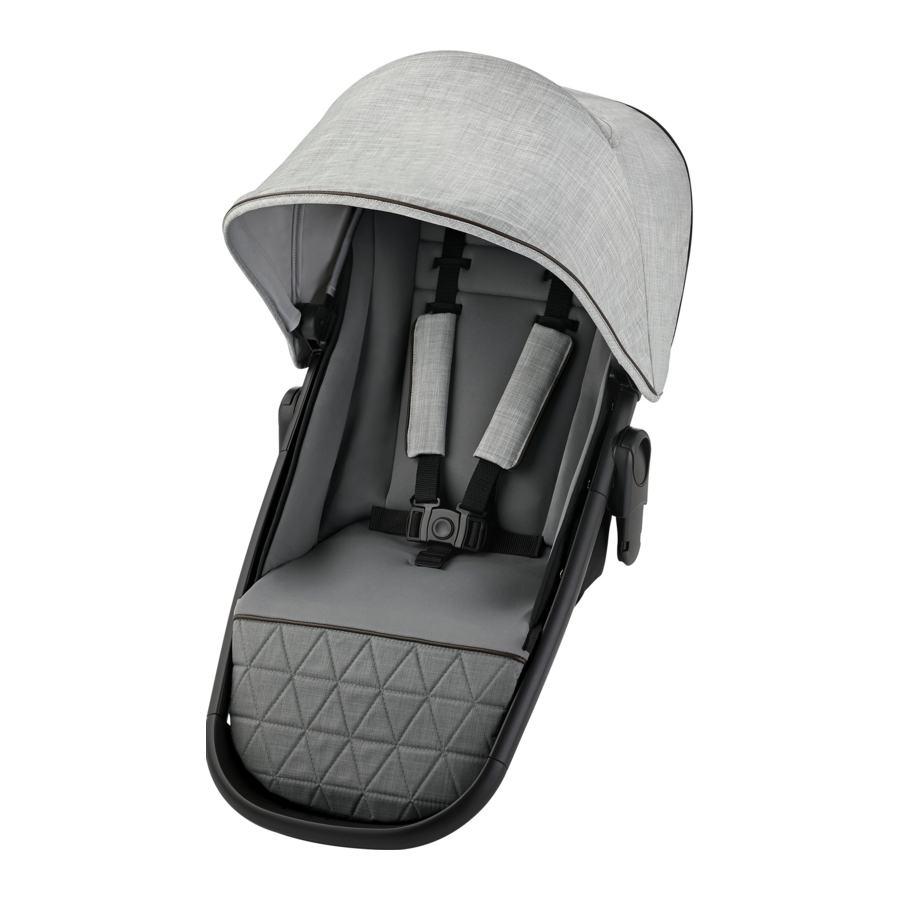

Second Seat

Second Seat Use Positions

Parts List

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service 1-800-345-4109.
No tools required.

All models

Assembly

Assemble Seat

Canopy

Wrap canopy around rear of seat.
Flip seat and canopy over and insert 2 sets of canopy bows into mounts in seat.

Child's Tray

Always secure your child with the seat belt. The tray is not a restraint device.
DO NOT lift the stroller by the child's tray. Use care when snapping the tray on the stroller with a child in the stroller.
DO NOT allow child to play with mounts.

Attach child's tray as shown.
To remove child's tray, press buttons on inside of both ends, and pull child's tray from seat.

Use

To Use Bottom Position

ONLY the toddler seat, accessory seat (sold separately), and Click2Store Stroller Organizer (sold separately) can be used in the bottom mount.
DO NOT USE infant car seat or carry cot in the bottom mount.
TOP stroller mount must be in highest position to use bottom accessory mount.
DO NOT use the bottom seat position without the top position also being loaded.

See warnings for additional information.

To raise the height while the seat is installed, push buttons on sides of frame and pull up on the seat until both sides lock into the highest position.
Push buttons on inside of mounts and slide bottom mounts out until they click into place.
To attach seat, place seat on mounts as shown until they lock into place on both sides of the stroller. Seat may be placed on stroller in either direction.
NOTE: The accessory seat can also be used in top position. See warnings for additional information.
CHECK that toddler seat is securely attached to the stroller by pulling up on toddler seat.

DO NOT use rear seat forward facing in middle recline position while front seat is rear facing in full upright position.

Use - Using Bottom Position

To Remove Toddler Seat

Pull up on buttons on both sides of seat, and lift off as shown.
Push button on mount and slide lower mount into stored position. REPEAT on other mount.

Canopy

To open canopy.
To close canopy.
Pull flap forward to open and backwards to close canopy window.

Adjust canopy height

Adjust canopy height by pulling up or pushing down on both sides of mounts. CHECK that both mounts are same height. There are 2 height positions.

To Secure Child

Falling Hazard: Always use the seat belt.

To open, press button on buckle to release the waist straps.
To close, slide shoulder strap connectors onto waist straps, and insert into buckle.
Use slide adjuster at shoulder and waist for tighter adjustment. To adjust harness height, see below.

Adjusting Shoulder Harness position

To adjust harness height, insert shoulder straps into desired loop.
Use slide adjuster for further adjustment.

Harness Covers

To attach harness covers, slide onto harness straps.

To Recline Seat

When making adjustments to the stroller seat, make sure child's head, arms, and legs are clear of moving seat parts and stroller frame.
Fabric caught in the latches may prevent them from locking. When returning seat to upright position, do not allow fabric to be pinched in the latch.

Recline the seat back by pulling up on handle and pulling down the seat.
There are 3 recline positions.

Care & Maintenance

DO NOT MACHINE WASH SEAT FRAME. It should only be wiped with a mild soap, taking care not to soak the material. NO BLEACH.
TO CLEAN SEAT PAD, machine wash separately in cold water, delicate cycle. NO BLEACH. Drip dry.

Remove Seat Fabric from Frame

Disconnect snaps from foot end and sides of seat.
Push crotch strap through seat pad.
Flip seat over and disconnect elastic loops from calf support.
Raise canopy by pulling up on both sides of canopy.
Remove seat fabric from seat frame.
Remove harness covers from shoulder straps.
Insert waist and harness straps through seat fabric.
Flip seat over and locate back board pocket.
Pull back board with harness and waist straps attached from seat fabric. TO CLEAN SEAT PAD, machine wash separately in cold water, delicate cycle. NO BLEACH. Drip dry.
