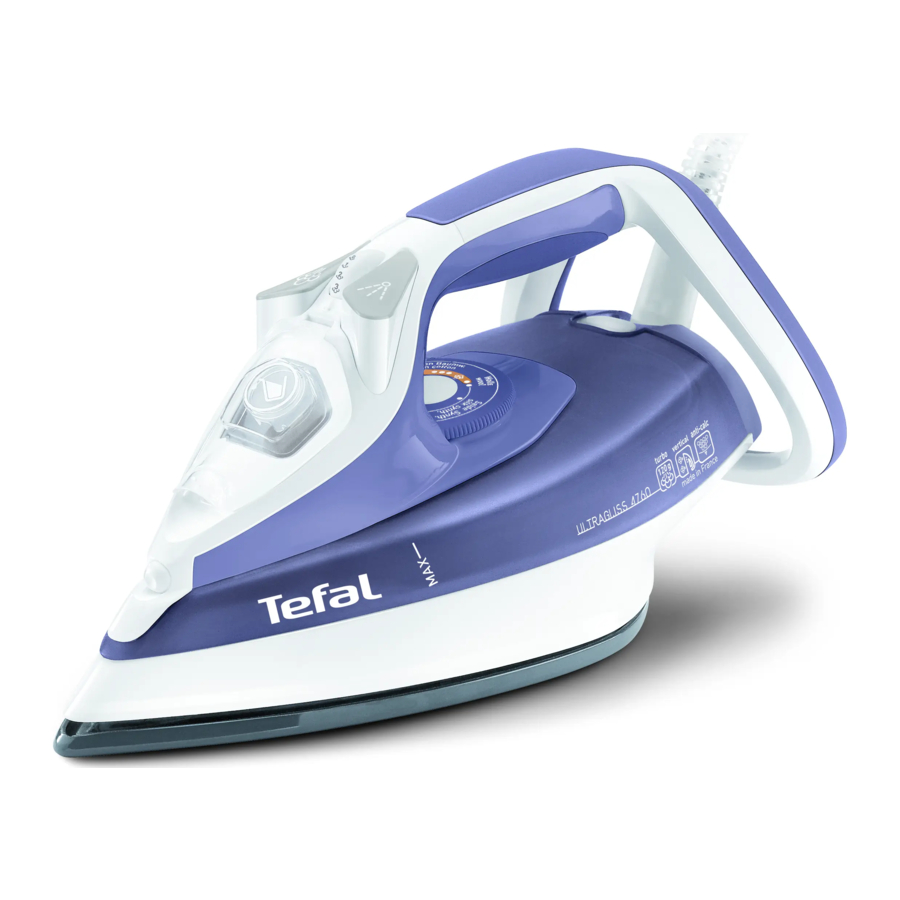

TEFAL ULTRAGLIDE, ULTRAGLISS FV4780 / FV4760 / FV4761 Manual

Overview

First use

**Depending on model

Water tank filling

Temperature setting

It is normal for the indicator light to switch on and off during ironing.

Steam setting

**Depending on model

Extra steam

Spray

Vertical steam

Product storage

Anti-calc valve cleaning

(Once a month)

Self-cleaning

(Once a month)

**Depending on model

Soleplate cleaning

Autoclean Catalys Soleplate

(depending on model)

• Your iron is equipped with a self-cleaning soleplate which works by catalysis.

• Its exclusive coating helps continuously eliminate all the impurities generated by normal use.
• It is recommended that you always stand your iron on his heel to preserve its self-cleaning coating.

Cleaning the soleplate

• The exclusive active coating helps continuously eliminate all the impurities generated by the normal day-to-day use of the iron.
• However, if you iron using an unsuitable programme, some traces may be left which require manual cleaning. In this case, it is recommended that you use a soft damp cloth on the warm soleplate, in order not to damage the surface.

Attention!
The use of a scouring pad will cause damage to your soleplate's self-cleaning (depending on model) coating

If there is a problem

PROBLEM	POSSIBLE CAUSE	SOLUTION
Water drips from the holes in the soleplate	The chosen temperature is too low and does not allow for the formation of steam.	Position the thermostat in the steam range (from to MAX).
	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.
	You are using the Shot of Steam button too often.	Wait a few seconds between each use of the button.
	There is too much steam.	Reduce the steam.
	You have stored the iron horizontally, without emptying it and without setting it to	See the section "Product storage".
Brown streaks come through the holes in the soleplate and stain the linen	You are using chemical descaling agents.	Do not add any descaling agents to the water in the water tank.
	You are not using the right type of water.	Perform a self-cleaning operation and consult the chapter "What water to use?".
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time.
	Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your laundry is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and can stain the linen	Your are ironing with an inappropriate program (temperature too high).	Clean the soleplate as indicated above. Select the appropriate program.
	You are using starch.	Clean the soleplate as indicated above. Always spray starch onto the reverse side of the fabric to be ironed.
There is little or no steam	The water tank is empty.	Fill it.
	The anti-scale valve is dirty.	Clean the anti-scale valve.
	Your iron has a build-up of scale.	Clean the anti-scale valve and carry out a selfclean.
	Your iron has been used dry for too long.	Carry out a self-clean.
The soleplate is scratched or damaged	You have placed your iron flat on a metallic rest-plate or ironed over a zip.	Always set your iron on its heel. Do not iron over zips.
Steam or water come from the iron as you finish filling the tank	The steam control is not set to the position.	Check that the steam control is set to the position.
	The water tank is overfilled.	Never exceeed the Max level.
The spray does not spray	The water tank is not filled enough.	Fill up th water tank.
The unit drips when you start ironing	You have removed the anti-scale valve to fill your iron.	Do not extract the anti-scale valve when filling the iron.

For your safety

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

• Please read these instructions carefully and keep them for future reference.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mentalcapabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children must be supervised to ensure that they do not play with the appliance.
•
  The voltage of your electrical installation must correspond to that of the iron (220V-240V).
  Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.
• This iron must always be plugged into an earthed socket. If using a mains extension lead, ensure that it is correctly rated(10A), with an earth connection.
• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid anydanger.
• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or has functional anomalies. Neverdismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger.
• Never immerse your iron in water!
• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the reservoir, before cleaning it, after each use.
• Never leave the appliance unattended when it is connected to a power source or if it has not cooled down forapproximately 1 hour.
•
  Your appliance gives off steam, which may cause burns. Take extra care especially when you are ironing close to theedge or on a corner of your ironing board. Never direct the steam towards people or animals.
• Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply withthe instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

What water to use?
Your appliance has been designed to function with untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber.
If your water is very hard (check with your local water authority), it is possible to mix untreated tap water with storebought distilled or demineralised water in the following proportions: - 50% tap water, - 50% distilled or demineralised water.

Types of water not to use?
Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your Tefal iron. Also do not use boiled, filtered or bottled water.

Eco (Depending on model)
Select setting and save 20% energy compare with the maximum position.

If you have any problem or queries, please contact our Customer Relations team first for expert help and advice.
845 602 1454 - UK / (01) 677 4003 - ROI
or consult our website - www.tefal.co.uk
