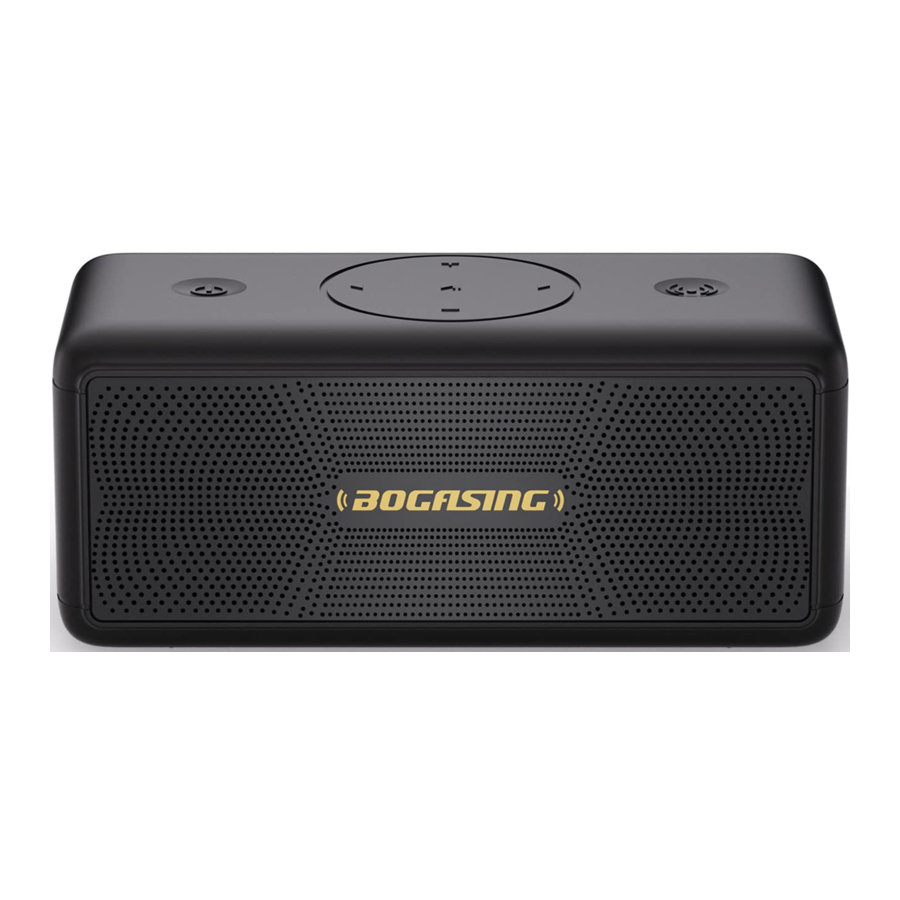

BOGASING M5 Manual

Specifications

Please read the user manual before using and keep it for future reference. If you have any Other questions or comments, please contact us by email: bogasing@hotmail.com

Model:	M5	Frequency Response:	50 Hz - 20kHz
Bluetooth Version:	V5.3	Waterproof:	IPX7
Bluetooth Range:	Up to 18m/60ft (Unobstructed)	Input:	5V 2A
Output Power:	40W	Charging Time:	4 hours
Battery Capacity:	6000 mAh	Dimension:	6.30 x 2.99 x 2.79 in

Accessories

Button Configuration

1. Battery indicator
2. Power ON/OFF/Switch playing modes
3. Previous track
4. Volume up
5. Next track
6. TWS mode button/Switch sound effects
7. Bluetooth indicator
8. Volume down
9. Play/Pause/Answer/End a call
10. USB flash drive port
11. Aux-in port
12. Type-C charging port
13. TF-card slot

BUTTON	OPERATION	FUNCTION DESCRIPTION
	Press and hold	Turn ON/OFF.
	Press	Switch the playing modes (Bluetooth, USB flash drive, TF-card or Aux-in).
	Press	Switch sound effect modes in turn (3D, Vocal, and Super Bass).
	Press and hold	press and hold for 8s until you hear a prompt tone to clear all paired devices or restore to factory settings.
	Press twice quickly	Enter into True Wireless Stereo (TWS) mode.
	press	Play/pause. Answer the incoming calls. End the current call.
	Press and hold	Press and hold for 2s, disconnect the Bluetooth device. Press and hold for 2s, decline an incoming call.
	Press twice quickly	Call back the last call.
	Press	Volume down, total 16 levels
	Press	Volume up, total 16 levels
	Press	Previous track
	Press	Next track

Battery Life

Note: Playtime varies according to volume and audio content.

Bluetooth Connection

1. Power on the speaker and the indicator light blinking blue.
2. On your device, enable the Bluetooth feature. Select the speaker which named is "BOGASING M5" from the device list.
3. Once connected, you will hear a prompt tone and the indicator light glows solid blue.

Multiple Play Modes

1. This speaker supports up to 128GB TF-card/USB Flash drive; Supports music format: APE/FLAC /WAV/MP3.
2. Insert the TF card or USB flash drive into the slot and automatically play the audio file in order after recognition.
3. Press the" " button to switch the playing mode to Bluetooth, USBflash drive, TF-cardor Aux-in.

Note: Due to the additional USB Flash drive playback mode, TYPE-C will no longer support playback, only charging.

LED Indicator

1. Battery Indicator

• When the battery runs low, the speaker will "beep beep" to prompt the speaker needs to be charged at this time.
• While charging, the last lit battery indicator is blinking orange. when the speaker is fully charge, all battery indicators glows solid orange.

2. Status indicator
   1. Bluetooth light

• Ready to connect: Blue light blinking;
• Connected: Glows solid blue.

2. Sound effects indicator

• 3D: Glows solid blue
• Vocal: Glows solid orange
• Super Bass: Glows solid green

Note: The sound effect indicator has a memory function, and it will default to the last sound effect you used when connecting again.

TWS Pairing

1. Make sure both speakers are powered on and they are disconnect with Other devices;
2. Press the " " button twice quickly on one Ofthe speakers to enter TWS pairing mode;
3. After two speakers are paired, you will hear a prompt tone. At this time, the indicator light of the first speaker is blinking, the other one is solid;
4. Enable the Bluetooth feature of your cell phone or other devices, find and connect the speaker which named of "BOGASING M5";
5. After the two speakers are successfully paired, it will automatically enter the TWS mode when the next time you turning ON, no need to repair;
6. If the speaker was ever paired with Other speakers, Please Press and hold the " " button for 8s to reset it. Restart the speaker after reset, and then refer to steps 1-4 to enter the TWS pairing.
7. In TWS mode, only the main speaker can be use for hands-free calling when there is a call, the other speaker has no sound.

Troubleshooting

Problem	Solution
Speaker does not charge	Please use 5V 2A charger to charge the speaker, or try another charging source or cable. If your speaker has been exposed to high or low temperatures, let it return to room temperature and then try charging again. If you have not used it for a long time or the battery exhausted, please charge it for 20 minutes to activate the battery. Please charge it every three months if you do not use it for a long time
Speaker does not connect with mobile device	On your device: Disable and then enable the Bluetooth feature. Delete your speaker from the Bluetooth list on your device, Connect again. Connect a different device. Clear the speaker pairing list (Press and hold the button to reset it). Connect again.
NO sound or the volume abnormal	Check the volume setting of the mobile device Reduce the volume to minimum on your speaker, and then increase it to maximum. Use a different music source. Connect a different mobile device
Stuck in Bluetooth mode while playing	Make sure that the mobile device is within the effective transmission range of the Bluetooth speaker (18m/60ft), and that Bluetooth has been enabled on it. Make sure there are no obstacles between the speaker and the device, or no interference from other wireless signals.
Cannot be played in TF card mode	Referto the user manual to confirm if it is in TF card playback mode. Make sure the audio files on the TF card or USB flash drive are supported by the speaker.
The speaker cant be operated	Press and hold the" "button for 8 seconds to force shutdown.
Other issues	Contact BOGASING customer service at: bogasing@hotmail.com
