ThermoPro TP-60 Manual

General Warning

This device contains electronic components which operate via a power source (power supply and/or batteries). Do not let children use the device while unattended. Only use the device as described in the manual, otherwise you run the risk of an electric shock. Children should only use the device under adult supervision. Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as they pose a choking hazard.

Keep batteries out of the reach of children. Make sure you insert the batteries correctly. Empty or damaged batteries could cause burns if they come into contact with the skin. If necessary, wear adequate gloves for protection.

Do not expose the device to high temperatures. Use only the recommended batteries. Do not shortcircuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a shortcircuit, a fire or an explosion!

NOTE!
Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.

Use only the recommended batteries. Always replace weak or empty full capacity. Do not use batteries from different brands or batteries with a new, complete set of batteries at with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

Notes on cleaning
Separate the device from the power supply or remove thebatteries before cleaning.

Only use a dry cloth to clean the exterior of the device.

Do not use any cleaning fluid to avoid damaging the electronics.

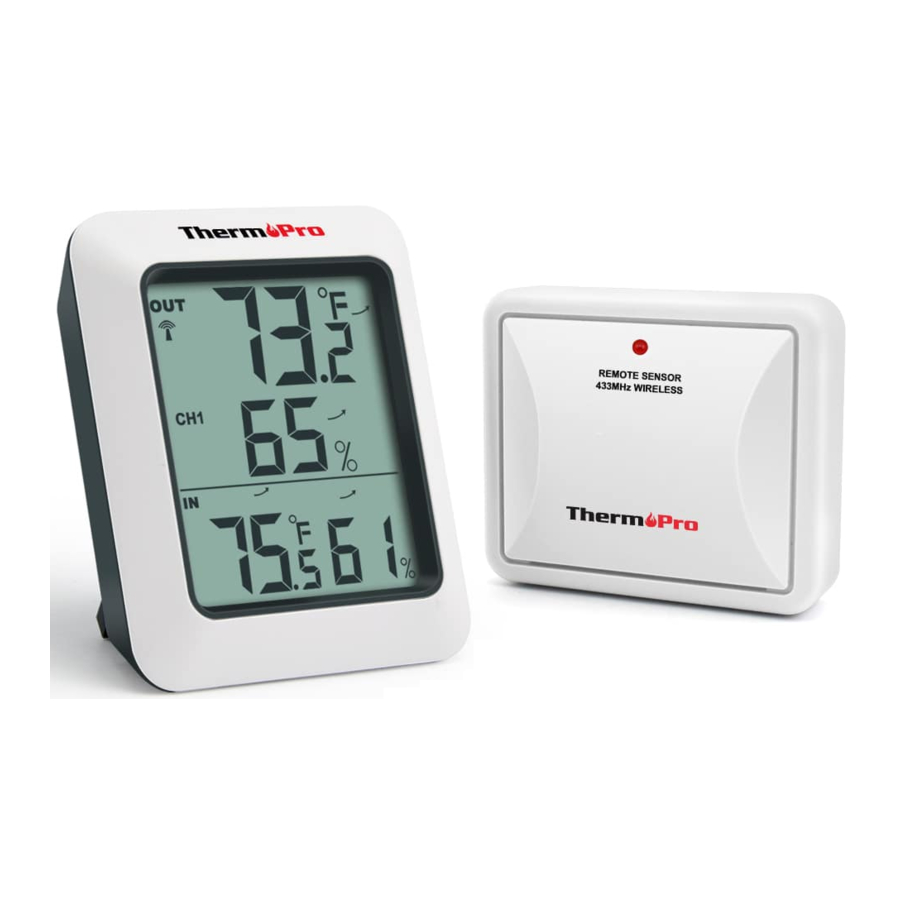

Components

1. One base station unit (Receiver).
2. One remote sensor (Transmitter).
3. Four AAA size batteries (included).

Indoor Base Station (Receiver) Features

1. LCD display: Displays the current outdoor humidity/ temperature and indoor humidity/temperature.
2. Battery Compartment: Holds 2 AAA batteries to power the unit.
3. Tabletop and wall-mounted design.
4. Indoor Temperature range: -4°F~158°F(-20°C~70°C).
5. Humidity range: 10% ~ 99%.
6. Temperature display unit: °C and °Fselectable.
7. Temperature Resolution: 0.1°C/°F.
8. Humidity Resolution: 1%.
9. Low battery indication.

Buttons
CHANNEL/SYNC: Press once to display the temperature and humidity readings from up to 3 outdoor remote sensors; Press and hold this button to enter the synchronization mode.

MAX/MIN/CLEAR: Press once to display the maximum or minimum temperature and humidity; Press and hold to clear the history data.

°F/°C/ALL-TIME/24: Press to select the temperature display in ºC or ºF; When the display shows the maximum or minimum temperature and humidity, press this button once to set the maximum and minimum data record time interval between ALL TIME or 24 hours. Note: Both ALL TIME and 24 hours represent the time since you last time manually cleared the history data or installed a new battery.

Temperature & Humidity Trend

1. indicates the temperature & humidity is in an increasing trend.
2. indicates the temperature & humidity is in an no change trend.
3. indicates the temperature & humidity is in a decreasing trend.

Outdoor Remote Sensor (Transmitter) Features

1. Battery Compartment: Holds 2 X AAA batteries to power the unit.
2. Rain-proof and wall-mounted design.
3. Outdoor Temperature range: -58° ~158°F (-50°C~ 70°C).
4. Humidity range: 10% ~ 99%.

Buttons
CHANNEL Selector (1,2,3): Slide to set Channel 1,2 or 3.
RESET: Press once to reset the remote sensor.
TX: Press to send temperature/humidity data to the receiver manually.

Battery Installation and Setup

1. Remove the two small screws with a small screw driver at the back of the remote sensor and the battery compartment door;
2. Slide the channel selector switch inside the battery compartment to your desired channel. For the first remote you may select any channel, for additional remotes select any unused channel;
3. Insert (2) AAA batteries according to the polarity markings. Replace the battery compartment cover and screws;
4. Open the battery compartment at the back of the base station and insert (2) AAA batteries according to the polarity markings. Replace the compartment door;
5. Press the °F /°C button at the back of the base station to display the temperature in °F or °C.

Note:
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon zinc), or rechargeable (nickel cadmium) batteries.
For maximum performance in normal conditions we recommend using good quality alkaline batteries.
If the battery power is low, there will be low battery icon showing on the base station display.

Synchronize Remote Sensors with The Base Station

1. Position the remote sensor near the base station;
2. Once the batteries are installed in the base station, the RF signal icon . (located on the upper left of the base station display) will flash for 3 minutes, indicating that the base station is in synchronization mode: it is waiting for remote sensors to be registered.
3. If 3 minutes have passed after the batteries were installed in the base station and the RF signal Icon is no longer flashing, press and hold the CHANNEL/ SYNC button on the back of the base station for 3-4 seconds until the RF signal icon is flashing again to set it back in synchronization mode;
4. Install the batteries in the remote sensor and wait for a moment or just press either the TX or RESET button inside the remote sensor battery compartment, the remote sensor temperature/humidity will show on the base station display which indicates the synchronization is complete.
5. If you have additional remote sensors, repeat the above steps to register the remote sensors (up to 3 remote sensors can be registered with one base station);
6. If you have registered more than one sensor, press the CHANNEL/SYNC button on the base station to select the remote channel you want displayed permanently on the base station. Press CHANNEL/ SYNC button until you observe a circular arrow on the base station LCD display under the channel number. The unit will then auto-scroll, changing from channel to channel every 5 seconds.

Place the Base Station and Remote Sensor

1. The indoor base station (receiver) should always be placed in a well ventilated indoor area and located away from vents, heating or cooling elements, direct sunlight, windows, doors, or any other openings.
2. The remote sensor (transmitter) can be placed on a flat surface indoor or outdoor. Make sure the sensor is within the transmission distance from the base station and with minimal obstructions.
3. The base station and remote sensor can both be wall mounted.

Maximum & Minimum Recorded Temperature & Humidity

1. Press MAX/MIN/Clear button once to display the highest indoor and outdoor temperatures/humidity recorded since last reset. MAX is shown on the display.
2. Press MAX/MIN/Clear button again to display the lowest indoor and outdoor temperatures/humidity recorded since last reset. MIN is shown on the display.
3. To clear and reset the max/min records, when either the MAX or MIN record is shown on the LCD display, press and hold MAX/MIN/Clear for 3 seconds.
4. When either the MAX or MIN record is shown on the LCD display, press ALL-TIME/24 button once to set the data record time interval between ALL TIME or 24 hours.
   Note: Both ALL TIME and 24 hours represent the time since you last time manually cleared the history data or battery installation.

Purchasing Additional Remote Sensors

The model number of the remote sensor for this unit is TPR60.

Additional sensors may be ordered directly from Amazon or ThermoPro by contacting our customer service listed below.

Hints and Tips

If the receiver does not connect to the transmitter, try the following:

• Press and hold the CHANNEL/SYNC button on the base station and then press TX button on the transmitter.
• Relocate the base station and/or the remote unit until connection is found.
• Signals from other electronic devices may cause interference. Place the base station and receiver away from these devices.
• The transmitter may not function properly in extreme temperatures due to battery power. Replace the batteries or the unit will resume proper function in more moderate weather.

Specifications

1. 433 Mhz transmission frequency.
2. Transmission range up to 200 ft. (range maybe shorter based on interference present).
3. Indoor Temperature range: -4°F~158°F (-20°C~70°C).
4. Outdoor Temperature range: -58°F~158°F (-50°C~ 70°C).
5. Humidity range: 10% ~ 99%.
6. Temperature tolerance: +/- 2.0°F (+/- 1.1°C).
7. Humidity tolerance: ±2% from 30% to 80%; ±3% below 30% and above 80%.
8. Power: 2 X AAA 1.5V for base unit and 2 X AAA 1.5V for remote sensor.

Disposal

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

• This helps avoid the potential effects of incorrect disposal on the environment and human health.
• This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
• Information concerning where the equipment can be disposed of can be obtained from your local authority.

Batteries/rechargeable batteries must not be disposed of with household waste!

The batteries must be removed from the appliance.

• Take spent batteries to the appropriate collection point or to a dealer.
• Your town or local authority can provide information aboutpublic collection points.
• This symbol can be found on batteries/rechargeable batteries which contain hazardous.
  Pb = contains lead
  Cd = contains cadmium
  Hg = contains mercuryLi = contains lithium

Customer Service

Telephone: 1-877-515-7797(USA & Canada)

Telephone: 44-203-769-1321(UK)

Email: service@buythermopro.com

Hours: Weekdays 8:00 AM- 6:00 PM EST
