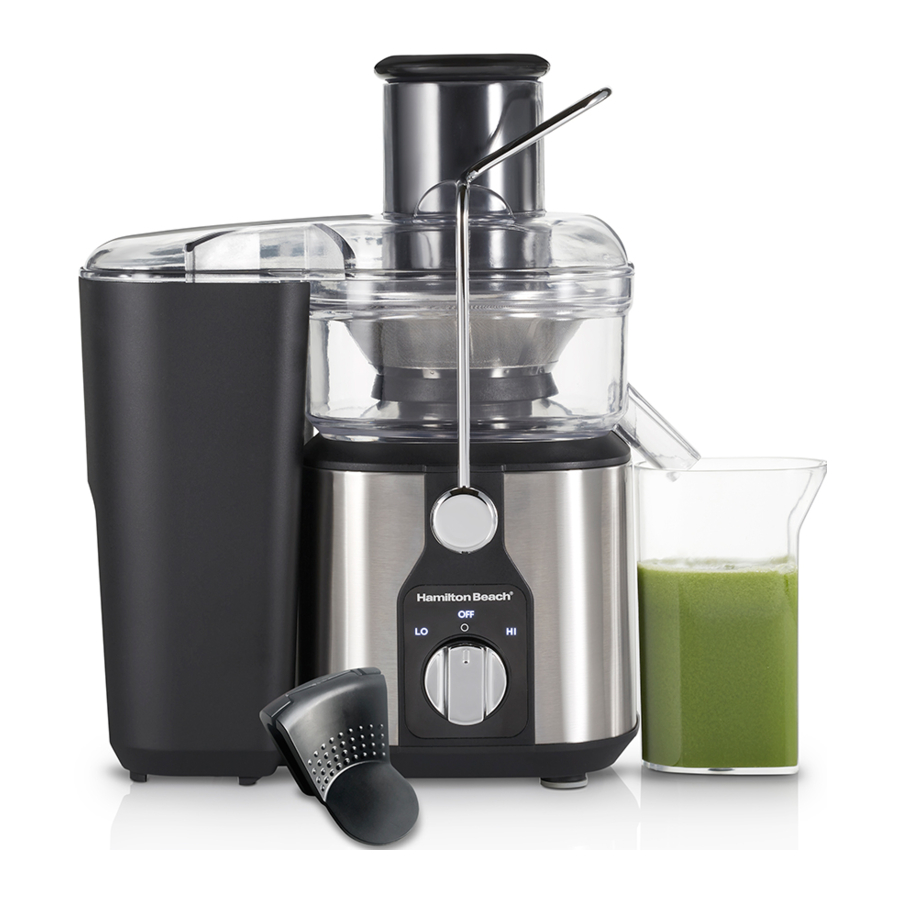

Hamilton Beach Easy Clean Juice Extractor 67870 Manual

Parts and Features

To order parts, visit: hamiltonbeach.com/parts

Laceration Hazard.
Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.
• Never use a cracked, bent, or damaged micro-mesh strainer basket.

How to Assemble

Before first use: After unpacking Juice Extractor, remove cardboard from Filter Basket and wash everything except Base in warm, soapy water. Rinse and dry immediately. Never immerse Base in water or other liquids; wipe it with a damp sponge.

1. Place Strainer Bowl on top of Motor Base. Then place Stainless Steel Strainer Basket inside Strainer Bowl.

2. With hands on outer edge, press Strainer Basket down firmly to latch into position.

3. Place Juicer Cover over Strainer Bowl, positioning Feed Chute over Strainer Basket, and lower into position.

4. Raise Locking Arm up to lock into place.

5. Place Pulp Container into position by tilting Container slightly.

6. Place Juice Cup under Juice Spout. Slide Food Pusher down Feed Chute by aligning groove in Food Pusher with small ridge on inside of top of feed tube.


NOTE: When unit is properly assembled, the control panel will illuminate when plugged in.

HINT: To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. (See "How to Use" for more information.)

How to Use

Wash fruits and vegetables.
NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into Feed Chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor.

Laceration Hazard.
Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

1. Ensure that unit is correctly assembled (see "How to Assemble") and place Juice Cup under Spout.

2. Make sure Knob is in OFF ( ) position. Plug into outlet. Control panel will illuminate. Move Knob to LO or Hl.
   NOTE: See Juicing Chart and Tips..

3. With motor running, place food down Feed Chute. Using Food Pusher, gently guide food down Feed Chute. To extract maximum amount of juice, always push Food Pusher down slowly.
   Juice will flow into Juice Cup and separated pulp will accumulate in Pulp Container.
   NOTE: Pulp Container can be emptied during juicing by turning Juice Extractor OFF ( ) and then carefully removing Pulp Container. Replace empty Pulp Container before continuing to juice.

4. To minimize cleanup, place a plastic grocery bag in Pulp Container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp.
   NOTE: Do not allow Pulp Container to overfill since this may prevent correct operation or damage the unit.


NOTE: When juicing large amounts in one session, it is recommended to occasionally clean Strainer Basket to remove excess fiber buildup. Refer to Care and Cleaning section.

How to Disassemble

1. Turn Juice Extractor OFF ( ). Unplug. Allow Strainer Basket to stop turning.

2. Release Locking Arm.

3. Move Locking Arm down.

4. Lift off Cover.

5. Remove Pulp Container by sliding away from Motor Base.

6. Lift off Strainer Bowl with Strainer Basket still in place.

7. To remove Strainer Basket, turn Strainer Bowl upside down and carefully remove Strainer Basket.
   NOTE: It is recommended to remove Strainer Basket over a sink.


Care and Cleaning

NOTE: Fruits and vegetables may cause parts to discolor. To prevent this, wash parts immediately after each use.

Electrical Shock Hazard.
Do not immerse motor base in water or any other liquid.

Laceration Hazard.
The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function. Do not touch blades when handling the strainer basket.

1. Unplug.
2. Wipe Base of Juice Extractor with a soft, damp cloth and dry.
3. Easy Sweep Cleaning Tool (included with select models) is most effective way to clean Strainer Basket. Using tool, hold Strainer Basket under running water and brush inside and outside of Basket.

4. All removable parts are dishwasher-safe.
   DO NOT use "SANITIZE" setting when washing in dishwasher. SANITIZE cycle temperatures could damage your product. Do not place Motor Base in dishwasher. Some part distortion may occur if your household dishwasher's temperature is higher than normal or if parts are placed too close to heating element.


To assist with cleaning, soak Strainer Basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on basket it may clog fine pores of filter mesh, thereby lessening effectiveness of Juice Extractor.

Juicing Chart

Juicing Tips and Techniques

Juicing is a convenient way to add more vitamins and nutrients to your diet. Since you are removing the fiber or bulk, you can consume a larger volume of fruits and vegetables by drinking juice than by eating the whole food.

Purchasing and Storing Fruits and Vegetables:

• Always wash fruits and vegetables before juicing.
• Always use fresh fruits and vegetables for juicing.
• To save money and obtain fresher produce, purchase fruits or vegetables that are in season.
• Keep your fruits and vegetables ready for juicing by washing them before storing.
• Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in refrigerator until required.

Preparing Fruits and Vegetables:

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in Juice Extractor to minimize impact on juice flavor.
• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.
• When using small amounts of ginger, sandwich it between other fruits or vegetables for best results.

Other Helpful Tips:

• Consume juice immediately for best taste and nutrition. If storing, cover tightly and refrigerate.
• Greens and herbs work best if rolled in a tight ball and then juiced in between a combination of ingredients.
• Peeled oranges will deliver invigorating, frothy orange juice. For best results, refrigerate oranges before juicing.

Using the Pulp:

• Remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like juice, contain vital nutrients necessary for daily diet and can be used in many ways. However, like juice, pulp should be used that day to avoid loss of vitamins.
• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.
• Pulp is great used in the garden for compost.

Soy Milk, Almond Milk, and Rice Milk:
This Juice Extractor may be used to make soy milk, almond milk, and rice milk. One cup of soybeans, almonds, or rice must be soaked in four cups of water for 24 to 48 hours in the refrigerator. Slowly pour one cup of the soaked mixture at a time into Feed Chute. The liquid extracted from the soaked mixture is the "milk."
NOTES:

• Almonds must be soaked 24 to 48 hours before juicing.
• Soy milk should be boiled to improve flavor.
• Vanilla, honey, and sugar may be added to enhance flavor of each milk type.

Recipes

Following drink recipes yield a single serving of 6 to 10 ounces (170–300 mL). Add ingredients in order listed in recipe.

Eye-Opener
2 carrots
1 apple
1 tangerine, peeled

Winter Blue Zing
2 apples
1/4 cup (48 g) blueberries
1 orange, peeled

Berry Blast
3 cups (570 g) blueberries
2 cup (302 g) red grapes
1 cup (140 g) blackberries
1 cup (120 g) raspberries
1 medium orange, peeled

Detox Green Juice
1/4 small head cabbage
3-4 broccoli florets with stalks
2 basil leaves
1 large rib celery
1 large Granny Smith apple

Berry Sunrise
3 medium red apples
1 cup raspberries
10 large strawberries

Liquid Fire
1 medium tomato
1/2 jalapeno pepper
1 handful parsley
1/2 cucumber

More Than Orange Juice
4 large carrots
1/2-inch (about 1.27 cm) piece ginger, unpeeled
2 medium oranges, peeled
2 medium red apples

Pomegranate Berry Mint
1 3/4 cup (305 g) pomegranate seeds
8 mint leaves
2 cups (380 g) blueberries
8 large strawberries, stems removed

Carrot Turmeric Tonic
1 small Golden Delicious apple
2-inch (about 5 cm) piece turmeric
1/2 lemon, peeled
4 large carrots
1 large cucumber

Vineyard Pop
1 cup (151 g) grapes
1 pear

The Health Club
1/2 of 6-ounce (170 g) bag spinach
3 carrots

Watermelon Refresher
4 cups (about 608 g) watermelon chunks
1 large handful mint leaves (about 1/2 oz/2 g)
1 lime, peeled
1/2 large cucumber

Gingery Citrus Juice
2 medium oranges, peeled
2 cups (450 g) pineapple chunks
3/4 -inch (about 2 cm) piece ginger, unpeeled
2 medium Granny Smith apples

Kale Plus Juice
4 large kale leaves
1 medium lime, peeled
1-inch (about 2.5 cm) piece ginger, unpeeled
3 large ribs celery
1 large Granny Smith apple
1 cup (225 g) pineapple chunks

Sour Grapes
1 lime, peeled
2 cups (302 g) red grapes

Rosy Beet
4 medium beets, trimmed
3 medium red apples
2 cups (450 g) pineapple chunks
1-inch (about 2.5 cm) piece ginger, peeled

Strawberry Green Juice
16 oz (454 g) strawberries, stems removed
1 large handful mint leaves (about 1/2 oz/2 g)
3 oz (85 g) arugula
1 1/2 oz (43 g) kale
1 oz (about 28 g) parsley
1 Granny Smith apple

8 Pack Vegetable Juice
1 large tomato
1 large handful spinach
4 large kale leaves
2 large carrots
2 ribs celery
1 large jalapeño pepper
1 handful cilantro
1 large lime, peeled

Recipes Using Pulp

Match the flavor of the pulp to the ingredients in the recipe. For baked goods, the amount of liquid should be adjusted based on the amount of moisture in the pulp.

Citrus Ginger Muffins

(Makes 12 muffins)
Ingredients:
1 cup (about 236 g) pulp reserved from More Than Orange Juice (or similar juice)
1/2 cup (120 g) milk
1/4 cup (57 g) vegetable oil
1 large egg
1/3 cup (67 g) granulated sugar
1 teaspoon vanilla extract
1 1/2 cups (180 g) all-purpose flour
1 tablespoon baking powder
1/2 teaspoon salt

Directions:

1. Preheat oven to 400°F.
2. In a large mixing bowl, combine pulp, milk, oil, egg, sugar, and vanilla extract with a hand mixer on medium speed until blended.
3. Gradually add flour, baking powder and salt. Mix on low speed until just blended.
4. Spoon mixture evenly between 12 muffin cups. Bake 20 to 22 minutes, or until lightly browned.

Wholesome Vegetarian Chili

(Makes 8 to 10 servings)
Ingredients:
2 tablespoons olive oil
1 large onion, chopped
2 large garlic cloves, minced
1 medium green pepper, coarsely chopped
1 large carrot, shredded
1 medium zucchini, shredded
1 large celery stalk, sliced
1 can (28 oz/794 g) whole tomatoes, broken
2 cans (4 oz/113 g each) green chilies, drained
1 can (15 oz/432 g) black beans, drained
1 can (15.5 oz/439 g) cannellini beans, drained
1 1/2 cups (about 354g) pulp reserved from
8 Pack Vegetable Juice (or similar juice)
1 teaspoon dried basil
1 teaspoon salt
1/4 teaspoon ancho chili powder

Directions:

1. Heat oil in Dutch oven over medium-high heat.
2. Add onions and garlic and cook for 2 minutes.
3. Add green pepper, carrots, zucchini, and celery and cook for 5 minutes.
4. Stir in remaining ingredients and cook over low heat for 40 minutes.

Berry Chocolate Brownies

(Makes 16 brownies)
Ingredients:
1/2 cup (113 g) butter
1 cup (170 g) semisweet chocolate chips
1 cup (200 g) granulated sugar
1 cup (about 236 g) pulp reserved from Berry Sunrise Juice (or similar juice)
3 large eggs
1 tablespoon vanilla extract
1 1/4 cups (150 g) all-purpose flour
1/2 cup (40 g) baking cocoa
1 teaspoon salt

Directions:

1. Preheat oven to 350°F. Line a 13 x 9 inch baking pan with nonstick foil or spray a foil-lined pan with nonstick cooking spray.
2. In a large microwave bowl, microwave butter and chocolate chips on medium power for 2 minutes or until butter is melted and chips are shiny.
3. With a hand mixer, beat chocolate mixture on medium until blended, about 1 minute.
4. Add sugar and pulp. Beat on high until mixture is lighter in color.
5. Add eggs and vanilla. Continue to beat on medium until well blended, about 2 minutes.
6. Reduce speed to low, add flour, baking cocoa, and salt and beat until smooth, about 1 to 2 minutes.
7. Spread mixture evenly into prepared baking pan.
8. Bake for 26 to 30 minutes, or until a toothpick inserted in center comes out clean.

Troubleshooting

Machine will not work when switched ON

• Locking Arm may not be correctly engaged. Check to see if Arm is properly positioned in two grooves on either side of Juicer Cover. Refer to "How to Assemble", Steps 3 and 4.
• This machine is equipped with motor overload protection. If motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation.

Motor appears to stall when juicing

• Juicing action may be too vigorous. Try slower juicing action by pushing Food Pusher down more slowly. Refer to "How to Use", Step 3.
• Wet pulp can build up under Juicer Cover or Pulp Container. Turn unit OFF ( ) and unplug. Empty Pulp Container; then clean Juicer Cover and Strainer Basket.

Excess pulp building up in Micro-Mesh Strainer Basket

• Turn OFF ( ) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup, which could be inhibiting juice flow. Refer to "How to Disassemble" and "Care and Cleaning" sections.

Pulp is too wet and insufficient juice is produced

• Try a slower juicing action by pushing Food Pusher down more slowly. Refer to "How to Use", Step 3.
• Turn OFF ( ) and unplug. Remove Strainer Basket and clean mesh walls with a fine brush. This will remove excess fiber buildup, which could be inhibiting juice flow. Refer to "How to Disassemble" and "Care and Cleaning" sections.

Juice sprays out of Spout

• Try a slower juicing action by pushing Food Pusher down more slowly. Refer to "How to Use", Step 3.

Juice drips out of Spout immediately after juicing

• With motor ON, raise and lower Food Pusher in Feed Chute several times. The action forces remaining pulp and juice out of Strainer Bowl.

Machine vibrates excessively

• Buildup of pulp in mesh of Strainer Basket. Turn unit OFF ( ) and unplug. Clean Strainer Basket. Refer to "Care and Cleaning". If machine vibration continues after cleaning, this could be a sign of a damaged Strainer Basket. Visit hamiltonbeach.com/parts to order a new Strainer Basket.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Turn the appliance OFF ( ), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Do not attempt to defeat any safety interlock mechanisms. Keep fingers out of feed chute.
8. Never feed food into feed chute by hand. Always use the food pushers.
9. Always make sure the juice extractor is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release safety locking arm while juice extractor is in operation.
10. Be sure to turn switch to OFF ( ) position after each use of your juice extractor. Make sure the motor stops completely before disassembling.
11. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF ( ), unplug the cord from the outlet, and disassemble juice extractor to remove the remaining food.
12. Do not use the appliance if the rotating strainer basket or juicer cover is damaged or has visible cracks.
13. To reduce the risk of personal injury and/or damage to the appliance, do not use bent, dented, or otherwise damaged strainer basket.
14. Do not operate without the pulp container in place.
15. Blades are sharp; handle carefully. Do not touch the small cutting blades in the base of the stainless steel strainer basket.
16. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.
17. Do not leave juice extractor unattended while it is operating.
18. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
19.
    The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or personal injury.
20. Do not use outdoors.
21. Always use the juice extractor on a dry, level surface.
22. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
23. Do not place on or near a hot gas or electric burner, or in a heated oven.
24. Check that the appliance is OFF ( ) before plugging cord into wall outlet. To disconnect, turn the control to OFF ( ); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
25. Do not use appliance for other than intended purpose.
26.
    In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information
This product is intended for household use only.

Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit.

The strainer basket is a delicate screen. If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Contact customer service to order a new basket. Replace basket when it shows signs of wear.

This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes. Plug machine back in after 15 minutes to resume normal operation.

Cut or Crush Hazard.
Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher.
Failure to follow this instruction can result in serious personal injury.

Limited Warranty

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Attn: Consumer Affairs, 261 Yadkin Road, Southern Pines, NC 28387, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/customerservice in Canada. For faster service, include the model, type, and series numbers on your appliance.

Documents / Resources

References

• Search Now for Replacement Parts & Accessories | HamiltonBeach.com
• Customer Service | HamiltonBeach.com
• Home | HamiltonBeach.ca

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Hamilton Beach Easy Clean Juice Extractor 67870 Manual
