FlightScope Mevo Manual

In the box

Mevo
USB charging cable
Aluminum stickers*
Pouch
Manual

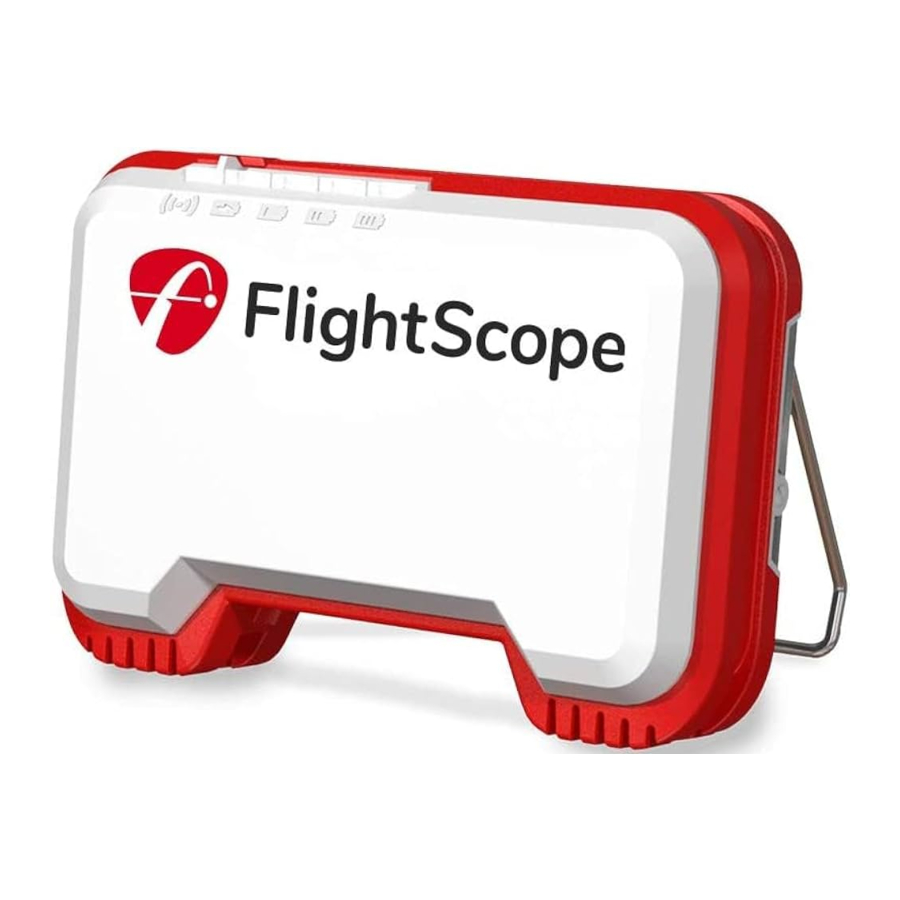

The radar

LED indicators
USB
Kickstand
Power button

Battery indicators

Status indicators

Get the App

Download FS Golf from the App Store

Google Play

Your username and password will be the same on myflightscope.com

First time setup

Download and install the FS Golf app onto your mobile device.
Make sure your mobile device's bluetooth is turned on.

Make sure your mobile device and Mevo are fully charged before getting started.
Open the FS Golf app on your phone and log in or sign up.

Press the power button on the Mevo. The battery indicators will begin to flash.
Press the settings icon in the top bar of the FS Golf app.

Press the 'Select' button next to 'Devices in Range.' The FS Golf app will begin searching for your Mevo device.
Once connected the bluetooth icon will switch from red to blue.

The battery lights on your Mevo will go from blinking to solid.
You are now ready to start using your Mevo.
Open the kickstand and place behind your tee position.
When finished with your session, switch off the Mevo by pressing and holding the button until all the indicators are off.
Visit myFlightScope.com to review saved sessions and track performance.

Setup

Setup - Step 1

Keep area between Mevo and the tee clear of any objects and people.
Setup - Step 2

When hitting outdoors in an unrestricted ball flight environment, aluminum stickers are not required. To enjoy optimal spin accuracy in a limited flight environment (indoors or into a net indoors or outdoors), place an aluminum sticker on the ball to ensure spin accuracies only attainable by scientific instruments.

*Place an aluminum sticker on the ball in limited flight environments - see note above.

To order additional stickers: go to flightscope.com

When using an aluminum sticker on a ball, aim the sticker away from the radar.
Setup - Step 3

For accurate tracking, Mevo must be level with the launch position.
Setup - Step 4

Extremely low and wide shots, and shots that pass behind the player might not be displayed.

Data

Carry Distance

The landing distance of the ball from the tee.
Knowing your carry distances allows you to work on consistency and club gapping with every club in the bag.

Club Speed

The speed of the club measured at impact with the ball.
Improve distance and spin control by learning how to make more controlled swings when needed. Club speed has the biggest effect on ball speed.

Ball Speed

The launch speed of the golf ball.
This is directly by club speed and quality of strike. Higher club speed does not necessarily mean higher ball speed if the ball is not hit correctly. Ball speed has the biggest effect on carry distance.

Vertical Launch

The angle at which the ball is launched relative to the horizontal plane.
Knowing this helps improve optimal launch angles for different clubs in various shot & weather scenarios.

Smash Factor

This is the ball speed divided by the club speed.
This indicates the quality of the strike. Higher club speed does not necessarily mean higher ball speed. Striking in the 'sweet' spot of the club - the higher the ratio, the better the strike.

Spin Rate

The number of rotations per minute of the ball at launch.
Spin rate has a major influence on carry distance and apex height of a shot. Learn how to control your shots by understanding your spin rate. Spin also effects the ball's behavior when it lands producing rolling &/or stopping depending on spin rate.

Apex Height

The height from the ground at the highest point of the shot.

Flight Time

The amount of time the ball spends in the air, measured in seconds.

Charging

Noise

Mevo is a sensitive measuring instrument designed to operate in most environments. However, certain things in the background can create noise that can interfere with tracking.

Some common noisy objects are:
Noise - Step 1

Noise - Step 2

Keep area clear of possible noise interference. Make sure to move electronic devices behind Mevo as far as practical.
Noise - Step 3

Care

Performance tracking

Visit myFlightScope.com to analyze and track your data performance over time.

Join the myFlightScope.com community and connect with fellow golfers to read performance stats.
Keep track of your stats over time, spot trends or tendencies and see how you have improved.

Support

If you need assistance please email our support team at
support@flightscopemevo.com

Technical Specifications

transceiver
operating frequency	24. 24.125 GHz (Nominal). Fixed factory-set frequency in 24.075 ~ 24.175 GHz range (US/ FCC)*
operating power (EIRP)	14 dBm (25mW) typical
antenna gain	20 dBi (+/-2dB)
carrier modulation	CW/ None (NON)
detection method	doppler velocity measurement
bluetooth
operating frequency	2.4 GHz
output power	-20 dBm to +4 dBm in 4dB steps
electrical, physical and general
operating temperature	0°C ~ 40°C / 32°F to 100°F
dimensions	Approx. 90mm x 70mm x 30mm / 3.55" x 2.76" x 1.18"
mass	Approx 200g / 7oz
power supply	5V DC +/- 5%; current <1A, 500mA or more
data interfaces	Bluetooth ® Low Energy
