Dish Playmaker, Playmaker Dual, PL-7000, PL-7000R Manual

Features and Benefits

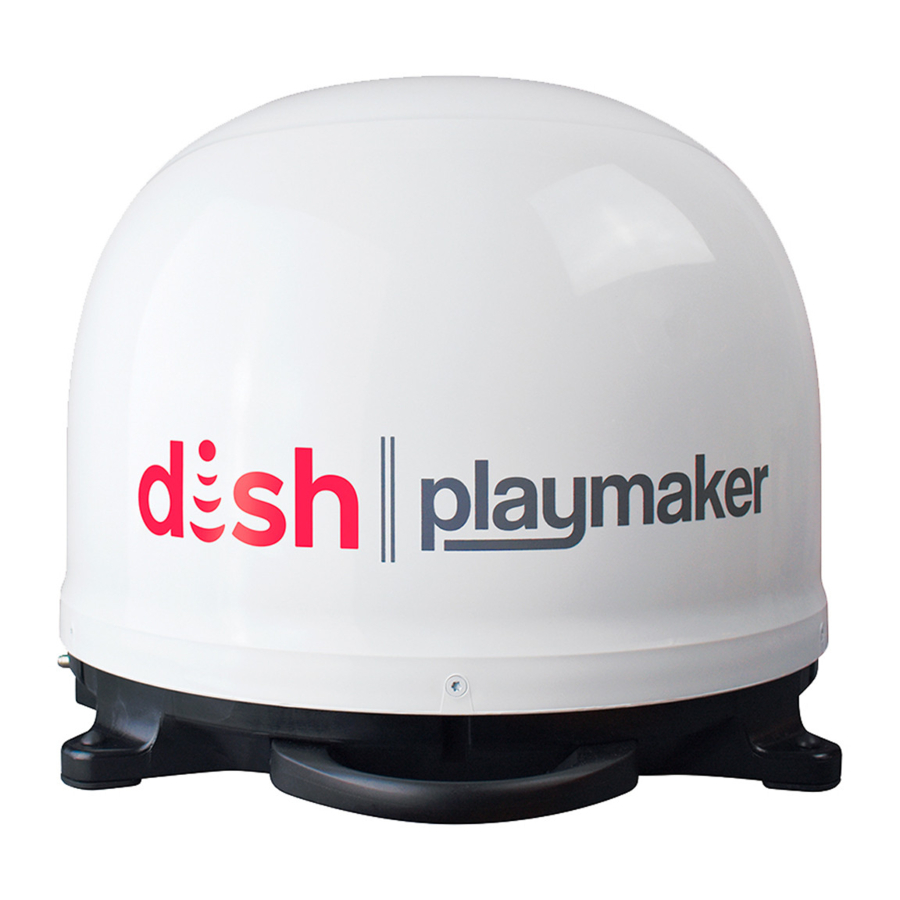

The DISH Playmaker and DISH Playmaker Dual antennas work exclusively with DISH HD Solo receiver technology and programming. Powered through the receiver, the DISH Playmaker is optimized for single receiver use, requiring a single coax connection. The DISH Playmaker Dual is built with two coax ports to accommodate two receivers for two channel viewing.
Please note: While all non-local programming is accessible with a DISH Playmaker and DISH Playmaker Dual, only locals that are broadcast from a western arc satellite will be available.
With a USB Digital OTA Tuner, an over-the-air antenna may be integrated with the Wally® receiver. The USB Digital OTA is available from DISH on dishformyrv.com and is required to connect an over-the-air antenna and receive local programming that originates in the user's location.
Winegard offers optional mount options for the DISH Playmaker and DISH Playmaker Dual automatic portable satellite TV antennas that raise the antenna off of the ground for better reception and security. These mounts are built to withstand the harsh outdoor environment.
DISH Playmaker and DISH Playmaker Dual have a two year parts, one year labor warranty.

Robust Design

• Re-engineered high-strength, military-grade aluminum alloy reflector for maximum durability resulting in increased signal strength performance of at least 20%
• Reliable, high-performance stepper motors provide speed and precision
• Lightweight, low profile antenna made from robust materials for optimal performance
• Easy-grip handle included for effortless carrying
• Powered via coaxial cable from the primary receiver (120 volts AC)

Dimensions: 16" diameter 13" height, 7 pounds

ACCESSORIES

IMPROVE RECEPTION AND SECURITY
Mounts create additional locations for better satellite visibility (sold separately)

• TR-1518 Tripod Mount Temporary ground mount with adjustable height and leveling settings of 14.5" – 22". Quickly disassembles for compact storage.

• RK-4000 Roof Mount Permanently mount the DISH Playmaker to the vehicle roof. Includes feet, cable entry plate and mounting hardware.


SIMPLE SETUP

DISH Playmaker + DISH HD Solo Receiver * + TV
DISH Playmaker Dual has 2 ports for 2 receivers.

Receiver models change frequently. For an up-to-date list of compatible receivers, visit www.winegard.com/receivers. Satellite receiver and programming not included. Initial setup may take longer as DISH receiver requires activation. Must have an HD television to view HD programming.

PLACE
Make sure the DISH Playmaker antenna is in a location with a clear view of the southern sky.
CONNECT
Connect the receiver to the coax port on the antenna base. Power up the receiver and TV. (Use your HD Solo receiver from home or call Winegard's Receiver Hotline for DISH receivers and programming.)
SCAN
Complete receiver setup. Select the state that you are currently in. Press "Scan" to start scanning for satellites.
WATCH
With the program guide downloaded, you are ready to watch TV!

Effortless Setup - Simple to Use

• Fully-automatic (customer chooses the state location)
  • Automatically finds DISH satellite orbital locations
  • Self-installs faster than other automatic antennas
  • Runs through customized receiver interface for fastest acquisition times
• DISH Playmaker - 1 TV (one receiver), DISH Playmaker Dual - 2 TVs
  (two receivers)
  • Points to either 110°, 119° or 129° (Western Arc)
  • Channel changes will prompt antenna to point to required orbital
  • For stationary use only; must be in fixed position during use

Exclusive

• Only works with DISH
  • Only DISH offers HD for portable antennas
  • Only DISH offers money-saving, pay-as-you-go TV! DISH pay-as-you-go TV may be turned on or off on a monthly basis as needed.

PAY-AS-YOU-GO
DON'T HAVE DISH AT HOME? NO PROBLEM!

• Pay for programming one month at a time
• No long-term contracts
• No credit check

ALREADY HAVE DISH? GREAT!

• Add to your current subscription and enjoy your TV channels everywhere you go - in HD!

1-866-593-0348
Winegard's Receiver Hotline
Monday-Friday 7:30am – 5:30pm CST

Pack-out Contents

• 25-foot RG-6 coaxial cable
• User Manual, including warranty information (Winegard's website has manuals and promotional materials for the DISH Playmaker)

DISH Programming

• The DISH Playmaker and DISH Playmaker Dual are compatible only with DISH Solo HD including DISH Wally receivers - ViP^® 211, 211k, 211z and 411 (new and remanufactured 211z and remanufactured 211k inventory will be compatible with the DISH Playmaker out of the box)
• Winegard provides receivers and activation for DISH Pay-as-you-go programming

FAQS

Q. What satellite providers and satellites work with the DISH Playmaker and DISH Playmaker Dual antennas?
A. The DISH Playmaker and DISH Playmaker Dual antennas are exclusively compatible with DISH programming. The antennas can receive programming from DISH western arc, which includes satellites 110°, 119°, and 129°.

Q. Does the DISH Playmaker or DISH Playmaker Dual antenna automatically toggle between satellites?
A. Yes. As you change the channel, the antenna will automatically toggle to the corresponding satellite with no manual adjustments.

Q. Can I get HD service with the DISH Playmaker / DISH Playmaker Dual antenna?
A. HD programming is available. Keep in mind that in order to receive HD programming, you must have an HDTV as well as an activated HD receiver with an HD programming package (sold separately).

Q. I have cable at home and don't want to switch or pay for satellite programming all year. What are my options?
A. DISH offers pay-as-you-go programming. There are no contracts and no commitments—simply pay for the months you would like satellite television service. Call 1-866-593-0348 to sign-up or visit www.winegard.com/dishnetwork for more info.

Q. Where can I get a receiver and programming?
A. For receivers and programming, call 1-866-593-0348 or visit www.winegard.com/receivers.

Q. How many receivers can I hook up to the DISH Playmaker or DISH Playmaker Dual antennas?
A. The DISH Playmaker antenna has one satellite output. One single-tuner receiver can be hooked up to the antenna. The DISH Playmaker Dual antenna has two satellite outputs. Two single-tuner receivers can be hooked up to the antenna.

Q. If I hook up two TVs to the antenna, can I watch any program on either TV?
A. The DISH Playmaker antenna has one satellite output. One single-tuner receiver can be hooked up to the antenna. The satellite system works with only one receiver. However, it may be possible to split the output so multiple TVs can show the same program. The DISH Playmaker Dual antenna has two satellite output that allow two receivers so different programming can be viewed.

Q. What receivers are compatible with the DISH Playmaker / DISH Playmaker Dual antennas?
A. The DISH Playmaker antenna must be used with a DISH Solo HD receiver. Examples of Solo HD receivers include DISH Wally^®, DISH 211k, 211, 411, and 211z receivers.

Q. Do I need to go through all receiver setup steps every time I use the antenna?
A. Every time the antenna is moved to a new location, you will need to complete receiver setup. Simply choose the state that you are currently in. Then, select "Scan" to begin scanning for satellites.

Q. What do I need to set up the DISH Playmaker or DISH Playmaker Dual antenna?
A. You will need a TV and an activated receiver with programming package. The antenna must be used with a DISH Solo HD or DISH Wally receiver; examples include DISH 211k, 211, 411, and 211z receivers. The DISH Playmaker Dual antenna can be set-up with two receivers.

Q. Can the DISH Playmaker / DISH Playmaker Dual antenna be mounted to the roof of my rv?
A. Yes, with Winegard's optional RK-4000 Roof Mount Kit. Improve reception and security by permanently mounting the antenna to your RV roof. Optional, not included.

NOTE: The DISH Playmaker / DISH Playmaker Dual are not intended to be mounted onto over-the-road trucks or for marine applications.
