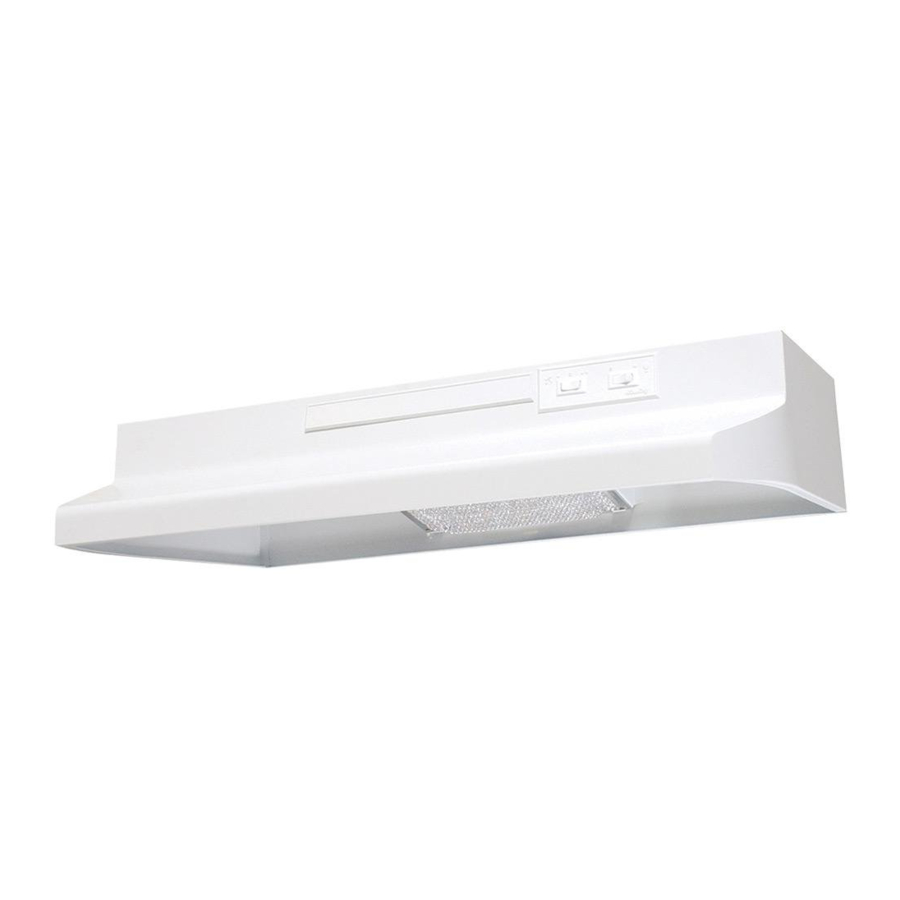

AirKing AV Series, AV1303, AV1308, AV1243 Manual

AirKing AV Series, AV1303, AV1308, AV1243 Manual

Also See for AV Series:

Advertisement

AirKing AV Series, AV1303, AV1308, AV1243 Manual

INSTALLATION INSTRUCTIONS


MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

Preparing the Product

  1. Unpack hood from the carton and confirm that all pieces are present. In addition to the range hood you should have:
    1 - Aluminum Grease Filter
    1 - 3-1/4"x 10" Damper
    3 - Damper Mounting Screws
    4 - #8 Mounting Screws
    1 - Wire Compartment Cover and Screw
    1 - Instruction/Safety Sheet

NOTE: Some hoods may be shipped with a protective plastic adhered to the range hood. It is recommended to leave this in place during installation to protect the hood from scratching. Remove when the installation is complete.

  1. Lay the hood flat on a table so the underside is facing you. Use a piece of cardboard to avoid damaging the table or the hood.
  2. Remove lamp cover by squeezing the two tabs together (Figure 1):
    INSTALLATION INSTRUCTIONS - Preparing the Product
  3. Install a 60 watt maximum type A19 bulb and reinstall the lamp cover.

Prepare the location for Unit Support

  1. If the hood will be installed under cabinets that have a recessed bottom, it will be necessary to install wood mounting strips (not included) so the hood will mount properly (Figure 2).
    Preparing the location for Unit Support
  2. The thickness of the strips should be the same as the recess of the cabinet and they should be approximately 2" wide.
  3. Install the strips using appropriate length wood screws (not included). Make sure the strips line up to the keyhole slots of the range hood.

Prepare the Unit for Installation

  1. Choose the type of ducting you will require. This model is equipped to vent either Vertically or Horizontally through a 3-1/4" x 10" duct. It can be modified to be ductless (re-circulates the air back into the kitchen) with the addition of a model RF55 combination grease/charcoal filter (not included) or vented through a 7" round duct with the addition of a model E-22a or RDC7 Duct Collar (not included) (Figure 3).
    Preparing the Unit for Installation - Step 1
  2. See Figure 4
    Preparing the Unit for Installation - Step 2
    1. Horizontal or Vertical - Remove the square knockout by inserting a screw driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).
    2. Ductless - Remove the hood's front louver cover, exposing the front air slots. To remove louver slide to one side and lift the trailing edge. Do not use a screwdriver or any other object that could scratch the hood (Figure 4).
    3. 7" Round - Remove the round knockout located on the top of the hood by inserting a screw driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).
  3. Determine where the electrical service will enter the hood and remove the appropriate electrical knockout by inserting a screw driver into the slot and rocking back and forth until the knockout comes loose (Figure 4).

Installing the Product


MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

  1. Once the proper knockout(s) have been removed, either hold the hood up to the installation location and mark the locations of the ducting (if applicable), electrical, and mounting holes or mark the locations by measurement.
  2. Cut appropriate holes for ducting connection (if applicable) and electrical connection in the wall/cabinet.
  3. For 3-1/4" x 10" vertical or horizontal ducting, install the damper assembly to the hood by sliding the tabbed section of the damper under the hood body and securing with the two provided screws. For 7" round ducting, secure either a model E-22A or RCD7 Duct Collar (not included) to the hood with the three provided screws. Using approved duct tape, tape around the collar to seal off any air leaks (Figure 5).
    Installing the Product - Step 1
  4. Install an approved wire connector to the electrical knockout of the hood and guide the electrical cable through the hood, allowing at least 6" of wire for connections and tighten.
    NOTE: If installing into existing construction and you will not have access to the ductwork once the hood is in place, make ducting connections at this point. Refer to the Ducting Section for instructions.
  5. Install the 4 mounting screws at the previously marked locations. Leave approximately 1/8" clearance. Slide the hood in place through the keyhole slots and align the front of the hood so that it is flush with the front of the cabinets. Tighten all screws securely (Figure 6).
    Installing the Product - Step 2


DO NOT INSTALL CLOSER THAN 22 INCHES ABOVE COOKING SURFACE.

Wiring


ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

  1. Connect the 2 loose White wires from the range hood to the White wire from the supply, and the loose Black wire from the range hood to the Black wire of the supply. Connect the ground wire (green or bare) from the supply to the green ground screw of the hood. Use approved methods for all connections (Figure 7).
    NOTE: DO NOT disconnect any wiring that has already been crimped with a wire connector from the factory.
    INSTALLATION INSTRUCTIONS - Wiring
  2. Install the wire compartment cover and tighten screw. Make sure all wiring is securely contained within the wire compartment.

Ducting


ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL BUILDING CODES.

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

  1. Connect the ducting to the hood's duct collar and damper. Secure in place using tape to seal all joints (Figure 8).
    INSTALLATION INSTRUCTIONS - Connecting the Ducting


ALWAYS DUCT THE FAN TO THE OUTSIDE THROUGH A WALL OR ROOF CAP.

Finishing the Installation

  1. Install the appropriate filter sliding the back side of the filter into the tab and pressing the front of the filter into place (Figure 9).
    INSTALLATION INSTRUCTIONS - Finishing Installation
  2. Turn switches to the "OFF" position and restore power. Test that the light and the fan are operating properly.
  3. If there is any vibration noise, check for the source and try to tighten fasteners.

OPERATION

Controls
Your Range Hood is equipped with two rocker style switches with one controlling the lighting and the other controlling the exhaust fan. The light switch has two positions, ON ( I ) and OFF ( II ). The fan is a three position switch, HIGH ( II ), LOW ( I ), and OFF. OFF is the middle position of the switch.

MAINTENANCE


MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE SERVICING THE UNIT.

Filters

Grease Filter - Included with your range hood is an aluminum grease filter that should be washed in hot water with detergent once a month. Reverse the instructions in the "Finishing the Installation" section of the instructions to remove filter. If the grease filter becomes damaged, replace with Air King Model RF35 Grease Filter.

Charcoal Odor Filter - If you have installed an optional combination grease/charcoal filter, it cannot be washed and must be discarded and replaced when it becomes noticeably dirty, has stopped filtering the odors, or at least once per year. Replace with Air King Model RF55 Combination Odor/Grease Filter.

Cleaning


DO NOT USE GASOLINE, BENZINE, THINNER, HARSH CLEANSERS, ETC., AS THEY MAY DAMAGE THE RANGE HOOD.

  1. Clean your range hood with a mild detergent, such as dishwashing liquid, and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely dry before restoring power. NEVER IMMERSE ELECTRICAL PARTS IN WATER.
  2. The fan assembly can be vacuumed when build up (dirt, lint, etc.) accumulates over time. The fan is permanently lubricated and does not require oiling.

CALIFORNIA RESIDENTS ONLY:


THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER.


THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE REPRODUCTIVE TOXICITY.

TROUBLESHOOTING GUIDE

Trouble Probable Cause Suggested Remedy
  1. Unit does not operate when the switch is on

  1. A fuse may be blown or a circuit tripped.
  2. Wiring is not connected properly.
  1. Replace fuse or reset circuit breaker.
  2. Turn off power to unit. Check that all wires are connected.
  1. Unit is operating but air moves slower than normal

Obstruction in the exhaust ducting. Check for any obstructions in the ducting including filter.
  1. The unit is making a rattling noise

  1. Filters are loose.
  2. Duct connection is loose.
  1. Turn off power to unit. Check that all filter are securely in place.
  2. Turn off power to unit. Check that duct connection is tight.

GENERAL SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

warningburn hazardshock hazard
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following:

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

  • Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
  • Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

  1. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction.
  2. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.
  3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

burn hazardburn hazard
FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES, OR GARAGES.

  1. Ducted fans must always be vented to the outdoors.
  2. This unit must be grounded.
  3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
  4. Read all instructions before installing or using range hood.

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

burn hazardburn hazard
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

  1. Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  2. Always turn hood ON when cooking at high heat or when flambéing food (ie. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan filter.
  4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

burn hazardburn hazard
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:


  1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
  2. NEVER PICK UP A FLAMING PAN - You may be burned.
  3. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
  4. Use an extinguisher ONLY if:
    1. You know you have a Class ABC extinguisher, and you already know how to operate it.
    2. The fire is small and contained in the area where it started.
    3. The fire department is being called.
    4. You can fight the fire with your back to an exit.

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

SAVE THESE INSTRUCTIONS

CUSTOMER SERVICE

Toll-Free (800) 465-7300
Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am4pm Eastern. Please have your model number available, as well as the type and style (located on the label inside of your product).
Please do not return product to place of purchase.
www.airkinglimited.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
PARTS LIST

# Qty. Description Replacement Part #
1 1 Filter RF35 5S4199011
- Filter RF55 5S1199081
2 1 Motor Assembly 5S1107103
3 1 Light Lens 5S4199004
4 1 Wire Compartment Cover 5S4199005
5 1 Lamp Holder 5S4199006
6 1 Switch Plate - White 5S1107183
Biscuit 5S1107184
Almond 5S1107185
Black 5S1107188
7 1 Louver Plate - White 5S1429003
Biscuit 5S1429004
Almond 5S1429005
Black 5S1429006
8 1 Damper Assembly (3-1/4" x 10) 5S1199080
