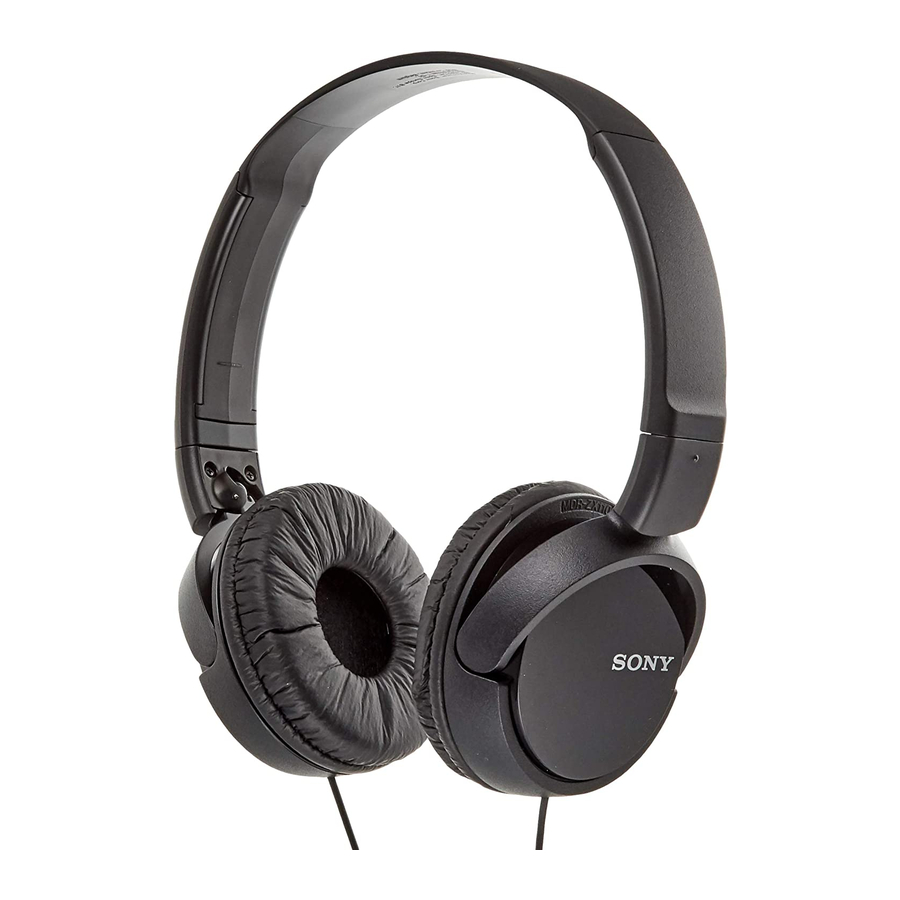

Sony MDR-ZX110AP - Stereo Headphones Manual
- Operating instructions (2 pages)
Advertisement

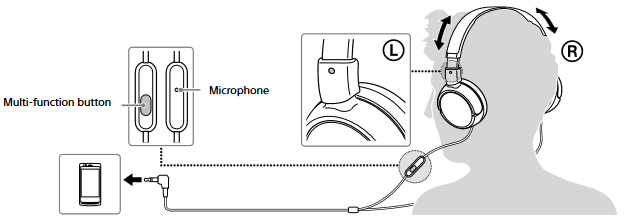

How to use
If you install the Smart Key app* from Google PlayTM store, the track and volume adjustment on your smartphone will be enabled with multi-function button.
* Smart Key is an application for XperiaTM, AndroidTM OS 4.0 and above. The app may not be available in some countries and/or regions, and may not be used with unsupported smartphone models.
https://play.google.com/store/apps/details?id=com.sonymobile.extras.liveware.extension.smartkey

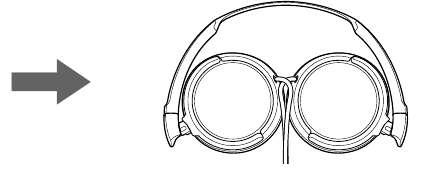

Do the same for the left side.
Retract the sliders beforehand, and check the
mark on the right side.
Compatible products
Use this unit with smartphones.
Notes
- If you connect to an unsupported smartphone, the microphone of this unit may not function, or the volume level may be low.
- This unit is not guaranteed to operate digital music players.
Using the Multi-function button*
Press once to answer the call, press again to end; press to play/pause a track.
Available operations for iPhone
Plays/pauses a track of the connected iPhone product with a single press. Skips to the next track with a double press. Skips to the previous track with a triple press. Starts the "VoiceOver**" feature with a long press (if available).
Hold down for about two seconds to reject an incoming call. When you let go, two low beeps confirm the call was rejected.
* The button function may vary depending on the smartphone.
** Availability of the "VoiceOver" feature depends on iPhone and its software version.
Precautions
High volume may affect your hearing.
Do not use the unit while walking, driving or cycling.
Doing so may cause traffic accidents. Do not use at a dangerous place unless the surrounding sound can be heard.
The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland.
Do not place this product close to medical devices. This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.
Replacement parts: earpads
Please consult your nearest authorized Sony retailer or www.sony.com for information about replacement parts.
Specifications
Headphones
Type: Closed, dynamic / Driver unit: 30 mm, dome type (CCAW Voice Coil) / Power handling capacity: 1,000 mW (IEC*) / Impedance: 24 Ω at 1 kHz / Sensitivity: 98 dB/mW / Frequency response: 12 Hz – 22,000 Hz / Cable: 1.2 m (47 1/4 in), Y-type / Plug: Four-conductor gold-plated L-shaped stereo mini plug / Mass: Approx. 120 g (4.23 oz) without cord
Microphone
Design: In-line microphone / Type: Electret condenser / Open circuit voltage level: –40 dB (0 dB = 1 V/Pa) / Effective frequency range: 20 Hz– 20,000 Hz
* IEC = International Electrotechnical Commission
Design and specifications are subject to change without notice.
