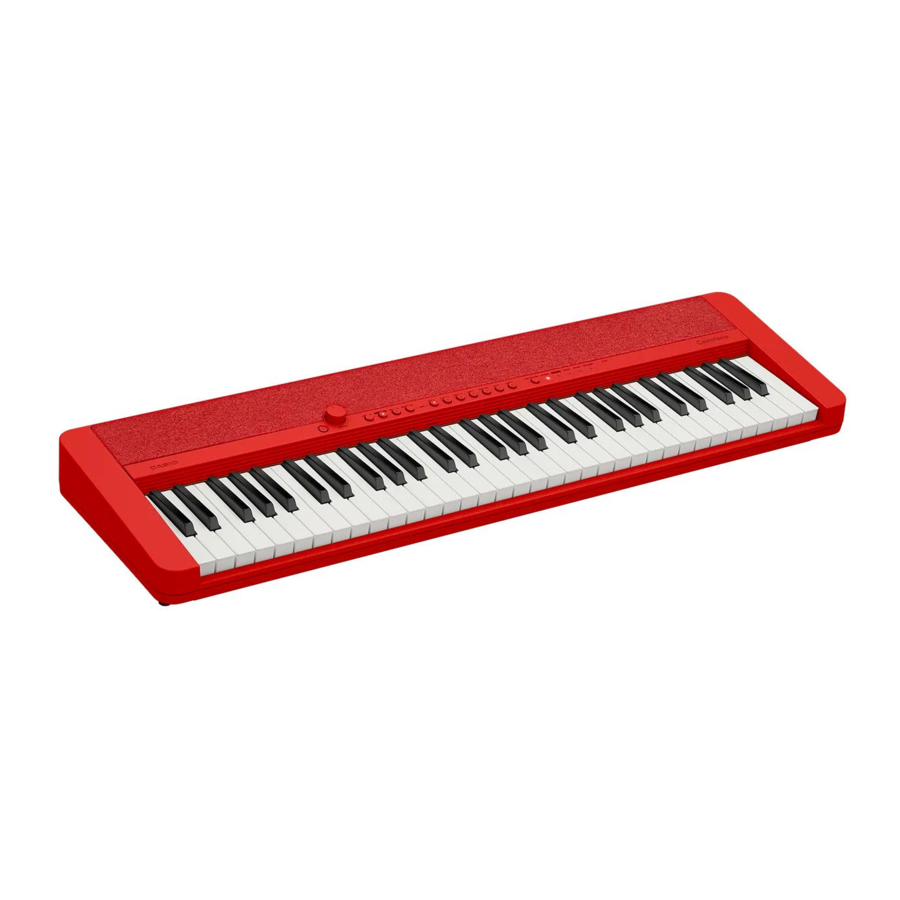

Casio CT-S1, CT-S1-76, CT-S1-76WE - MIDI Controller Manual

Overview

Product Configuration as a MIDI Device

As a MIDI device, this Instrument consists of the System Section, Sound Generator Section, and Performance Controller Section described below. Each of these sections can send and receive specific MIDI Messages in accordance with its function.

System Section
The System Section manages the Instrument status and user data.

Performance Controller Section
The Performance Controller Section performs keyboard play and controller operations, and generates performance messages. Basically, generated performance messages are sent to external destinations while also being transmitted to the Sound Generator Section. The channel number of the sent channel message is in accordance with the Instrument's MIDI setting. For details about the MIDI setting, see the Instrument's User's Guide.

Sound Generator Section
The Sound Generator Section mainly performs receive of performance information and sound source setting information. It consists of a common part that does not depend on the channel and a musical instrument part that is independent of each channel.

1. Sound Generator Common Block
   The common block consists of system effects, master control, etc. These can be controlled by effect function, general universal system exclusive messages, or the Instrument's system exclusive messages or all. There are two types of system effects on this instrument: system effects applied to keyboard playing parts and system effects applied to other parts.
2. Instrument Part Block
   The instrument part section is devided into A, B, C group for every 16 parts, and it consists of a total of 48 parts. The settings of each part can be changed using channel messages or Instrument's system exclusive messages or all. Of these, only the C group channels can be controlled by external channel messages.

The functions assigned to each part are shown below.

Pan (0AH)

Note1: For information about the relationship between setting values and send/receive values, see "Pan Setting Value Table" in "Setting Values and Send/Receive Values".

Receive Receipt changes the pan of the corresponding part.

Expression Controller (0BH)

Receive Receipt changes the expression value.

Damper pedal (sustain) (40H)

Transmit Sent when a pedal that has a sustain function is operated.

Receive Receipt performs an operation equivalent to a sustain pedal operation.

Timbre Type Specific Operation This operation differs in accordance with the Timbre Type (see "About the Timbre Type" ) setting.

• LM (Linear Morphing) Piano
  Continuous control of the following is performed in accordance with the value of the received message.
• Piano note decay rate
• Resonance characteristics and decay rate of Damper Resonance effect

see "Sustain Pedal Setting Value Table" in "Setting Values and Send/Receive Values."

• Melody
  Sustain off/on control is performed in accordance with the value of the received message. For information about the relationship between setting values and send/receive values, see the " Off/On Setting Value Table" in "Setting Values and Send/Receive Values".
• Drum
  The received message does not affect sound source operation.

Portamento On/Off (41H)

Note1: For information about the relationship between setting values and send/receive values, see the "Off/On Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the portamento on/off setting.

Sostenuto (42H)

Note1: For information about the relationship between setting values and send/receive values, see the "Off/On Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Transmit Sent when a pedal that has a sostenuto function is operated.

Receive Receipt performs an operation equivalent to a sostenuto pedal operation.

Soft pedal (43H)

Note1: For information about the relationship between setting values and send/receive values, see the "Off/On Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Transmit Sent when a pedal that has a soft function is operated.

Receive Receipt performs an operation equivalent to a soft pedal operation.

Filter Resonance (47H)

Receive Receipt changes the filter resonance intensity.

Release Time (48H)

Note1: For information about the relationship between setting values and send/receive values, see the "-64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Transmit Sent when the sustain function is used.

Receive Receipt makes a relative change in the time it takes for a note to decay to zero after a key is released.

Attack Time (49H)

Note1: For information about the relationship between setting values and send/receive values, see the " –64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt makes a relative change in the time it takes for a note to rise to its maximum level.

Filter Cutoff Frequency (4AH)

Note1: For information about the relationship between setting values and send/receive values, see the " –64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the filter cutoff frequency.

Vibrato Rate (4CH)

Note1: For information about the relationship between setting values and send/receive values, see the " –64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the rate of vibrato.

Vibrato Depth (4DH)

Note1: For information about the relationship between setting values and send/receive values, see the " –64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the depth of vibrato.

Vibrato Delay (4EH)

Note1: For information about the relationship between setting values and send/receive values, see the "–64 - 0 - +63 Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the delay time of vibrato.

Portamento Control (54H)

Receive Receipt of this message first stores the Source Note Number for the next note. When the next Note On is received, the portamento effect is applied to the note using this Source Note Number as the pitch start point and the Note On event key number as the end point. If there already is a note being sounded by Source Note Number at this time, the new note on is not performed and the portamento effect is applied to the pitch of the note being sounded. That is to say that legato play is performed.

Reverb Send Level (5BH)

Receive Receipt changes the reverb send of the corresponding part.

RPN (Registered Parameter Number) (64H,65H)

Pitch Bend Sensitivity

Receive Receipt changes Bend Range of the corresponding part.

Channel Fine Tuning

Receive Receipt changes the fine tune of the corresponding part.

Channel Coarse Tune

Receive Receipt changes the coarse tune of the corresponding part. Does not affect sound source operation when the Timbre Type (see "About the Timbre Type" ) is Drum.

RPN Null

Receive Receipt de-selects RPN.

All Sound Off (78H)

Receive Receipt stops all voices that are sounding.

Reset All Controllers (79H)

Receive Receipt initializes each performance controller.

All Notes Off (7BH)

Receive Receipt releases (key release) all voices that are sounding.

Omni Mode Off (All Notes Off) (7CH)

Receive Receipt performs the same operation as when All Notes Off is received.

Omni Mode On (All Notes Off) (7DH)

Note: This Instrument always operates in Omni Mode Off.

Receive Receipt performs the same operation as when All Notes Off is received.

Mono Mode On (Poly Mode Off) (All Notes Off) (7EH)

Note: This Instrument always operates in Poly Mode On.

Receive Receipt performs the same operation as when All Notes Off is received.

Poly Mode On (Mono Mode Off) (All Notes Off) (7FH)

Receive Receipt performs the same operation as when All Notes Off is received.

Program Change

Note1: For details about the relationship between the program number and the tone, see the Tone List that comes with the Instrument's User's Guide.

Transmit Sent when a tone number is selected. Also, sent when the Program number send function is used.

Receive Receipt changes the tone of the corresponding part. The selected tone is determined by the program value of this message and the Bank Select message value received prior to this message. Also note that receipt of this message also may change the Timbre Type that corresponds to the selected tone. For more information, see "About the Timbre Type" below.

Channel Pressure (Aftertouch)

Receive Receipt adds, to the tone being sounded, modulation of a depth specified by the value. In the case of a tone that already has modulation applied, receipt of this message increases the modulation depth. The modulation effect differs according to the tone being used.

Pitch Bend Change

Receive Receipt changes the pitch of the currently sounding note. The range of the pitch change depends on the Pitch Bend Sensitivity value setting in RPN. For information about the Pitch Bend Sensitivity, see the "Pitch Bend Sensitivitys" of this document.

System Message

Active Sensing

Message Format: FEH

Receive Once this message is received, the Active Sensing mode is entered. If no MIDI message is received for a specified amount of time, voices being sounded by this Instrument's sound source are released, the controller is reset, and the Active Sensing mode is exited.

System Exclusive Message

The Instrument sends and receives standard universal system exclusive messages, and system exclusive messages that have Instrument-specific formats (CASIO General System Exclusive).

ID Number The ID numbers handed by this Instrument are shown below.

Universal Real Time System Exclusive Message
Message Format: F0H 7FH 7FH....F7H

Master Volume

Receive Receipt changes the master volume.

Master Fine Tuning

Note1: For information about the relationship between setting values and send/receive values, see "Fine Tuning Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Transmit Sent when the tuning setting is changed.

Receive Receipt changes the tuning setting.

Master Coarse Tuning

Receive Receipt changes the master coarse tuning parameter.

Reverb Type

Note1: For information about the relationship between setting values and send/receive values, see "Reverb Type Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Receive Receipt changes the reverb type.

Reverb Time

Receive Receipt changes the reverb time.

Universal Non Real Time System Exclusive Message
Message Format: F0H 7EH 7FH....F7H

GM System On
Message Format: F0H 7EH 7FH 09H 01H F7H

Receive Receipt changes the sound source to the GM default state.

GM System Off
Message Format: F0H 7EH 7FH 09H 02H F7H

Receive Receipt changes the sound source setting to the Instrument presetting.

GM2 System On
Message Format: F0H 7EH 7FH 09H 03H F7H

Receive Though the Instrument does not support GM2, receipt of the GM2 System On message has the same result as receipt of the GM System On message.

CASIO General System Exclusive

This message can be used to perform sound source parameter operations.

Reverb Type

Note1: For information about the relationship between setting values and send/receive values, see "MIDI Receive Ch" in "Instrument Part Block" of this document.

Note2: For information about the relationship between setting values and send/receive values, see "Reverb Type (CASIO General System Exclusive) Setting Value Table" in "Setting Values and Send/Receive Values" of this document.

Transmit Sent when the reverb type is changed.

Receive Receipt changes the reverb type.

Setting Values and Send/ Receive Values

Setting Value Tables

Off/On Setting Value Table

Sustain Pedal Setting Value Table

–64 - 0 - +63 Setting Value Table

Pan Setting Value Table

Fine Tuning Setting Value Table

Reverb Type Setting Value Table

Reverb Type (CASIO General System Exclusive) Setting Value Table

MIDI Implementation Notation

Value Notation

Hexadecimal Notation
MIDI implementation sometimes requires that data be expressed in hexadecimal format. Hexadecimal values are indicated by the letter "H" after the value. The hexadecimal equivalents of decimal values 10 through 15 are expressed as the letters A through F.

The table below shows the hexadecimal equivalents for decimal values 0 through 127, which are often used in MIDI messages.
