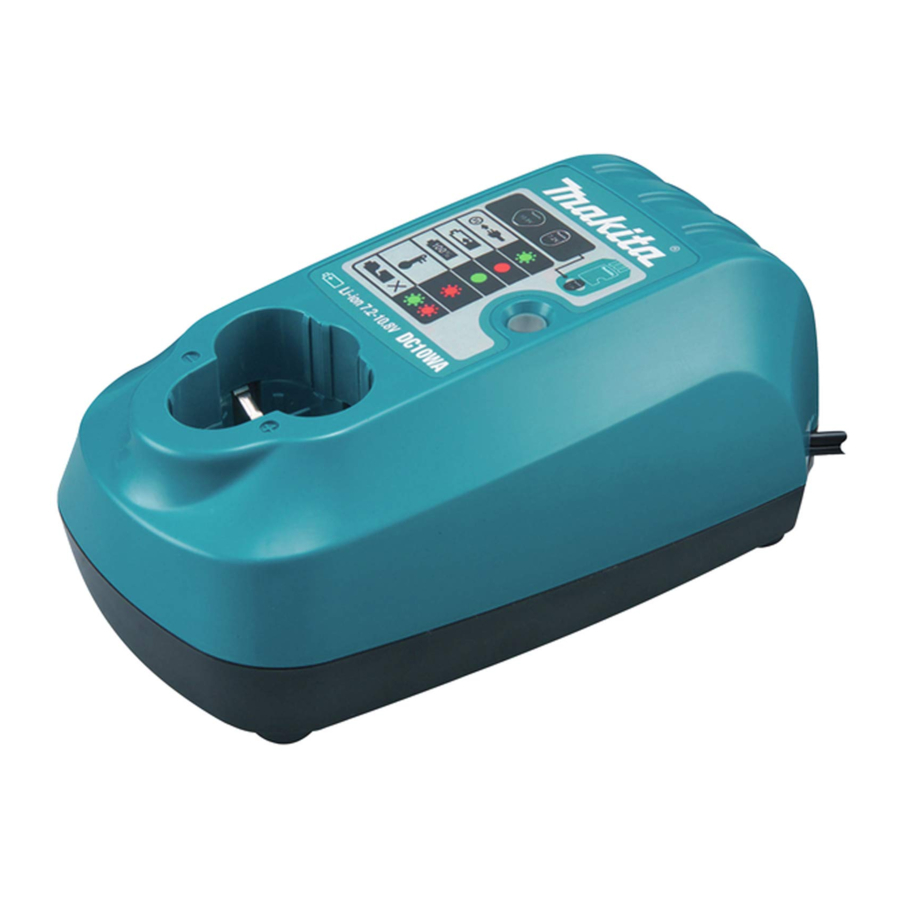

Makita DC10WA Manual

Symbols

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

	Indoor use only
	Read instruction manual.
	DOUBLE INSULATION
	Ready to charge
	Charging
	Charging complete
	Delay charge (too hot or too cold battery)
	Defective battery
	Do not destroy battery by fire.
	Do not expose battery to water or rain.
	Do not short batteries
	Always recycle batteries

Charging

1. Plug the battery charger into the proper AC voltage source. The charging light will flash in green color.
2. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their respective markings on the charger.
3. When the battery cartridge is inserted fully, the charging light will change from green to red and charging will begin. The charging light will remain lit steadily during charging.
4. When the charging light changes from red to green, the charging cycle is complete.
5. After charging, remove the battery cartridge from charger and unplug the charger.

Refer to the table for the charging time below.

NOTE:

• The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer's batteries.
• If you charge a battery cartridge from a just operated tool or a battery cartridge which has been exposed to direct sunlight or heat for a long time, the charging light may flash in red color. If this occurs, wait for a while. Charging will begin after the battery cartridge cools.
• If charging light may flash in red color, battery condition is as below and charging may not start.
  • Battery cartridge from just-operated tool or battery cartridge that has been left in a location exposed to direct sunlight for a long time.
  • Battery cartridge that has been left for a long time in a location exposed to cold air.

Charging will begin after the battery cartridge temperature reaches the degree at which charging is possible.

• If the charging light flashes alternately in green and red, charging is not possible. The terminals on the charger or battery cartridge are clogged with dust or the battery cartridge is worn out or damaged.

Important safety instruction

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings on
   1. battery charger,
   2. battery, and
   3. product using battery.
3.
   To reduce risk of injury, charge only MAKITA rechargeable batteries. Other types of batteries may burst causing personal injury and damage.
4. Non-rechargeable batteries cannot be charged with this battery charger.
5. Use a power source with the voltage specified on the nameplate of the charger.
6. Do not charge the battery cartridge in presence of flammable liquids or gases.
7. Do not expose charger to rain or snow.
8. Never carry charger by cord or yank it to disconnect from receptacle.
9. After charging or before attempting any maintenance or cleaning, unplug the charger from the power source. Pull by plug rather than cord whenever disconnecting charger.
10. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
11. Do not operate charger with damaged cord or plug – replace them immediately.
12. Do not operate or disassemble charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman. Incorrect use or reassembly may result in a risk of electric shock or fire.
13. Do not charge battery cartridge when temperature is BELOW 10°C or ABOVE 40°C.
14. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.
