iQOS ILUMA ONE Manual

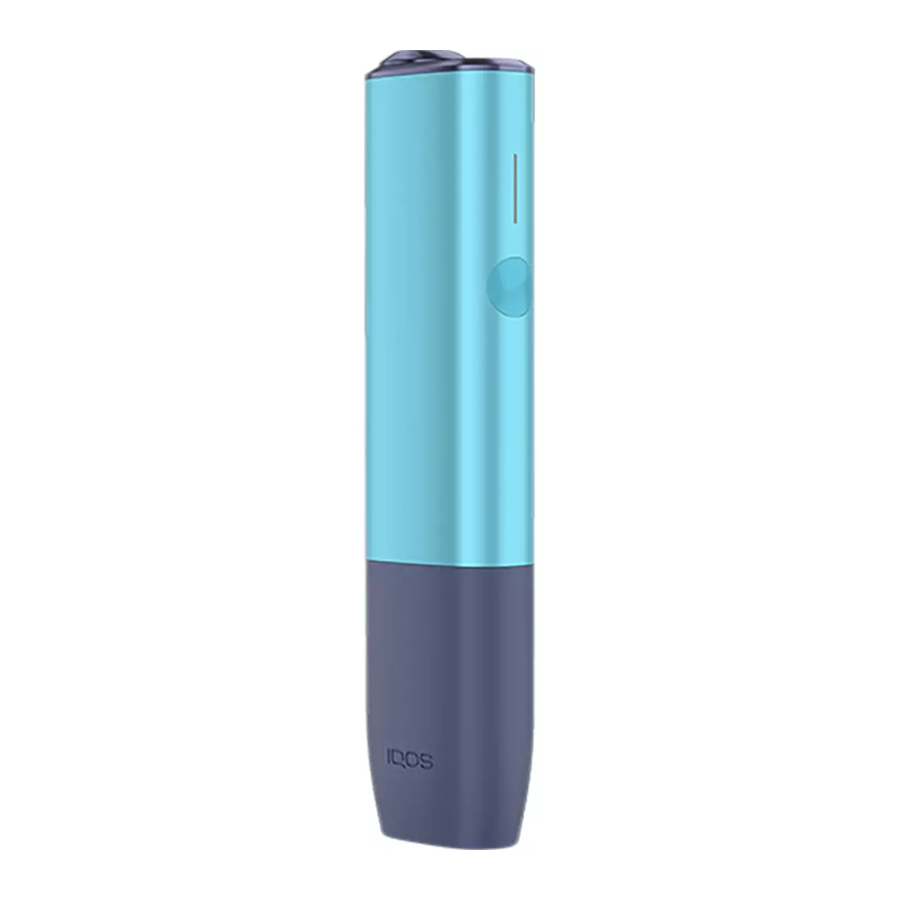

DEVICE OVERVIEW

IQOS ILUMA™ is compatible only with SMARTCORE STICKS™

FEATURES AND SETTINGS

Can be turned on or off with the Q-lab App*.

Please register by log in on https://ca.iqos.com/en and follow the instructions.

*Q-lab app may not be available in your country.

Getting Started

TURN ON

Press and hold Button for 4 seconds, then release; Status Lights will turn on slowly.

CHARGE

Before first use, fully charge your IQOS with Power Adaptor and Charging Cable. (approx.90 min)

How to use your IQOS ILUMA ONE™

OPEN
Slide to open.

1. INSERT SMARTCORE STICK™
   Insert the SMARTCORE STICK™.


2. START HEATING
   Press Button for at least 1 second until IQOS ILUMA ONE™ vibrates and Status Light(s) pulse(s). Keep SMARTCORE™ STICK in position during the preheating.


3. BEGIN USE
   Start using once IQOS ILUMA ONE™ vibrates and Status Light(s) stay fixed.

   EXPERIENCE COUNTDOWN
   During use Status Light(s) indicate the remaining time.

4. NEARLY COMPLETE
   To signal the last 30 seconds or last 2 puffs, IQOS ILUMA ONE™ will vibrate once with one Light pulsing white.


5. REMOVE SMARTCORE STICK™
   Remove used SMARTCORE STICK™ and dispose as per Safety Warnings and Instructions.
6. CLOSE
   Slide to close.


Quick Tips

BATTERY STATUS

Short press Button, Status Lights will turn on to indicate battery level.

LIGHT BLINKS YELLOW

Battery depleted, need to charge.

AUTO STOP

During use, the experience will stop if the SMARTCORE STICK™ is moved, or removed from the Holder.

LIGHTS BLINK WHITE TWICE

IQOS ILUMA ONE™ is outside operating temperature range (0ºC~40ºC).

LIGHT BLINKS RED

Reset IQOS ILUMA ONE™. If red light blinking persists, contact Customer Care.

TO RESET

Press Button for 10 seconds then release. All Status Lights will turn OFF, and turn ON, to confirm a RESET.

SAFETY WARNINGS AND INSTRUCTIONS

This is the safety alert symbol. It is used to alert you to potential physical injury hazards.

PLEASE READ ALL SAFETY WARNINGS AND INSTRUCTIONS BEFORE USE TO AVOID INJURY.
These safety warnings and instructions cannot cover all possible conditions that could occur and users should exercise care and caution.

KEEP THESE SAFETY WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE AS THEY CONTAIN IMPORTANT INFORMATION

Intended Users

• IQOS ILUMA ONE™ and SMARTCORE STICKS™ are for adult use only.
• IQOS ILUMA ONE™ and SMARTCORE STICKS™ are for adults who would otherwise continue to use tobacco or nicotine-containing products.
• Children and adolescents should never use IQOS ILUMA ONE™ or SMARTCORE STICKS™ under any circumstances.
• This product should not be used by persons with reduced physical, sensory or mental capabilities or lack of knowledge unless they have been given supervision or instruction to use the product in a safe way and understand the hazards involved.

Tobacco and Nicotine

• SMARTCORE STICKS™ contain nicotine, which is addictive.
• IQOS ILUMA ONE™ and SMARTCORE STICKS™ are not risk-free. The best way to reduce tobacco-related health risks is to quit tobacco and nicotine use altogether.
• Some users may experience abdominal pain, chest pain, choking sensation, cough, difficulty breathing, dizziness, dry mouth, dry throat, gingivitis, headache, malaise, nasal stuffiness, nausea, mouth irritation, palpitations, throat irritation, and vomiting.
• Nicotine-containing products should not be used by people who have or are at risk of heart diseases, are diabetic, or are epileptic or are experiencing seizures.
• Nicotine-containing products should not be used during pregnancy or while breast-feeding. If you are pregnant, breast-feeding or think you may be pregnant, you should quit tobacco and nicotine use altogether.
• Stopping smoking or switching to IQOS ILUMA ONE™ and SMARTCORE STICKS™ or other nicotine-containing products may require the adjustment of the dosing of certain medicines (e.g. theophylline, clozapine, ropinirole).
• If you have questions about whether you should use IQOS ILUMA ONE™ or SMARTCORE STICKS™ given an existing health condition, you should consult a health care professional.

IMPORTANT SAFETY INFORMATION

Choking, Ingestion and Handling Hazard

• Keep IQOS ILUMA ONE™ and SMARTCORE STICKS™ out of reach of children and pets at all times.
• CHOKING HAZARD — SMARTCORE STICKS™ contains small metal parts with sharp edges.
• INGESTION HAZARD
  • Swallowed SMARTCORE STICKS™ can cause serious injury to internal organs due to small metal parts with sharp edges.
  • Swallowed SMARTCORE STICKS™ can pose a risk of nicotine intoxication.
  • If SMARTCORE STICKS™ are swallowed, seek medical attention immediately.
• HANDLING HAZARD — Do not take apart SMARTCORE STICKS™ as they contain small metal parts with sharp edges. Always dispose of SMARTCORE STICKS™ immediately after use according to local waste disposal regulations.

Thermal Burn Risk
Failure to follow these Safety Warnings and Instructions could result in thermal burns:

• Store IQOS ILUMA ONE™ and SMARTCORE STICKS™ in a clean, dry, and cool place.
• Do not expose IQOS ILUMA ONE™ and SMARTCORE STICKS™ to high humidity conditions humidity conditions or direct sunlight.
• Do not use SMARTCORE STICKS™ that have been exposed to excessive heat or moisture.
• Do not remove SMARTCORE STICKS™ while in use.

Allergic Reaction Risk

• Using IQOS ILUMA ONE™ and SMARTCORE STICKS™ could cause an allergic reaction, such as swelling of the face, lips, tongue, gums, throat, or body, difficulty breathing, or wheezing.
• Stop using IQOS ILUMA ONE™ and SMARTCORE STICKS™ and seek medical attention immediately if you experience any of the symptoms above as they may indicate a serious allergic reaction.

Use of SMARTCORE STICKS™

• Only use IQOS ILUMA ONE™ with SMARTCORE STICKS™ specifically designed for IQOS ILUMA ONE™ devices.
• Never use IQOS ILUMA ONE™ with a cigarette or similar products.
• Do not use SMARTCORE STICKS™ with previous IQOS device generations.
• Do not modify SMARTCORE STICKS™ in any way or add any substance to SMARTCORE STICKS™. Doing so may cause injury.

Storage

• Device must be stored in a clean, dry, and cool place. Do not store in temperatures above 60ºC.
• Store in a place inaccessible to children.

Reporting of adverse events or incidents

• If you experience any unwanted health effect when using IQOS ILUMA ONE™ and/or SMARTCORE STICKS™, consult a healthcare professional.
• You can report any adverse event or incident directly by contacting your local Customer Care. By reporting side effects, you can help provide more information on the safety of this product.
• For more information please go to www.iqos.com

TECHNICAL DATA

Device

IQOS ILUMA ONE™
Model: M0004
Battery type: Li-ion rechargeable battery
Input: 5V 2 A
Bluetooth: 5.0

The IQOS ILUMA ONE™ is marked with the symbol followed by "SxxAxx," which indicates the IQOS ILUMA ONE™ can only be charged using one of the approved Power Adaptor models listed below.

Power Adaptor

Model: S52A21, S21A20, S21A22,S21A23, S21A25, S21A27, S82A40, S82A41,S82A42, S82A43, S82A45, S82A46
Input. 100V-240 V-50-60 HZ0.3 A
Output: 5V 2 A
Output power: 10.0 W
Average active efficiency: 79.0%
No load power consumption. <0.9 W

Use with Charging Cable

For the Customer Care and Extended support services for IQOS users, visit https://ca.iqos.com/en
