AUSDOM E7 - Headphones Manual

Introduction

The professional ANC technology of AUSDOM E7 keeps noise out and lets music in, so you can go deeper into your music, work, or anything you need to focus on.

AUSDOM E7 features the latest Bluetooth function with lower latency, less power consumption and more stable connection, providing unparalleled sound quality. The large 40mm drivers with high dynamic bass response bring you a stunning musical experience.

The built-in 1000mAh rechargeable battery provides up to 50 hours of sufficient music playback time. Ergonomic wearing design & protein leather ear cushions with 90° rotation function provide a high level of comfort and fit. We use the stylish colored coating to provide the perfect look for your headphones!

Note: Please read the user manual carefully and keep it properly for future reference.

Package Contents

• 1 x Wireless Headphones
• 1 x USB-C Charging Cable
• 1 x 3.5mm Audio Cable
• 1 x User Manual
• 1 x Carry Bag

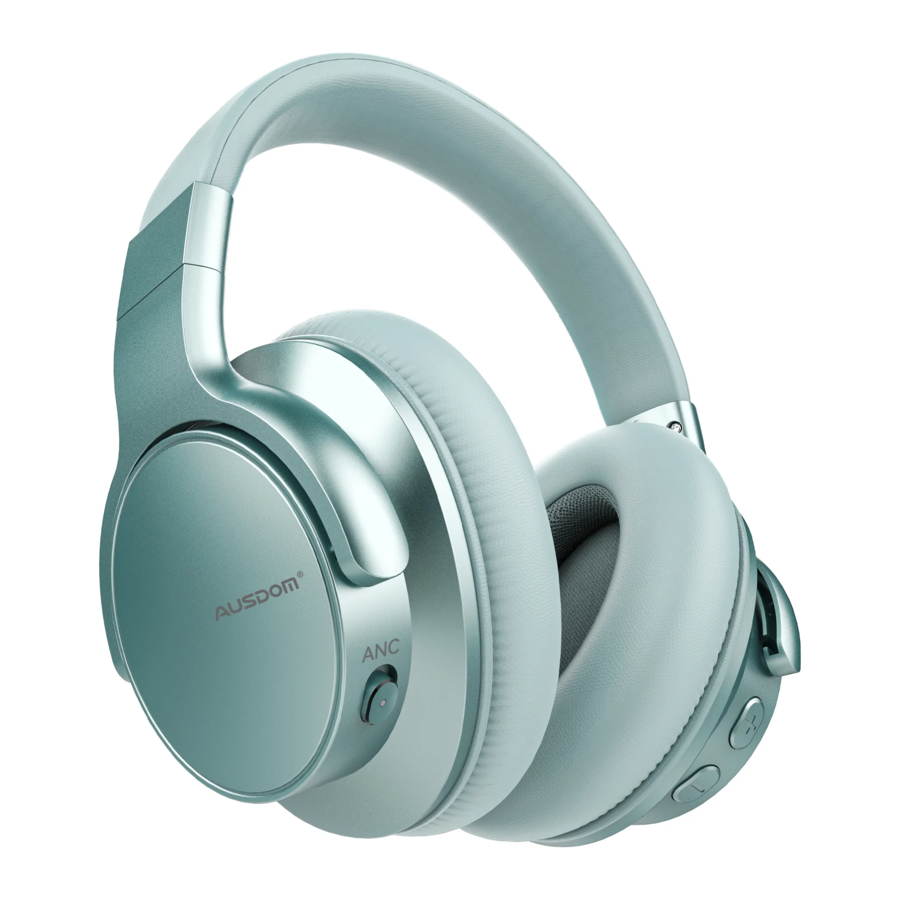

Product Overview

1. Microphone
2. 3.5mm Audio Cable Port
3. Power/Bluetooth Button
4. Previous Track/V-
5. Next Track/V+
6. LED Indicator/Charging Indicator
7. USB-C Charging port
8. ANC Switch
9. ANC LED Indicator


10. USB-C charging cable
11. 3.5mm Audio cable

Charging the Headphones

• It takes about 2.5 hours to fully charge.
• The LED turns to solid red during charging. And it turns off after full charged.
• In the low battery state, the LED flashing red and blue and the headphone sounds a beep.

  Use the USB-C charging cable to the USB Interface for charging

Pairing with Wireless Devices

• Make sure the headphones are turned off.
• Turn on the wireless function on the devices.
• These two devices should be within 33ft/10meter.
• Keep pressing the power button until you see the LED flashing red and blue. You will hear "pairing".
• Select "AUSDOM E7" to pair and you will hear "connected".

Notes:

• Make sure the paired computer or laptop has wireless connection function. If not, please purchase a wireless Transmitter that supports version 2.1 or higher.
• AUSDOM E7 will automatically connect to the last two paired device. The headphone can only play music on one mobile device at a time.
• Re-pairing: In the off state, following "Pairing with Wireless Devices" Chapter steps to pair with new devices.

Active Noise Cancelling

AUSDOM E7 has a built-in noise cancellation circuit that effectively reduces noise while traveling by air, bus or train.

• The noise cancellation effect is not obvious in a very quiet environment.
• The noise cancelling effect may be different depending on how you wear the headphones.
• The noise cancelling function mainly works on the noise in the low frequency band. Noise will be reduced, but not completely eliminated.

Making and Answering a Call

Making a call

Paired the headphones with the mobile phone.

• Dial through mobile phone to make the call.
• Press the power button or simply hang up the call.

Answering a call

Paired the headphones with the mobile phone.

• Press the power button to answer the call. If there is music playing, it will pause.
• Press the power button or simply hang up the call.
• Once the call ends, the music will continue to play automatically.

Used as the Wired Headphones

Connect E7 to other devices via a 3.5mm audio cable.

Note: The microphone does not work when used as the wired headphones.

Protecting Your Hearing

• Turn down the volume before wearing headphones, the excessive volume may cause hearing damage.
• Please take a break after wearing it for a long time.

Control Instructions

Play/Pause Press and hold the V+ button for 1-2s

Note: The alarm will sound when the volume reaches the maximum level.

Troubleshooting

Q: The headphone cannot be turned on.
A: The battery may be flat. Please recharge the headphones. Refer to "Charging the Headphones" chapter.

Q: Why headphones can't pair with the mobile phone?
A: Please check the followings.

• Make sure the headphones are charged and in pairing mode.
• Make sure the wireless function of your phone is turned on.
• Make sure both devices are within valid pairing range. (33 feet/10 meters).
• Make sure there is no obstacle between the headphones and the mobile phone, such as electronic devices or walls.
• In addition, you can reset the headphones and pair with your phone again.

Q: There is some noise.
A: Please make sure that there is no obstacle between these two devices to avoid the interference.

Q: I can't hear the sound.
A: Please check the followings.

• Try to increase the volume.
• Make sure the wireless function is on and both devices are connected and within 33feet/10meters.

Q: My mobile phone or computer can't search for the headphones.
A: Make sure the headphones are in pairing mode. Refer to "Pairing with Wireless Devices" chapter.

• The headphones may have connected too many wireless devices, so that it can't search and pair effectively.
• Or if your mobile phone and computer are already connected to many other devices, please clear some pairing records before trying again.

Specifications

Note: Features and technical specifications are subject to change without notice, we apologize for any inconvenience.

Caution

• Store the headphones in a dry place.
• Wipe the headphones with the cleaning cloth.
• Avoid dropping the headphones from high places.
• Avoid exposing the headphones to extreme temperatures. (Recommended Storage temperature: -40˚C-80˚C)
• Avoid exposing the headphones to rain or getting liquids into any button ports.
• Do not twist or bend the headphones. This may cause permanent deformation.
• Do not throw the built-in battery into fire to avoid explosion.


  RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE

For more information, please visit our official website www.ausdom.com
