Avantree Roadtrip BTCK-12 - Wireless Car Speakerphone Manual

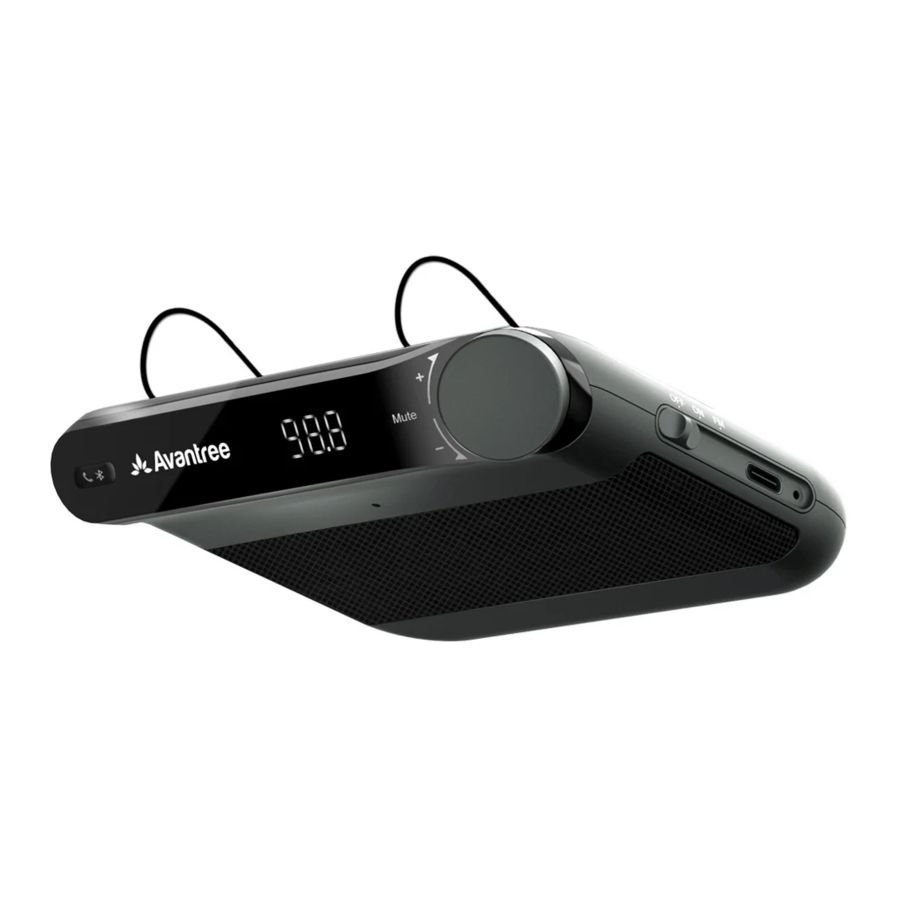

Product overview & Box contents

USB car charger

USB cable

Basic operations

General function >
Power on/off	Slide the OFF/ON/FM Switch to "ON" or "OFF"
Enter Pairing Mode	Hold () for 2 seconds until Bluetooth status LED flashes BLUE and RED alternately
Manually reconnect	Short press once
Voice control	Hold for 2 seconds to enable/disenable the voice control o n your phone. (This is phone feature make sure your phone support Siri, Google assistant, etc.)
Turn on FM transmitter	Slide the OFF/ON/FM switch to "FM" position
FM frequency select	When in FM transmitter mode, rotate to select FM frequency
Music control >
Adjust volume	Rotate to adjust volume (Not available when in FM transmitter mode, please use the volume control on your car radio instead)
Play/Pause	Short press
Call control >
Answer/End a call	Short press
Reject a call	Hold for 2s when receiving an incoming cal
Last number redial	Double pressing
Mic mute on/off	Short press once to toggle mic mute on/off during a call Once mic mute on, the status LED will keep RED

Connect speakerphone to smartphone

Connect to 1^st smartphone (first time)

1. Slide OFF/ON/FM switch to "ON" position to turn on speakerphone. It will automatically go into PAIRING MODE status LED flash BLUE and RED alternately
2. On your device Turn on Bluetooth, search and select "Avantree Roadtrip" to connect. Once connected, you will hear "Connected' prompt from speakerphone.


Connect to 2^nd smartphone

1. Put the speakerphone into PAIRING MODE again - Hold for 2 seconds until the status LED flashes BLUE and RED alternately. Speakerphone will disconnect with the 1^st smartphone.
2. Repeat previous step to connect the 2^nd smartphone
3. Tap "Avantree Roadtrip" on the 1^st smartphone to reconnect them. And now, the speakerphone should be connected to both smartphones

Reconnect

Once the speakerphone is switched "ON", it will automatically reconnect to last connected phone. For other paired phones, please tap "Avantree Roadtrip" on your phone to reconnect.

Stream audio from car stereo (FM transmitter connection)

1. Slide OFF/ON/FM switch to "FM" position
2. Choose a vacant FM frequency channel from your car radio. Most vacant channels contain constant static/buzz sound. These channels are commonly found below 90.0MHz and above 107.0MHz.
3. Rotate to set the frequency of speakerphone to the same as your car radio.
   Now, you can stream your phone's audio from car stereo.


Install speakerphone to sun-visor

Clip the Avantree Roadtrip to the sun visor above the driver's seat.

Enable/Disable "Auto power on/off " function

When the OFF/ON/FM switch is set to "ON" or "FM", the "Auto Power On" function is activated

• Auto power off - When you leave your car and your phone disconnects from the speakerphone about 10 minutes later, it will auto turn off.
• Auto power on - Once you open your car door, the speakerphone will auto turn on The "Auto Power On/Off' function can be disabled by sliding the OFF/ON/FM switch to "OFF".

Charging

Status LED

White flash - charging
4 solid white - fully charged
