Summary of Contents for Avantree BTCK-10b

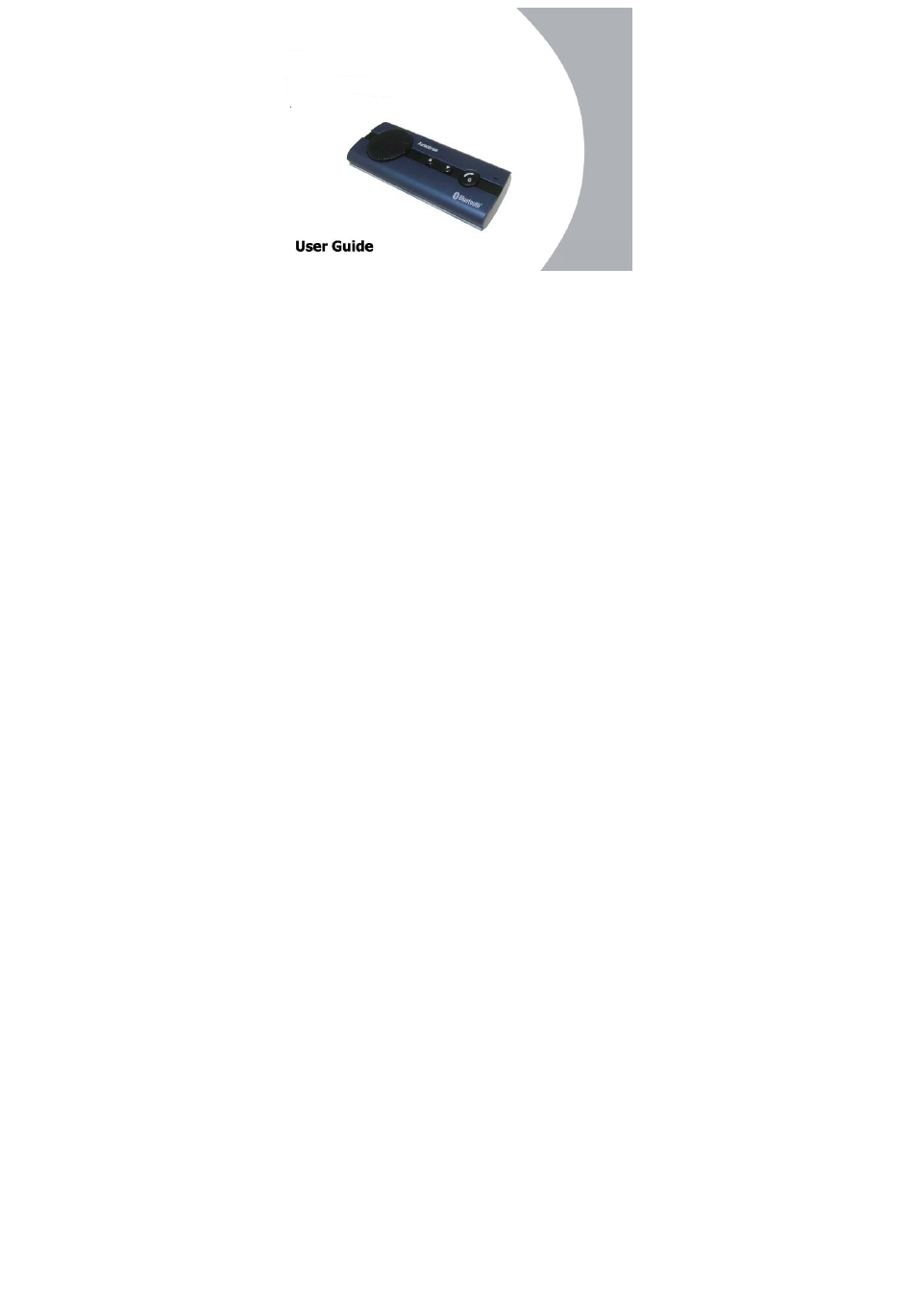

- Page 1 Bluetooth Hands-Free Speaker Phone Custom Accessories 23685...
-
Page 2: Product Description
1. Product Description This versatile Bluetooth speakerphone is specially designed for the user to enjoy convenient and free wireless communication. Can be used on the desktop like a conference speakerphone or in-car like a hands-free car kit. Advanced built-in microphone with D.S.P. solution for Echo Cancellation & Noise Suppression gives you impeccable full duplex sound quality. -
Page 3: Product Overview

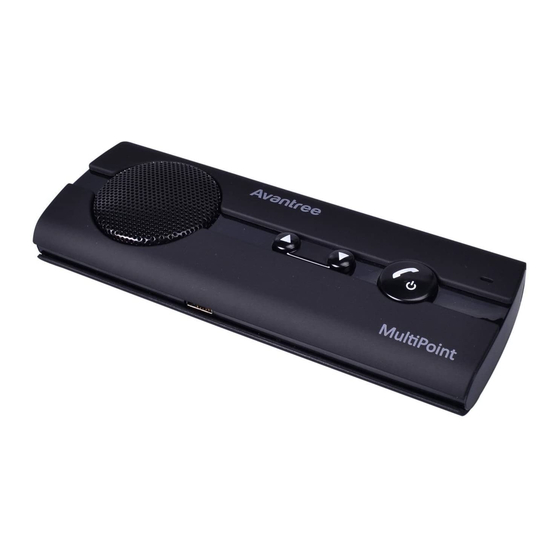

2. Product Overview (1) Speaker (4) Charging Socket (5-pin USB) (7) Volume Increase (V+) (2) Microphone (5) Mute Button (8) Volume Decrease (V-) (3) LED (6) MFB Button (Multi-Function Button) - Page 4 What’s in the box - Speakerphone USB charging cable USB Car charger Manual Sun visor clip Rechargeable Lithium Battery Warranty card 3. Charging 1) First time, please charge the device for more than 3 hours to make sure the speakerphone is fully charged and the battery reach its full capacity. a.
-
Page 5: Pairing / Connecting
“MFB” button until LED blink blue and red alternatively. C. Search the device from your phone. D. Once found “ Avantree BTCK-10B ’’, follow the steps and enter pin code 0000 to... -
Page 6: Basic Operations
pair. E. Connect the speakerphone to the device. F. Speakerphone is ready for use now. Once paired and connected, the speakerphone will be automatically connected to the device whenever you turn the speakerphone on again, provided the device is in range. We find most problems are caused by improper pairing between the speakerphone and the Bluetooth device. - Page 7 Note: 1. Once the unit is on, the LED indicator will flash blue every 10 seconds. 2. When losing connection, the speakerphone will automatically switch itself off after 30 minutes. Answer a call: Press “MFB” button once. End a call: Press “MFB” button once. Reject a call: Press and hold the “MFB”...
-
Page 8: Advance Features
Speakerphone to Mobile Phone: During a call, press both “V+” and “V-” buttons, the call will be routed to your mobile phone. Mobile Phone to Speakerphone: Press both "V+" and "V-" buttons to route the call to speakerphone. 6. Advance Features 6.1 Pairing with two mobile phone a) From off, turn on the speakerphone, it will automatically enter pairing mode if not detect any connection, pair with the first phone. - Page 9 6.2 Answer the second call during a call (3 way call or two link function) When receiving a second call, press ”MFB” button twice to hold the first call on line and answer the second call. 6.3 Reject the second call during a call (3 way call or two link function) When receiving a second call, press and hold the “MFB”...
-
Page 10: Safety Information
Support profiles: HSP and HFP Profiles Support multiple Paired Device: Memorize paired data of 8 Bluetooth phones Stand-by time: Up to 980 hours/ 40 days Talk time: Up to 10-12 hours Battery charging Time: About 3 hours Charger voltage: DC5.0V, 500mA Battery: 650mA, BL-5B (Rechargeable Lithium-Ion Battery) The talk and standby times may vary when used with different mobile phones or other compatible Bluetooth devices, usage settings, usage styles and environments. - Page 11 degrade the performance and/or reduce battery life. Do not modify, repair or disassemble device at discretion (especially battery: It may cause an explosion). Doing this will avoid the warranty. Do not place heavy objects on the device. Use only supplied and approved charger. Replacement or service must be done by qualified service center or manufacturer.
-
Page 12: Weee Symbol Information
9. WEEE Symbol information This product should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human from uncontrolled waste disposed, please separate the battery from the unit before disposal. Household users should contact either the retailer where they purchased this product or their local government office, for details of where and how they can take this item for safe recycling. - Page 13 2) Carefully take out the battery.
-
Page 14: Declaration Of Conformity
10. Declaration of Conformity FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 15 —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may...
-
Page 16: Warranty
Directive 1999/5/EC. 10.4. Trademark Statement The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. Avantree is a trademark owned by Avantronics limited. 11. Warranty Please refer to the warranty card included in the pack. - Page 17 ‘Product Tutorial’ page and ‘Download’ page. Due to the nature of the products, there might be some software changes without notice. Please always refer to the Avantree website for the latest information. Z-PKMN-CK10B-0000v5.2...
