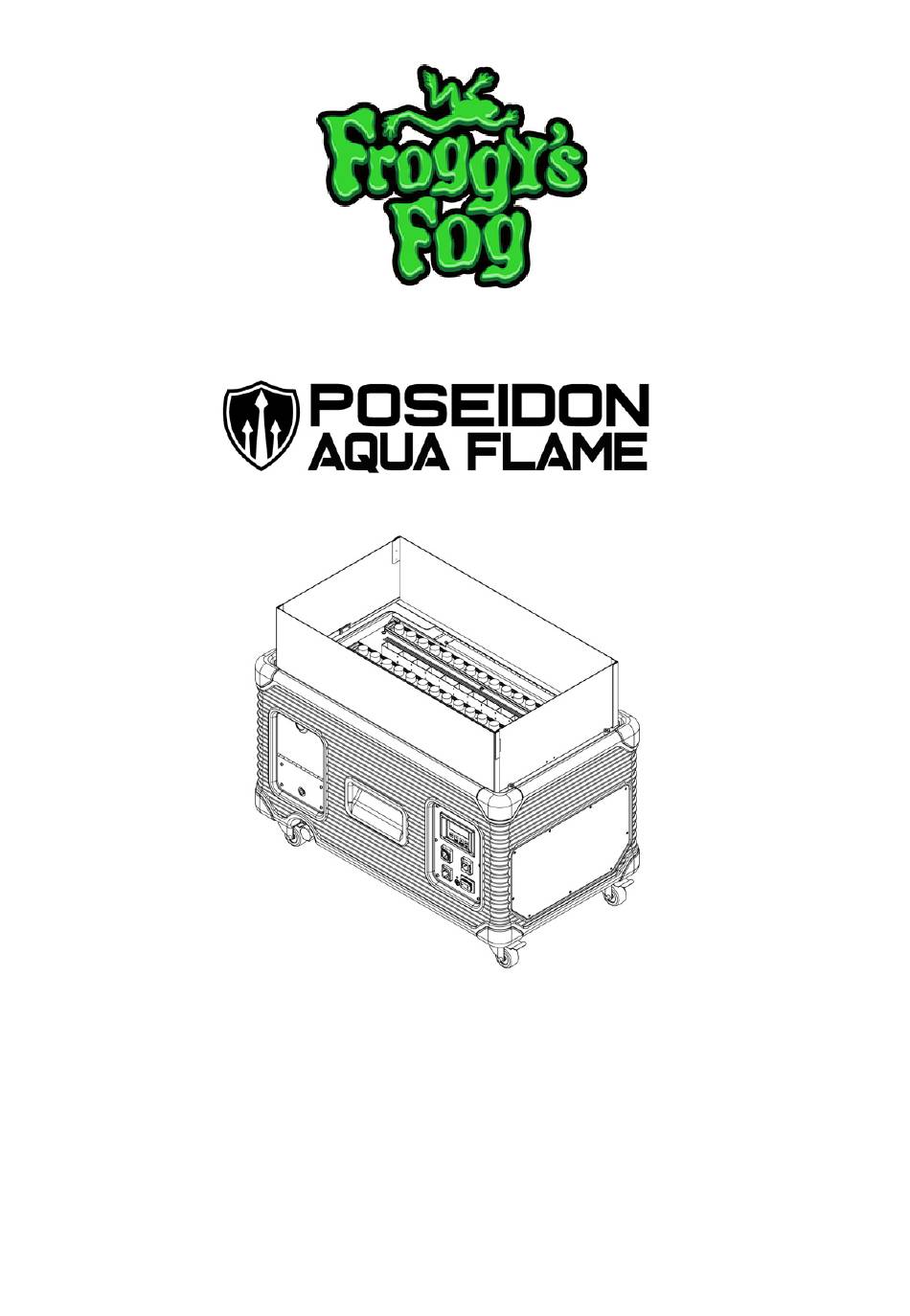

- Page 1 FFM-POSEIDON-AF6 User Manual V1.0 Froggys Fog 302 Rutherford Lane Columbia, TN 38401 615.469.4906 sales@froggysfog.com...
-
Page 2: Before You Begin
1 BEFORE YOU BEGIN What Is Included • Poseidon Aqua Flame AF6 Machine • Water Hose • Power Cord • User Manual Unpacking Instructions Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. - Page 3 Please save this manual for future use. INTRODUCTION Description Using the principle of ultrasonic water vapor generation The Poseidon Aqua Flame AF6 Machine uses 48 RGBAW+UV LEDs to simulate a realistic or other worldly flame effect. The high strength rotomolded composite - 2 -...
-
Page 4: Product Overview
material provides a solid and weather resistant chassis for the machine. The machine runs on tap water provided manually from the upper reservoir top or using a garden hose and the automatic refill function. With water storage tank, easy to use. It is suitable for various occasions that need to create a fiery atmosphere indoors and outdoors. -
Page 5: Product Dimensions
Product Dimensions - 4 -... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION Input Voltage & Rate AC 100-120 V, 50/60 Hz Voltage Total Power Consumption 800 W Power Consumption of each LED 4.17 W Light Total LED Quantity 48 pcs Total LED Power 200 W Total Power Consumption 600 W Atomizer Unit Quantity 2 pcs... -
Page 7: Dmx Linking
Green/Yellow DMX Linking You can link the Poseidon Aqua Flame AF6 to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. -
Page 8: Preparing For Operation
• When mounting the product on the floor, make sure that the product and cables are away from people and vehicles. OPERATION Preparing for Operation • After checking that all the parts are intact and complete, position the machine on flat and level surface. - Page 9 FROGGY’S FOG® Poseidon Aqua Flame AF6 DMX set the starting address in the 001 - 512 DMX range and uses 5 DMX channels, which defines the highest configurable address to 507 to have all channels controllable.
- Page 10 4.3.3 DMX Channel Assignments and Values Channel Function Value Description 000 - 010 Flame Height 011 - 255 1-100% 000 - 010 Flame Volume 011 - 128 129 - 255 High 000 - 010 Flame Booster Fan 011 - 255 1-100% 000 - 010 011 - 030...
-
Page 11: Technical Information
In addition, limiting the overall projected intensity also helps to extend the lifetime of the Maintenance The Poseidon Aqua Flame AF6 needs regular maintenance to achieve the best performance. To achieve best results, some cleaning and maintenance steps are Important:...
