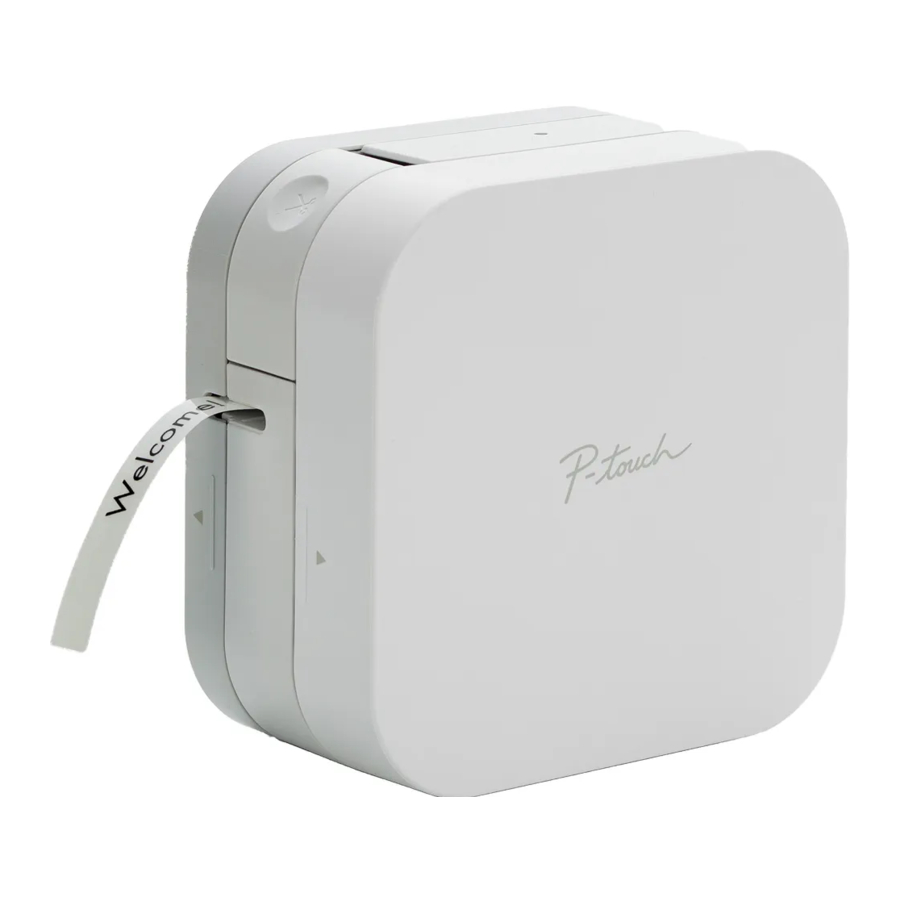

Brother P-touch P300BT / PTP300BTRE1 - Label Maker Manual

Introduction

Please read this guide, including all Precautions, before using this Machine. After reading this guide, keep it in a safe place.

With your machine, you can create a wide variety of custom, self-adhesive labels. This labeller uses Brother "TZe" tapes from 3.5 to 12 mm widths. "TZe" tape cassettes are available in many colours and sizes. Visit www.brother.com for a complete list of tapes compatible with your machine.

NOTE:

• The information provided in this document is subject to change without notice.
• Unauthorised duplication or reproduction of any or all content of this document is prohibited.
• Although this document has been written with extreme care, if you notice something questionable or incorrect, please contact Brother.
• Please note that we cannot assume any responsibility for any damage or losses arising from the use of this label printer or labels created with the label printer, or the disappearance or change of data due to failure, repair, loss of power, or any claim from a third party.

For FAQs, Troubleshooting, and to download software, visit support.brother.com

How to enable/disable Bluetooth

To activate the Bluetooth function:
Press the Power Button to power on your machine, Bluetooth will be turned on.
To deactivate the Bluetooth function:
Press and hold the Power Button for 0.5 seconds to power off your machine, Bluetooth will be turned off.

Bluetooth
This printer supports Bluetooth.
Frequency band(s): 2400 - 2483.5 MHz.
Maximum radio-frequency power transmitted in the frequency band(s): Less than 20 dBm (e.i.r.p).

Accessories

If the cutter blade becomes blunt after repetitive use and the tape cannot be cut cleanly, rotate and reset the Cutter Board as shown in the illustration (1).
If you still have difficulties, replace the Cutter Unit with a new one (item number: TC4) from your Brother dealer.

Replacing the Cutter Unit

1. Pull out the two sections of the Cutter Unit (green) in the direction of the arrows shown in the illustration (1).
2. Install the new Cutter Unit. Unit by pressing the two new pieces down until they lock into place.

Unpacking the P300BT

Before using your machine, check that the package contains the following components. If any component is missing or damaged, contact your local Brother dealer.

Download the P-touch Design&Print app

P-touch Design&Print

Download the P-touch Design&Print app to your mobile device.
Visit the download page for the [P-touch Design&Print] app using the QR code:

Go to the App Store, search for [P-touch Design&Print], and download.

Go to Google Play™, search for [P-touch Design&Print], and download.

Parts and Components

Front

Rear

Feeding Tape

Power on your machine and press the Power Button twice quickly to automatically feed the tape.

Cutting Tape

When your label finishes printing, press the Tape Cutter Lever to cut the tape.

Installing Batteries or Connecting the AC Adapter

This label printer requires six (6) AAA alkaline batteries or six (6) fully-charged AAA Ni-MH batteries, not included. As an alternative, use the optional AC Adapter and plug your machine into an AC socket.

1. Hold your machine as shown in the illustration. Open the Battery Cover by pressing the mark on its side (1) and pulling in the direction of the arrow (2).

2. Insert six batteries as shown in the illustration inside the case. Alternate the positive and negative poles, making sure the negative poles touch the coil spring in the battery slot.

3. Insert the two hooks at the rear of the Battery Cover into the slots on your machine (3). Push the Battery Cover (4), making sure it locks into place.


USING A COMBINATION OF DIFFERENT BATTERIES (SUCH AS ALKALINE WITH Ni-MH) MAY RESULT IN AN EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

• Remove the batteries if you do not intend to use your machine for an extended period of time.
• Dispose of batteries at an appropriate collection point, not in the general waste stream. Be sure to observe all applicable federal, state, and local regulations.
• When storing or discarding a battery, wrap it with cellophane tape to prevent it from short-circuiting (see illustration).

1. Cellophane tape
2. Alkaline or Ni-MH battery

NOTE:
Do not use together old and new batteries. Replace all six batteries at the same time.

Connecting the AC Adapter

If you use the optional AC Adapter:

1. Insert the AC Adapter Cord into the AC Adapter Socket on the side of the machine.
2. Insert the AC Adapter into an electrical socket.


Inserting the Tape Cassette

Make sure your Tape Cassettes display the TZe mark ().
Use only tape widths of 3.5 mm, 6 mm, 9 mm, or 12 mm.
If there is a stopper on the TZe Tape Cassette, remove it before installation.

1. Hold your machine as shown in the illustration. Open the Cassette Cover by pressing the mark on its side (1) and pulling in the direction of the arrow (2).

2. Insert the Tape Cassette following the drawing marked inside the case. Confirm that the tape is aimed at the green Tape Outlet and gently press the Tape Cassette into your machine until it locks into place.


NOTE

• Make sure that there is no slack in the tape. To fix any slack, pull the end of the tape out of the Tape Guide.
• When inserting or removing the Tape Cassette, make sure that the tape does not catch on the silver pin (3) or the Print Head.

3. Insert the two hooks at the rear of the Cassette Cover into the slots on your machine (4). Push the Cassette Cover making sure it locks into place (5).


Turning Your Machine On or Off

• To turn the machine on, press the Power Button.
• To turn the machine off, press and hold the Power Button for 0.5 seconds.

LED Indications

Your machine's LED indicates your machine's status.

Pairing Your Machine with Your Mobile Device

On your mobile device

1. In Settings, access the Bluetooth option, and turn it ON.
2. When the list of discovered Bluetooth devices appears, tap P300BT**** (where **** is the last four digits of your label printer's serial number. Alternatively, you can find your machine number on the sticker below the Power Button). The unit's serial number is located where the TZe Tape Cassette is set inside the Cassette Cover.

3. If asked to enter a PIN Code, enter "0000".

NOTE:

• Pairing instructions may differ slightly, depending on the mobile device you are using.
• If your machine is not discovered by your mobile device, your machine may already be connected to another device. If so, locate the mobile device that is paired with your machine, turn off Bluetooth on that device, and then turn your machine off and then on again.
• If your machine is moved too far from your mobile device, it may disconnect. If this happens, repeat these steps near the label printer to pair them again.
• If using a Smart Cover on your tablet, ensure that the cover remains open while you are creating or printing labels. Closing the Smart Cover may interrupt data communication, and your labels will not print.

Performing Routine Maintenance

NOTE:
Before performing any maintenance, power off your machine. if you use batteries, remove them and if you are using the AC Adapter, unplug it.

Cleaning your machine case

Wipe the case with a soft, dry cloth to remove dirt or dust. If the case is heavily soiled, wipe it with a cloth dampened with some water.

NOTE:
Do not use solvents or agents such as benzene, paint thinner, or alcohol, which may damage your machine's surface.

Cleaning the Print Head

Dirt on the Print Head may cause blank lines, faint type, or missing characters.
Use an optional dedicated head cleaning cassette (TZe-CL3) or use a cotton swab to gently wipe dirt from the Print Head.

DO NOT TOUCH the Print Head. It is very hot and you may get burned.

Troubleshooting

Specifications

Dimensions (W × D × H)	Approximately 4.5" (W) × 2.4" (D) × 4.5" (H) (115 mm (W) × 61 mm (D) × 115 mm (H))
Weight	Approximately 0.8 lb (380 g) (without batteries and Tape Cassette)
Power Supply	Optional AC Adapter (AD-24ES) 6×AAA Alkaline Batteries (LR03) Rechargeable 6×AAA Ni-MH batteries (HR03)*
Interface	Bluetooth Ver 2.1 + EDR Class2
Tape Cassette	Brother TZe Tape Cassette Compatible widths: 3.5 mm, 6 mm, 9 mm, 12 mm

* Visit us at support.brother.com for the latest battery recommendations.

If you have questions or need information about your Brother product, visit our website at www.brother.co.uk or contact Brother customer service.

For FAQs, Troubleshooting, and to download software, visit support.brother.com

Safety Precautions

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injuries.

Follow these guidelines to avoid the risk of fire, burns, injury, electrical shocks, rupture, overheating, abnormal odours or smoke.

• Always use the specified voltage and AC Adapter (AD-24ES) for your machine to prevent any damage or failure.
• Do not touch your machine during a thunderstorm.
• Do not use your machine or AC Adapter in places of high humidity such as bathrooms.
• Do not overload the power cord.
• Do not place heavy objects on, or damage your machine, power cord or plug. Do not forcibly bend or pull the power cord. Always hold the AC Adapter when disconnecting from the electrical socket.
• Make sure that the plug is fully inserted in the electrical socket. Do not use an outlet that is loose.
• Do not allow your machine, AC Adapter, power plug, or batteries to get wet, for example, by handling them with wet hands or spilling beverages on them.
• Do not disassemble or modify your machine, AC Adapter, or batteries.
• Do not allow a metal object to touch the plus and minus ends of a battery.
• Do not use sharp objects, such as tweezers or a metallic pen, to change the batteries.
• Do not throw the batteries into fire or expose to heat.
• Disconnect the AC Adapter, remove batteries immediately and stop using your machine if you notice abnormal odour, heat, discolouration, deformation or anything unusual while using or storing it.
• Do not use a damaged or leaking battery as the fluid may get on your hands.
• Do not use a deformed or leaking battery or one whose label is damaged. There is a possibility of damaging your machine.
• Since loss of eyesight may result if leaked fluid from batteries gets into your eyes, immediately rinse your eyes with a large amount of clean water, and then seek medical attention.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injuries.

Follow these guidelines to avoid personal injury, liquid leakage, burns, or heat.

• When your machine is not being used, store it out of the reach of children. In addition, do not allow children to put any label printer parts or labels in their mouths. If any object has been swallowed, seek medical attention.
• Do not touch metal parts around the Print Head immediately after printing.
• Do not touch the cutter blade.
• If leaked fluid from batteries gets on your skin or clothes, immediately rinse them with clean water.
• Remove the batteries and disconnect the AC Adapter if you do not intend to use your machine.
• Do not use any batteries other than those specified. Do not use combinations of old and new batteries or combinations of different types, different charging levels, different manufacturers, or different models. Do not insert a battery with its plus and minus ends reversed.
• Do not drop or hit your machine or AC Adapter.
• Do not put your finger inside your machine when you close the Cassette Cover and the Battery Cover.
• Before using Ni-MH rechargeable batteries, carefully read the instructions for the batteries and battery charger, and be sure to use them correctly.
• If using Ni-MH rechargeable batteries, charge the batteries with a specialised battery charger before using the batteries.
• Do not put your finger inside the Tape Exit Slot. You could be injured by the cutter blade.
• Make sure you use only 6×AAA Alkaline Batteries or rechargeable 6×AAA Ni-MH batteries.

General Precautions

• Depending on the location, material, and environmental conditions, the label may unpeel or become irremovable, the colour of the label may change or be transferred to other objects. Before applying the label, check the environmental conditions and the material.
• Do not use your machine in any way or for any purpose not described in this guide. Doing so may result in accidents or damage to your machine.
• Use only Brother TZe Tape Cassettes with your machine. Do not use tapes that do not have the mark.
• Only use a soft, dry cloth to clean your machine; never use alcohol or other organic solvents.
• Use a soft wipe to clean the Print Head; never touch the Print Head with your fingers.
• Do not put any foreign objects into the Tape Exit Slot, the AC Adapter connector or battery compartment, etc.
• Do not place your machine, AC Adapter, or batteries in direct sunlight or rain, near heaters or other hot appliances, in any location exposed to extremely high or low temperatures (for example, on the dashboard or in the back of your car), high humidity, or in dusty locations.
• Do not try to print if the cassette is empty; it will damage the Print Head.
• Do not pull the tape while printing or feeding; it will damage the tape and your machine.
• Your machine is not equipped with a charging feature for rechargeable batteries.
• The length of the printed label may differ from the displayed label length on your mobile device.
• When printing multiple copies of a label, the label printer will not detect the end of the tape cassette and will continue operating.
• Printed characters may look different than previewed on your device, as your device's screen may have a higher resolution than the printer.
• Printed small text may not be as clear as it is displayed on your device.
• White and Gold text may not print clearly if you use thin characters.
