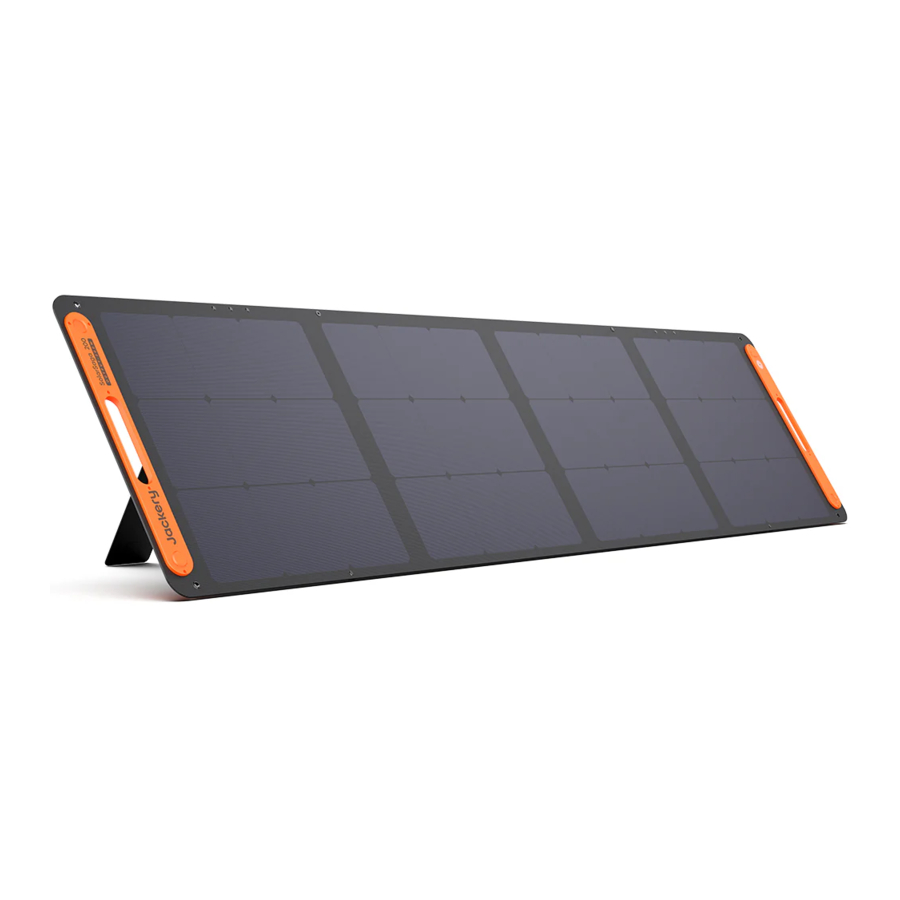

Jackery SolarSaga 200, JS-200D - Solar Panel Manual

TECHNICAL PARAMETERS

Product Name:	SolarSaga 200
Model:	JS-200D
Electrical Data	STC	BNPI
Peak Power (Pmax)	200W±5%	208W±5%
Open Circuit Voltage (Voc)	24.8V±5%	25V±5%
Short Circuit Current (Isc)	11.2A±5%	11.4A±5%
Power Voltage (Vmp)	20V±5%	20.2V±5%
Power Current (Imp)	10A±5%	10.3A±5%
Maximum System Voltage	60V
Maximum Reverse Current	15A
Protection Class Against Electric Shock	Class II
Waterproof Level	IP68
Operating Temperature Range	-20°C~65°C(-4℉~149℉)
Dimensions (unfolded)	2340x552x25mm
Dimensions (folded)	615x552x40mm
Weight	6.2 kg±0.3 kg
Bifaciality Coefficient (back/front)	Pmax>30%, Voc>95%, Isc>32%
Voltage Temperature Coefficient	-0.268%/°C
Power Temperature Coefficient:	-0.29%/°C
STC (1000W/m2, 25°C, AM 1.5). BNPI (Front 1000W/m2, Rear 135W/m2, 25°C, AM 1.5).

Unfold the bracket and place it on a flat surface. The design load is 1600Pa, and the safety factor is 1.5 times.

Multifunctional Adapter

USB-A Output	5V⎓2.4A
USB-C Output	5V⎓3A

HOW TO USE

Connect the cable to the solar panel and the DC input port of the portable power station.

information Tip: The cable comes with an adapter that allows it to connect to any Jackery portable power station.

DC8020 connector: suitable for the DC input port of Jackery portable power station (diameter: 8.1 mm).
DC8020-DC7909 adapter: suitable for the DC input port of Jackery portable power station (diameter: 8.0 mm).

When using the Solar Panel Connector

Connect the two solar panels to the solar panel connector respectively and then connect the solar panel connector to the DC input port of the portable power station.
When using the Solar Panel Connector
* To maximize the power generation, adjust the orientation of SolarSaga 200 throughout the day to ensure full exposure of the panel surface to direct sunlight.

Sun Angle Indicator

The carry handle has a sun angle indicator. When sunlight hits its surface, a shadow will appear at its bottom.
If the shadow falls on the white inner circle at its bottom, it means that the solar panel is facing directly towards sun and you can get optimal power generation; if not, it is suggested to adjust its angle until it does.
Sun Angle Indicator

POWER YOUR DEVICE

POWER YOUR DEVICE
* This multifunctional solar charging cable is only suitable for charging the Jackery SolarSaga 200(JS-200D) and should not be used with other solar panels.

CONTACT US

For any inquiries or comments concerning our products, please send an email to hello@jackery.com, and we will respond to you as soon as possible. If there is any quality-related issue with the product, you may request a replacement or refund by submitting a request form at
www.jackery.com/support/
hello@jackery.com (US)

SAFETY TIPS

Please read the user guide first before using this product.
Do not bend the folding solar panels.
Do not place the folding solar panels in trees, buildings or other shaded areas for use.
Do not immerse the folding solar panels in water or any other liquid.
Do not put solar panels in water directly, and use a damp cloth to gently wipe them when cleaning.
Do not use or store the folding solar panels near open flames or flammable materials.
Do not scratch the folding solar panels with sharp objects.
Do not put corrosive substances on the folding solar panels.
Do not step on or place heavy objects on the folding solar panels.
Do not disassemble the folding solar panels.
The output circuit of folding solar panel package must be connected to the equipment properly, and reverse connection of positive and negative poles is strictly prohibited.
Check the connection status of various components, wires, and plugs before use.
It is strictly prohibited to drop the products due to the nature of the material. Otherwise, it may cause internal damage to the solar panel, rendering the product unusable.
This product cannot be fixed for installation. Please put away the portable folding solar panels in case of strong winds, hail and other severe weather to avoid product damage or other hazards.
Under normal circumstances, PV modules may be exposed to higher currents or voltages than under standard test conditions. Therefore, when calculating the rated voltage of component, the rated current of conductor, and the size of the control device connected to the PV output, it is required to multiply the short-circuit current (Isc) and open circuit voltage (Voc) values marked on the component by a factor of 1.25.
Any damage to the product may lead to electric shock or fire.
Do not let artificial spotlight shine directly on the solar modules or panels.
