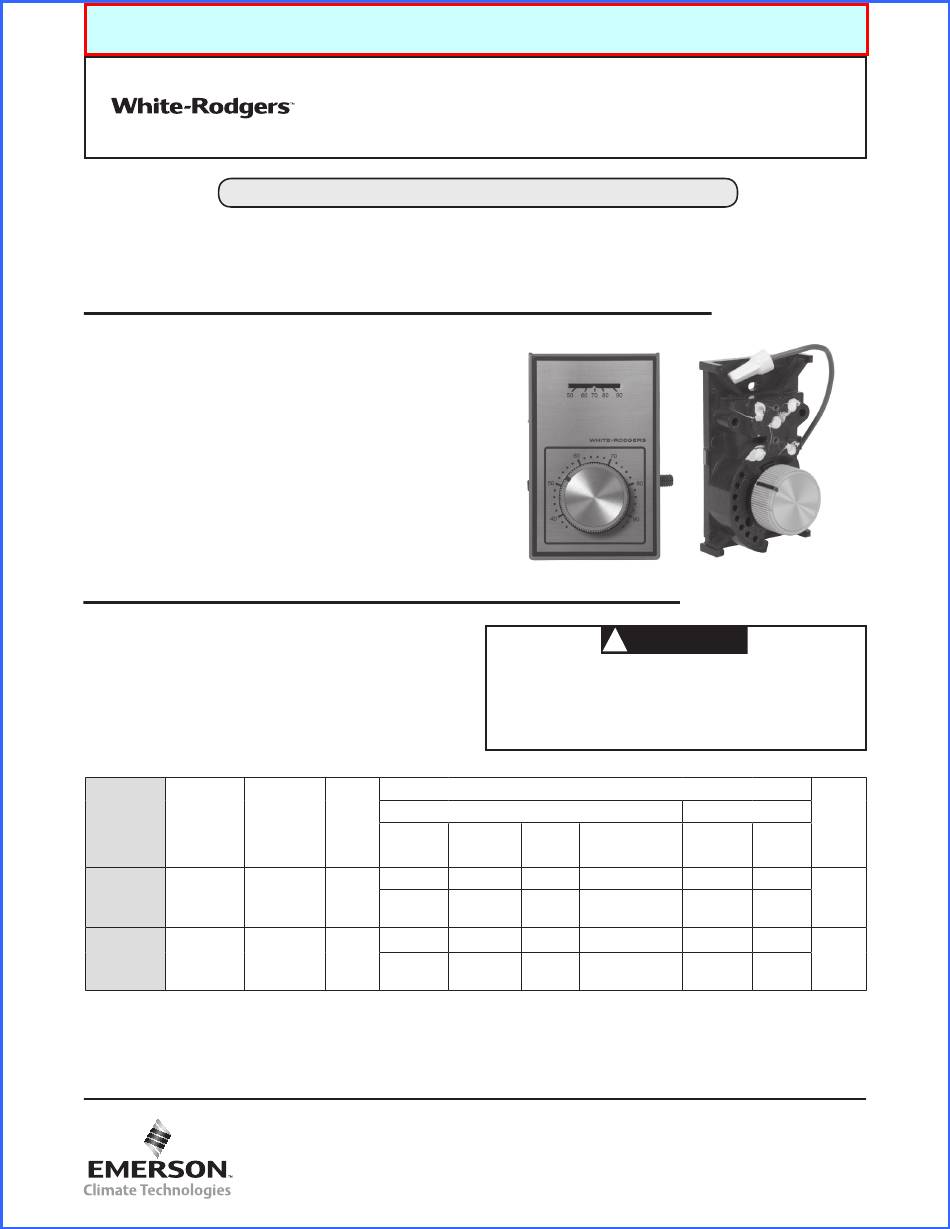

Emerson White-Rodgers 1A10 Series Installation Instructions

CLICK ANYWHERE on THIS PAGE to RETURN to WHITE RODGERS CONTROLS & MANUALS at
InspectApedia.com
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL
INJURY AND/OR PROPERTY DAMAGE.

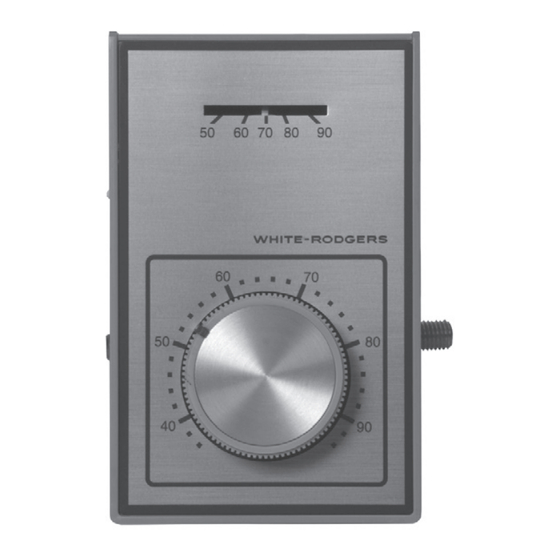

This Light Duty Line Voltage Heating-Cooling Thermostat is
designed for controlling fan motors, circulator motors, contactors,
motor starters, valves, etc. To provide greater room comfort, the
thermostat is equipped with fixed anticipators.
Two dial stops are supplied, which may be used for making a
maximum or minimum setting, a limited temperature range or
a locked dial setting. (See parts package).
The temperature may be set anywhere between 36° and 90°F
or 2° and 32°C by turning knob to the desired temperature on
the dial.
Positive off or system selection can be obtained by using a
switching sub-base. Optional heating and cooling sub-base
S29-21 is available.
Switch Action: S.P. D.T.
(Heating, open on rise)
(Cooling, close on rise)
Range: 36 to 90°F (2° to 32°C)
Contact Structure: Snap Switch
Electrical Rating:
Model
Number Range Differential
36 to 90°F
1A10-651 (2 to 32°C)
36 to 90°F
1A16-51 (2 to 32°C)
Switch
Action Voltage
120
240 /
1.5˚F SPDT 277
120
240 /
1.5˚F SPDT 277
white-rodgers.com
emersonclimate.com
TYPE 1A10-1A16 SERIES
Light Duty Line Voltage Heating-Cooling
INSTALLATION INSTRUCTIONS
!
When thermostat is set below 40°F or 5°C, damage to
the building and/or contents may result due to freezing.
This is possible due to factory calibration tolerances,
thermostat location and operating characteristics of
the heating equipment.
A.C. Electrical Ratings
Heat
Locked Resistive
Full Load Rotor (Non-Inductive) Full Load
8.0A 48.0A 8.0A
4.0A 24.0A 8.0A
16.0A 96.0A 16.0A
8.0A 48.0A 16.0A
DESCRIPTION
SPECIFICATIONS
CAUTION
Cool
Locked
Rotor
8.0A 48.0A
125 VA
4.0A 24.0A 125 VA
8.0A 48.0A
125 VA
4.0A 24.0A 125 VA
PART NO. 37-3909B
Replaces 37-3909A & 37-3911A
Pilot
Duty
1613
