Bosch RA1171 - Table Manual

Power Tool Safety Rules


Read and understand the tool manual and these instructions for the use of this table with your router. Failure to follow all instructions listed below may result in serious personal injury.
SAVE THESE INSTRUCTIONS

Work Area
Keep your work area clean and well lit.
Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety
Grounded tools must be plugged into an outlet properly
installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adaptor plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If the tools should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user. Improper grounding can shock, burn, or electrocute. Grounded tools are equipped with threeconductor cord and three-prong type plugs. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use "AC only" rated tools with a DC power supply. Double-insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation eliminates the need for the three-wire grounded power cord and grounded power supply system. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use "AC only" rated tools with a DC power supply. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. If operating the power tool in damp locations is unavoidable, a Ground Fault Circuit Interrupter must be used to supply the power to your tool. Electricianʼs rubber gloves and footwear will further enhance your personal safety. Donʼt expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock. When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W." These cords are rated for outdoor use and reduce the risk of electric shock. Refer to "Important Information About Extension Cords" in your router table manual.

Personal Safety
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Keep guards in place. Maintain the guards in working order and in proper adjustment and alignment. Avoid accidental starting. Be sure switch is "OFF" before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch "ON" invites accidents. Remove adjusting keys or wrenches before turning the tool "ON." A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations. Use safety goggles (head protection). Wear safety goggles (must comply with ANSI Standard Z87.1) at all times. Wear non-slip footwear and a hard hat, if appropriate. Also, use face or dust mask if cutting operation is dusty and ear protectors (plugs or muffs) during extended periods of operation.

Tool Use and Care
Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. Do not use tool if switch does not turn it "ON" or "OFF." Any tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. Keep guards in place. Maintain the guards in working order and in proper adjustment and alignment. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. Never leave tools running unattended. Turn the power OFF. DO NOT leave tool until it comes to a complete stop. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Any alteration or modification is a misuse and may result in a dangerous condition.
Check for damaged guards or parts, misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the toolʼs operation. If damaged, have the tool properly repaired or replaced before using. Many accidents are caused by poorly maintained tools. Develop a periodic maintenance schedule for your tool. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool.

Service
Tool service must be performed only by qualified
repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. For example: internal wires may be misplaced or pinched; safety guard return springs may be improperly mounted. When servicing a tool, use only identical replacement parts. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury. Certain cleaning agents such as gasoline, carbon tetrachloride, and ammonia may damage plastic parts.

Additional Safety Warnings for Router Tables

Lift router table only by the table edges. Lifting table by any other surface could cause personal injury.
Do not use the router table until all assembly and installation steps have been completed. Prior to each use, verify that fasteners and the router clamps are tight. A loose table or router is unstable and may shift in use, resulting in property damage or serious personal injury.
Disconnect the router from the power supply before installing router into the table, making adjustments, changing accessories, removing the router from the table, performing maintenance, or storing the tool. Such precautionary safety measures reduce the risk of unintentional tool operation. Do not plug router motor power cord into standard wall outlet. Always plug router cord into the router table switch box.
Power tool switches and controls need to be within your reach in emergency situations.
Do not permit fingers to touch terminals on the plug when inserting or removing plug from the outlet. Risk of Electric Shock. Before connecting router or vacuum to router table switch box, ensure that the router or vacuum switch is off and that the router table switch box is unplugged.
Such precautionary safety measures reduce the risk of unintentional tool operation. Before using the router table, verify that the router is securely clamped in the router table base.
While working, periodically check the router base fastener clamping tightness. Vibrations from cutting operations can cause router motor clamps to loosen and the router motor may fall from the table. Before starting to work, ensure that the power cords from the router accessories, the switch box, and the extension cord do not and cannot come in contact with the router or any moving parts of the router. Such precautionary safety measures reduce the risk of injury due to loss of control.
Do not use the router table without the overhead guard unless required by a particular cutting operation. Replace guard immediately after completion of cutting operation. Remove all dust, chips, and any other foreign particles that can affect its function. The guard will aid in keeping hands from unintended contact with the rotating bit. Do not use bits that have a cutting diameter that exceeds the clearance hole in the tabletop insert plate or insert rings. The bit could contact the insert plate or insert ring, throwing fragments.
Never use dull or damaged bits. Damaged bits can snap during use. Dull bits require more force to push the workpiece, possibly causing the bit to break or the material to kick back.
Handle sharp bits with care. Such precautionary safety measures reduce risk of injury. Do not alter insert ring or insert plate bit hole. Match the cutting diameter of the bit to the inner diameter of the insert ring or insert plate bit hole such that the difference is no less than 1/16 ' ' on a side. Insert rings are meant to reduce the gap between the cutting diameter of the bit and the table so that workpieces maintain full support of the table while routing. Install bit in accordance with instructions in the router manual. Securely clamp the router bit in the collet chuck before making any cuts. Securing the bit before cutting reduces the risk of the bit becoming loose during operation.
Never place your fingers near a spinning bit or under the guard when the router is plugged in. Such precautionary safety measures reduce the risk of injury.
Never hold the workpiece on the outfeed side of the bit. Pressing the workpiece against the outfeed side of the fence may cause material binding and possible kickback, pulling your hand into the bit.
Guide the workpiece with the fence to maintain control of the workpiece.
Do not place the workpiece between
the router bit and fence while routing the edge. This placement will cause the material to become wedged, making kickback possible.

Only use routers for working with wood, woodlike products, plastic, or laminates. Do not use router and router table for cutting or shaping metals. Be sure workpiece does not contain nails or other hard objects. Cutting nails may cause loss of control of the tool or workpiece. Never start the tool when the bit is engaged in the material. The bit-cutting edge may grab the material, causing loss of control of the workpiece.
Feed the workpiece only against the rotation of the bit. Do not "back feed" the workpiece into the bit. The bit rotates counterclockwise as viewed from the top of the table. "Back feeding" will cause the workpiece to "climb" up on the bit, pulling the workpiece and possibly your hands into the rotating bit.
Do not feed the workpiece into the bit where the majority of the workpiece is between the fence and the bit. This creates a "fence trap" which is a hazardous situation due to the bit being exposed. This will cause the work to "climb-cut" away from the tabletop and may lead to loss of control during operation.
Do not cut material that is warped, wobbly, or otherwise unstable. The router table is designed to cut flat, straight, and squared materials. If the material is slightly curved but otherwise stable, cut the material with the concave side against the table or fence.
Cutting the
material with the concave side up or away from the table may cause the warped or wobbly material to roll and kick back, causing the user to lose control.

Use auxiliary infeed and outfeed supports for long or wide workpieces. Oversize workpieces without adequate support can flip off the table or cause the table to tip. Use push stick, vertically and horizontally mounted featherboards (spring sticks), and other jigs to hold down the workpiece. Push sticks, featherboards, and jigs eliminate the need to hold the workpiece near the spinning bit.
Never let go of the workpiece when routing until the cut has been completed and the workpiece is completely clear of the bit. Such precautionary safety measures reduce the risk of injury and property damage. Featherboards aid in holding the workpiece in position when routing on a router table. They are not intended to hold the workpiece in place alone when the workpiece is in contact with the bit, or at any other time when the bit is turning.
Always hold the workpiece against the router table fence when routing. Such precautionary measures increase accuracy in routing and improve control of the workpiece, reducing the risk of injury. Never leave the router unattended while it is running or before it comes to a complete stop.
Such precautionary safety measures reduce the risk of injury and property damage.
Do not use the table as a workbench or work surface. Using it for purposes other than routing may cause damage and make it unsafe to use in routing. Never stand on the table or use as a ladder or scaffolding. The table could tip or the cutting tool could be accidentally contacted.
When servicing the tool, use only recommended Bosch replacement parts. Follow instructions in the Maintenance section of this manual.
U
se of unauthorized parts or failure to follow maintenance instructions can result in personal injury.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are:

  • Lead from lead-based paints
  • Crystalline silica from bricks, cement, and other masonry products
  • Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Improper Fence Location and Workpiece Feed


Do not feed the workpiece where the majority of the workpiece is between the fence and the bit. This creates a "fence trap" which is dangerous for two reasons:

  • The front of the bit is exposed during the cutting operation (Fig. A).
  • The bit can "Climb-cut," where the bit enters the workpiece in the same direction as the feed direction. This is likely to cause the workpiece to "climb" away from the tabletop and may lead to loss of control during operation (Fig. A).


Feed the workpiece only against the rotation of the bit. Do not "back feed" the work into the bit. The bit rotates counterclockwise as viewed from the top of the table. "Back feeding" the work is dangerous for two reasons:

  • It will cause climb-cutting where the workpiece can "climb" off the tabletop in the direction of the bit rotation, pulling the workpiece and possibly your hands into the rotating bit (Fig. B).
  • It is difficult to keep the workpiece against the fence face as the bit rotation will push the workpiece away from the fence.

Important Information About Extension Cords


An extension cord with adequate size conductors that is capable of carrying the current for your tool must be used. This will prevent excessive voltage drop, loss of power, or overheating. Grounded tools must use 3-wire extension cords that have 3-prong plugs and receptacles.
NOTE: The smaller the gauge number, the heavier the cord.

RECOMMENDED SIZES OF EXTENSION CORDS 120-VOLT ALTERNATING CURRENT TOOLS

Tool's
Ampere Rating
Cord Size in A.W.G. Wire Sizes in mm 2
Cord Length in Feet Cord Length in Meters
25 50 100 150 15 30 60 120
3-6 18 16 16 14 .75 .75 1.5 2.5
6-8 18 16 14 12 .75 1.0 2.5 4.0
8-10 18 16 14 12 .75 1.0 2.5 4.0
10-12 16 16 14 12 1.0 2.5 4.0
12-16 14 12

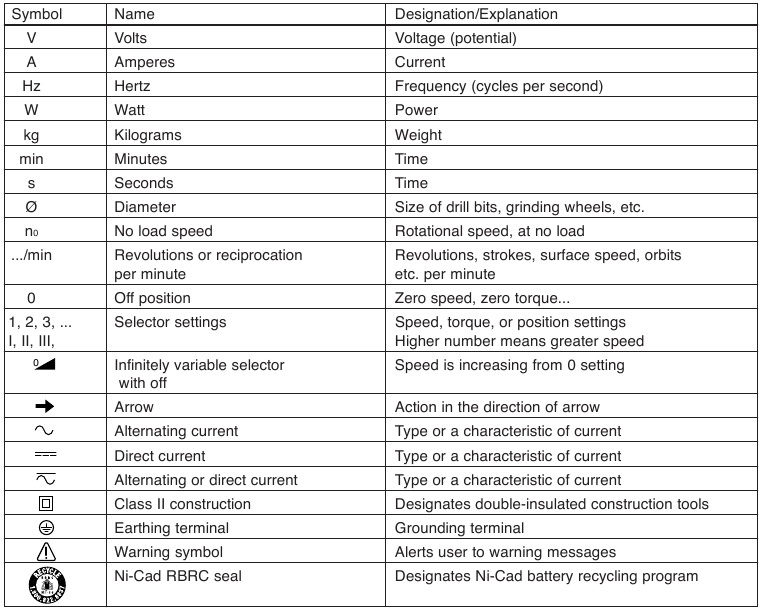

Symbols


Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
Symbols

Parts List

Refer to Parts List below and.


  • If ANY of the parts are missing, DO NOT attempt to assemble, install, or use your router table until the missing parts have been found or replaced and your router table has been properly and correctly assembled per this manual.
  • For missing parts or technical assistance, call 1-877-BOSCH99 (877-267-2499).
  • In order to simplify handling and to minimize any damage that may occur during shipping, your router table comes mostly unassembled. Note that the switch box and some fasteners are preassembled to facilitate identification and installation.
  • Separate all parts from the packaging materials and check each part against the illustrations and the parts lists to make sure that all parts have been included. Do this before discarding any of the packaging material.

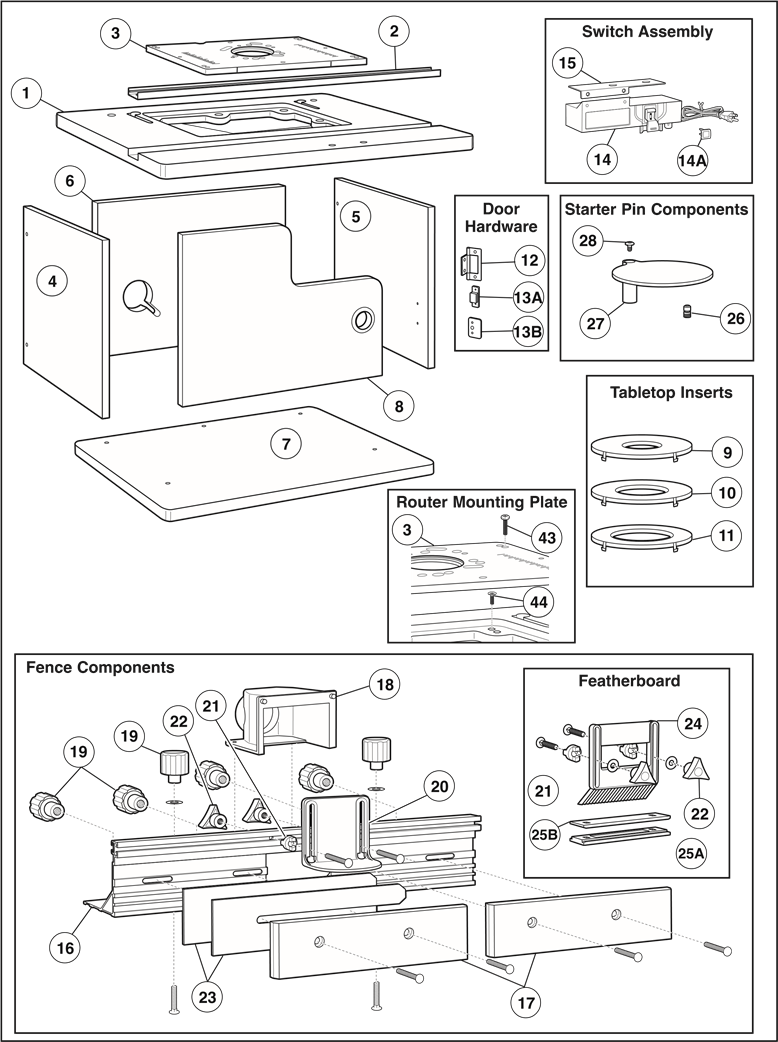

Parts List - Part 1

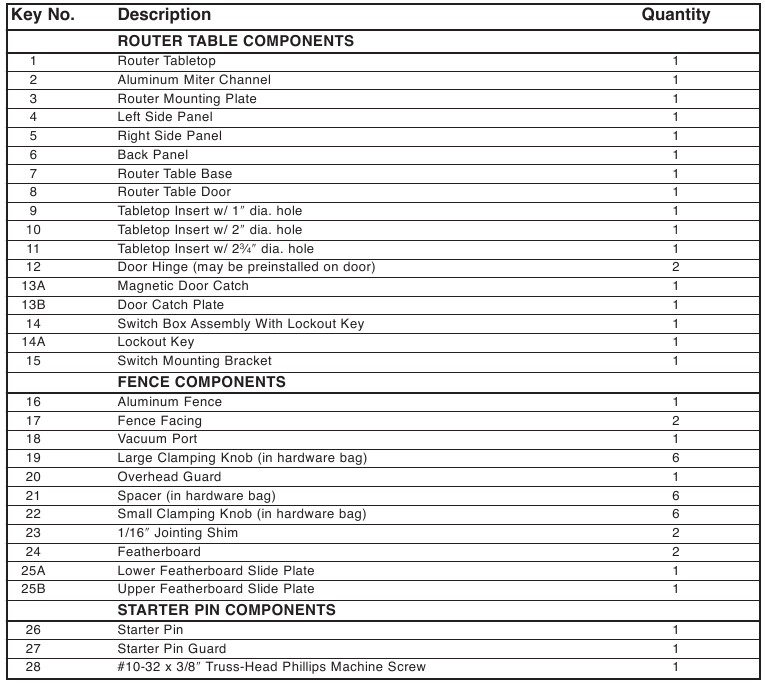

Parts List - Part 2

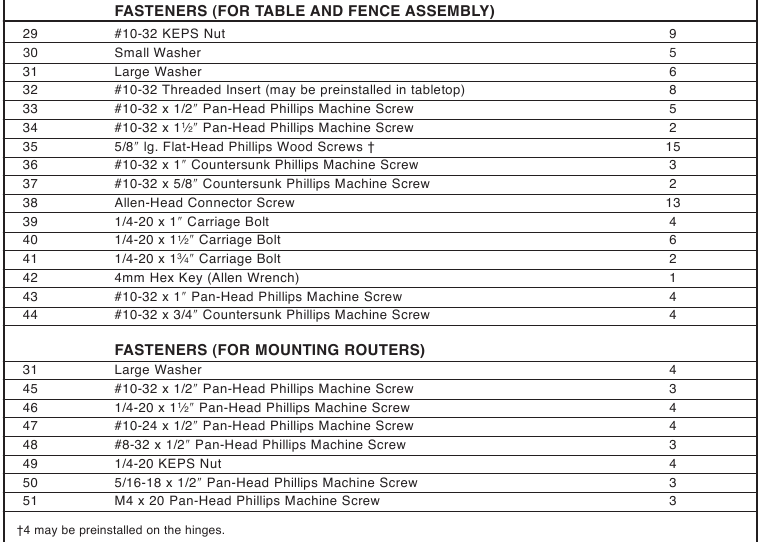

Parts List - Part 3
NOTE: The hardware bag contains fasteners for several models. Some fasteners may not be used in the assembly of this model. Refer to the parts list above for the correct sizes and quantities used with this table.

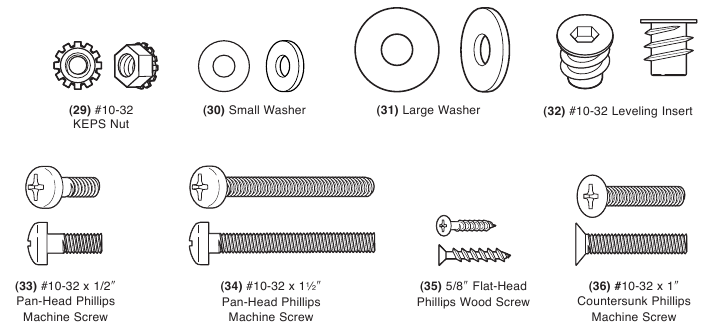

Parts List - Part 4

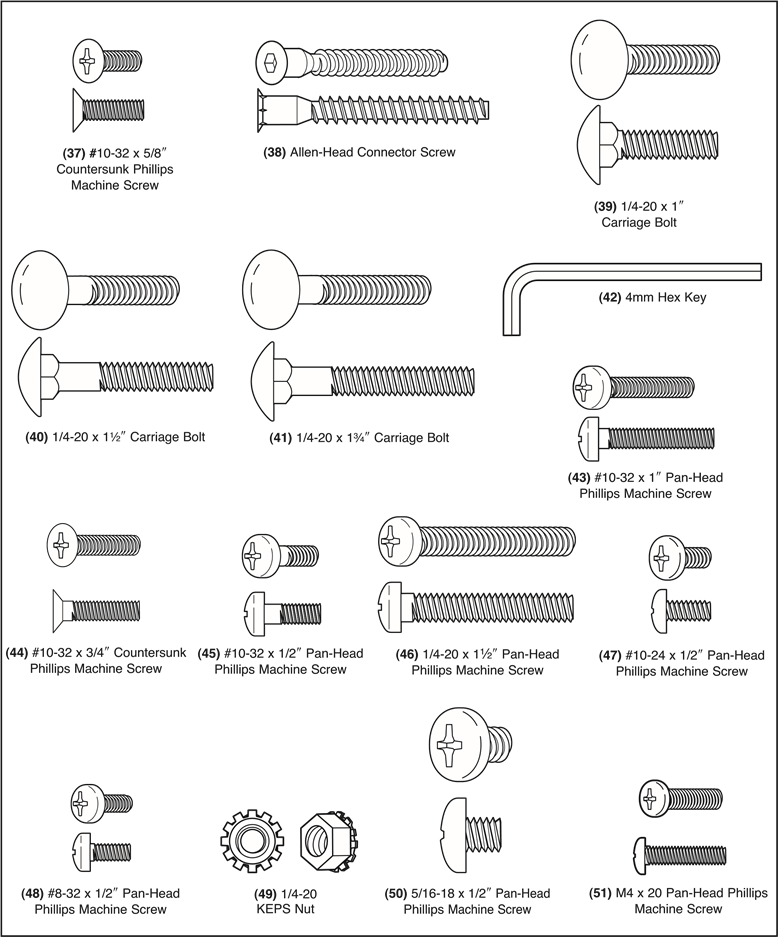

Parts List - Part 5

Router Table Assembly

ASSEMBLING THE ROUTER TABLE
HELPFUL TOOLS

  • #1 and #2 Phillips screwdrivers (not included)
  • 3/8 ' wrench or nutdriver (not included)
  • 4mm hex key (included)

HINT: Applying bar soap or beeswax to the screw threads (35 and 38) will make them easier to install into the panels.

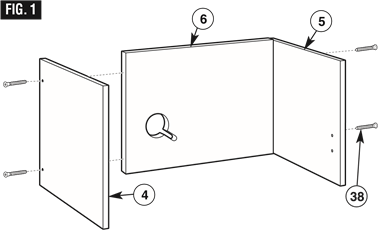

ASSEMBLE SIDES TO BACK (Fig. 1)
NOTE: The mounting holes for the left and right panels are spaced so that the panel will only fit on the correct end of the back. Before attaching the panels, make sure that the predrilled holes for the hinges and door catch are on the INSIDE surface of the panel.
ASSEMBLE SIDES TO BACK

  1. Holding the back panel (6) upright, with the cord cutout on the left (see Fig. 1), attach the left side panel (4) to the back panel using two Allen-head connector screws (38).
  2. Attach the right side panel (5) to the back panel using two Allen-head connector screws (38).
  3. Tighten all fasteners securely with the 4mm hex key (42). The screw head will stand slightly above the panel surface. DO NOT OVERTIGHTEN!

ATTACHING THE BASE (Fig. 2)
ATTACHING THE BASE

  1. Turn the sides/back assembly upside down, and position the base (7), with countersunk holes on the base facing out, on the sides/back.
  2. Align the holes in the base with the holes in the sides and back, and attach using five Allen-head connector screws (38) (Fig. 2).
  3. Tighten all fasteners securely with the 4mm hex key (42). The screw head should be in the counterbore, below the panel surface. DO NOT OVERTIGHTEN!

ATTACHING THE SWITCH TO THE TABLETOP (Fig. 3)
Assembly Hint: It may be easier to attach the switch bracket if you stand the tabletop on its back edge for this step.
ATTACHING THE SWITCH TO THE TABLETOP

  1. Align the two holes in the switch mounting bracket (15) with the two through-holes in the router tabletop. From the top side of the table, insert two ' #10-32 x 1 1 ⁄ 2 pan-head machine screws (34) through the tabletop and bracket and secure the bracket in place with two small washers (30) and
  2. Insert two #10-32 KEPS nuts (29) into the two #10-32 KEPS nuts (29) (Fig. 3). hex-shaped recesses in the back of the switch assembly (14) with the toothed washer facing away from the recess. Secure the switch to the switch mounting bracket with two #10-32 x 1/2 ' pan-head machine screws (33) while holding the KEPS nuts in place in the recess with your finger.

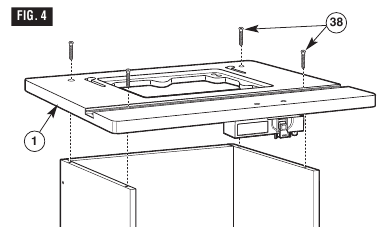

ATTACH THE TABLETOP (Fig. 4)
NOTE: The tabletop may be shipped with the miter channel in place. To access the tabletop mounting holes, remove the channel for this step.
ATTACH THE TABLETOP

  1. With the base assembly upright, position the tabletop (1) on the base assembly, making sure the switch is in the front, as shown in Fig. 4.
  2. Secure the tabletop to the base with four Allen-head connector screws (38).
  3. Tighten all fasteners securely with the 4mm hex key. The screw head should be in the counterbore, below the panel surface. DO NOT OVERTIGHTEN!

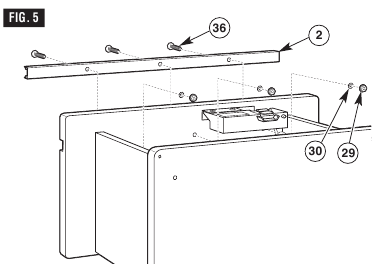

ASSEMBLE THE ALUMINUM MITER CHANNEL TO THE TABLETOP (Fig. 5)
Assembly Hint: It may be easier to install the miter channel if you lay the table on its back for this step.
ASSEMBLE THE ALUMINUM MITER CHANNEL TO THE TABLETOP

  1. Center the miter channel (2) in the slot on the tabletop; then press the miter channel into the slot.
  2. From the top side of the tabletop (1), insert three #10-32 x 1 ' countersunk Phillips machine screws (36) through the holes in the miter channel (2) and the tabletop (Fig. 5).
  3. Secure with a small washer (30) and a #10-32 KEPS nut (29) on each screw.

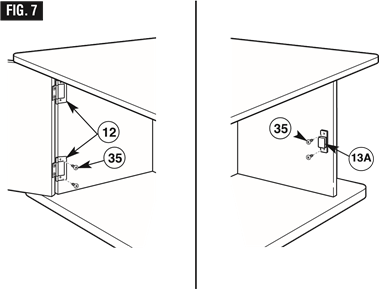

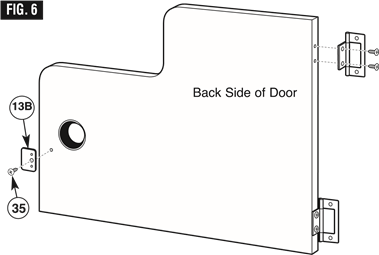

ATTACH THE DOOR (Figs. 6 and 7)
HINT: Applying bar soap or beeswax to the screw threads will make them easier to install into the panels.
ATTACH THE DOOR - Step 1
ATTACH THE DOOR - Step 2

  1. With the bumps on the catch plate against the door surface, attach the metal catch plate (13B) to the inside of the narrow end of the door with a 5/8 ' lg. flat-head Phillips wood screw (35). To help align the catch plate, the bumps should rest in the top and bottom holes on the door (Fig. 6).
  2. Attach the door hinges (12) to the left side panel with two 5/8 ' lg. flat-head Phillips wood screws (35) on each hinge (Fig. 7).
  3. Attach the magnetic catch (13A) to the inside of the right side panel using two 5/8 lg. flat-head Phillips wood screws (35) (Fig. 7). '
  4. Slowly open and close the door, making sure that it moves freely and does not rub on the base or top, does not come in contact with the switch assembly, and that it latches correctly.
    • If the door rubs, make sure the side panels and switch are assembled correctly.
    • If the magnetic catch does not contact the catch plate, loosen the screws on the magnetic catch and reposition it using the slotted holes in the catch.

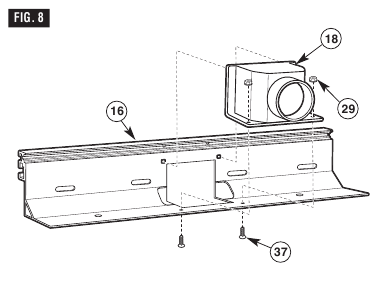

ASSEMBLING THE FENCE (Figs. 8 and 9)
ASSEMBLING THE FENCE - Step 1

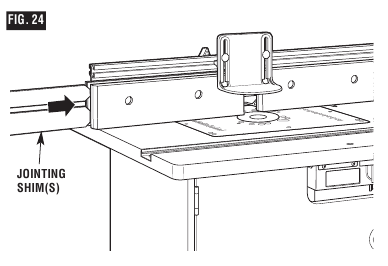

NOTE: Two plastic jointing shims (23) are included to provide the proper fence offset when jointing. For more about jointing operations and shim placement.

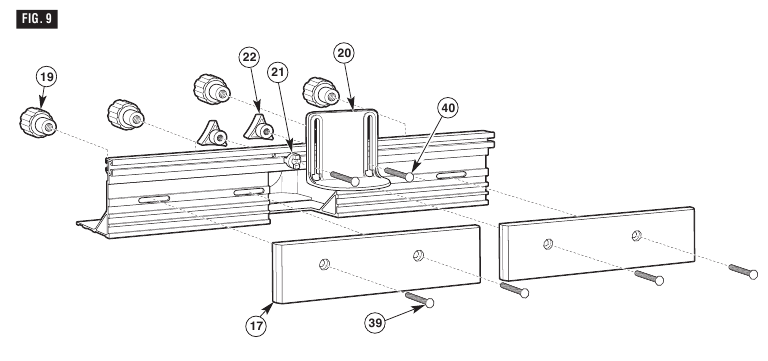

ASSEMBLING THE FENCE - Step 2

  1. Insert the pins molded into the top of the vacuum port (18) into the holes on the rear of the aluminum fence (16), as shown in Fig. 8.
  2. From the underside of the fence, insert two #10-32 x 5/8 ' countersunk machine screws (37) up through the holes in the bottom of the fence and vacuum port. Secure in place with two #10-32 KEPS nuts (29) (Fig. 8).
  3. Place the fence right-side up on a flat surface and align the counterbored holes in the fence facings (17) with the slotted holes in the fence. The counterbored side of the facings should face OUT (Fig. 9).
  4. Attach both fence facings (17) to the front of the fence, using two 1/4-20 x 1 carriage bolts (39) and two large clamping knobs (19) for each fence facing (Fig. 9). '
  5. From the front of the overhead guard (20), insert two 1/4-20 x 1 ⁄ carriage bolts (40) through the holes in the guard. Slide a spacer (21) on each bolt so that the 2 ' tabs on the spacers fit into the slots on the guard (Fig. 9).
  6. From the front of the fence, insert the carriage bolts through the holes in the top center of the fence. The tabs on the spacers will fit into the top channel on the fence. Secure in place with a small clamping knob (22) on each bolt (Fig. 9).

NOTE: To simplify installation of the router adapter plate and router, do not install the fence onto the router table at this time.


Before using the router table, verify that the router is securely clamped to the router table base. While working, periodically check the router base fasteners clamping tightness. Router motor vibration can loosen fasteners during use, causing the router to fall from the table.

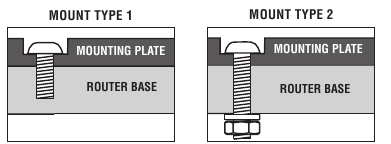

SELECTING THE ROUTER HOLE PATTERN
DETERMINE THE MOUNTING METHOD TO
BE USED (see chart)

If your router model is listed in the chart, proceed to step 1 below. If it is NOT listed, you must purchase a BOSCH RA1186 Router Adapter Plate, available separately. If your router model is listed:
SELECTING THE ROUTER HOLE PATTERN

  1. Determine the hole pattern that matches the mounting hole pattern for your router.
  2. Determine which fasteners you will need to attach the router to the router adapter plate.
  3. Determine which mount type (1 or 2) is used for your router model.

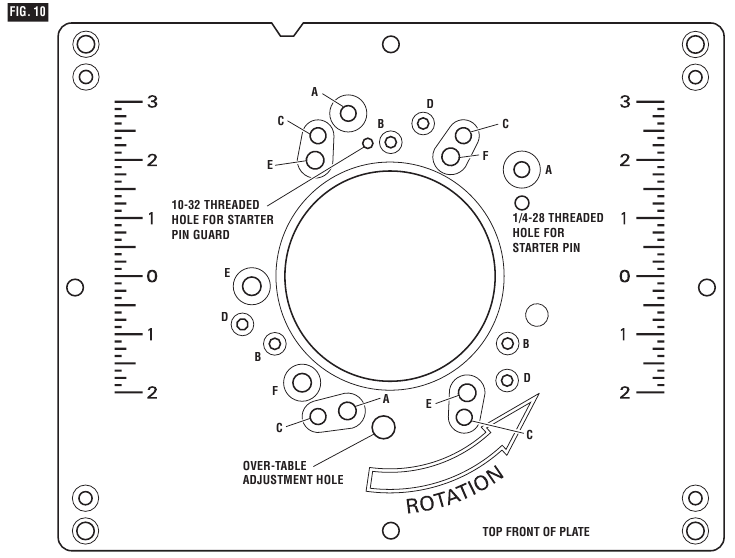

MOUNTING PLATE GUIDE FOR COMPATIBLE ROUTERS (Fig. 10)
MOUNTING PLATE GUIDE FOR COMPATIBLE ROUTERS

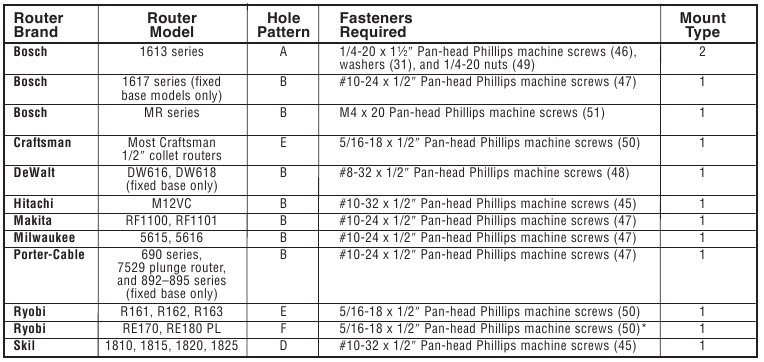

CHART 1
CHART 1
*RE170 requires the subbase attached for specified fastener length.

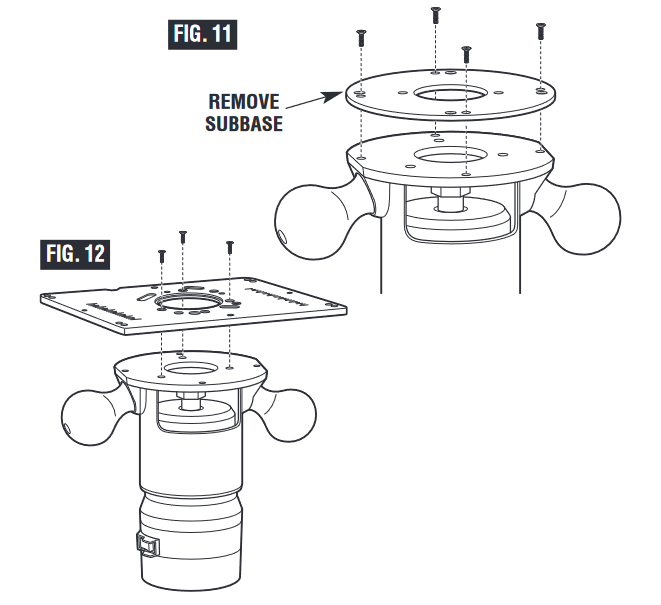

ATTACH ROUTER TO MOUNTING PLATE
(Figs. 11 and 12)


Disconnect the router from the power supply before installing router into the table, making adjustments, changing accessories, removing the router from the table, performing maintenance, or storing the tool. Such precautionary safety measures reduce the risk of unintentional tool operation.
ATTACH ROUTER TO MOUNTING PLATE

  1. Remove the plastic subbase from your router (unless otherwise specified in Chart 1) (Fig. 11).
    • If you wish to mount the router with the subbase, you may need to purchase longer fasteners. Using the subbase affects the range of cutting depth.
  2. If your router has its own dust extraction hood that mounts to the top of the metal router base and you want to use it under the router table, this is a convenient time to install it.
  3. Using Chart 1, determine the hardware and mount type for your router.
    • For most router models, the screws are driven into threaded holes in the routerʼs base (mount type 1).
    • For some router models, the screws go all the way through the base and are fastened with washers and nuts (mount type 2).
    • Competitor routers are outside of BOSCHʼs control. Changes made to these routers may affect the compatibility to the fasteners specified and/or supplied with this table.
    • Always make sure the screw is fully seated on the adapter plate and that the router base is firmly against the adapter plate to ensure secure mounting. If the router, plate, and fasteners do not seat together properly, you may need to purchase new fasteners of a different length or size.

      Before using the router table, verify that the router is securely clamped to the router table base. While working, periodically check the router base fastenersʼ clamping tightness. Router motor vibration can loosen fasteners during use, causing the router to fall from the table.
  1. Refer to the mounting plate guide (Fig. 10) and align the appropriate mounting plate holes for your router to the router base holes. Make sure that the depth adjustment controls on the router face the front of the mounting plate. Figure 10 shows the proper orientation of the plate when installed on the table.
  2. Securely mount your router to the mounting plate (Fig. 12).

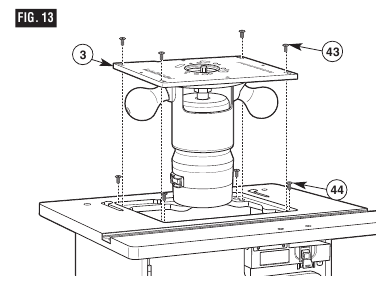

ATTACH THE ROUTER MOUNTING PLATE (Fig. 13)
ATTACH THE ROUTER MOUNTING PLATE

  1. If the fence is already installed on the table, remove it before proceeding.
  2. Install the four countersunk leveling screws (44) in the tabletop with a Phillips screwdriver and gently tighten them. Place the router mounting plate (3) on the leveling screws with the number scales right-side up as seen from the front of the table (Fig. 13). Using the Phillips screwdriver and a straight edge, adjust the leveling screws through the holes in the router mounting plate until the top of the plate is flush with the table surface. Turning the screws clockwise will lower the mounting plate and turning them counterclockwise will raise it.
  3. Secure the router mounting plate (3) to the table with four #10-32 x 1 ' pan-head screws (43) (Fig. 13) through the innermost corner holes in the plate. Tighten the screws snugly, but do not overtighten.

TO REMOVE THE ROUTER AND/OR ROUTER MOUNTING PLATE

Make sure that the router is NOT plugged into a power outlet when installing into the table, removing from table, making adjustments or changing accessories. Router could accidentally start.
THE FENCE MUST BE REMOVED FROM THE ROUTER TABLE WHEN REMOVING OR REINSTALLING THE ROUTER MOUNTING PLATE. To remove the router without removing the mounting plate, see step 3.

  1. Remove the four #10-32 x 1 ' pan-head Phillips machine screws (43) holding the router mounting
  2. Lift the router mounting plate and router upwards plate to the tabletop (Fig. 13). from the tabletop.
  3. Remove the pan-head Phillips machine screws securing the router to the mounting plate.
  4. When reinstalling the router mounting plate, be sure that the plate is level with the tabletop. If needed, readjust as described above.

OVER-TABLE HEIGHT ADJUSTMENT
The router adapter plate features an access hole to allow use with the over-table height adjustment feature on the BOSCH 1617 series routers. Refer to your router manual for additional information on using this feature. For other brands of routers with over-table height adjustment features, it may be necessary to drill an access hole in the router mounting plate as follows:

  1. Remove the subbase from the router and align the mounting holes in the subbase with the corresponding mounting holes in the adapter plate. Be sure to orient the subbase so that the router switch will be toward the front of the table.
  1. Using a pencil or centerpunch, mark the location of the over-table height adjustment hole on the router adapter plate.
  2. Remove the subbase from the adapter plate and carefully drill the over-table height adjustment hole.
  3. Make sure that the hole will accommodate the height adjustment tool for your router. Remove any burrs or rough edges with sandpaper.

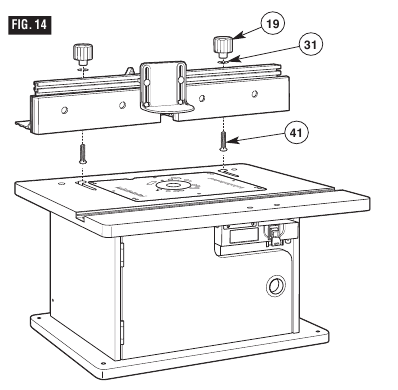

ATTACHING THE FENCE TO THE TABLE (Fig. 14)
ATTACHING THE FENCE TO THE TABLE

  1. From underneath, slide two 1/4-20 x 13 bolts (41) up through the holes in the bottom of the ' carriage 4 fence. Slide a large washer (31) onto each bolt and loosely attach a large clamping knob (19) onto each bolt.
  2. Insert the carriage bolt heads through the holes of the J-slots on the tabletop, making sure the bolt head is below the inside surface of the tabletop and can slide freely into the J-slot.
  3. Slide the fence assembly left and into the J-slot and make sure that it slides smoothly from front to back.
    NOTE: Use the scale on the tabletop as a guide when aligning the fence for routing operations. Once the fence is positioned and aligned correctly, tighten the clamping knobs SECURELY.


Before operating, make sure the entire unit (table with router installed) is placed on and secured to a solid, flat, level surface and will not tip. Use of auxiliary in-feed and out-feed supports is necessary for long or wide workpieces. Long workpieces without adequate support can cause the router table to tip over.

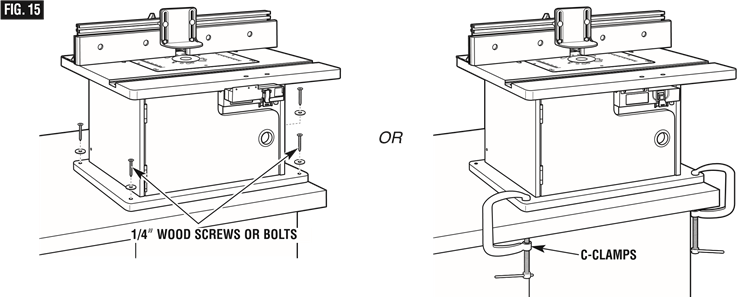

SECURING THE ROUTER TABLE TO A WORK SURFACE (Fig. 15)
SECURING THE ROUTER TABLE TO A WORK SURFACE
Preferred method:
The base of the router table has four mounting holes. These holes can be used to attach it to a workbench or work surface with four 1/4 ' wood screws and washers or bolts, washers, and nuts (not provided).

HINT: Position the router table in the desired location and mark the hole locations using the holes in the table base. Then drill suitable pilot (for wood screws) or through-holes (for bolts).
Alternative method: The base can be secured to a workbench or work surface with C-clamps.


Disconnect the router from the power supply before installing router into the table, making adjustments, changing accessories, removing the router from the table, performing maintenance, or storing the tool. Such precautionary safety measures reduce the risk of unintentional tool operation.


Do not alter tabletop insert ring or insert plate bit hole. Match the cutting diameter of the bit to the inner diameter of the insert ring or insert plate bit hole such that the difference is no less than 1/16 on a side. Insert rings are meant to reduce the gap between the cutting diameter of the bit and table so that workpieces maintain full support of the table while routing.

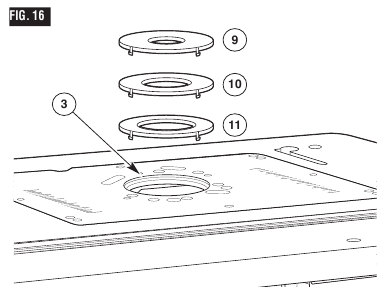

TABLETOP INSERT RINGS (Fig. 16)
TABLETOP INSERT RINGS
This router table includes three insert rings with the following hole sizes:
(9) 1 ' in diameter, for use with bits with diameters up to 7/8 '

(10) 2 ' in diameter, for use with bits with diameters up ⁄to 1 7/8 '
(11) 2 3/4' in diameter, for use with bits with diameters up to 2 5/8 '
No insert ring is used for bits with diameters over 2 5/8 ' and up to 3 1/2"

Do not use the router table with bits over 3½ in diameter. Bits larger than 3½ exceed the clearance hole in the tabletop insert rings. Bits larger than 3½ ' can contact insert plate or insert ring, throwing fragments.

TO INSTALL TABLETOP INSERT RINGS (Fig. 16):

  1. Select the insert ring (9–11) that best accommodates the router bit to be used.
  2. Press the insert ring (9–11) into the large hole in the router mounting plate (3). If the fence is in the way, loosen the clamping knobs on the fence and slide the fence back out of the way.
  3. Press down evenly over the tabs until the insert ring (9–11) locks into place.
  4. To remove, pull up gently until the tabs disengage. When not in use, store insert rings (9–11) in a resealable plastic bag in the router table cabinet.


Do not use, attempt to change, or remove tabletop insert rings from the tabletop unless the router is off and unplugged.
Such precautionary safety measures reduce the risk of unintentional tool operation.

SWITCH CONTROL BOX

Do not plug router motor power cord into standard wall outlet. It must be plugged into the router table switch. Power tool switches and controls need to be within your reach in emergency situations.

GENERAL INFORMATION
The power switch is designed for use with most BOSCH Router Tables. It provides the convenience of an ON (RESET)-OFF switch at the front of the table, thus eliminating the need to reach underneath the table to turn the router ON and OFF.
The power switch also provides an optional simultaneous ON-OFF control of an additional accessory, such as a light, wet/dry vac, etc. The switch has an internal, resettable circuit breaker to provide overload protection.

ELECTRICAL REQUIREMENTS
The switch box cord should only be plugged into a 14-gauge (or heavier), three-wire extension cord with a three-hole grounding receptacle and three-prong
grounding plug. The extension cord must be plugged into a matching outlet that has been installed by a licensed electrician and grounded in accordance with all local codes and ordinances.
DAMAGED OR WORN EXTENSION CORDS ARE NOT TO BE USED AND ARE TO BE REPLACED IMMEDIATELY.
The electrical outlets at the back of the switch box will accept three-hole extension cords.
The electrical receptacles at the back of the switch box will accept either three-prong or two-prong plugs from a router or accessory.
In the event of a malfunction or breakdown, grounding provides the path of least resistance for electrical current in order to reduce the risk of electrical shock. This switch box is equipped with an electrical cord that has an equipment-grounding connector and a grounding plug.
DO NOT modify the plug from the switch if it does not plug into the extension cord. Obtain an extension cord with the proper outlet.
Improper connection of the equipment-grounding conductor can result in risk of an electrical shock. The conductor with insulation that has a green outer surface, with or without yellow stripes, is the equipment grounding conductor. DO NOT CONNECT THE EQUIPMENT-GROUNDING CONDUCTOR TO A LIVE TERMINAL.
Check with a licensed electrician if the grounding instructions are not completely understood, or if there is doubt as to whether the electrical outlet or extension cord is properly grounded.

Do not permit fingers to touch terminals of the plug when inserting or removing the plug from the outlet. Risk of Electric Shock.

Use the switch box only when properly assembled to the router table. Use only with a router that has also been properly installed on a properly assembled router table. Such precautionary safety measures reduce the risk of injury due to loss of control.

Do not exceed a total combined rating of 15 amps when connecting the router and any accessories such as a light or wet/dry vacuum. The switch has a rating of 15 amps.

CONNECTING THE ROUTER POWER CORD TO THE SWITCH

Before connecting router to router table switch box, ensure that the router switch is OFF, and that the router table switch box is unplugged. Such precautionary safety measures reduce the risk of unintentional tool operation.

  1. Plug the router power cord into one of the electrical outlets on the back of the switch case (14).
  2. Form the excess power cord into a coil.
  3. Wrap two pieces of friction tape or strong cord around the coiled cord at opposite sides of the coil.
  4. Allow some slack so that the cord does not become stretched when it is plugged into the switch box outlets.
  5. If desired, at this time plug the power cord from an accessory, such as a wet/dry vac or light, into the other outlet.


Before starting to work, ensure that the power cords from the router, accessories, the switch case, and the extension cord do not and cannot come in contact with the router or any moving parts of the router. Such precautionary safety measures reduce the risk of injury due to loss of control.

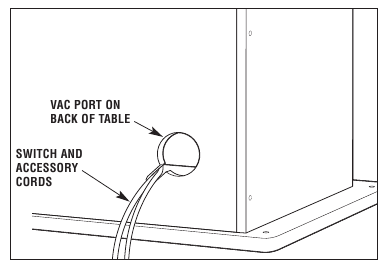

Cord Routing
Route the switch cord and any accessory power cords through the notch in the vacuum port on the back of the router table cabinet.
Cord Routing

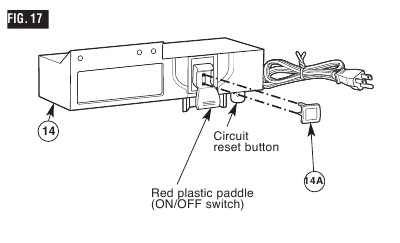

SWITCH OPERATION (Fig. 17)
This section explains the operation and features of the switch box assembly prior to plugging the power cord into a power outlet. The intent is to familiarize the user with the switch operation without actually turning ON the router. The switch box (14) (Fig. 17) incorporates a lockout key (14A) to help prevent unauthorized use by others.
SWITCH OPERATION - Step 1

  • The lockout key (14A) is the yellow part in the top of the red plastic paddle. The yellow lockout key must be completely inserted into the top of the red plastic paddle and switch box (14) before the paddle can be turned ON.
  • The circuit reset button for the switch box (14) is on the bottom right side of the box.


Make sure that the extension cord is not plugged into an electrical outlet before proceeding any further.

  1. Make sure the yellow lockout key (14A) is completely inserted in the top of the red plastic paddle.
  2. To turn the router ON, lift the red plastic paddle up to the ON position.
  3. To turn the router OFF, press the red plastic paddle to the OFF position.

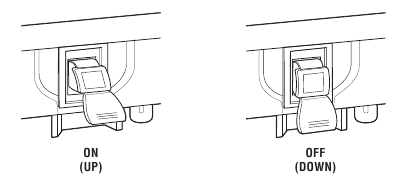

    SWITCH OPERATION - Step 2
  1. To prevent unauthorized use, the switch can be disabled by removing the yellow lockout key (14A) completely from the top of the red plastic paddle.


Before proceeding any further, make sure the switch on the router is in the OFF position and the switch lever is in the OFF position.

Never leave the router unattended while it is running or before it comes to a complete stop.

Before starting to work ensure that the power cords from the router, accessories, the switch case, and the extension cord do not and cannot come in contact with the router or any moving parts of the router. Such precautionary safety measures reduce the risk of injury due to loss of control.
The switch power cord can now be plugged into the extension cord.

ROUTER AND SWITCH OPERATION
This section explains operation of the switch with the power cord plugged into the extension cord. The router will turn ON when the red paddle on the switch box is pulled up to the ON position.

  1. Position the ON/OFF switch on the router in the ON position. On certain routers this will require the use of the switch trigger and "LOCK-ON" button. (Consult router ownerʼs manual.) Make sure the switch on the switch box is in the OFF position when doing this.
  2. To turn the router ON, pull up the red paddle to the ON position.
  3. To turn the router OFF, press the red paddle to the OFF position.

CIRCUIT RESET BUTTON
NOTE: In the event of an overload, the internal switch circuit breaker will trip the switch to the OFF position. This will interrupt power to the router and any accessory plugged into the switch itself. If this occurs, proceed as follows:

  1. Push the red plastic paddle to the OFF position and unplug the switch cord from the wall outlet or extension cord.
  2. Turn router switch to OFF position.
  3. Remove the workpiece from the router table.
  4. Correct the cause of the overload situation. For example, if too many accessories are plugged into the switch, or combined amperage exceeds the switch rating, remove the accessory. Other causes include the removal of too much stock or use of too high a feed rate.
  5. Press the circuit reset button on the bottom of the switch box.
  6. Plug the switch power cord into the wall outlet or extension cord.
  7. Restart the router as described in the section ROUTER AND SWITCH OPERATION on this page.


If the switch case does not work and you have tried to RESET the circuit reset button as described above:

  • Unplug ALL electrical connections.
  • Remove the switch from the router table and obtain a replacement switch by calling BOSCH customer service at 1-877-BOSCH99.

WHEN THE ROUTER TABLE IS NOT IN USE

  1. Make sure the switch is in the OFF position.
  2. Remove the lockout key (14A).
  3. Store the lockout key in a safe location where it is not available to children and other unauthorized persons.
  4. To turn the router ON, pull up the red paddle to the ON position.
  5. Remove the router bit from the router.
  6. Position the router collet assembly below the top of the router table.

NOTE: If the key should become lost or damaged, replacement keys are available by calling BOSCH customer service at 1-877-BOSCH99.

ATTACHING AND USING A WET/DRY VACUUM

Before connecting vacuum to router table switch box, ensure that the vacuum switch is OFF, and that the router table switch box is unplugged. Such precautionary safety measures reduce the risk of unintentional tool operation.

Do not exceed a total combined rating of 15 amps when connecting the router and any accessories such as a light or wet/dry vacuum. The switch has a rating of 15 amps. This router table features two vacuum ports for the attachment of a wet/dry vac with a 2 ⁄ 1 nozzle. Select which port will provide optimal results, based on your 2 ' routing operation:

  • For routing operations where shavings and dust are typically pulled down under the tabletop, such as grooving, use the slotted hole in the back of the table cabinet. This will help prevent a buildup of sawdust and wood chips in the cabinet. To attach, simply push the nozzle into the port.
  • For routing operations where sawdust and wood chips are ejected onto the tabletop, such as many edge-cutting operations, use the vacuum port on the back of the fence. To attach, simply push the nozzle into the port while holding the fence assembly in place.

The vacuum can be plugged into the router table switch and the cord routed through the slot in the vacuum port on the back of the cabinet. Be sure the cord does not interfere with router operation.


Operating the router table without a wet/dry vacuum can result in an excessive buildup of sawdust and wood chips under the fence assembly and guard, reducing the performance of the router table and fence assembly.
RECOMMENDATION:
To maximize performance, regardless of whether a wet/dry vac is being used, remove the sawdust and wood chips from the cabinet and from under the fence assembly and guard as needed.
RECOMMENDATION: It is always a good practice to keep the work area clean. As necessary, remove any accumulated sawdust and wood chips from the top of the router table, as well as from the surrounding work area and floor.

Never place your fingers near a spinning bit or under the guard when the router is plugged in. Such precautionary safety measures reduce the risk of personal injury.

INSTALLING THE ROUTER BIT (CUTTER)

Disconnect the router from the power supply before making adjustments or changing accessories. Such precautionary safety measures reduce the risk of unintentional tool operation. Install the router bit according to the instructions included with your router. Because of the large variation of router bits, certain router bits may not always operate in the desired manner with this router table.
To ensure that the most popular bits will perform satisfactorily, install the bit so that the router collet engages 3/4 of the router bit shank. If the shank of the router bit bottoms out in the collet, back out the router ' bit approximately 1/16 ' to allow for proper tightening.
NEVER INSTALL ROUTER BITS WITH LESS THAN 3/4 OF SHANK ENGAGEMENT IN THE COLLET. ' '

ASSEMBLING THE FEATHERBOARDS (Figs. 18–20)
NOTE: The top/front side of each featherboard is marked to indicate proper feed direction.

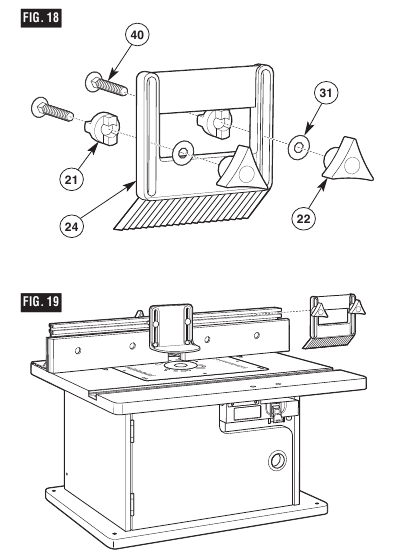

Fence Featherboard (Figs. 18 and 19)
Fence Featherboard

  1. Insert two 1/4-20 x 1 ⁄ 2" carriage bolts (40) through the slotted holes in the featherboard (24). 2 ' See Fig. 18.
  2. Slide a large washer (31) onto each carriage bolt and thread a small clamping knob (22) three or four turns onto each carriage bolt.
  3. To install on the fence, slide a spacer (21) over the head of each carriage bolt, aligning the tabs on the spacer with the slot in the featherboard (Fig. 19). Then slide the carriage bolt heads into the T-slot on the top of the fence.
  4. Secure the featherboard assembly by tightening the knobs, making sure that the tabs on the spacer are in the slot on the fence.

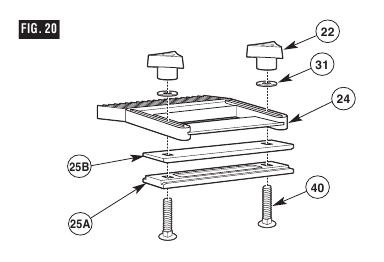

Tabletop Featherboard (Fig. 20)
NOTE: The featherboard slide plate assembly is T-shaped for use in the miter channel and has round indentations on the bottom for the carriage bolt heads.
Tabletop Featherboard

  1. Insert two 1/4-20 x 1 ⁄2" carriage bolts (40) through the holes in both the lower (25A) and upper (25B) 2 ' featherboard slide plate and the slotted holes in the featherboard (24) as shown in Fig. 20.
  2. Slide a large washer (31) onto each carriage bolt and thread a small clamping knob (22) three or four turns onto each carriage bolt.
  3. To install the featherboard in the miter channel, insert the featherboard slide plate into the miter channel. Then slide the featherboard to the desired location on the miter channel and tighten the clamping knobs.

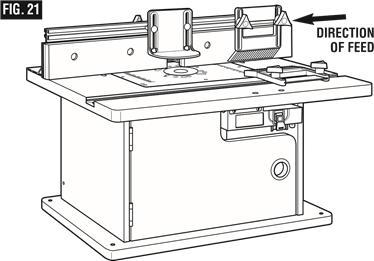

ROUTING USING FEATHERBOARDS (Fig. 21)
Featherboards are helpful in controlling the workpiece while routing and assist in keeping the workpiece flat on the tabletop. The tabletop featherboard, combined with the fence featherboard, helps keep the workpiece pressed against the fence and tabletop. The best location for the featherboards varies according to your application, workpiece size, and other factors.
ROUTING USING FEATHERBOARDS

  1. Loosely install the featherboard(s).
  2. Place the workpiece on the router table so that it is squarely against the fence.
  3. Position both featherboards snugly against the workpiece and tighten the clamping knobs.
  4. The workpiece should move with some resistance but without requiring a great effort.
  5. For wider workpieces, the tabletop featherboard cannot be used. The second featherboard may also be positioned on the fence, if desired.

Additional featherboards, model RA1187, can be purchased from your Bosch retailer.


Never let go of the workpiece when routing until the cut has been completed and the workpiece is completely clear of the bit. Such precautionary safety measures reduce the risk of personal injury and/or property damage.

  • Featherboards aid in holding the workpiece in position when routing on a router table.
  • They are NOT intended to hold the workpiece in place alone when the workpiece is in contact with the bit, or at any other time when the bit is turning.


For accuracy in routing and improved control, the workpiece should be held against the router table fence when routing.

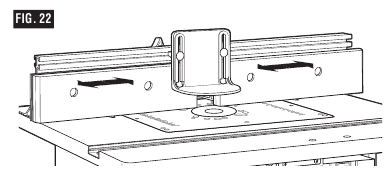

ADJUSTING THE FENCE FACING (Fig. 22)
The right and left fence facings are attached to the front face of the router table fence and can be adjusted inward or outward from the router bit to allow proper clearance for different-sized bits. To provide the best support during routing operations, the fence facings should be as close to the bit as possible without being able to come in contact with the bit (typically about 1/4 from the bit is a suitable distance).
ADJUSTING THE FENCE FACING

  1. Loosen the two clamping knobs on the backs of the fence facings and slide the facings inward or outward from the router bit as needed.

    Always hold the workpiece against the router table fence when routing. Such precautionary safety measures increase the accuracy in routing and improve the control of the workpiece, reducing the risk of personal injury.
  1. Once the fence facings are in the desired position, tighten the clamping knobs SECURELY.

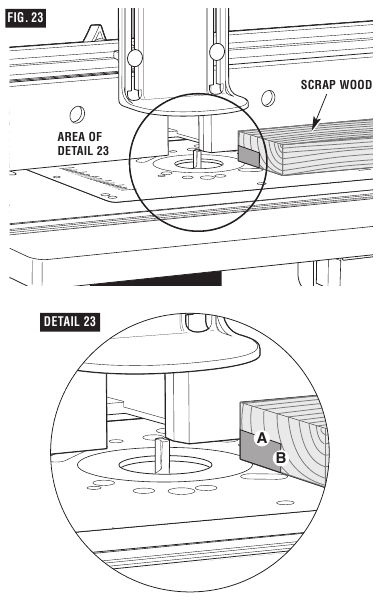

ADJUSTING DEPTH AND HEIGHT OF CUT (Fig. 23)
ADJUSTING DEPTH AND HEIGHT OF CUT

  1. Select a board that is smooth and straight, with good square edges.
  2. Mark lines "A" and "B" on the end of the board, as shown in Detail 23.
    • Line "A" indicates the desired height of cut.
    • Line "B" indicates the desired final depth of cut.
    • The area outlined by "A," "B," and the edge of the board is the area that will be cut away.
  3. Following the instructions that came with your router, adjust the router height of cut until the top of the router bit lines up with line "A. "
  4. If the desired depth of cut can be cut in a single pass, loosen the fence clamping knobs and move the fence forward or backward until the outermost cutting edge of the router bit is aligned with line "B." It may be necessary to reposition the guard to provide clear access.
    NOTE: For deeper cuts, do NOT attempt to make the cut in a single pass. Make multiple shallower passes, progressively moving the fence backward until the desired depth of cut is reached.
  5. Use the scales on the table top as a guide to align the fence; then SECURELY tighten both fence clamping knobs.

    Always make sure that the fence and guard cannot come in contact with the router bit. Failure to do so will result in damage to the router table and can cause personal injury.
  6. Once all adjustments have been made, doublecheck that:
    • The router is SECURELY tightened in the router base.
    • The router bit is SECURELY tightened in the router collet, with at least 3/4 ' shank engagement.
    • The router base is SECURELY tightened to the router mounting plate.
  7. Remove the board from the table.
    NOTE: When making adjustments, use a piece of scrap wood to make trial cuts before making the cut with the actual workpiece.

FULL EDGE CUTTING OR JOINTING (Figs. 24 and 25)
For maximum strength and accuracy, boards that are to be joined together should be smooth and true. The edges should be true to the workpiece surface. You can true the edges using the router table with a straight bit.
NOTE: Use the jointing shim(s) to provide continuous support for the workpiece as it is fed past the router bit.

Always make sure that the fence and guard cannot come in contact with the router bit. Failure to do so will result in damage to the router table and can cause personal injury.

  1. Loosen the clamping knobs on the left fence facing.
  2. Align the slot in the jointing shim(s) with the holes in the fence facing, and slide the jointing shim(s) between the fence and the left fence facing (Fig. 24). Use one jointing shim for a 1/16 offset, or both jointing shims for a 1/8 offset.
    FULL EDGE CUTTING OR JOINTING - Step 1
  3. Install a straight bit in the router.
  4. Position both fence facings so that they clear the bit by 1/4 '.
  5. Tighten the four clamping knobs holding the fence facings in place.
  6. Place a straight edge or a straight piece of wood on the table so that it rests against the left fence facing.
  7. Move the fence back until the straight edge lines up with the cutting edge of the bit and is still in contact with the left fence facing.
  8. Tighten the clamping knobs.
  9. Remove the straight edge or board.
  10. Adjust the height of the bit so that it will cut the complete thickness of the workpiece.
  11. Position the featherboards, if desired. See ROUTING USING FEATHERBOARDS.
  12. Remove the board from the table and lower the overhead guard to the operating position. Tighten the guard clamping knobs SECURELY.
    NOTE: When making adjustments, use a piece of scrap wood to make trial cuts before making the cut with the actual workpiece.
  13. Make sure that both the router and switch box are OFF; then plug the router into the switch box.
  1. While firmly holding a piece of scrap wood against the fence and down against the router table, feed a piece of scrap wood toward the bit in the direction shown by the arrow in Fig. 25.

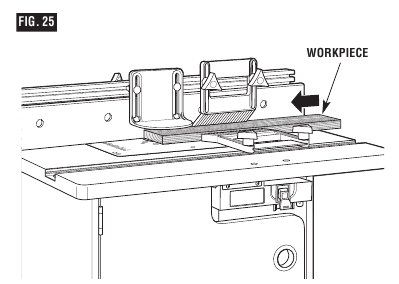

    FULL EDGE CUTTING OR JOINTING - Step 2
  2. Using the switch box, turn the router OFF. If any adjustments are needed, unplug the power cord and repeat steps 6–11 until all adjustments are correct. Once you are satisfied with all settings, make the cut with the actual workpiece.

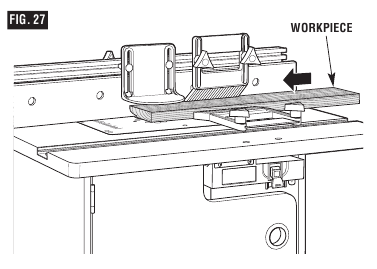

EDGE CUTTING WITH NONPILOTED ROUTER BITS (Figs. 26 and 27)

Disconnect the router from the power supply before making adjustments or changing accessories. Such precautionary safety measures reduce the risk of unintentional tool operation.
NOTE: If the jointing shim is installed, remove it before proceeding. When using nonpiloted router bits, the fence is used to set the depth of cut. For deep cuts, do not try to cut the total depth all in one pass. Repeat the cut, taking multiple smaller cuts.

  1. Install the desired bit in the router.
  2. Follow the instructions to set the desired depth of cut and height of cut (Fig. 26). Make sure that the fence and router are SECURELY in place.
    EDGE CUTTING WITH NONPILOTED ROUTER BITS - Step 1
  3. Position both fence facings so that they clear the bit by 1/4 '.
  4. Tighten the four clamping knobs holding the fence facings in place.
  5. Position the featherboards, if desired. See ROUTING USING FEATHERBOARDS.
  6. Remove the board from the table and lower the overhead guard to the operating position. Tighten the guard clamping knobs SECURELY.
    NOTE: When making adjustments, use a piece of scrap wood to make trial cuts before making the cut with the actual workpiece.
  7. Make sure that both the router and switch box are OFF; then plug the router into the switch box.
  8. While firmly holding a piece of scrap wood against the fence and down against the router table, feed a piece of scrap wood toward the bit in the direction shown by the arrow in Fig. 27.
    EDGE CUTTING WITH NONPILOTED ROUTER BITS - Step 2
  9. Using the switch box, turn the router OFF. If any adjustments are needed, unplug the power cord and repeat steps 2–8 until all adjustments are correct. Once you are satisfied with all settings, make the cut with the actual workpiece.

EDGE CUTTING WITH PILOTED ROUTER BITS (Figs. 28 and 29)

Disconnect the router from the power supply before making adjustments or changing accessories. Such precautionary safety measures reduce the risk of unintentional tool operation.
NOTE: If the jointing shim is installed, remove it before proceeding.

  1. Install the desired piloted bit in the router.

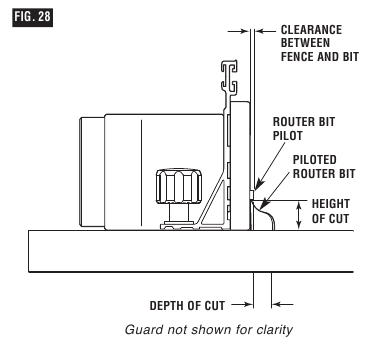

  2. Follow the instructions to set the desired height of cut (Fig. 28). Make sure that the router is SECURELY in place.
    EDGE CUTTING WITH PILOTED ROUTER BITS - Step 1
  3. Adjust the router table fence back just enough that the pilot on the router bit will control the depth of cut. The router bit pilot should just barely protrude past the fence facings. Tighten the fence clamping knobs SECURELY.
  4. Position both fence facings so that they clear the bit by 1/4 '.
  5. Tighten the four clamping knobs holding the fence facings in place.
  6. Remove the board from the table and lower the overhead guard to the operating position. Tighten the guard clamping knobs SECURELY.
    NOTE: When making adjustments, use a piece of scrap wood to make trial cuts before making the cut with the actual workpiece.
  7. Make sure that both the router and switch box are OFF; then plug the router into the switch box.
  8. While firmly holding a piece of scrap wood against the fence and down against the router table, feed a piece of scrap wood toward the bit in the direction shown by the arrow in Fig. 29.
    EDGE CUTTING WITH PILOTED ROUTER BITS - Step 2
  9. Using the switch box, turn the router OFF. If any adjustments are needed, unplug the power cord and repeat steps 2–8 until all adjustments are correct. Once you are satisfied with all settings, make the cut with the actual workpiece.

GROOVING, FLUTING, AND VEINING (Figs. 30 and 31)

Disconnect the router from the power supply before making adjustments or changing accessories. Such precautionary safety measures reduce the risk of unintentional tool operation.
NOTE: If the jointing shim is installed, remove it before proceeding. When performing these routing operations, the use of featherboards and a push shoe is recommended. For best results and maximum accuracy, the side of the workpiece that will be against the fence must be square and straight. If you are using a wet/dry vac, it should be connected to the vac port on the back of the table cabinet.

  1. Install the desired end-cutting bit in the router.

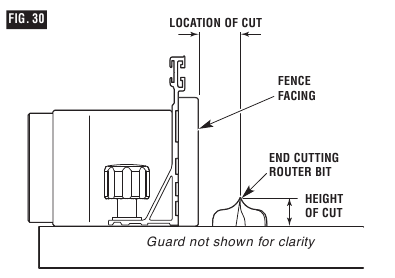

  2. Follow the instructions to set the desired depth of cut (location of cut) and height of cut (Fig. 30). Make sure that the fence and router are SECURELY in place.

    For deep cuts, do not try to cut the total depth (controlled by the router bit height) all in one pass. Repeat the cut, taking smaller cuts until the desired depth is reached.
    GROOVING, FLUTING, AND VEINING - Step 1
  3. Position both fence facings so that they provide continuous support of the workpiece.
  4. Tighten the four clamping knobs holding the fence facings in place.
  5. Position the featherboards, if desired. See ROUTING USING FEATHERBOARDS.
  6. Remove the board from the table and lower the overhead guard to the operating position. Tighten the guard clamping knobs SECURELY.
    NOTE: When making adjustments, use a piece of scrap wood to make trial cuts before making the cut with the actual workpiece.
  7. Make sure that both the router and switch box are OFF; then plug the router into the switch box.

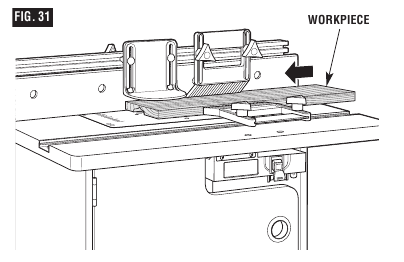

  8. While firmly holding a piece of scrap wood against the fence and down against the router table, feed a piece of scrap wood toward the bit in the direction shown by the arrow in Fig. 31.
    GROOVING, FLUTING, AND VEINING - Step 2
  9. Using the switch box, turn the router OFF. If any adjustments are needed, unplug the power cord and repeat steps 2–8 until all adjustments are correct. Once you are satisfied with all settings, make the cut with the actual workpiece.

USING THE STARTER PIN FOR EDGE FORMING OF CURVES
The starter pin (26) is used instead of the fence for operations that involve routing curves in the workpiece. It should be used only with bits that have pilot bearings. Thread the starter pin into the threaded hole in the mounting plate and tighten securely with a slotted screwdriver (Fig. 32). Attach the starter pin guard (27) to the mounting plate by threading a #10-32 x 3/8 ' truss-head machine screw (28) through the hole in the guard post and into the threaded hole in the mounting plate. Align the guard with the hole in the mounting plate so it is over the bit, and securely fasten the guard in place.
USING THE STARTER PIN FOR EDGE FORMING OF CURVES - Step 1

  • Always use the starter pin guard when routing with the starter pin.

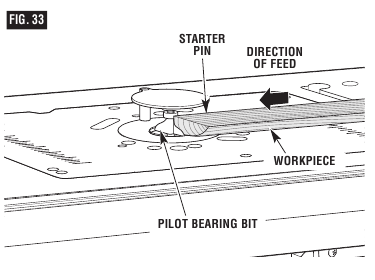

  • When using the starter pin, the feed direction of the workpiece is always right to left across the front of the bit (Fig. 33).
    USING THE STARTER PIN FOR EDGE FORMING OF CURVES - Step 2
  • Set the workpiece against the front of the starter pin and swing it slowly into the bit.
  • While routing, make sure the workpiece is always in contact with the bitʼs pilot bearing.


Use starter pin guard for this type of operation. Do not attempt to rout very small workpieces. Keep fingers clear of spinning bit.

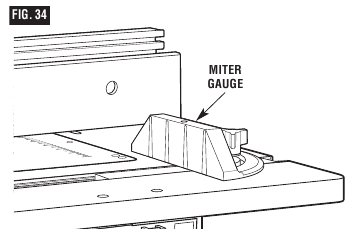

USING A MITER GAUGE (not supplied)
The aluminum T-slot miter gauge slot may be used with most stationary table saw miter gauges that measure 3/4 ' wide x 3/8 ' deep.
NOTE: For ALL routing operations requiring the use of the miter gauge with the fence, BE SURE to align the fence using the scales on the top of the router table before making any cuts. Miters can be cut by loosening the knob on the protractor head, turning the protractor head up to 60° in either direction, and retightening the protractor head knob.
USING A MITER GAUGE

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bosch RA1171 - Table Manual

Advertisement

Need help?

Need help?

Do you have a question about the RA1171 and is the answer not in the manual?

Questions and answers

Table of Contents
