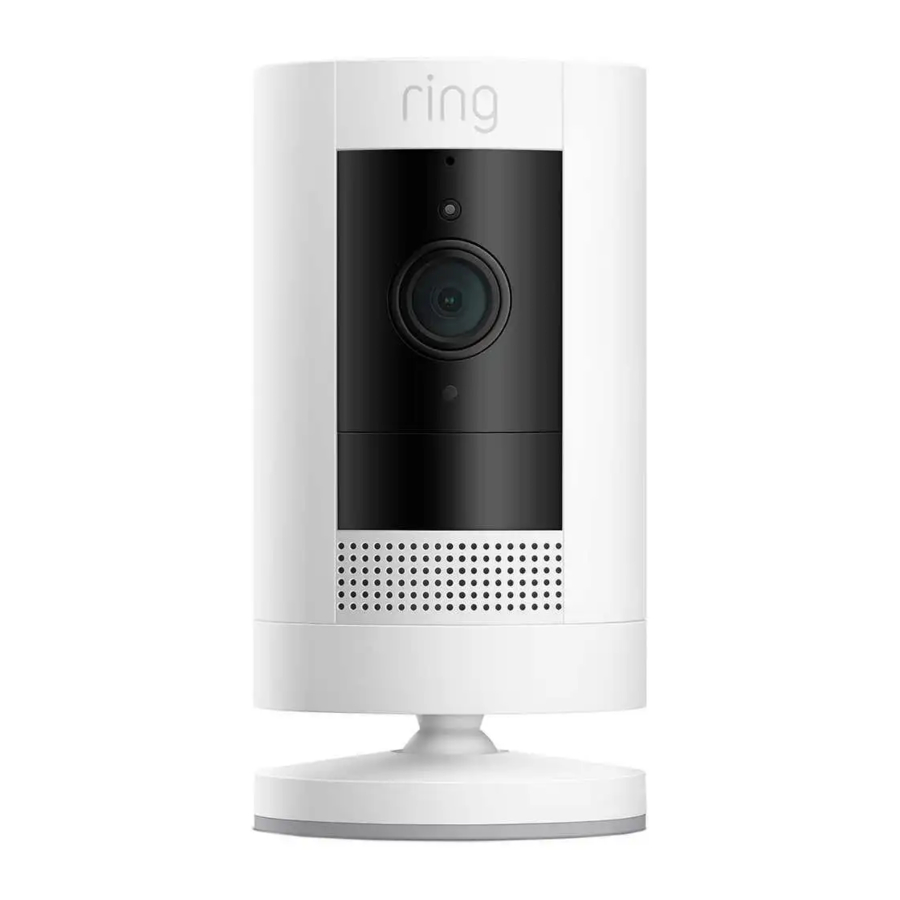

ring Stick Up Cam Battery - Camera Manual

Quick Start

  1. Open the Ring app and select Set Up a Device.
    Then follow the in-app instructions.
  2. Scan this code.
    This identifies your Ring device to make setup fast and easy.

Set your sights on home

At Ring, we invent products that help make neighbors (our customers) feel safer. We created Stick Up Cam to keep you in the know when you're away. With a wireless design, this camera goes anywhere you want, so you stay connected to home— inside and out.

Download the Ring App

The Ring App walks you through setting up and managing your Ring Cam.
Search for "Ring" in one of the app stores below, or visit ring.com/app
www.apple.com
play.google.com

Charge the provided battery

First, fully charge the battery by plugging it into a USB power source using the provided orange cable.
The battery is fully charged when just one LED is lit.
Charge the provided battery

Remove the battery cover

Twist the battery cover counterclockwise to unlock, then remove it from your Stick Up Cam.
Remove the battery cover

Insert the battery

Insert the charged battery into the bottom of your Stick Up Cam until it clicks into place. Now place the battery cover back onto your Stick Up Cam.

Set up your Stick Up Cam in the Ring app

In the Ring app, select Set Up a Device. When prompted, select Security Cams and follow the in-app instructions.

Try it out!

After setup, tap the Live View button in the Ring app to see live video from your Stick Up Cam.

Blue light flashing?

If the light on the front of your Stick Up Cam is flashing after setup, it's updating its software. Do not remove the battery from your Stick Up Cam while the light is flashing!

Choose a location

Stick Up Cam is happy just about anywhere, indoors or out. It comes ready to sit on a flat surface like a table or shelf, but can also be mounted to a wall. Choose a spot where it can provide the view you want.
Choose a location

Wanna mount to a ceiling?

Mount to a ceiling with the Ring Stick Up Cam Mount (sold separately).

How to use Stick Up Cam on a table or shelf

Insert the charged battery, then place it at your chosen location. Your Stick Up Cam is now ready to protect you. Once you're done, check out the live video in the Ring app to make sure you have the view you want.

If you'd like a downward camera angle...

Swivel the base around so that the long side faces the front, then tilt your Stick Up Cam so it points downward.

Install the security screws (optional)

Your Stick Up Cam comes with two optional security screw locations.
One secures the battery compartment, and the other secures the mounting bracket to the base. To use them, open the battery compartment and/or remove the mounting bracket, then pop out the rubber plug(s).
Install the security screws - Step 1
Install the security screws - Step 2

How to install Stick Up Cam on a wall

  1. Swivel the base so the long side faces the front.
  2. Insert and drive the security screw into the base screw location with a standard Phillips-head screwdriver (not included).
  3. Turn your Stick Up Cam over to access the battery compartment screw hole, and drive the second security screw.

How to install Cam on a wall - Step 1
Remove the base. Unscrew it using a standard Phillips-head screwdriver (not included).


Re-attach the base. Screw it into the back of your Stick Up Cam with the "UP" arrow on the bracket pointing upward.

How to install Cam on a wall - Step 2
Remove the mounting bracket. Slide it down to remove it from the base.

How to install Cam on a wall - Step 3
Drive the screws. Hold the bracket against your wall, making sure the "UP" arrow is pointing upward, and mount it with the included screws.


Mount your cam. Guide the grooves in the base onto the hooks on the bracket. Slide Stick Up Cam down to secure it to the wall.


Check it out! Now rotate it to your desired angle, and check out the live video in the Ring app to make sure you have the view you want.

Install the security screws (optional)

Your Stick Up Cam comes with two optional security screw locations.
One secures the mounting bracket to the base, and the other secures the battery compartment.
To access them after you've mounted your Stick Up Cam, rotate it to either side.

To install the base screw...

First, slide your Stick Up Cam off of the mounting bracket.
Pop the rubber plug out of the base, then place Stick Up Cam back on the bracket.
Secure with one of the provided screws.
To install the base screw...

To install the battery compartment screw...

Remove the battery compartment, pop out the rubber plug, then replace the battery compartment on your Stick Up Cam.
Secure with one of the provided screws.
To install the battery compartment screw

Free Ring Protect Plan for 30 days

Your new device comes with a free, 30-day trial of Ring Protect. This comprehensive subscription service lets you review, save, and share your video and photo history anytime so you never miss a moment.*
To continue using Ring Protect after your free trial ends, visit ring.com/protect-plans to compare plans and pricing.

* Your free trial isn't applicable for locations with an existing Ring Protect subscription. See ring.com/protect-plans to learn more about your plan's retention period.

ring.com/help
ring.com/callus
