JADENS PD-A4 - Printer Manual

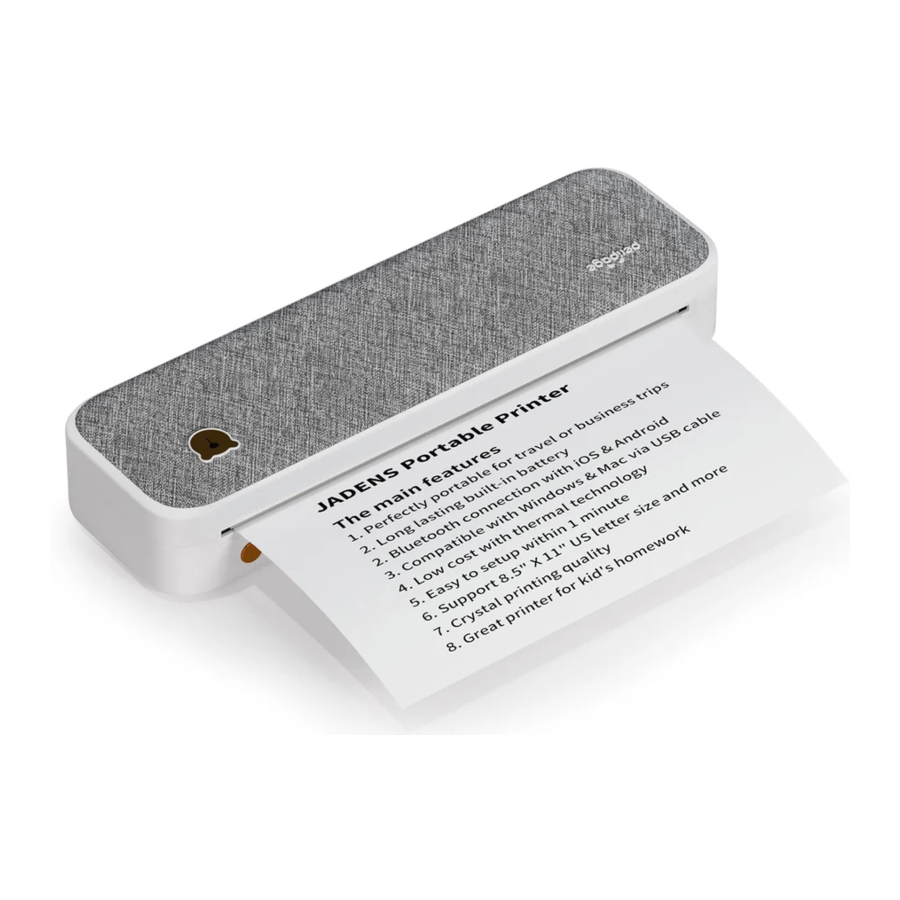

Product Sketch

Product Sketch

  1. Power button
    • Press and hold 2 seconds to turn on/off.
    • Double click the power button to print the QR code to connect the printer with smart phone app.
    • Click once to terminate printing.
  2. Paper change button
    • Press the buttons at the same time to open cover and exchange paper.
  3. Type-C data cable
    • Charged with mobile phone charger or power bank.
      (Input Power: 5V 2A)
    • Connect the printer with computer to print.

Power Indicator Status

  • Green light on: Normal use status/full charged.
  • Red light on: Cover opened/No paper/Over-heat/Charging.
  • Green light flashing: When paper suction mode, please feed fold paper.
  • Red light flashing: Low battery, please charge in time.

Paper Limiter Usage Method


paper width: 57mm to 216mm(2.24 inch to 8.5 inch)

Adjust the paper limiter to fit your paper width.

information Tips:
Auto Power off: The printer will automatically power off after 20 minutes without operation. You can set the timer in the app.

Charging Instructions

  • 5V 2A input, recommend to use mobile phone charger for charging.
  • Recommend to charge the battery fully before using.
  • Please charge it every 3 months if you don't use it for a long time, to avoid the long time natural loss of lithium battery and can not be charged.

Roll Paper Installation Guide

  1. Open the cover

    Press the buttons at the same time to open the cover.
  2. Roll paper direction

    Printing side face up
  3. Load paper
  4. Press to close the cover

Fold Paper Installation Guide

(Make sure there is no roll paper in the printer)

  1. Take out paper
    Fold Paper Installation Guide - Step 1
  2. Loading paper
    Fold Paper Installation Guide - Step 2
  3. Tear paper
    Fold Paper Installation Guide - Step 3

Mobile APP Printing Mobile APP Printing

  1. Press and hold the power button for 2 seconds to turn on the printer and green light on.
  2. Download and install [PrintGo] APP in your smart phone.
  3. Connect your device:
    Option1: Open the App, and search for the connected printer according to the prompts in the App.
    (information Tips: Don't connect printer in the mobile phone Bluetooth settings.)
    Option2: Open the APP, scan the device connection QR code by printing from printer after double clicking the power button.
  4. Select and edit the content to be printed in the App, confirm and print.

App download:

  1. Search for [PrintGo] on Google Play or AppStore.
  2. Scan the following QR code to download APP.

Computer Printing

  1. Press and hold the power button for 2 seconds to turn on the printer.
  2. Connect the printer to computer with the original type-C data cable.
  3. Download and install printer driver.
  4. When printing the required documents, select the printer to print.

Driver installation

Visit the website https://jadens.com/pages/download-video to download and install printer driver. Driver version may be updated, please see latest info at http://support.jadens.com

Clean the Printer Head

  1. Please turn off the printer and open the printer cover and take out the paper.
  2. Dip a cotton cloth or cotton swab with medical alcohol, and wipe gently along the center to the periphery of the printer head.
    Clean the Printer Head
  3. After cleaning the printer head, do not use the printer immediately. Please wait for 1 to 2 minutes, and then use the printer after the alcohol has completely evaporated.

Customer Support

Please kindly contact us if you have any trouble or question when installing and using.

support@jadens.com

1-833-470-2950
at 10am to 10pm EST

support.jadens.com
How can we help you today?

Scan the below QR code to talk with us

Customer Support
Scan or upload this QR code using the WhatsApp camera to add us

Extended Warranty
Please contact warranty@jadens.com to extend the warranty to 3 years with your order No.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download JADENS PD-A4 - Printer Manual
