Bwine F7 MINI - Drone Manual

Download the Bwine Mini APP

• Make sure to use Bwine Mini APP during flight. Scan the following QR code to download the latest version of the APP.

  ( For Android )


  ( For iOS )

• Bwine Mini APP supports Android 6.0 or higher, iOS 10.0.2 or higher, dual-band WiFi (2.4GHz) and 5.8GHz phones.

Video Tutorials

Product Overview

• Bwine F7MINI aircraft can hover and fly stably outdoors and has the function of returning home automatically. The camera uses an upgraded 5GHz Wi-Fi FPV real-time transmission function, equipped with a 120°FOV lens and a 90° adjustable camera, which can stably shoot 2.7K video and 4K ultra-clear images, providing you with a broad field of vision for unforgettable moments.

Product Features Overview

• The F7MINI aircraft adopt a folding design, the body is ultra-light & small, weighing only 245 g. It's easy to carry. The user can use the aircraft to shoot videos and photos.
• With a leading flight control system, the F7MINI aircraft can fly stably, agilely and safely. The auto-return function enables the aircraft to fly back to the position where it takes off and land automatically when the transmitter signal is lost or the battery is low.

Preparing the Aircraft

• All aircraft arms are folded before the aircraft is packaged. Follow the steps below to unfold the aircraft arms.
• Unfold the front arms.
• Unfold the rear arms and then unfold all the propellers.

• Unfold the front arms before unfolding the rear arms.
• Before powering on the aircraft, ensure that the front and rear arms are extended and the aircraft is placed on the horizontal ground.

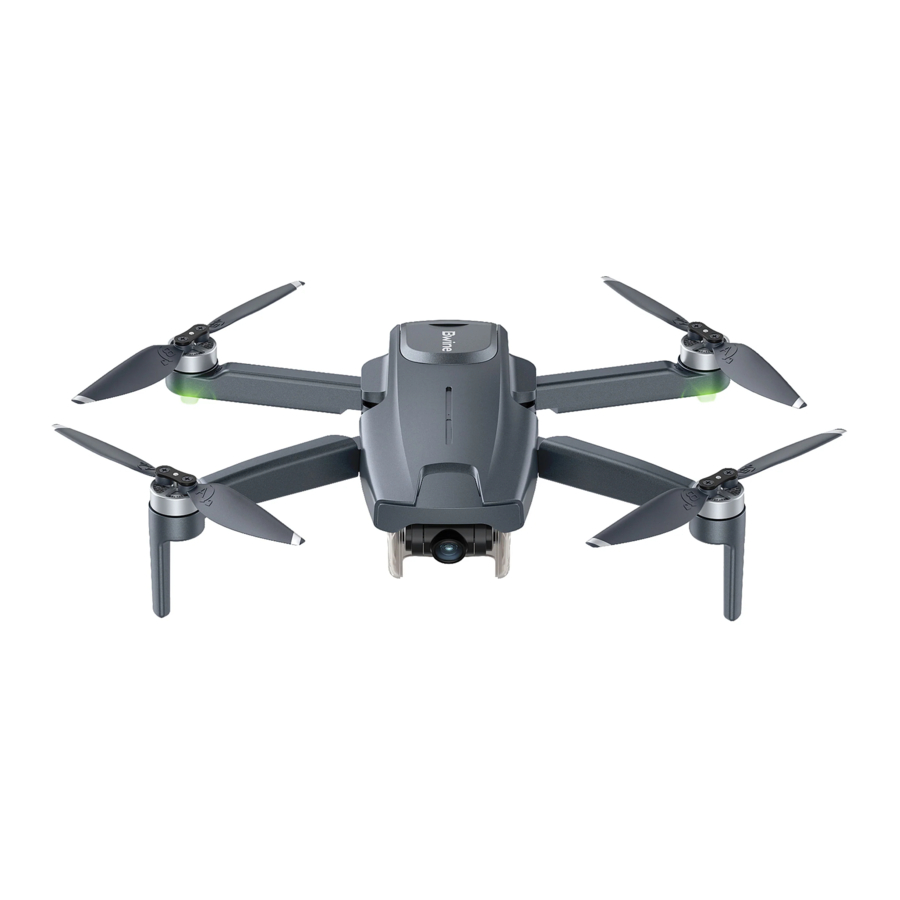

Aircraft Diagram

1. Motor
2. Propellers
3. Intelligent Battery
4. Camera

5. Power Button
6. LED Indicator Light
7. Optical Flow Lens

Transmitter Diagram

1. Shutter Button
   Press once to take a picture.
2. Record Button
   Press once to start recording, and press again to stop recording.
3. Left Control Stick
   American control sticks Use a control stick to control aircraft movements. The left control stick is the throttle lever, which can adjust the aircraft's altitude and nose direction. (Up/Down, Left Rotation/Right Rotation). The Japanese hand's control stick functions is different from the American control sticks.
4. Power Button
   Press once to start, press again to turn off the transmitter.
5. One-button Automatic Hover / One-button Landing
   One-click takeoff: After unlocking the motor, press one button to automatically take off up to a height of about 4.92 feet(1.5 meters).
   One-click landing: Press one button to land the aircraft in flight and the aircraft will descend to the ground at the existing coordinates.
6. Compass Calibration

Aircraft

F7MINI aircraft is mainly composed of a flight controller, communication system, video downlink system, propulsion system and an intelligent flight battery.

Two Gears S peed of the Aircraft

• The F7MINI has two speed ranges: 11.48 ft/s and 22.96 ft/s. The default speed is slow speed. Press the right joystick of the transmitter to switch to fast speed. Press it again to switch to slow speed, which provides diverse flight experience and meets various needs with speed.

• When wind speed is high, high speed flight should be maintained to improve wind resistance effect.
• When flying with fast gear, the pilot should reserve at least 3 meters braking distance to ensure flight safety when flying in windy conditions.
• When using the fast gear for flight, the power of the aircraft will be greatly improved, and the operation of the remote lever on the transmitter will lead to the large flight action of the aircraft. During the actual flight, the pilot reserves enough flying space to ensure the safety of the flight.

Calibration and Aircraft S tatus Indicator

• The F7MINI aircraft's status indicator is located under the rear arm of aircraft to indicate the current status of the flight control system. Please refer to the following table for the status of the flight control system represented by different blinking modes.


The F7MINI aircraft has an automatic return-to-home function in GPS mode, making the aircraft return to the take-off point.
The Return to Home (RTH) function brings the aircraft back to the last recorded home point.
There are three types of RTH: Smart RTH, Low Battery RTH, and Signal Disconnection RTH. If you activate the RTH function under the condition that the aircraft successfully recorded the home point and GPS signal is good, the aircraft will automatically return to the home point and land.

	GPS	Description
Home Point	Using 5 bars of signal	When flying outdoors, the GPS signal icon is displayed with 3 bars or more for the first time, and the take-off location will record the aircraft's current position as the Home Point. During the flight, if the aircraft lands at a new location, the point from which you retook off will become the latest home point, and the aircraft will return to the latest home point.

Smart RTH

• When the pilot needs the aircraft to return home automatically, he can click the smart RTH button on transmitter or tap the return home icon on the Bwine mini APP to activate RTH. During the return home, short press the smart return button on the transmitter or click the return icon on the F7MINI interface again to exit the return home..
• In GPS mode ( stays on), long press to activate, the automatic return function. During the return process, the user can operate the aircraft to ascend, descend, forward, backward, fly to the left or right to avoid obstacles, or long press the return button or push up the throttle stick to cancel return.

• If the flight altitude is below 65ft (20m), the aircraft will automatically ascend to the default return altitude of 65 feet(20 meters) before returning home.

• If the flight altitude is between 65ft to 164ft (20m to 50m), the aircraft will return from the current altitude to the take-off point.( Pay attention to maintaining the flying height to avoid hitting people or obstacles.
• If the flight altitude is between 164ft (50m) to 393ft (120m),the aircraft will directly fly to the default altitude of 164ft (50m), then return to the Home Point.

• The drone is not equipped with an obstacle avoidance function. During the flight, please judge the flight situation reasonably, avoid obstacles in time, and set the corresponding flight and return height according to the flight environment.

• Low Battery RTH
  When the intelligent flight battery is too low or there is not enough power to return home, the user should land the aircraft as soon as possible to avoid damage to the aircraft or other dangers. In order to prevent unnecessary dangers due to insufficient battery power, when the aircraft battery power is low, the intelligent low battery return home function will be automatically triggered. According to the remaining power after returning, there are 2 situations after returning:

1. First-level low battery: the aircraft returns to the point 65 feet(20 meters) above the take off point and hover. After hovering, you can continue flying the aircraft at a height of 65 feet (20 meters)and within a radius of 65 feet(20 meters).

2. Second-level low battery: the aircraft will fly directly from the current altitude to the point above the Home Point and then descend to the ground.


• Must pay attention to the flight altitude when the battery is low. Avoid hitting obstacles due to the low flying altitude when returning home with the second-level low battery. The remaining power after returning is related to the return distance, wind speed, and wind direction.
• When the aircraft is more than 65 feet (20 meters) away from the return point, the return cannot be canceled. You can control the joysticks on the remote control to avoid obstacles.
• When the aircraft is less than 65 feet (20 meters ) away from the return point, the return can be canceled.

• Lost Signal RTH


When the transmitter has low battery or is turned off or loses signal for 10 seconds, the aircraft will enter the auto-return mode and return to the take-off point. If the signal is recovered during the return home process, the aircraft will stop returning and rebind with the transmitter signal, and the remote control can control the aircraft again at this time.
Automatic Return to Home process when signal is lost:

1. Aircraft stores its position when taking off after the GPS signal is successfully received, and records it as the home point.
2. Trigger RTH (triggered by low battery of transmitter, signal loss, etc.).
3. After triggering the Return-to-Home function, the aircraft adjusts the nose direction and starts to return home.
4. The aircraft automatically flies to the top of the home point, then starts to land, and completes the home return.

• When out of control, the aircraft cannot avoid obstacles.
• When the GPS signal is weak, the aircraft cannot return to home automatically.

Intelligent Flight Mode

F7MINI has three intelligent flight modes: Route planning, follow mode and surround mode. According to the user's shooting needs, the operation can be completed by one click, which is simple and fast.

	Route Planning: Aircraft flies along the path marked on the APP.
	Surround Mode: Aircraft orbits around the point already set on the APP at a certain distance.
	Follow Mode: Aircraft will lock onto the user and can track user's movement as he moves.

• Route Planning


1. Make sure you have downloaded Bwine Mini APP on your phone.
2. Connect your smart phone to the aircraft's WiFi.
3. After the aircraft takes off, in GPS mode, tap on the APP.
4. You can find a red circle on the map (limited flight range). Mark the points (up to 10) which you plan to fly the aircraft along within the circle;
5. If you want to reset the marked point or flight path, you can tap "Delete Single Point" or "Delete All".
6. Confirm that the marked points are correct and tap . The aircraft will start waypoint flight.

• The route planning function only works when the GPS signal is strong. Please avoid high buildings, trees, and areas where WiFi signal might be interfered.
• Aircraft is not equipped with obstacle avoidance function. Please use it in open areas free of obstacles.
• Click the delete or route planning function icon to exit the route planning function.

Follow Mode

1. Ensure that the Bwine Mini APP has been downloaded and installed on the smartphone.
2. Turn on the GPS positioning of the smartphone to connect to the aircraft WiFi.
3. After the aircraft takes off in an open environment with good GPS signal, ensure that the flight range is within 32-164 feet(10-50 meters) for the best effect.
4. Tap the icon on the APP interface, and then click the "GPS Follow" icon to enter the follow mode.
5. "Follow me mode is ready" will be displayed on the APP interface and the aircraft turns on the "follow mode". The aircraft tracks your movement as you move.
6. Tap the icon on the APP interface again to exit the "Follow Me" mode.

• The GPS follow-me function only works when the GPS signal is strong. Please avoid high buildings, trees, and areas where WIFI signal might be interfered.
• Aircraft is not equipped with obstacle avoidance function. Please use it in open areas free of obstacles.
• The follow function can only work within a radius and height of 164 feet (50 meters), and it will not be available beyond the specified range.
• To use this function, the positioning function of the mobile phone must be turned on, otherwise the follow mode can't be realized.

Surround Mode

1. Make sure that the Bwine Mini APP has been downloaded and installed on the smartphone.
2. Connect your smartphone to aircraft WiFi.
3. After the aircraft takes off, in GPS mode, it will hover around the target center point.
4. Tap the icon on the APP to activate surround mode.
5. Move the direction joystick to make the aircraft fly forward and backward to set the flight radius of the aircraft (within the range of 16-65 feet ( 5-20m)).
6. Move the direction joystick to left or right to change the flight direction of the aircraft.
7. Tap the on the APP to cancel the surround mode.

• The default surround mode radius is 16 feet (5m), and the maximum radius is 65 feet (20m).
• The flying speed of the surround mode radius depends on the surround mode radius, the larger radius, the faster the flying speed.

Propellers

The propellers on the adjacent motors of the F7MINI are forward and reverse propellers. The two propellers on the same motor are the same, and the propellers are marked with A and B respectively. The rotation directions of the propellers with the same mark are same.

Propellers	Mark A	Mark B
Installation location	Installed to the motor with A mark on the arm	Installed to the motor with B mark on the arm

• Attaching the Propellers
  Taking the camera direction as the front, the left front arm and right rear arm must be equipped with propellers marked with A; the right front arm and left rear arm must be equipped with propellers marked with B. Use a screwdriver to install and make sure the screws are tightened.

• Detaching the Propellers
  Use the screwdriver to detach the propellers from the motors.

• Please use the propellers provided by Bwine, and do not mix propellers of different types.
• Please check whether the propeller is installed correctly and tightly before each flight.
• Before each flight, please check to make sure that the propellers are in good condition.

Intelligent Flight Battery

The F7MINI intelligent flight battery has a capacity of 2100mAh, a rated voltage of 7.6 V, and with charge and discharge management functions. This battery uses high-energy and large -capacity batteries to increase the flight time of the aircraft.

• Battery Features
  Balance Protection: Automatically balance the internal battery cell voltage to protect the battery.
  Overcharge Protection: Overcharge will seriously damage the battery. When the battery is full, remove the charger device in time.
  Over-discharge Protection: Over-discharge will seriously damage the battery. When the battery is not used for flight, the battery will automatically discharge to protect the battery life.
  Short Circuit Protection: When the battery detects a short circuit, the output will be cut off to protect the battery.
  Easy Charging: No need for a dedicated power adapter, just Android charger and US B charging head.

• Please read carefully and strictly abide by Bwine's Requirements in this Manual, Disclaimer and Safety Summary, and information on the battery surface before using the battery. The user shall bear the consequences caused by failure to use it as required.
• Using the Battery
  Install the intelligent flight battery into the battery compartment and push it down until you hear a "click" from the battery buckle, indicating that it pops up and locks. Make sure the battery is in place.

  To remove the battery, press the buckles on both sides of the battery and pull it out of the battery compartment.


• Do not install the battery into the aircraft or remove the battery from the aircraft when the battery power is turned on. Otherwise, the poor contact of the battery interface during the operation may cause the battery to short-circuit and burn the aircraft. The battery must be installed or removed with the battery power turned off.

• Checking Battery Level
  Press and hold the power button, after the indicator light turns on to the fourth, release the power button to check the current battery level.


• Powering On
  Short press the power button and then long press until the indicator light turns on to the fourth, then release the power button. When turned on, the power indicator shows the current battery power.
• Powering Off
  Short press the power button and then long press the power button until the lights are all off, then release the power button. After turning off, the indicator lights are all off.
• Low Temperature Notice
  When using the battery in a low temperature environment, make sure that the battery is fully charged. The discharge capacity of the battery will be reduced when working in a low temperature environment.
  In a low temperature environment, due to the battery output power limitation, the aircraft's wind resistance and flight performance will be reduced. Please be careful.
  You need to be extra cautious when flying in low-temperature and high-altitude environments.
• Charging the Battery
  Before using the intelligent flight battery, be sure to fully charge it.
  Please use a 5V/2A or 5V/3A US B charging plug.
  In the charging state, the battery power indicator will flash and indicate the current charge level; when the fourth indicator light is always on, it indicates that the charging is complete. After charging is complete, please remove the charger in time.

• Daily Preservation Advice
  It is recommended to charge and discharge it once a month, do not store with a full charge, keep 50%-60% of the power, the storage temperature is 10-40°C, and the best storage temperature is 19-21°C.
  If water enters the battery and the battery protection board fails, the battery cannot be used normally. Do not use the battery in rain or in a humid environment, as this may cause the battery to self-ignite or even explode.
  If the battery is squeezed, deformed and dropped from a high altitude, it is forbidden to use it again. Prolonged exposure to high temperatures is forbidden. High temperatures will cause the internal pressure of the battery to become too high and cause an explosion.
  The positive and negative poles are short-circuited for a long time (such as the battery contacts have water, short-circuit caused by hair or foreign objects, etc.). If it exceeds 30 minutes, the protection board IC will fail and disconnect, and the battery cannot be used normally.
  It is forbidden to use fast chargers that exceed the battery's rated power for charging.
  It is recommended to use a 5V/2A or 5V/3A charger.
  If the aircraft has not been used for a month, the battery must be removed to prevent the battery from being discharged for a long time.

Camera Overview

The camera uses an upgraded 5GHz Wi-Fi FPV real-time transmission function, equipped with a 120°FOV lens and a 90° adjustable camera, which can stably shoot 2.7K HD video and 4K ultra-clear images, providing you with a broad field of vision for unforgettable moments.

The aircraft camera angle can be adjusted from -90° to 0°.
Image output format: JPG
Video output format: MP4 Pixel

1. Micro SD card storage settings
   You can choose 2K @ 50 FPS (smooth) or 2.7K @ 25 FPS (default) when saving the video on the Micro SD card.
2. Real-time video transmission
   1. When Micro SD card storage settings is 2.7K @ 25 FPS (default), you can save the video in the Bwine Mini APP with 720P @ 25FPS (default) or 2K@25FPS (high resolution).
   2. When Micro SD card storage settings is 2K @ 50 FPS (smooth), you can save the video in the Bwine Mini APP with 720P @ 25 FPS (default), or 2K @ 25 FPS (high resolution).

• Storing Photos and Videos
  F7MINI is equipped with a Micro SD card slot for storage space expansion.
  Card speed: 10M/s.
  File format: support FAT32 format.
  Memory capacity: a memory card with a memory capacity of 32G or less.


• Check whether the capacity of the memory card is sufficient. If the capacity of the memory card is insufficient, videos and pictures cannot be stored.
• If you cannot save pictures or videos, try formatting the memory card.
• After the memory card is installed, the photo and video files will be stored in the memory card, and the photos and videos will not be stored on the mobile phone.
• You must turn on the aircraft and connect to the aircraft WiFi to copy or download the photos or videos stored in the aircraft memory card to the phone.

Transmitter

Transmitter Profile

• F7MINI transmitter uses the 2.4 GHz frequency band, and the transmitter distance is up to 1640FT (unobstructed and interference-free environment). The folding handle can stably place the mobile device, and the maximum adjustable width is 3.1 inches.
  Transmitter built-in 380mAh capacity battery, charging time is 60 minutes, the longest working time is about 10 hours.

• Controlling the Camera
  Recording Button: Press once to switch to recording mode or start/stop recording. Camera Button: Press once to switch to camera mode or take a photo.


• Joystick Control Aircraft
  The control method of the transmitter joystick is as follows:

• Switching to Japanese Hand's Control Stick

  1. Turn on the aircraft.
  2. Press and hold the record button to turn on the power of the transmitter.
  3. Push up and down the right joystick to pair the transmitter with aircraft.

It will back to the default American control mode when turn off the transmitter and turn on again.

Transmitter (Default Mode)	Aircraft Direction	Remarks
		Push up/down the throttle stick to control the aircraft up and down. Push up and the aircraft rises. Pull down the lever and the aircraft lowers. When released, the joystick is in the middle position and the aircraft remains hovering. When the aircraft takes off, the throttle lever must be pushed up and the aircraft takes off off the ground (please push the stick slowly to prevent the aircraft from suddenly rush up).
		Push the throttle stick left/right to control the aircraft heading. Push the stick to the left and the aircraft will rotate counterclockwise. Push the stick to the right and the aircraft rotates clockwise. In the neutral position, the angular velocity of rotation is zero, and the aircraft does not rotate. The joystick offset corresponds to the angle of the aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the flight speed.
		Push up/down the direction bar to control the aircraft to fly back and forth. Push the stick up and the aircraft leans forward and flies forward. Pull down the lever, the aircraft tilts backwards and flies backwards. The aircraft's front and rear directions remain level in the neutral position. The joystick offset corresponds to the angle of the aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the flight speed.
		Push the direction stick left/right to control the aircraft to fly left and right. Hit the stick to the left, the aircraft tilts to the left and flies to the left. Hit the stick to the right, the aircraft tilts to the right and flies to the right. The left and right directions of the aircraft remain horizontal in the middle position. The joystick offset corresponds to the angle of the aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the flight speed.

The forward direction of the aircraft is based on the direction of the nose.

• Smart RTH Button
  Tap the smart RTH button on the transmitter, and the aircraft will activate the automatic return home function. Tap it again to exit the smart return home. The aircraft is hovering in the mid-air of the return home. At this time, you can operate the joystick to control the aircraft.

Communication Range of Transmitter

When controlling the aircraft, the position and distance between the transmitter and the aircraft should be adjusted in time, and the antenna position should be adjusted to ensure that the aircraft is always within the best communication range.

Install the mobile phone into the transmitter bracket, refer to the aircraft flight direction of the Attitude Indicator in the APP, and the attitude Indicator points straight ahead (perpendicular to the coordinates), indicating that the transmitter is facing the aircraft.

Linking the Transmitter

Before each aircraft flight, you need to link with the transmitter. After the linking is successful, you can control the flight of the aircraft. The steps for the pairing are as follows:

1. Turn on aircraft.
2. Turn on transmitter.
3. Click the left stick of transmitter up to 12 o'clock position and down to 6 o'clock position, and after the aircraft emits a beep, it means the linking is successful.

• Control
  Operate the aircraft through the APP page buttons to realize the functions of the aircraft.
• Video Promotion
  Click to enter the flight YouTube video website, where you can view the flight guidance of the corresponding product.
• Instruction
  Click to view Help manual, Instructions videos and Quick Start.

1. Aircraft Status Indicator Bar
   In flight: Display the flight status of the aircraft and various warning information.
2. GPS Status
   Used to display the GPS signal strength, 3 bars indicate that the GPS signal meets the flight requirements, 1 or 2 bars indicate that the GPS signal is weak, and the flight position needs to be changed.
3. Intelligent Flight Battery Information Bar
   Display the current intelligent flight battery power and voltage, and the power progress bar displays.
4. Transmitter Battery Display
   Display the current transmitter battery power and voltage, and the power progress bar displays.
5. System Settings
   System settings include flight range settings, data recording, English and metric unit switching, route display, reminder information and voice prompt settings.

• Parameter
  Tap the icon to enter parameter interface.


Beginner mode: In this mode, the aircraft's farthest flight distance and altitude is 98ft, and the return altitude is 65ft, so that the aircraft can fly more safely within sight.
Flight distance: Set the longest distance to fly.
Flight altitude: Set the maximum flight altitude.
Storage settings: Set the smooth mode or default mode.
Real-time video transmission: The pixel of the video when it's saved in the Bwine Mini APP. Image transmission parameter display: Click the button to display or close the pixels display of the video real-time image transmission.

• Track


Max mileage: The longest mileage for a single flight.
Max altitude: The highest single flight altitude.
Max speed: The fastest single flight speed.
All flight records: The date, location, distance, duration and maximum altitude of each flight.
Find drone: It shows the last position of the aircraft when it lost the image transmission signal. Open the map to find the position where the aircraft is disconnected from the APP. Export flight log: You can export the flight log data.

Unit: Switch between metric and imperial measurement units.
Voice prompt: turn on or off the aircraft status voice prompt of the APP.
Operation Frequency selection: You can select the frequency band according to your region.
Aircraft information display: APP version, WiFi version, ID number.

6. SD Card
   Check the SD card capacity and formatting.
7. Shooting Mode
   Choose to take a picture or record a video.
8. Shutter / Record Button
   Tap to start shooting photos or recording video.
9. Photo Album
   Tap to view captured videos and photos.
10. Flight Status Parameters
    D N/A: Flying distance
    H N/A: Flying height
    DS N/A: Flying speed
    VS N/A: Ascent/decrease speed
11. Attitude Indicator
    Display information of the orientation of the aircraft, and position of the transmitter.

12. More Features
    GPS Follow: Tap to start the follow me function, the aircraft will use the GPS in the smartphone to follow you.
    VR split screen: Tap to use the VR glasses function.
    Route planning: Tap to enter the map, select a waypoint on the map, and the aircraft will follow the waypoint to fly. Up to 10 waypoints can be set.
    Recording: Tap to trigger the mobile phone end of the APP to start/stop recording.
    Angle adjustment: Tap to adjust the angle of the aircraft camera.
    Joystick: Tap to control the aircraft.
    Fly Around: Tap , the aircraft will fly in a circle with the current position as the center.
13. RTH
    Tap to initiate S mart RTH and have the aircraft return to the last recorded home point and turn off the motors. Tap it again to cancel the return.
14. Auto Takeoff / Landing
    After unlocking the aircraft, click one button to take off, the aircraft can automatically take off to a height of 4.9 feet (1.5m), and after taking off, tap it again to descend the aircraft, you can cancel the descent by push up the throttle stick.
15. Back
    Tap to return to the home screen.

• Before using the Bwine Mini APP, please correctly open the required permissions for the APP:
  1. Allow Bwine Mini to get your location. Otherwise, the following functions cannot be realized.
  2. Allow Bwine Mini to connect to the device on the local network, otherwise you will not be able to see the aircraft image transmission screen.
  3. Allow Bwine Mini to access to albums, recordings and other permissions.
• When using the Bwine Mini APP on your phone, please keep your phone running smoothly and close other background software that you do not use.
• The map used in the map interface needs to be the Internet. Before using this function, do not connect to the aircraft WiFi, and connect the mobile device to the Internet to cache the map.
• Please download the correct APP, otherwise it will not work with the aircraft.

Flight

After the installation preparation is complete, please conduct flight training or training first. It is recommended to conduct training in the beginner mode. Please choose a suitable flight environment when flying. The flight altitude is limited to 393ft, and the local laws and regulations must be strictly observed during flying. Please be sure to read the F7MINI Disclaimer and Safety Summary, and understand the safety precautions before flying.

Flight Environment Requirements

• Do not fly in severe weather such as strong wind, snow, rain, and fog.
• Choose an open place with no obstructions around as the flying field. The compass and GPS signals on the aircraft will be interfered by buildings, mountains, and trees. It is recommended to fly in an open space with a diameter of 32 ft without interference. It is recommended that the flight altitude be greater than 49 ft to avoid ground obstacles and other signal interference from the ground.
• When flying, keep in sight and control, and stay away from obstacles, crowds, etc. When flying on the water surface, please be more than 9 ft above the water surface.
• The transmitter may be interfered by high-voltage lines, communication base stations or transmission towers. Please fly away from these areas.
• Please fly below 6561 ft above sea level to ensure that the air pressure setting function of the aircraft can work normally.
• When GPS is active, the aircraft can achieve stable hovering, intelligent return to home, and intelligent flight functions. When the GPS function fails, these functions cannot be implemented. The aircraft will be unable to hover, drifting away in the direction of the wind.

Pre-Flight Checklist

• Whether the transmitter, intelligent flight battery, and mobile device are fully charged.
• Make sure that the aircraft arms are fully extended. Make sure that the battery compartment cover is fastened firmly and the intelligent flight battery is installed firmly.
• Ensure that the propeller is free from damage, aging, deformation, no foreign matter entang lement, and secure installation.
• Please make sure that GPS is turned on to avoid that it would be lost please fl y outdoor in an open place.
• Whether the 4 motors can start normally after power-on, and whether the rotation speeds are consistent.
• Connect aircraft WiFi with your phone, make sure that you have connected the WiFi name " Bwine_F7_Mini_5G_****** " exactly after APP access right and Internets permission with your phone.
• Make sure the camera is clean.
• If you need to replace parts, be sure to use original parts. The use of non-original accessories may cause danger to the safe use of the aircraft.
• For details on accessory support, please refer to the accessory support page in the appendix of the user manual.

Pairing Transmitter with Aircraft

• Aircraft needs to carry out a series of calibration work before flying, the main purpose is to avoid the accident that the aircraft loses control and crashes caused by the inaccurate GPS signal during the flight.
  Before calibrating the aircraft, you need to pair the transmitter with the aircraft, and connect the smartphone to the aircraft's WiFi.
  1. Unfold the four arms of the aircraft and place them on an open level ground with the nose facing forward and the tail facing the pilot.

  2. Long press the power button of aircraft, the motor light will be on and you will hear a beeping sound, indicating that the aircraft has been turned on.
  3. Press the transmitter power button once to turn on the transmitter.

  4. Push up the left stick of transmitter to 12 o'clock and then pull it down to 6 o'clock to pair the transmitter with the aircraft. After the aircraft emits a "beep" sound, the transmitter light changes from flashing to steady on, which means the pairing is successful.


WiFi Connection

1. Open the phone WiFi setting page.
2. Connect the mobile phone to aircraft's WiFi (name: Bwine_F7_Mini_5G_******).

3. Click on the APP to enter the control interface. WiFi connection is successful if the mobile phone displays the compass calibration screen of the aircraft.


• When the Android phone is connected to aircraft WiFi (named Bwine_F7_Mini_5G_******), as the aircraft WiFi has no network, wait for about 10-40 seconds on the phone WiFi setting page, the phone will pop up the network setting option to ask whether to continue connect to aircraft WiFi, please set it continue to use aircraft WiFi, so as not to cause to the APP to be unable to see the image transmission screen.
• Please turn off the VPN switch of the phone to avoid the APP not being able to see the image transmission screen.
• If the mobile phone is set to priority on internet speed and the APP cannot see the image transmission screen, please set the mobile phone to airplane mode and try. Aircraft image transmission WiFi is 5G, mobile phone WLAN function must be supported; dual-band WiFi, 2.4G+5G, can be applied.
• The aircraft WiFi can only support one mobile device. When one mobile device is connected to the aircraft WiFi, other mobile devices will not be able to connect to the WiFi.

Compass Calibration Before Flight

1. At this time, you need to follow the prompts to pick up the aircraft at a distance of 3.2ft from the ground and rotate the aircraft horizontally for 2-3 laps until the APP interface prompts to enter the vertical calibration. Please hold the aircraft flat when rotating it, otherwise it will increase the number of turns to complete this step.

   Horizontal Calibration
   The indicator changes from slow flashing to fast flashing

2. Pick up the aircraft at a distance of 3.2ft from the ground, and rotate the aircraft 2-3 laps vertically with the camera facing upwards until the prompt of vertical calibration on the APP interface disappears. After the compass calibration is completed, place the aircraft on a level ground.
   Vertical Calibration
   The indicator changes from fast flashing to steady light


• The aircraft must be calibrated with the compass every time it is turned on before it can take off. The aircraft light turns yellow and flashes slowly after pairing, the aircraft can be calibrated in steps ① and ②.
• When the aircraft is flying in a circle or out of control in a complex environment, the aircraft compass calibration is not standard or interfered. Please land the aircraft manually in time to manually calibrate the aircraft (refer to the first step of calibrating the compass).
• When calibrating the aircraft, please open the arm to avoid the influence of the magnetic field of the motor.
• If the user want to calibrate the compass again, press on the transmitter to enter the compass calibration process.

Gyroscope Calibration

1. Make sure the aircraft is placed on level ground.
2. Tap the icon on APP to calibrate the gyroscope or pull the left and right joysticks of the transmitter into 7 o'clock position together.

3. The aircraft starts to calibrate the gyroscope automatically when the rear light fl ashes fast.
4. The gyroscope calibration is completed when the light changes back to the original light state.
5. After the calibration is completed, "Fly" is displayed in the APP, and you can now prepare to take off.

• When the aircraft's flight state is tilted and unstable, please land the aircraft on a level ground for gyroscope/horizontal calibration.
• Horizontal correction cannot be performed when the fuselage is tilted more than 10 degrees.

Starting/Stopping the Motors

• Starting the Motors
  Method 1:
  Push the joysticks into 5 & 7 o'clock position to start the motor. Please release the joysticks immediately after the motor starts rotating.
  Method 2:
  Push up the left joystick of the transmitter.

• Stopping the Motors
  After the motor starts rotating, there are two ways to stop:
  Method 1: After the aircraft takes off, push the throttle stick to the lowest position and operate the aircraft to land until the motor stops, then release the joystick.
  Method 2: When the flight is not taking off, push the joysticks into 5 & 7 o'clock position to start the motor. After the motor is turned off, please release the joystick immediately.


Please choose a flat ground to land.

Automatic Take-off / Automatic Landing

• Automatic take-off
  After the aircraft is calibrated, the user can use the automatic take-off function

  1. Start the motor after confirming the safe take-off conditions.
  2. Click the One-key Takeoff button on transmitter or enter the APP and click to take off.
  3. The aircraft will take off automatically and hover at a distance of 4 ft from the ground.
• Automatic landing
  After the aircraft takes off, users can choose to use the automatic landing function:
  1. Confirm the safe landing conditions, click the One-key Takeoff button on transmitter or enter the APP, click, and long press the button to confirm to enter the automatic landing.

  2. When the aircraft is descending, push the throttle lever of the transmitter up and immediately open it to exit the automatic landing process.

  3. The aircraft landed on the ground and turned off the motors by itself.


How to Take off the Bwine F7MINI Drone

• Basic Flight Steps
  1. Place the aircraft on a flat and open ground with the nose facing forward and the tail facing the pilot.
  2. Power on the aircraft.
  3. Turn on the power of transmitter, push the left joystick up to 12 o'clock and pull it down to 6 o'clock to pair transmitter with aircraft.
  4. Connect the mobile phone to aircraft's WiFi Perform pre-flight inspection. Open the Bwine Mini APP, and enter the camera interface.
  5. After the aircraft compass calibration is completed, in GPS mode, the indicator light on the rear arm of the aircraft turns green and doesn't flash.
  6. Complete the gyroscope calibration.
  7. Unlock the motor.
  8. Slowly push the throttle stick upward to let the aircraft take off smoothly.
  9. Pull down the throttle stick to lower the aircraft.
  10. After landing, pull the throttle stick to the lowest position and hold it until the motor stops.
  11. Turn off the power of aircraft and transmitter in turn after shutdown.

Aerial Photography Tips & Tricks Perform Pre-flight Inspection

• It is recommended to take photos or videos in low-speed.
• Choose sunny and less windy weather for shooting.
• Push the stick as little as possible during the flight to make the aircraft fly smoothly.

Awareness of flight safety is very important for the safety of you, the surrounding people and the environment. Please read the "Safety and Disclaimer Guidelines" carefully.

Specifications

• Parameter
  Model: F7MINI
  Weight (including battery): 245g/8.64oz
  Size: Unfold 27.5X23X5.5cm; Folded 15X8.5X5.5cm
  Flight time: About 30 minutes (The battery working time can be up to 30 min when flying the drone at a constant speed and in windless & 25℃ weather. It is recommended to fly the drone in 10-40 ℃ weather. In a low-temperature environment, the power loss will accelerate. The lower the temperature, the faster the power loss and the shorter the battery life.)
  Battery: 7.6V 2100mAh
  Battery charging time: About 3.5 hours
  Flight altitude: 393 feet Flight distance: 1640 feet
  Maximum Image transmission distance: 1640 feet (In an open and non-interference environment)
  Image transmission frequency: 5G
  Motor model: 1503 brushless motor
  Working temperature: 50°F-104°F (10℃- 40℃)
  Satellite system: GPS /glonas
• Transmitter
  Working frequency: 2.4GHz
  Maximum transmission distance: 1640 feet (In an open and non-interference environment)
  Remote control battery: 3.7V 380mAh
  Transmitter Time: About 10 hours
  Working temperature: 50°F-104°F (10ºC - 40ºC )

Accessories Support

All of the above accessories can be searched and purchased on Amazon, and you can enter the Ruko store to buy them yourself.
Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the aircraft.

Common Problems and Solutions

CONTACT US FOR MORE TECH SUPPORT
Bwinedrone@gmail.com
