Bwine F7GB2 - Drone Manual

Using This Manual

Legend

Recommend

Hints & Tips

Reference

Product list

Aircraft

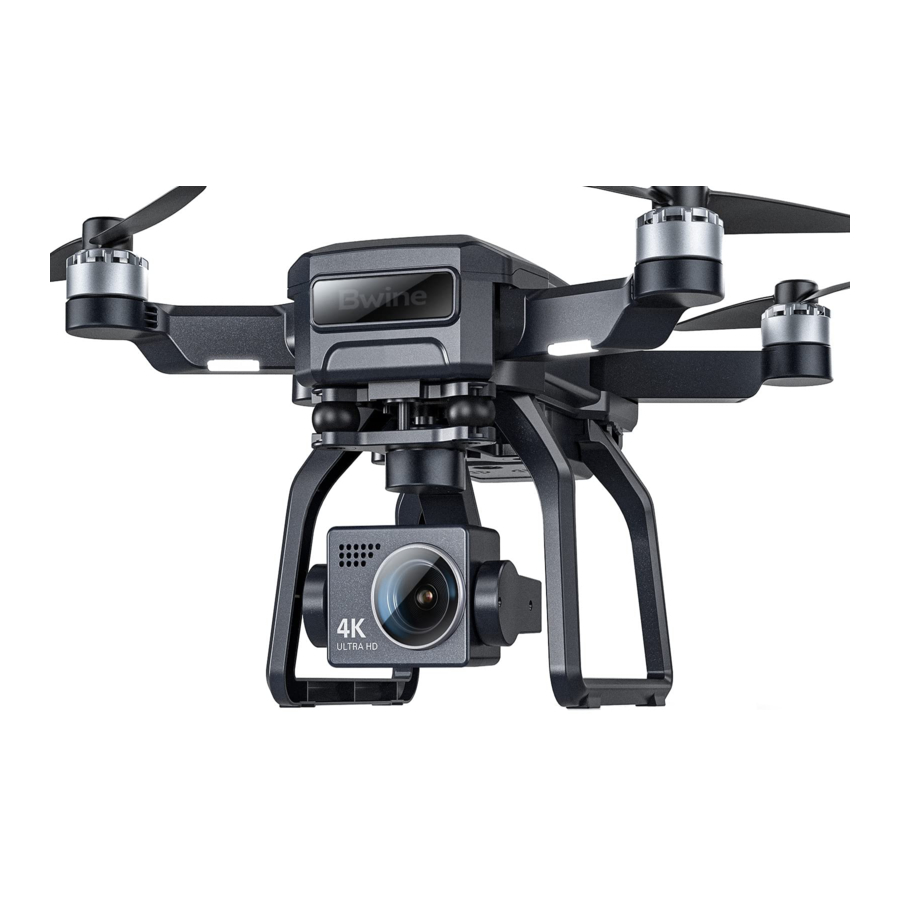

F7GB2 aircraft is mainly composed of a flight controller, communication system, video downlink system, propulsion system, and an intelligent flight battery.

Preparing the Aircraft

All aircraft arms are folded before the aircraft is packaged Follow the steps below to unfold the aircraft arms.

1. Unfold the drone before flying


• Unfold the upper arm before unfolding the lower arm.
• Before powering on the aircraft, ensure that the front and rear arms are extended and the camera is placed on the horizontal ground. Ensure that there is sufficient space under the camera to prevent the camera angle from being stuck to the ground during the self-check

Three Gears Speed of the Aircraft

• The F7GB2 has 3 speed ranges: 14.76 ft/s, 29.53 ft/s, and 39.37 ft/s. The default speed is medium speed. Turn the speed wheel to the right to adjust the flight speed up to 39.37 ft/s, and turn the wheel to the left to slow the aircraft down to 14 76 ft/s, which provides diverse flight experience and meets various needs with speed

• When wind speed is high, high speed flight should be maintained to improve wind resistance effect
• When flying with fast gear, the pilot should reserve at least 3 meters of braking distance to ensure flight safety when flying in windy conditions
• When using the fast gear for flight, the power of the aircraft will be greatly improved, and the operation of the remote lever on the transmitter will lead to the large flight action of the aircraft. During the actual flight, the pilot reserves enough flying space to ensure the safety of the flight.

Calibration and Aircraft Status Indicator

• The F7GB2 aircraft's status indicator is located above the nose landing gear to indicate the current status of the flight control system. Please refer to the following table for the status of the flight control system represented by different blinking modes.

Color of light		Blinking status of the indicator	Conditions
Front and rear are red lights		Continuous blinking of red light	The transmitter has not been paired with the aircraft (please wait for 40 seconds)
Front is pink and rear is green light		Pink and green lights are blinking fast	Compass calibration s required
Front and rear are red lights		Red lights are blinking slowly	Low battery of aircraft
Front is white and rear is green light		White and green lights are blinking slowly	Searching for GPS GPS signal has not been found conditions for takeoff are not met.
Front is white and rear is green light		White and green lights are blinking fast	Gyroscope/level calibration is required
Front is white and rear is green light		White and green lights always turn on	GPS signal is detected and take-off conditions are met

	GPS	Description
Home Point	Using 5 bars of signal	When flying outdoors, the GPS signal icon is displayed with 3 bars or more for the first time, and the take-off location will record the aircraft's current position as the home point. During the flight, if the aircraft lands at a new location, the point from which you retook off will become the latest home point, and the aircraft will return to the latest home point

• Smart RTH
  When the pilot needs the aircraft to return home automatically, he can click the smart RTH button on transmitter or tap the return home icon on the Bwine Drone APP to activate RTH. You can short-press on transmitter or tap on the Bwine Drone APP again to exit RTH during the return. Then you can control the aircraft again.

• When the aircraft executes smart RTH within a radius of 98 feet (30 meters), and the aircraft will return from the current altitude to the take-off point. (Pay attention to maintaining the flying height to avoid hitting people or obstacles)


• When the aircraft returns home 98.43 feet(30 meters) away, if the RTH altitude is set (before flight), the aircraft will ascend to the altitude already set before returning to the take-off point, if the current altitude of the aircraft is lower than the RTH altitude. The aircraft will return to the home point from the current altitude, if the current altitude of the aircraft is higher than the RTH altitude.


• Low Battery RTH
  When the intelligent flight battery is too low or there is not enough power to return home, the user should land the aircraft as soon as possible to avoid damage to the aircraft or other dangers. In order to prevent unnecessary dangers due to insufficient battery power, when the aircraft battery power is low, the intelligent low battery return home function will be automatically triggered. According to the remaining power after returning, there are 2 situations after returning:
  1. First-level low battery: the aircraft returns to the point 98 feet(30 meters) above the take off point and hover. After hovering, you can continue flying the aircraft at a height of 98 feet (30 meters) and within a radius of 30 98 feet(30 meters).
  2. Second-level low battery: the aircraft will fly directly from the current altitude to the point 98 feet(30 meters) above the home point and then descend to the ground.

• Must pay attention to the flight altitude when the battery is low. Avoid hitting obstacles due to the low flying altitude when returning home with the second-level low battery.
• The remaining power after returning is related to the return distance, wind speed, and wind direction.

• Lost Signal RTH
  When the transmitter has low battery or is turned off or loses signal for 6 seconds, the aircraft will enter the auto-return mode and return to the take-off point. If the signal is recovered during the process of returning, the aircraft will stop returning and rebind with the transmitter signal, and the transmitter can control the aircraft again at this time. Automatic return-to-home process when signal is lost:
  1. Aircraft stores its position when taking off after the GPS signal is successfully received, and records it as the home point.
  2. Trigger RTH (triggered by low battery of transmitter, signal loss, etc.).
  3. After triggering the return-to-home function, the aircraft adjusts the nose direction and starts to return home.
  4. The aircraft automatically flies to the top of the home point, then starts to land, and completes the home return

Intelligent Flight Mode

Bwine F7GB2 has 6 intelligent flight modes: mage follow, GPS follow, flying around, VR function, ges photo & ges record and route planning. According to the users shooting needs, the operation can be completed by one click, which is simple and fast.

	Image follow: Aircraft will lock on to the user and can track user's movement ashe moves.
	GPS follow: Aircraft can locate the mobile phone signal source by GPS and move with the location of the mobile phone.
	Flying around: Aircraft or bits around the point already set on the app at a certain distance
	VR function: Click to enter the VR function, the mobile APP will split the screen.
	Ges photo & ges record: Aircraft takes photos or videos according to the manipulation commands of different gestures.
	Route planning: Aircraft flies along the path marked on the app

• Image Follow

  1. Ensure that the Bwine F7GB2 APP has been downloaded and installed on the smart phone.
  2. Tap to active the image follow function from 3-5 meters away from the aircraft.
  3. Tap APP screen to lock the target.
  4. The target needs to take the aircraft as the center and make a slow circle. Then the aircraft will follow the target to rotate and move.

• Please use it in a well lighted place and pay attention to the speed of movement.
• Tap it again to exit this function.

• GPS Follow

  1. Ensure that the Bwine F7GB2 APP has been downloaded and installed on the smart phone
  2. Turn on the GPS positioning of the smart phone to connect to the aircraft WiFi.
  3. After the Aircraft takes off in an open environment with good GPS signal, ensure that the flight range is within 32-164 feet (10-50 meters) for the best effect.
  4. Tap on the APP interface, and then click to enter the GPS follow mode.
  5. "Follow me mode is ready" will be displayed on the APP interface and the aircraft turns on the GPS follow mode. The aircraft tracks your movement as you move.
  6. Tap the icon on the APP interface again to exit the GPS follow mode.

• The GPS follow function only works when the GPS signal is strong. Please avoid high buildings, trees, and areas where WIFI signal might be interfered
• Aircraft is not equipped with obstacle avoidance function. Please use it in open areas free of obstacles

• Flying Around
  1. Ensure that the Bwine Drone APP has been downloaded and installed on the smart phone.
  2. Connect your smart phone to aircraft WiFi.
  3. After the aircraft takes off, hover the drone around the center point of the target in GPS mode
  4. Tap to enter this function, and you can set the aircraft's orbiting radius ( 5-30 meters).
  5. After the setting is completed, the aircraft will fly in a circle with the current position as the center.
  6. Move the direction joystick to cancel the point of interest mode

• If the surrounding radius is less than 6 feet (2 meters), the aircraft will automatically fly up to 6 feet (2 meters).
• Press the camera and video buttons at the same time to activate the "surround mode".

• VR Function
  Click to enter the VR function, the mobile APP will split the screen, put the mobile phone into the prepared VR glasses, and then put on the VR glass, you can experience the immersive real-time image effect of the drone.


• Gesture Photo & Gesture Record

  1. Ensure that the Bwine Drone APP has been downloaded and installed on the smart phone
  2. Connect your smart phone to aircraft WiFi.
  3. After the aircraft takes off, use it in GPS mode
  4. Open the APP, tap on the APP interface, and tap , in this mode, raise your right and to shoulder height and make a scissors hand pose to take pictures.
  5. Tap ,in this mode, raise your right hand to shoulder height and show your palm to the camera to turn on the recording mode.

• Use the mode in a well-lit environment. Tap the button again to exit the gesture mode.
• Gesture mode can only be activated with the right hand

• Route Planning
  1. Ensure that the Bwine Drone APP has been downloaded and installed on the smart phone.
  2. Connect your smart phone to aircraft WiFi.
  3. After the aircraft takes off, in GPS mode, tap on the app.
  4. You can find a red circle on the map (limited flight range). Mark the points (up to 16) which you plan to fly the aircraft along within the circle.
  5. If you want to reset the marked point or flight path, you can tap "Delete Single Point" or ''Delete
  6. Confirm that the marked points are correct and tap "Go" button. The aircraft will start waypoint flight.

• Push the right joystick to cancel the waypoint flight function.

Propeller

The propellers on the adjacent motors of the F7GB2 aircraft are forward and reverse propellers The two propellers on the same motor are the same, and the propellers are marked with A and B respectively. The rotation directions of the propellers with the same mark are different.

Propellers	Mark A	Mark B
Installation location	Installed to the motor with A mark on the arm	Installed to the motor with B mark on the arm

• Attaching the Propellers
  Taking the camera direction as the front, the left front arm and right rear arm must be equipped with propellers marked with A; the right front arm and left rear arm must be equipped with propellers marked with B. Use a screwdriver to install and make sure the screws are tightened.

  1. Propeller "A"replacement
     Take out the propeller "A" with the screw wrench in clockwise direction; then install the new propeller "A" with screw wrench in counter clockwise direction and fix the propeller.
  2. Propeller "B"replacement
     Take out the propeller "B" with the screw wrench in counter clockwise direction; then install the new propeller "B" with screw wrench in clockwise direction and fix the propeller.

• Please use the propellers provided by Bwine, and do not mix propellers of different types
• Please check whether the propeller is installed correctly and tightly before each flight.
• Before each flight, please check to make sure that the propellers are in good condition.
• Make sure that the ESC emits a tone after the aircraft is powered on

Intelligent Flight Battery

The F7GB2 intelligent flight battery has a capacity of 2600mAh, a rated voltage of 11.1 V, and with charge and discharge management functions. This battery uses high energy and large capacity batteries to increase the flight time of the aircraft

• Route Planning
  1. Balance Protection: Automatically balance the internal battery cell voltage to protect the battery.
  2. Overcharge Protection: Overcharge will seriously damage the battery When the battery is full, remove the charger device in time.
  3. Over-discharge Protection: Over-discharge will seriously damage the battery When the battery is not used for flight, the battery will automatically discharge to protect the battery life
  4. Short Circuit Protection: When the battery detects a short circuit, the output will be cut off to protect the battery
  5. Easy Charging: No need for a dedicated power adapter, just Android charger and USB charging head.

• Please read carefully and strictly abide by Bwine requirements in this manual, Disclaimer and Safety Summary, and stickers on the battery surface before using the battery. The user shall bear the consequences caused by failure to use it as required.

• Using the Battery
  1. Install the Intelligent flight battery into the battery compartment and push it down until you hear a "click" from the battery buckle, indicating that it pops up and locks. Make sure the battery is in place

  2. To remove the battery, press the buckles on both sides of the battery and pull it out of the battery compartment

• Do not install the battery into the aircraft or remove the battery from the aircraft when the battery power is turned on. Otherwise, the poor contact of the battery interface during the operation may cause the battery to short-circuit and burn the aircraft. The battery must be installed or removed with the battery power turned off

• Checking Battery Level
  Press and hold the power button, after the indicator light turns on to the fourth, release the power button to check the current battery level.


• Powering On
  Press and hold the power button for 3 seconds, release the power button after the indicator Lights turn on to the fourth. When turned on, the power indicator shows the current battery power.
• Powering Off
  Press and hold the power button for 3 seconds, release the power button after all the indicator lights are off; after turning off, the indicator lights are all off.
• Low Temperature Notice
  When using the battery in a low temperature environment (0ºC to 5ºC), make sure that the battery is fully charged. The discharge capacity of the battery will be reduced when working in a low temperature environment. In a low temperature environment, due to the battery output power limitation, the Aircraft's wind resistance and flight performance will be reduced. Please be careful. You need to be extra cautious when flying in low-temperature and high-altitude environments

• Charging the Battery
  Before using the Intelligent Flight Battery, be sure to fully charge it. Please use a 5V/3A USB charging plug. In the charging state, the battery power indicator will flash and indicate the current charge level; when the fourth indicator light is always on, it indicates that the charging is complete. And the charging time is about 5.5 hours. After charging is complete, please remove the charger in time.


• Daily Preservation Advice
  It is recommended to charge and discharge it once a month, do not store with a full charge, keep 50%-60% of the power, the storage temperature is 10-40ºC, and the best storage temperature is 19-21 ºC. If water enters the battery and the battery protection board fails, the battery cannot be used normally. Do not use the battery in rain or in a humid environment, as this may cause the battery to self-ignite or even explode. If the battery is squeezed, deformed and dropped from a high altitude, it is forbidden to use it again Prolonged exposure to high temperatures is forbidden. High temperatures will cause the internal pressure of the battery to become too high and cause an explosion The positive and negative poles are short-circuited for a long time (such as water coming out of the battery contacts, short-circuit caused by foreign objects in the hair, etc.). fit exceeds 30 minutes, the protection board IC will fail and disconnect, and the battery cannot be used normally. It is forbidden to use fast chargers that exceed the battery's rated power for charging It is recommended to use a 5V/2A or 5V/3A charger. If the aircraft has not been used for a month, the battery must be removed to prevent the battery from being discharged for a long time.

Camera Overview

• Camera overview
  The camera uses an upgraded 5GHz Wi-Fi FPV real-time transmission function, equipped with a 120ºFOV lens and a 90º adjustable camera, which can stably shoot 2.7K & 4K video and 4K ultra-clear images, providing you with a broad field of vision for unforgettable moments.


• Camera Guideline
  1. Remove the gimbal protection cover before use.
  2. Do not place the aircraft on rough ground, grass and sand when turn it on, because the camera will adjust up and down for self-calibration. Please place it in a horizontal position to ensure that there is enough clearance under the camera, otherwise the camera will get stuck.

  3. Do not interfere or pick up the drone with your hands during the self-check of the drone camera. The gimbal doesn't work and can't keep stable in the process of compass calibration.

  4. After the drone is calibrated, place it on a level and vibration-free ground, and the gimbal will automatically enter the working state in about 20 seconds.

Before Start

• It is normal for the camera to tilt when it doesn't work.

• Storing Photos and Videos
  F7GB2 is equipped with a micro SD card slot for storage space expansion. Card speed: 10M/s File format: support FAT32 format. Memory capacity: a memory card with a memory capacity of 128G or less. The phone and the memory card store photos and videos at the same time. If you want a clearer video, please download the video files in the memory card.

• Check whether the capacity of the memory card is sufficient. If the capacity of the memory card is insufficient, videos and pictures cannot be stored.
• If you cannot save pictures or videos, try formatting the memory card
• Do not insert or remove the micro SD card when the aircraft is turned on. Plugging or unplugging the micro SD card or removing the battery while the power is on during recording may cause damage to the micro SD card and loss of stored data.
• You must turn on the aircraft and connect to the aircraft WiFi to copy or download the photos or videos stored in the aircraft memory card to the phone.

Transmitter

Transmitter Profile

• F7 GB2 transmitter uses the 2.4 GHz frequency band, and the transmitter distance is up to 9482FT (unobstructed and interference-free environment). The foldable handle can stably place the mobile device, and the maximum adjustable width is 3.3 inches, transmitter built -in 1500mAh capacity battery, charging time is about 2 hours, the longest working time is about 2 hours.

Using the Transmitter

• Turn On / Off
  Short press the power button once to show the battery percent. If the battery level is too low, charge before use
  Turn On: Short press the power button twice to turn on the transmitter.
  Turn Off: Short press once then long press the power button about 3 seconds to turn off the transmitter.


• Charging the Battery
  Connect the Transmitter Micro USB interface to the charger for charging. It is forbidden to use fast chargers that exceed the rated power of the battery. It is recommended to use 5 V/2A or 5V/3A chargers, do not use more than 5V/3A chargers. When the remote control is charging, the LED screen will indicate the battery level, when fully charged, it will indicate "BAT 100 PCT". It takes approximately 2 hours to fully charge the remote controller.


• Controlling the Camera
  Recording Button: Press once to switch to recording mode or start/stop recording. Camera Buttom: Press once to switch to camera mode or take a photo.


• Joystick Control Aircraft
  American control sticks is default mode. The left control stick is the throttle lever, which can adjust the aircraft's altitude and nose direction. The right control stick is a directional stick that controls the aircraft's flight direction (forward / back / left / right). The Japanese hand's control stick functions in reverse to the American control sticks. (Long-press and turn on transmitter to enter this mode. You will see "RHRND MODE" on the screen when turning on) The control method of the Transmitter joystick is as follows:


• It will back to the default American control mode when turn of the transmitter and turn on again

Transmitter (Default Mode)	Aircraft Direction	Remarks
		Push up/down the throttle stick to control the aircraft up and down Push up and the aircraft rises. Pull down the lever and the aircraft lowers When released, the joystick is in the middle position and the aircraft remains hovering When the aircraft takes off, the throttle lever must be pushed up and the aircraft takes off off the ground (please push the stick slowly to prevent the aircraft from suddenly rush up).
		Push the throttle stick left/right to control the aircraft heading Push the stick to the left and the aircraft will rotate counterclock wise. Push the stick to the right and the aircraft rotates clockwise n the neutral position, the angular velocity of rotation is zero, and the aircraft does not rotate
		Push up/down the direction bar to control the aircraft to fly back and forth. Push the stick up and the aircraft leans forward and flies forward Pull down the lever, the aircraft tilts backwards and flies backwards The aircraft's front and rear directions remain level in the neutral position The joystick offset corresponds to the angle of the aircraft's front and rear tilt. The greater the offset, the greater the tilt angle and the faster the flight speed
		Push the direction stick left/right to control the aircraft to fly left and right. Hit the stick to the left, the aircraft tilts to the left and flies to the left Hit the stick to the right, the aircraft tilts to the right and flies to the right. The left and right directions of the aircraft remain horizontal in the middle position The joystick offset corresponds to the angle of the aircraft left and right tilt The greater the offset, the greater the tilt angle and the faster the flight speed

• Smart RTH Button
  Tap the smart RTH button on the transmitter, and the aircraft will activate the automatic return home function. Tap it again to exit the smart return home. The aircraft is hovering in the mid-air of the return home. At this time, you can operate the joystick to control the aircraft.
• Emergency Stop


• Click once and hold the for 3 seconds to enter into Emergency Stop mode. It only activated when the drone's flight altitude within 5-42ft.

• By using this function the drone motor will stop working immediately thus fall to the ground, which might cause damage. Only use this feature when in emergency so as to reduce the risk of damage or injury

Communication Range of Transmitter

• When controlling the aircraft, the position and distance between the transmitter and the aircraft should be adjusted in time, and the antenna position should be adjusted to ensure that the aircraft is always within the best communication range


Linking the Transmitter

Before each aircraft flight, you need to link with the transmitter. After the linking is successful, you can control the flight of the aircraft. The steps for the pairing are as follows:

• Turn on aircraft
• Turn on transmitter

• Flick the left stick of transmitter up and down, and after the aircraft emits a beep, it means the linking is successful.
• Connect your mobile phone to aircraft's WiFi "Bwine-F7-GB2-******-BRG", tap the APP to enter the control interface; the mobile phone screen displays information such as the transmitter's battery signal and camera screen.

If the connection is successfully, the aircraft light will turn pink

• Before each flight, check the power of the transmitter. The transmitter will "beep" when the battery is low. The transmitter will automatically shut down after 10 minutes of inactivity. Toggle the joystick or press any button to restore the transmitter to its normal working state.
• When using the transmitter handle to hold a mobile device, be sure to press it firmly to prevent the mobile device from slipping off
• Keep the battery at around 3.8-3.9V, and recharge it every 1month or so to keep the battery active.

Bwine Drone App

Home

• After running Bwine Drone App, enter the homepage.


• CONTROLS
  Operate the aircraft through the APP page buttons to realize the functions of the aircraft.
• LEARN TO FLY
  Click to enter the flight YouTube video website, where you can view the flight guidance of the corresponding product.
• GUIDE
  Click to view Help manual, Instructions videos and Quick Start. Long press the position of the non-function icon on the APP homepage to enter the flight log interface, and click the file to share and send.

Controls

• Click CONTROLS to enter control page.


  	Back to main menu		GPS signal		Photo/video switching
  	Auto take off		Remote Battery		Shutter
  	GPS return home		Aircraft Battery		Media galler (one key to share)
  	More functions		SD card status (Pls format the SD card for the 1st time)		Sound recording

• Display information of the orientation of the aircraft, and position of the transmitter.


More Functions

• Click to choose the intelligent flight functions.

  1. Image follow: Tap to frame something on the screen, the aircraft will lock and follow the selected target.
  2. GPS follow: Tap to start the follow me function, the aircraft will use the GPS in the smartphone to follow you.
  3. Around flight: The drone will fly in a circle with the current position as the center.
  4. Music: Add music to the video. Click to enter the music page, select the page and enter the video shooting.
  5. VR: Click this button to use the VR glasses function.
  6. Lens angle: Tap to adjust the lens angle.
  7. Ges photo: Tap this icon to use gestures to control aircraft to take photos.
  8. Ges record: Tap this icon to use gestures to control aircraft recording.
  9. Route rules: Click the change icon to enter the map, select a waypoint on the map, and the aircraft will follow the waypoint to fly. Up to 16 waypoints can be set.
  10. Filter: Tap to select a different filter mode to take photos or videos.
  11. Zoom: Click the button to use the zoom function, up to 5 times zoom

Settings

Click to enter setting page which includes Parameter, Track and PTA Adjust

• Parameter


• The drone must be connected with the app to save the setting.

• Track
  When the drone has connected with app, and drone GPS signal is strong, the drone's location and data can be recorded in the app.

  1. Footprint: The total number of aircraft flying areas
  2. Longest mileage: The longest mileage for a single flight.
  3. Maximum altitude: The highest single flight altitude
  4. Maximum speed: The fastest single flight speed.
  5. All flight records: The date, location, distance, duration and maximum altitude of each flight.
  6. Find drone: Click to open the map surface to search the drone, the last position of lost drone will be showed on the map.


• PTZ Adjust & Gimbal Back to Factory Setting

  1. Click to adjust the gimbal pitch, roll and yaw.
  2. Click to get the gimbal back to factory setting.

• The video resolution can only be adjusted when the drone is inserted a SD card.
• It will take about 20 seconds to change the resolution

Flight

After the installation preparation is complete, please conduct flight training or training first. It is recommended to conduct training in the beginner mode. Please choose a suitable flight environment when flying. The flying altitude is limited to 393ft, and the local laws and regulations must be strictly observed during flight. Please be sure to read the F7 GB2 Disclaimer and Safety Summary, and understand the safety precautions before flying.

Flight Environment Requirements

• Do not fly in severe weather such as strong wind, snow, rain, and fog
• Choose an open place with no obstructions around as the flying field. The compass and GPS signals on the aircraft will be interfered by buildings, mountains, and trees. It is recommended to fly in an open space with a diameter of 32 ft without interference. It is recommended that the flight altitude be greater than 49 ft to avoid ground obstacles and other signal interference from the ground.
• When flying, keep in sight and control, and stay away from obstacles, crowds, etc. When flying on the water surface, please be more than 9 ft above the water surface.
• The transmitter may be interfered by high-voltage lines, communication base stations or transmission towers. Please fly away from these areas.
• Please fly below 6561 ft above sea level to ensure that the air pressure setting function of the aircraft can work normally.
• When GPS is active, the aircraft can achieve stable hovering, intelligent return to home, and intelligent flight functions When the GPS function fails, these functions cannot be implemented. The aircraft will be unable to hover, drifting away in the direction of the wind.

Pre-Flight Checklist

• Whether the transmitter, intelligent flight battery, and mobile device are fully charged.
• Make sure that the aircraft arms are fully extended. Make sure that the battery compartment cover is fastened firmly and the intelligent flight battery is installed firmly.
• Ensure that the propeller is free from damage, aging, deformation, no foreign matter entanglement, and secure installation.
• Please make sure that GPS is turned on to avoid that it would be lost please fly outdoor in an open place
• Whether the 4 motors can start normally after power-on, and whether the rotation speeds are consistent

• Connect drone WiFi with your phone, make sure that you have connected the WIFI name Bwine-F7-GB2- ******-BRG exactly after APP access right and Internets permission with your phone.
• Make sure the camera is clean.
• If you need to replace parts, be sure to use original parts. The use of non-original accessories may cause danger to the safe use of the aircraft
• For details on accessory support, please refer to the accessory support page in the appendix of the user manual.

Calibration Before Flight

Aircraft needs to carry out a series of calibration work before flying, the main purpose is to avoid the accident that the aircraft loses control and crashes caused by the inaccurate GPS signal during the flight.

• Match the aircraft with the transmitter and mobile phone
  1. Remove the gimbal cover, unfold the four arms of the aircraft and place them on an open level ground with the nose facing forward and the tail facing the pilot.
     An open space with a diameter of 32 ft and no interferences.

  2. Long press the power button of aircraft, the motor light will be on and you will hear a beeping sound, indicating that the aircraft has been turned on;
  3. Short press the transmitter power button once to turn on the transmitter switch

  4. After the drone's "beep" sound disappears, the lights turn pink on the front and green on the back, which means the linking is successful. And the transmitter screen displays GPS MODE

  5. Connect the mobile phone to the aircraft's WiFi (name: Bwine-F7-GB2- -BRG), click on the APP to enter the control interface


• When the Android phone is connected to aircraft WiFi (named Bwine-F7-GB2-*****-BRG) as the aircraft WiFi has no network, wait for about 10-40 seconds on the phone's WiFi setting page, the phone will pop up the network setting option to ask whether to continue to connect to aircraft WiFi, please set it continue to use aircraft WiFi, so as not to cause the APP to be unable to see the image transmission screen.
• Please turn off the VPN switch of the phone to avoid the APP not being able to see the image transmission screen
• If the mobile phone is set to priority on internet speed and the APP cannot see the image transmission screen, please set the mobile phone to airplane mode and try
• Aircraft image transmission WiFi is 5.8G, mobile phone WLAN function must be supported dual-band WiFi, 2.4G+5.8G, can be applied

• Compass Calibration
  1. Push the left joystick to the "1 o'clock"and right joystick to the "11 o'clock" direction, the lights of the arms flashes quickly, the lights of the front arms are white and the lights of the rear arms are white pink.

  2. Follow the prompts to pick up the aircraft at a distance of 1m from the ground and rotate the aircraft horizontally for 1-2 laps until the APP interface prompts to enter the vertical calibration.

  3. Pick up the aircraft at a distance of 1m from the ground, and rotate the aircraft 1-2 laps vertically with the camera facing upwards until the prompt of vertical calibration on the APP interface disappears. After the compass calibration is completed, place the Aircraft on a level ground. At this time, the front arm of the aircraft has a white light and the rear arm has a blue light, and the App prompts that the compass calibration is completed.


• Calibrate the gyroscope/level
  1. Make sure that the aircraft is placed on a level ground and there is enough space under the camera.
  2. Push the left joystick to the "11 o'clock"and right joystick to the "1 o'clock" direction, The front white and back green lights flash quickly, the camera automatically back to level and the APP displays horizontal calibration.

  3. The APP prompts that the level calibration is successful, the front light becomes steady white, and the rear light becomes steady blue, which indicating that the calibration is completed
  4. After the calibration is completed, "Fly" is displayed in the APP, and you can now prepare to take off

• When the aircraft's flight state is tilted and unstable, please land the aircraft on a level ground for gyroscope/horizontal calibration.

Starting/Stopping the Motors

• Starting the Motors
  Push the joysticks into 5 & 7'o clock position to start the motor.

• Stopping the Motors
  After the motor starts rotating, there are two ways to stop: Method 1: After the aircraft takes off, push the throttle stick to the lowest position and operate the aircraft to land until the motor stops, then release the joystick Method 2: When the flight is not taking off, Push the joysticks into 5 & 7 o'clock position to start the motor. After the motor is turned off, please release the joystick immediately
• Manually Land the Aircraft
  When you need to manually land the aircraft, continue to push the transmitter throttle lever downwards. Do not release the throttle lever during landing until the aircraft lands and the motors stop

• Please choose a flat ground to land.

Automatic Take-off / Automatic Landing

• Automatic take-off
  After the aircraft is calibrated, users can use the automatic take-off function:

  1. Start the motor after confirming the safe take-off conditions.
  2. Click the One-key Take off button on Transmitter or enter the APP and click 0K to take off.
  3. The aircraft will take off automatically and hover at a distance of 4 ft from the ground.

• It is recommended to fly in an open space with a diameter of 10 meters without interference;
• The flying height must be higher than ground obstacles to avoid collision;
• It is recommended that the flight altitude be greater than 15 meters to avoid other signal interference from the ground.

• Automatic landing
  After the aircraft takes off, users can choose to use the automatic landing function:

  1. Confirm the safe landing conditions, click the One-key Takeoff button on transmitter or enter the APP, click, and long press the button to confirm to enter the automatic landing.
  2. When the aircraft is descending, push the throttle lever of the transmitter up and immediately open it to exit the automatic landing process.
  3. The aircraft landed on the ground and turned off the motors by itself.

How to take off the Bwine Drone App

• Basic Flight Steps
  1. Place the aircraft on a flat and open ground with the nose facing forward and the tail facing the pilot.
  2. Power on the aircraft.
  3. Connect the mobile phone to aircraft's WiFi Bwine-F7-GB2-******-BRG, open the Bwine Drone APP, and enter the camera interface.
  4. After the aircraft calibration is completed, the status indicator is always white before and blue, and the motor is started.
  5. Slowly push the throttle stick upward to let the aircraft take off smoothly
  6. Pull down the throttle stick to lower the aircraft.
  7. After landing, pull the throttle stick to the lowest position and hold it until the motor stops
  8. Turn off the power of aircraft and transmitter in turn after shutdown.

Aerial Photography Tips & Tricks

• Perform pre-flight inspection.
• It is recommended to take photos or videos in low-speed or medium-speed gear.
• Choose sunny and less windy weather for shooting.
• Push the stick as little as possible during the flight to make the aircraft fly smoothly.

• Awareness of flight safety is very important for the safety of you, the surrounding people and the environment. Please read the "Safety and Disclaimer Guidelines" carefully.

Specifications

Accessories Support

All of the above accessories can be searched and purchased on Amazon, you can enter Bwine store to buy them yourself Be sure to use original accessories. The use of non-original accessories may cause unknown danger to the safe use of the Aircraft

CONTACT US FOR MORE TECH SUPPORT
Bwinedrone@gmail.com

Common Problems and Solutions

Documents / Resources

References

• ‎Bwine Mini on the App Store
• Google Play
• Bwine - YouTube

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bwine F7GB2 - Drone Manual
