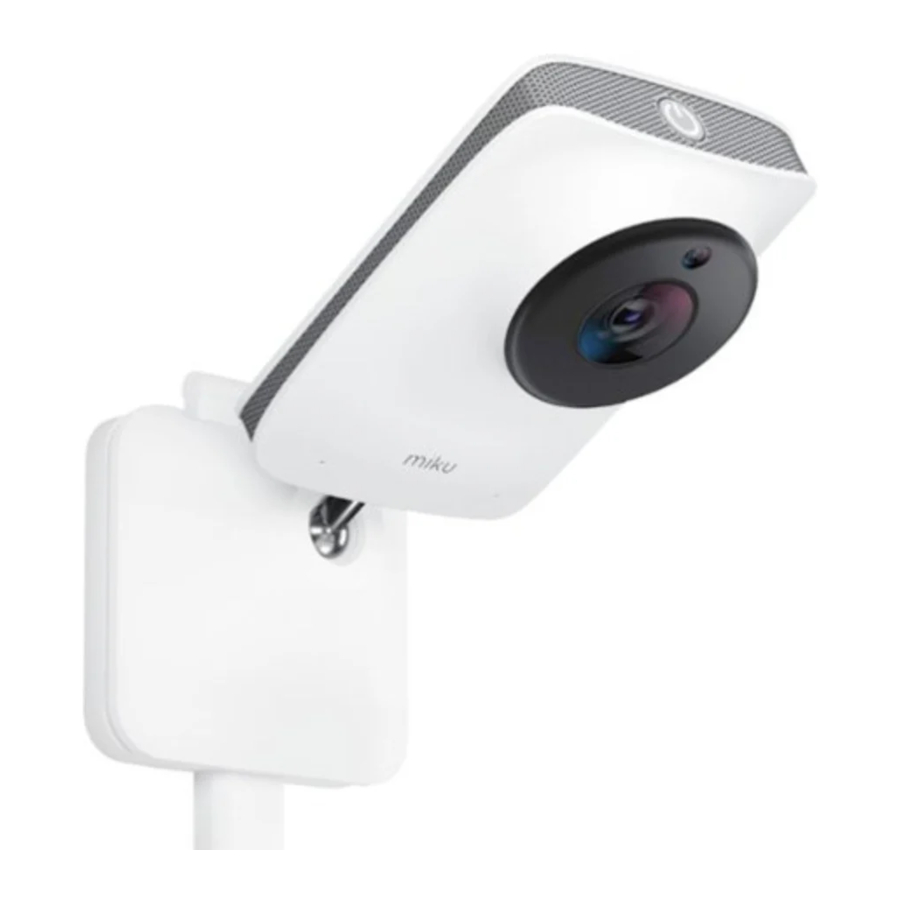

Miku Pro - Baby Monitor Manual

In the box

Optional universal hardware

What you'll need

Note: If you would like to avoid wall installation consider a Miku Stand.
For wall installation videos visit mikucare.com/support

Get the app

https://mikucare.com/app


Download the free Miku app from mikucare.com/app and create your user account. Open the App and follow along to pair your Miku.

Installation for drywall

Position the crib against the preferred wall in the nursery.

CRIB CENTER MUST BE IN A STUD-FREE AREA OF THE WALL. If unsure, use a stud finder. For wall surfaces other than drywall, please go to mikucare.com/support

Using the Measuring Tape, find the center of the crib and mark the wall with a pencil.
Note: Center of crib must be within 6 feet of an electrical outlet.
Then, move the crib away from the wall.

Step on the bottom of the Measuring Tape so it aligns with the floor and your "Crib Center" mark on the wall. Lift the tape up 60 inches and mark at the"Mark Here" indicator.

Take the Wall Mount and place it over your mark at 60 inches so you can see the mark through the center hole.

Use the Level below the Wall Mount to verify that it is level.
Mark the wall through the two holes in the Wall Mount.

Pull and remove the Level from the bottom of the Wall Mount.

Using the Screwdriver, push and twist into the two marks to create larger holes in the drywall. Only push as far as the black tip of the Screwdriver.

Push the Large Drywall Anchors into each hole and screw them until they are flush.
Note: If the wall anchor doesn't screw into the wall easily, you may have hit a stud. In this case no wall anchor is required for that hole.

Position the Wall Mount over the "+" holes of the anchors. Screw the Large Screws into the "+" holes and secure the Wall Mount until flush with the wall.

Unroll the Power Supply and align the top rubber indicator to the center of the Wall Mount, leaving the top of the cord hanging. Using the Screwdriver, push the rubber indicator into the Wall Mount to secure the Power Supply.

Slide the base of the Miku device into the Wall Mount until it clicks.

Plug the Power Supply into the back of the Miku device.

Insert the first Cable Guide into the bottom holes of the Wall Mount, making sure the Cable Guide is covering the cord.

Remove the adhesive strips and adhere to wall.
The adhesive strip needs to cure to the wall for a period of 15 minutes to take hold.
Note: If you need to customize your cord path, you may need to use our Optional Cable Guide Hardware.

Insert each Cable Guide into the bottom holes of the previously installed section. Remove the adhesive strips and adhere to the wall.

One by one, insert each Cable Guide into the bottom holes of the previously installed section for all six sections. Remove the adhesive strips and adhere to the wall.

Connect the Power Cord to the Power Supply.

Plug the Power Cord into the nearest outlet. Once the power button light turns on, you're ready to go.

Safety

STRANGULATION HAZARD — Children have STRANGLED in cords.
NEVER attempt to use cord without the protective covering. Check protective covering before each use to ensure that the cord is not exposed to your child. Immediately discontinue use if protective covering is damaged or broken. This device is designed for indoor use only. This device is designed to be used behind a standard crib and against the wall only. Use only the AC power supply included with your Miku. Adult assembly is required. Keep small parts away from children when assembling. This product cannot replace adult supervision. Ensure your child's health by checking on him/her regularly. This product is not a toy. Do not allow children to play with it.
DISCLAIMER — Miku Baby Monitor was created to help parents track factors that affect their baby's sleep schedule and general wellbeing. It is not intended to cure, treat, or prevent any disease or health condition, including, but not limited to, Sudden Infant Death Syndrome (SIDS). No baby monitor can ever replace you as a caregiver, or substitute for asking your doctor for medical advice.
