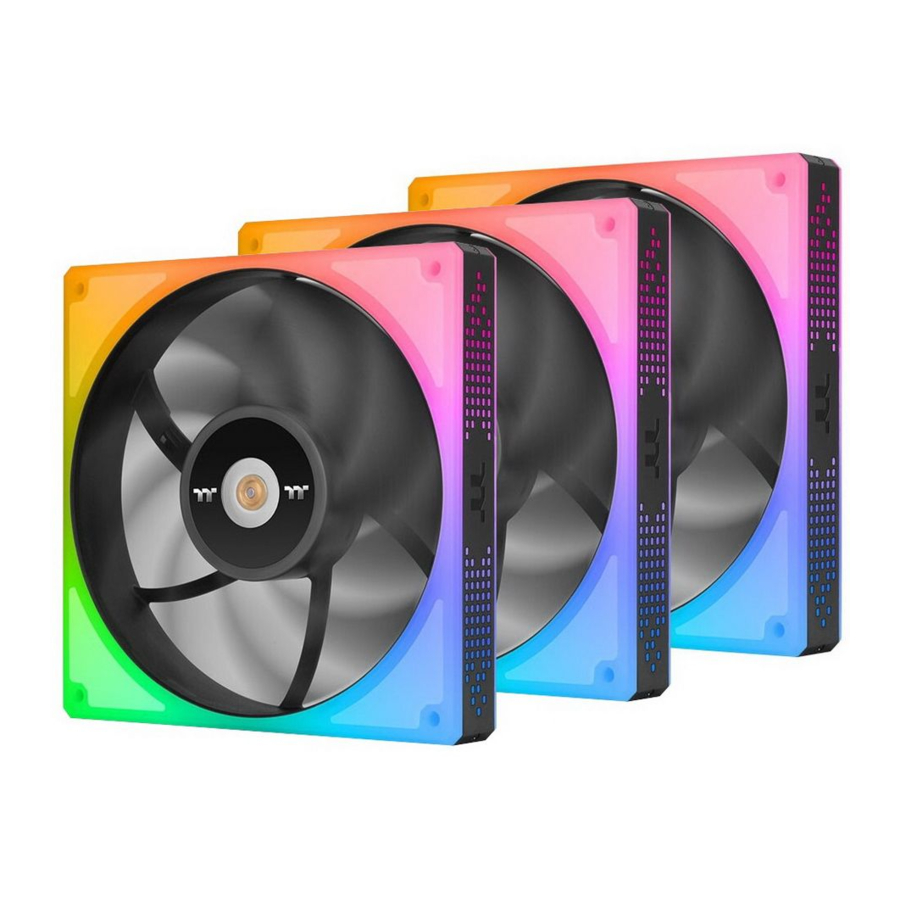

Thermaltake TOUGHFAN RGB (CL-F136-PL14SW-A) - Radiator Fan Manual

Parts List

Installation Guide

Installation Guide - Step 1

  1. Install the fans properly onto the radiator.
    Installation Guide - Step 2
  2. Connect the fans to the controller.
    Installation Guide - Step 3
  3. Set the DIP switch on the back side of the controller to assign the number of the controller
    Installation Guide - Step 4
  4. Connect the controller cable onto the motherboard (USB 2.0 9 pin) and controller.
    Installation Guide - Step 5
  5. Connect the power cable to the 4pin Molex connecter and controller.
    Installation Guide - Step 6
  6. If you want to connect two or more controllers, you can sync the controllers with the bridge connector.

TT RGB Plus Software control interface

Please download TT RGB PLUS from Thermaltake's Official website.
https://www.thermaltake.com/downloads
OS compatibility: Windows 10, Windows 11

TOUGHFAN RGB Radiator Fan Software User Interface

CONNECT - CONTROLLER
CONNECT - CONTROLLER

  1. After installation of TT RGB PLUS, you can find controllers on the "CONNECT" & "CONTROLLER" page.
  2. Click the controller port to make the "TOUGHFAN RGB" fan glow red lighting to pair.
  3. Drag and drop to pair the "TOUGHFAN RGB" fan with controller port.
  4. SAVE: Save the controller pairing settings.
    RESET: Reset the controller pairing.
    RESCAN: Rescan the controllers.

MY PC - FAN SPEED
MY PC - FAN SPEED
TOUGHFAN RGB Radiator Fan Speed Information and PWM Performance Settings.

  1. TOUGHFAN RGB real-time fan speed.
  2. Fan speed settings
    • PERFORMANCE: 0% →100% (1500rpm)
    • SILENT: 0% (300~500rpm)
    • PWM: Set PWM silent (50%) to PWM performance (100%).
  3. NAME: Edit the case fan name.
  4. Controller – Port number.

LIGHTING
LIGHTING

  1. Preview and edit the lighting effect.
  2. Select 23 Lighting Effects.
  3. Lighting effect settings.
  4. Color palette: select lighting color
  5. PATTERN: Set up the color pattern ring.
  6. Profile Settings: New, Copy, Edit, Delete
  7. DEFAULT: Reset the lighting effects.
    CANCEL: Deselect the LEDs for the preview screen.
    APPLY: Execute and store lighting effects.

warningThe software interface may vary with feature updates, please download the latest software version from www.thermaltake.com
