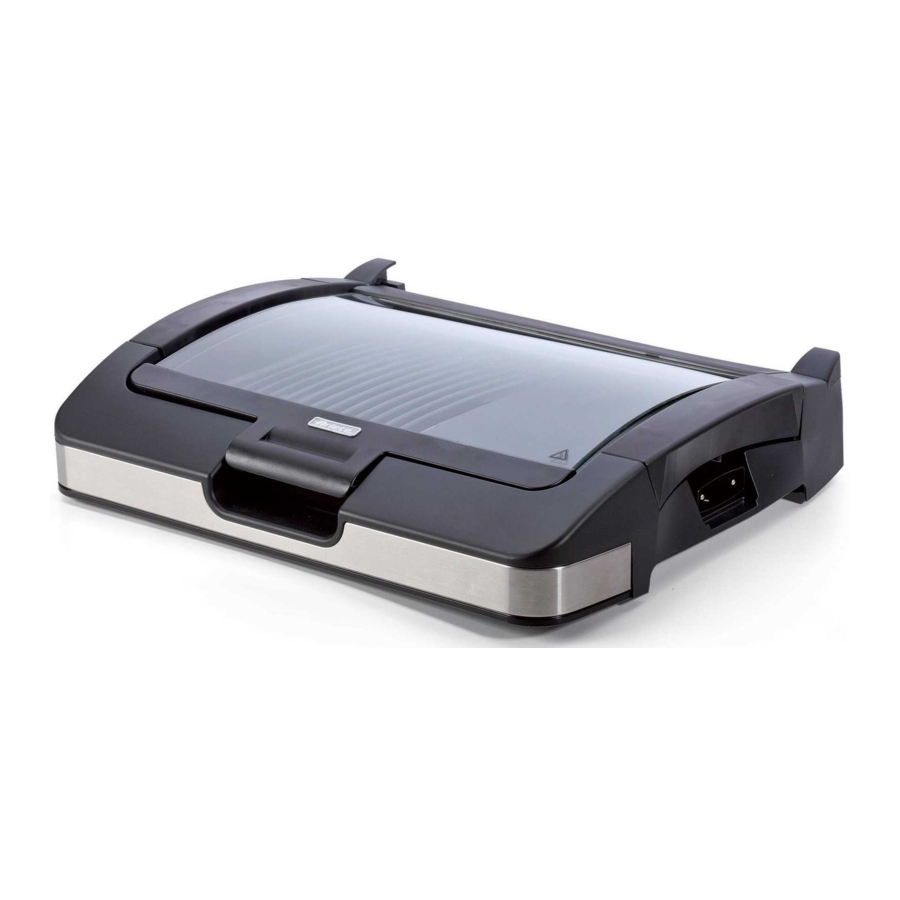

DESCRIPTION OF THE APPLIANCE

DESCRIPTION OF THE APPLIANCE
Fig. 1

Lid
Non-stick plate
Thermostat inlet
Drip tray
Thermostat
Base
Heat-proof handles

INSTRUCTIONS FOR USE

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

Before use, wash the plate (B) and the drip tray (D) in hot water and a mild detergent. Dry them thoroughly.
Fit the drip tray (D) inside the base (F), inserting it first under the lock tab in the back of the base (Fig. 2) before lowering it into place.

Fig. 2

To make clearing easier, cover the tray with foil to collect any fats and juices.
Place the non-stick plate (B) over the drip tray (D) (Fig. 3), making sure that the handles (G) slot perfectly into the special openings in the base (F).

Fig. 3
Place the food for cooking on the plate (B) and insert the lid (A) vertically so that the side pins slot into the special openings at the back of the base (F) (Fig. 4).

Fig. 4

Lower the lid (A), gripping the handle and turning it gently forwards (Fig. 5).

Fig. 5
Insert the thermostat (E) into the inlet (C) on the plate (B) (Fig. 6) and plug the power cord into a mains socket.

Fig. 6
Set the dial on the control thermostat (E) to the required heat setting. To help you, we have included a table with the different settings.

FUNCTION SETTINGS

Settings	Function
1 - 2	Low heat - for keeping food warm.
2 - 3	Medium heat - for cooking foods thoroughly.
3 - 4	High heat - for quick cooking and sealing in the juices.
5	Super heat - for browning foods quickly.

When the indicator light on the thermostat (E) switches off, this means that the required cooking temperature has been reached and that the grill is ready to use.
The indicator light on the thermostat (E) shows that the grill is heating up and it will stay lit until the grill reaches the set temperature; after this, it will switch on and off in cycles during the cooking process to guarantee that the selected temperature is maintained.
The pre-heating time depends on the chosen heat setting. The higher the selected temperature, the longer the preheating time will be.
When cooking is complete, remove the thermostat (E) and lift the lid (A) using the relevant handle.

CLEANING AND MAINTENANCE

NEVER PLACE THE THERMOSTAT, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ONLY WIPE THESE PARTS CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

The lid, the non-stick plate and the drip tray can be washed in warm soapy water or in the top rack of the dishwasher.
The shaped base can be wiped clean with a damp cloth or washed using lukewarm water, a mild detergent and a soft cloth.

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS BEFORE USE.

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.
Never leave the appliance unattended when connected to the power supply; unplug it after every use.
Never place the appliance on or close to sources of heat.
Always place the appliance on a flat, level surface during use.
Never leave the appliance exposed to the elements (rain, sun, etc....).
Make sure that the power cord does not come into contact with hot surfaces.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
NEVER PLACE THE THERMOSTAT, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ONLY WIPE THESE PARTS CLEAN WITH A DAMP CLOTH.
ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.
Never use the thermostat with other appliances.
The appliance must not be powered through external timers or using separate, remote-controlled systems.
We recommend using an extractor fan or that you ventilate the area thoroughly when using the appliance indoors.
Never use the appliance in the vicinity of walls or curtains.
This appliance must never be used with coal or similar solid fuel.
Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.
To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.
Never use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.
To prevent any risks, if the power cord is damaged, it must be replaced by the manufacturer, its Technical Assistance Service or a similarly qualified person.
This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.
This appliance conforms to the 2006/95/EC and EMC 2004/108/EC directives.
Any changes to this product that have not been expressly authorised by the manufacturer may lead to the user's guarantee being rendered null and void.
In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.
Packaging must never be left within the reach of children since it is potentially dangerous.
